Motu Details

Property	Value
Rupture Count	2
Ruptures Above Sect Min Mag	2
Ruptures w/ Nonzero Rates	1
Magnitude Range	[7.05, 7.22]
Length Range	[21, 30] km
Total Rate	1.21993275E-4 /yr
Multi-Fault Rate	1.21993275E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	1

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

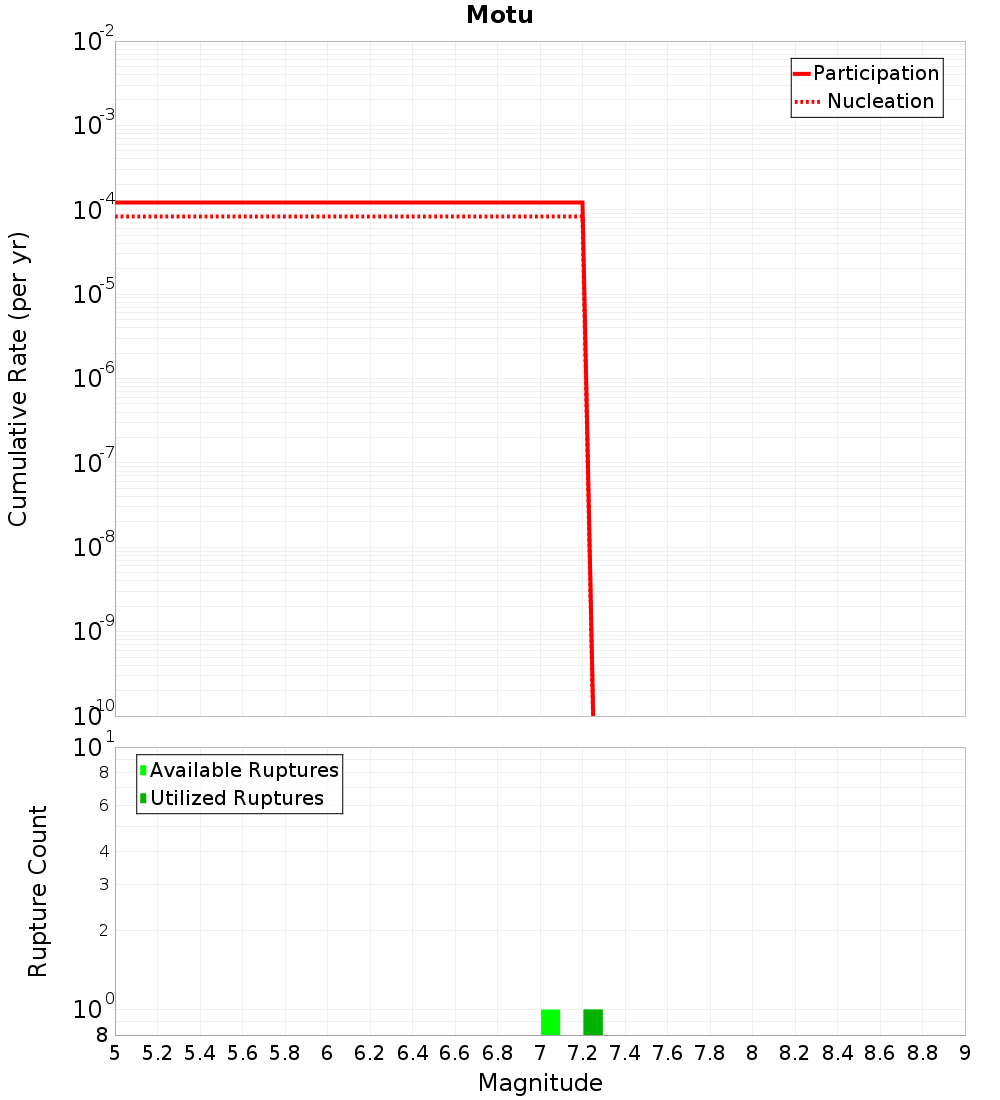

Magnitude-Frequency Distribution

Incremental	Cumulative

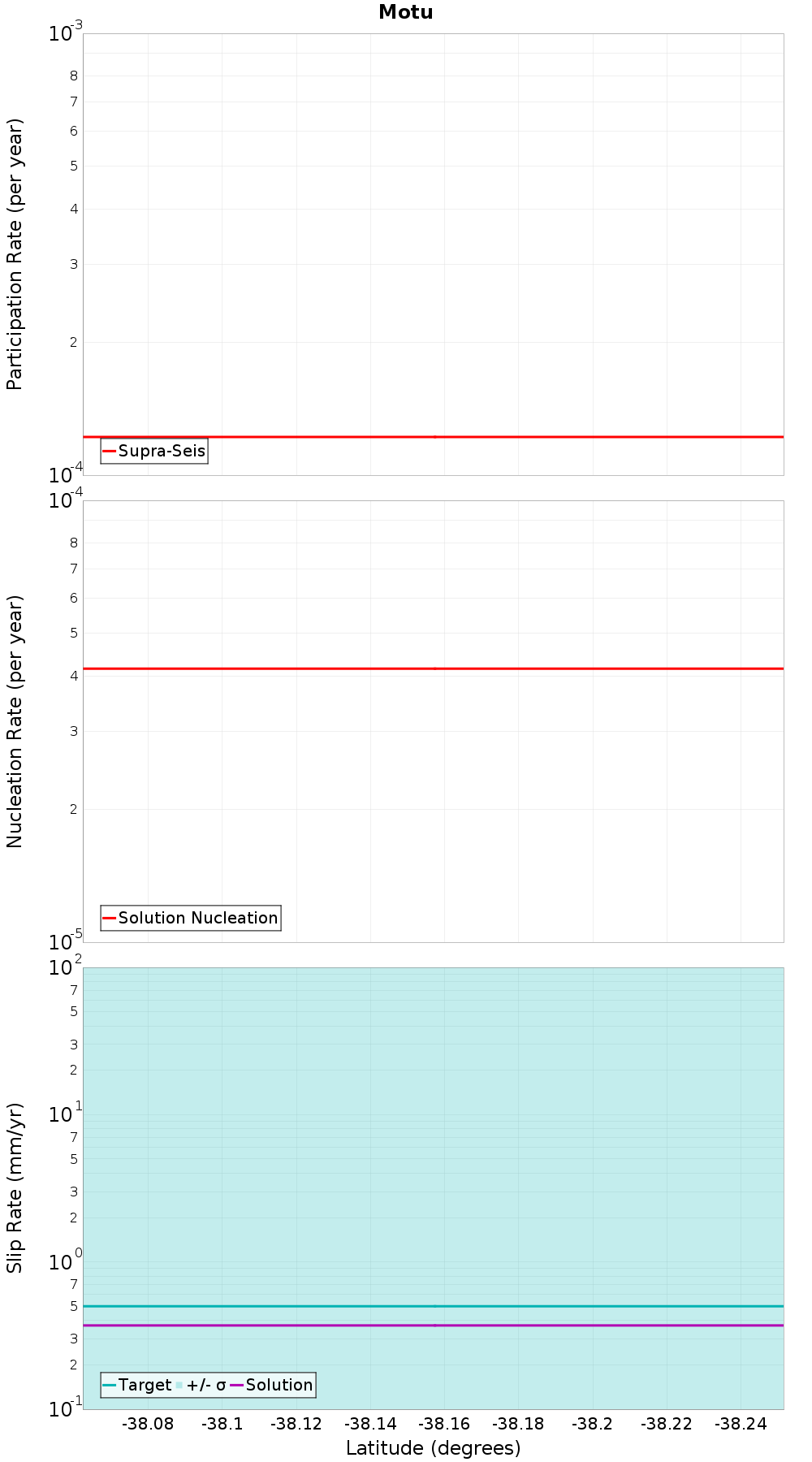

Along-Strike Values

Moment-Rates and b-Values

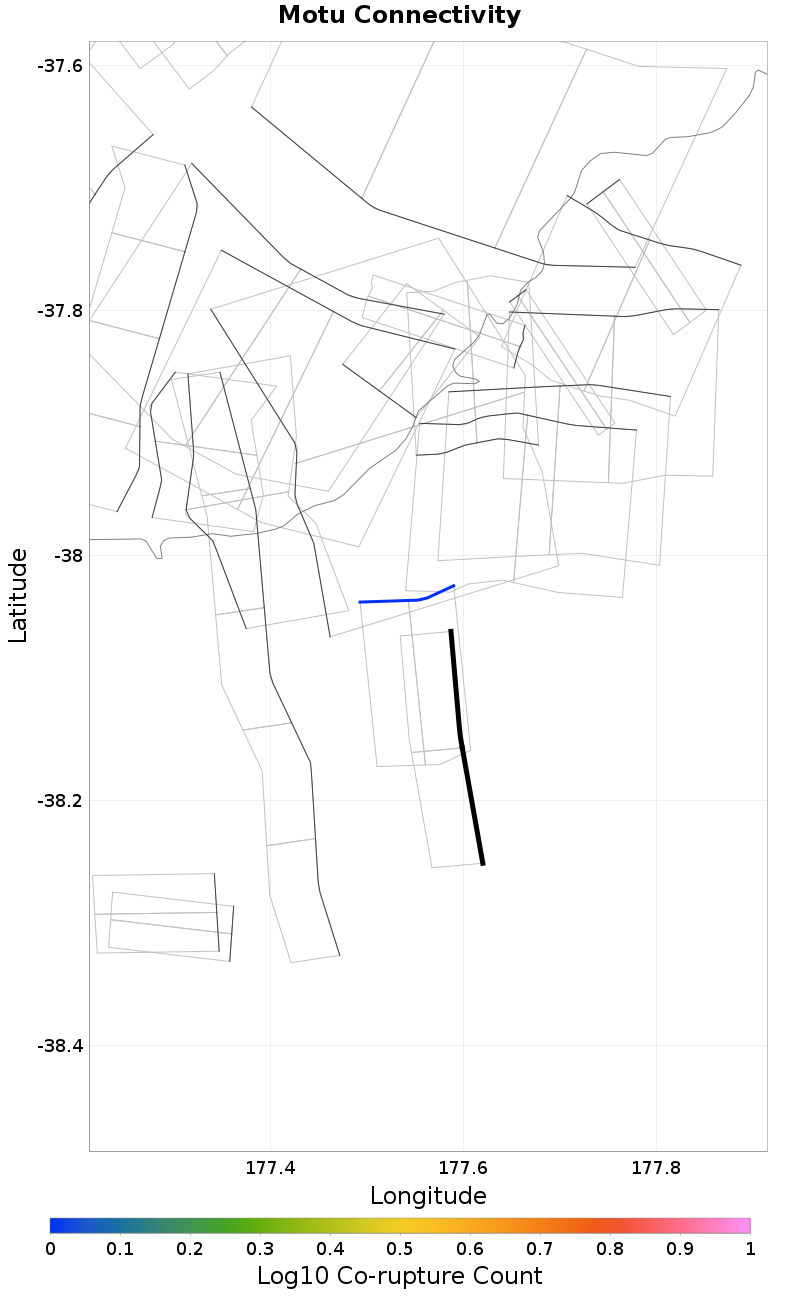

Connectivity

Nearby Sections

Fault Section
Raukumara 16, 0.14 km away
Opape 1, 2.39 km away
Raukumara 18, 4.15 km away
Tirohanga, 5.2 km away
Motu River, 7.65 km away
Ohae 2, 9.05 km away
Kotare - Moutuhora, 13.58 km away
Ohae 1, 14.86 km away

Raukumara 16, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	1.21993275E-4

Opape 1, 2.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 18, 4.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tirohanga, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 7.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kotare - Moutuhora, 13.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
