Alpine: Resolution - Five Fingers Details
| Property | Value |
|---|---|
| Rupture Count | 16,772 |
| Ruptures Above Sect Min Mag | 16,765 |
| Ruptures w/ Nonzero Rates | 121 |
| Magnitude Range | [6.84, 8.60] |
| Length Range | [20, 1,082] km |
| Total Rate | 2.0608265E-4 /yr |
| Multi-Fault Rate | 2.0608265E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 100 |
Table Of Contents

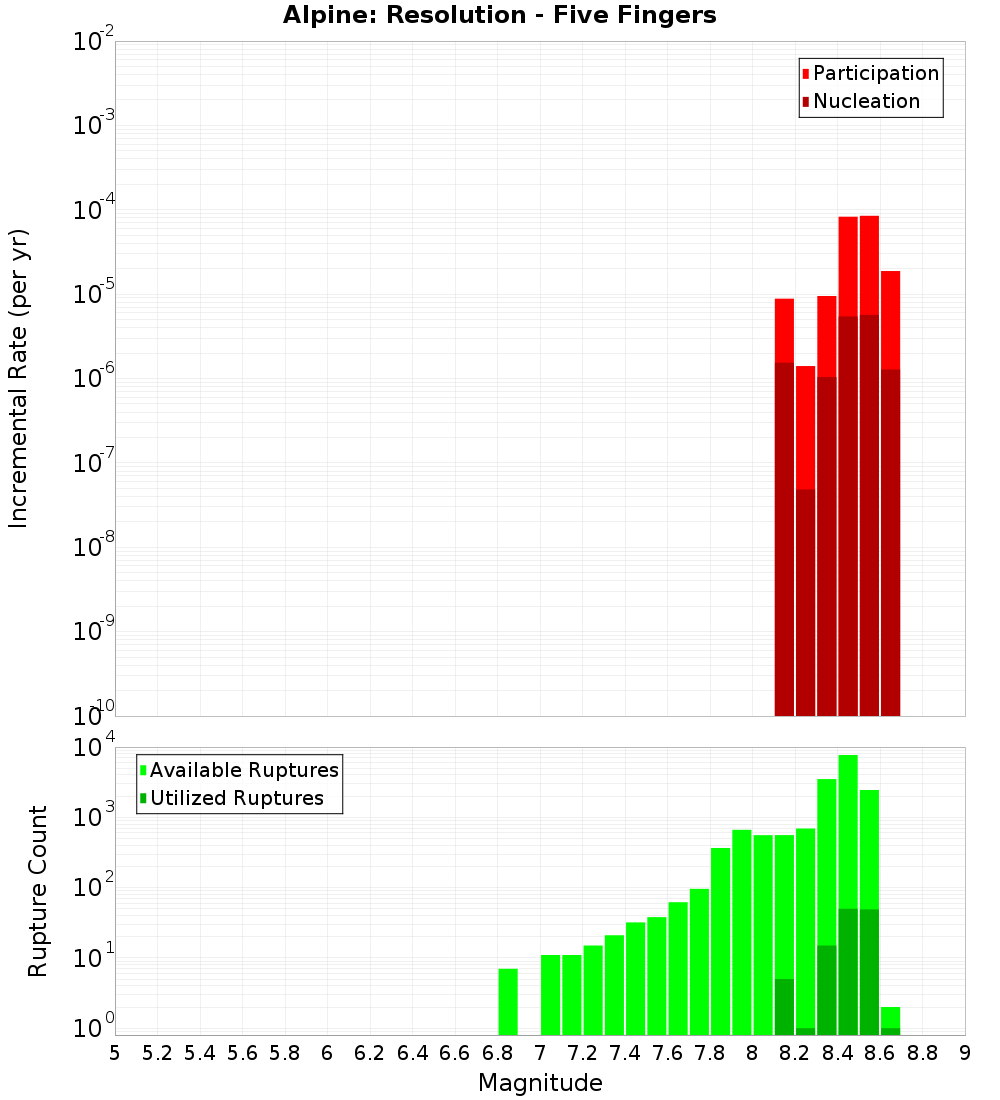

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

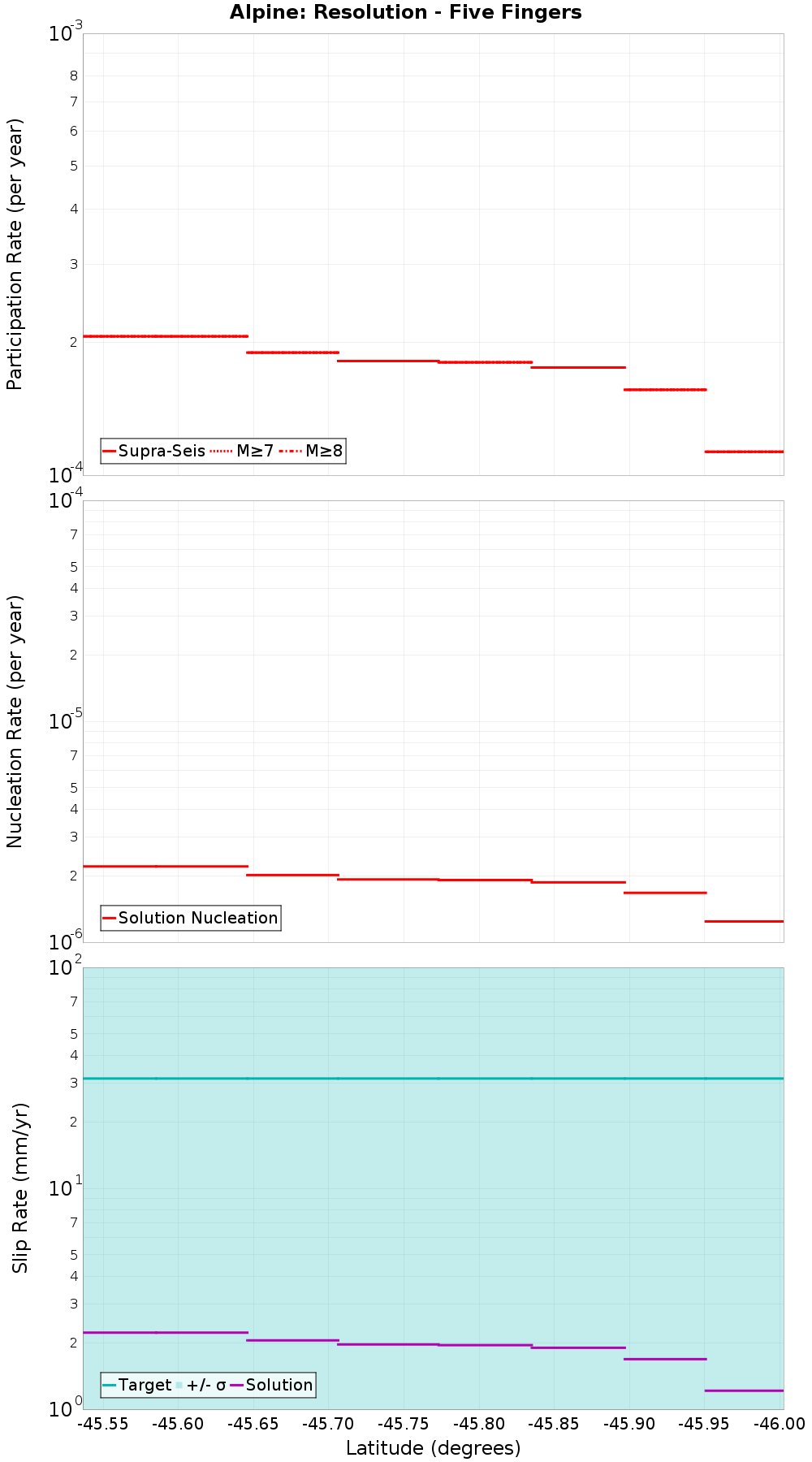

Along-Strike Values

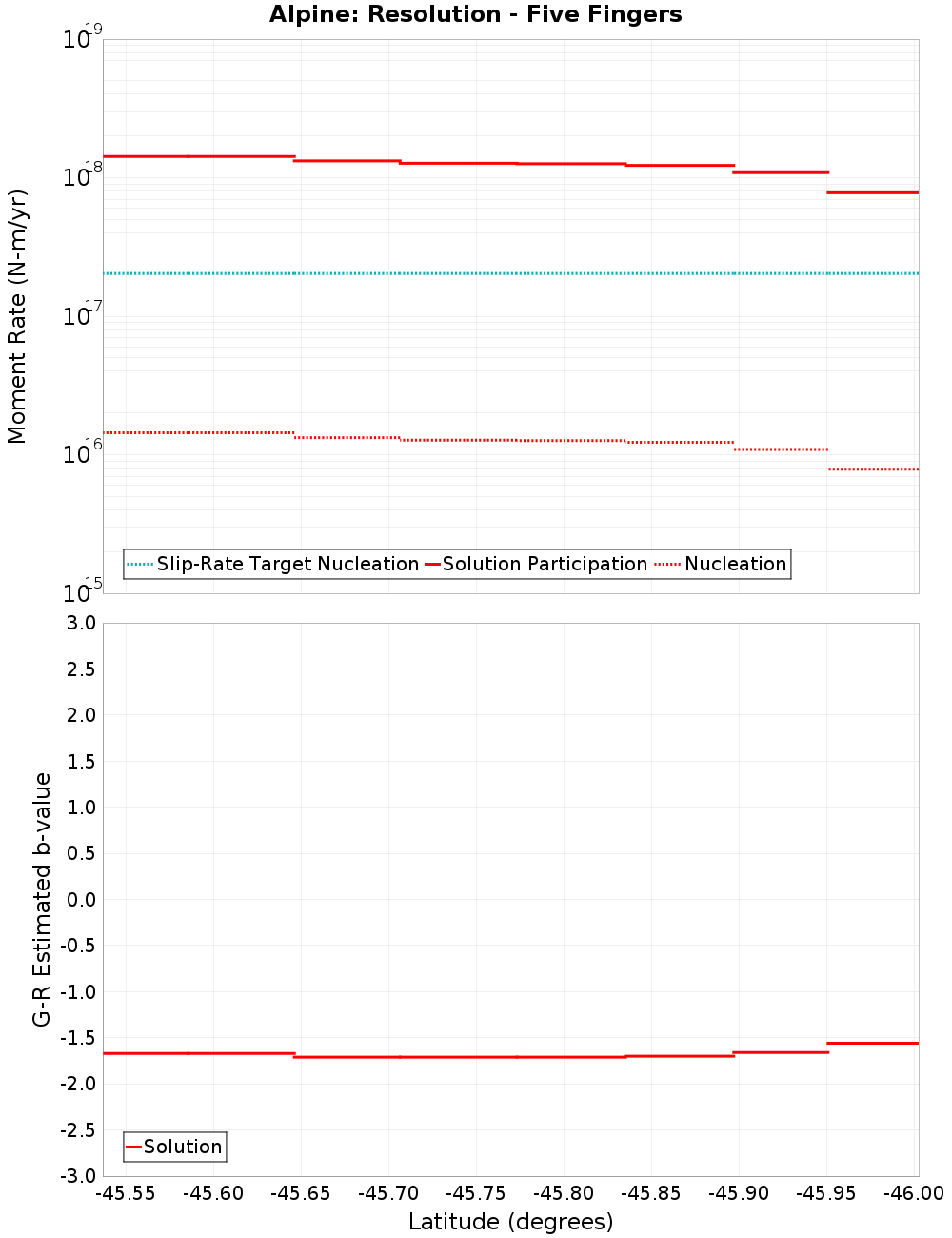

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| South Wedge 5, 0.09 km away |
| South Wedge 3-6-10, 0.17 km away |
| Alpine: Resolution - Dagg, 0.91 km away |
| Caswell 211, 8.78 km away |
| Caswell High 1, 11.73 km away |
South Wedge 5, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 3-6-10, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 636 |
| Co-rupture Rate | 1.8780755E-5 |
Alpine: Resolution - Dagg, 0.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16,656 |
| Co-rupture Rate | 2.0608265E-4 |
Caswell 211, 8.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 289 |
| Co-rupture Rate | 1.4048056E-6 |
Caswell High 1, 11.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 644 |
| Co-rupture Rate | 8.83192E-6 |
