Northern Ohariu Details

Property	Value
Rupture Count	8,714
Ruptures Above Sect Min Mag	8,712
Ruptures w/ Nonzero Rates	35
Magnitude Range	[6.97, 8.57]
Length Range	[22, 1,031] km
Total Rate	9.386987E-5 /yr
Multi-Fault Rate	9.386987E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	123

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

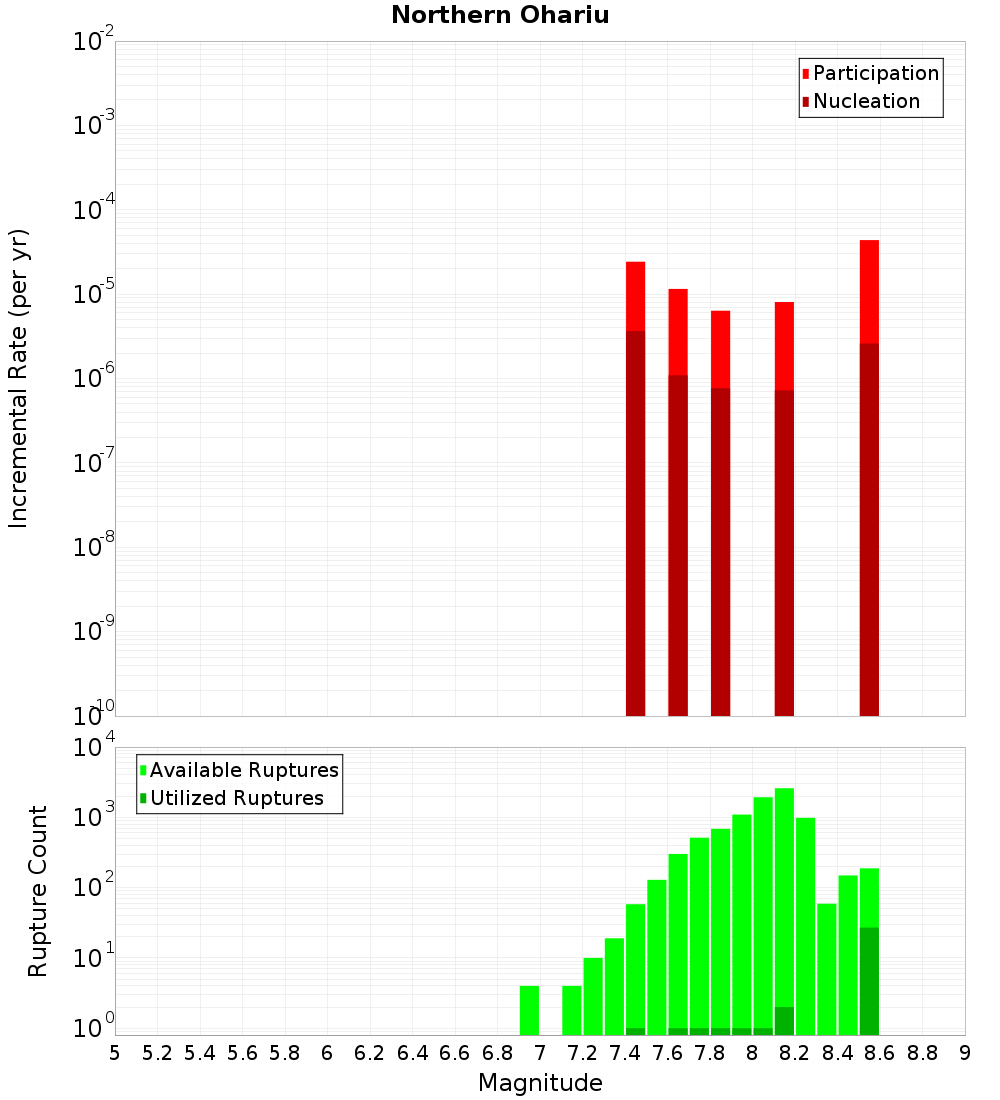

Magnitude-Frequency Distribution

Incremental	Cumulative

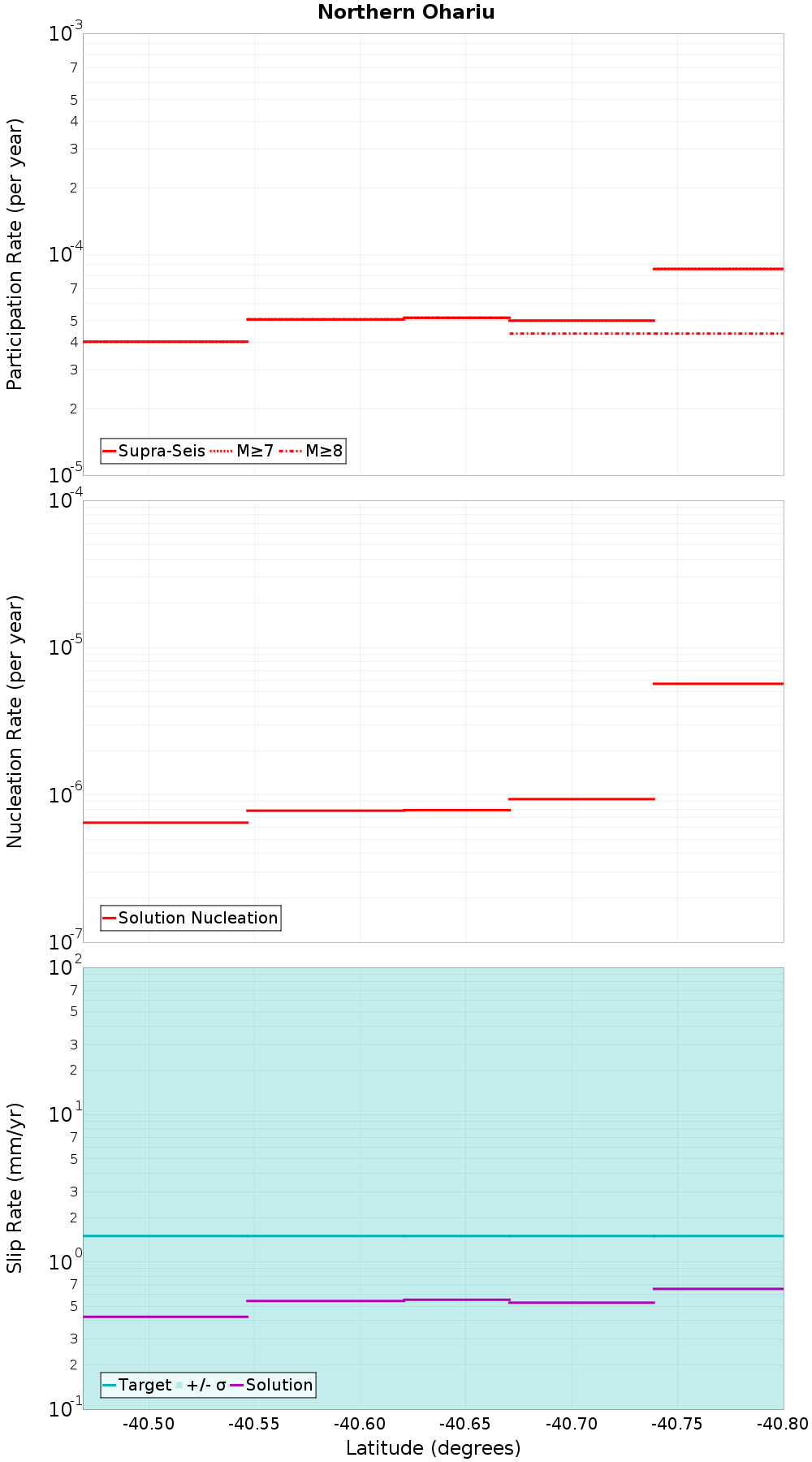

Along-Strike Values

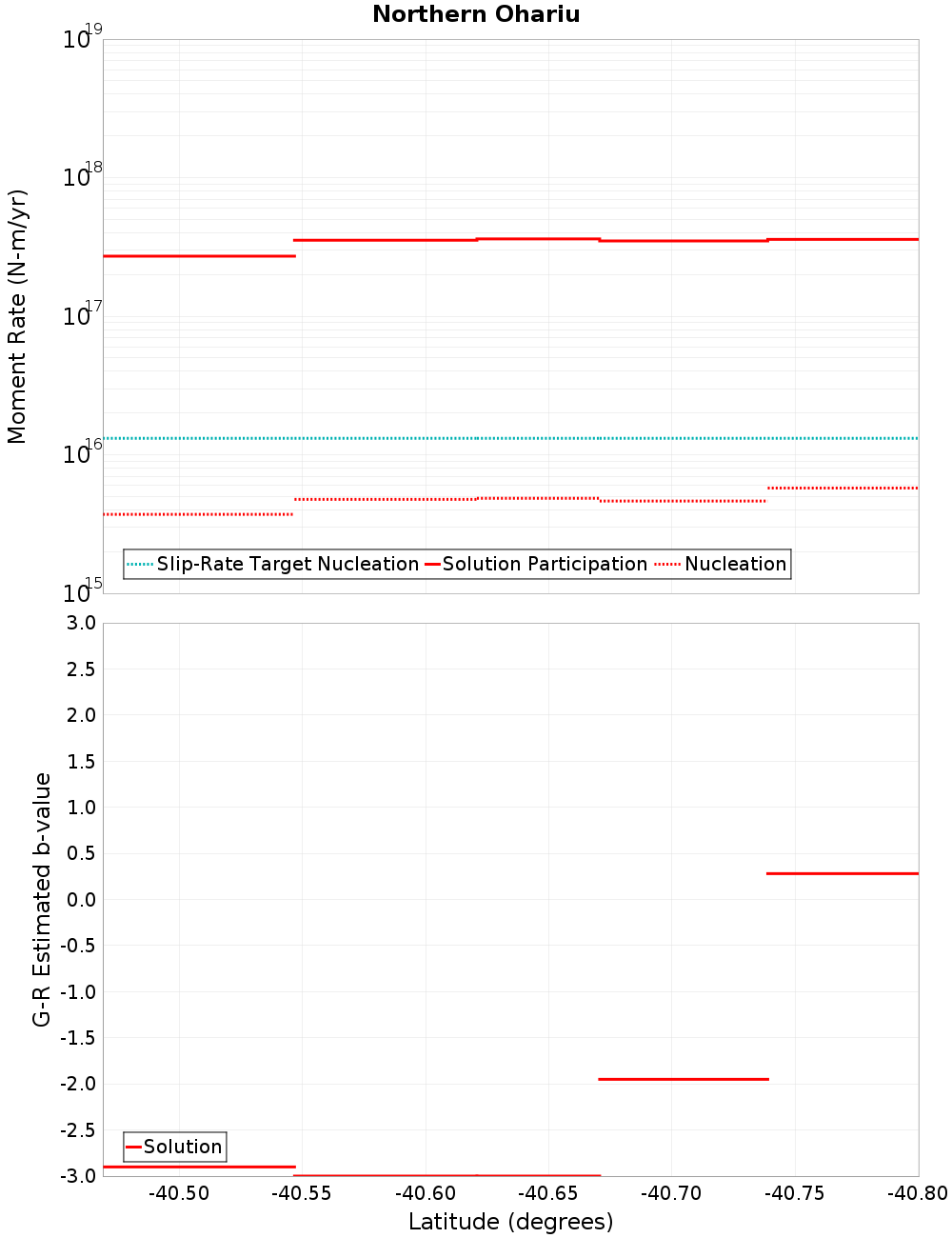

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Tokomaru, 0.33 km away
Wellington: Tararua 3, 1.86 km away
Wellington: Pahiatua, 2.46 km away
Levin Anticline, 4.08 km away
Ohariu, 4.32 km away
Poroutawhao, 6.82 km away
Otaki Forks: 2, 7.03 km away
Otaki Forks: 1, 7.3 km away
Otaheke North, 11.55 km away
Otaheke South, 11.86 km away
Rangitikei Offshore 1, 12.23 km away
Pohangina, 13.14 km away

Tokomaru, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	true
Co-rupture Count	628
Co-rupture Rate	8.0649115E-6

Wellington: Tararua 3, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,334
Co-rupture Rate	8.0649115E-6

Wellington: Pahiatua, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	true
Co-rupture Count	6,802
Co-rupture Rate	1.8476404E-23

Levin Anticline, 4.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	true
Co-rupture Count	101
Co-rupture Rate	3.575115E-5

Ohariu, 4.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	true
Co-rupture Count	4,889
Co-rupture Rate	8.580496E-5

Poroutawhao, 6.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	true
Co-rupture Count	210
Co-rupture Rate	6.361036E-6

Otaki Forks: 2, 7.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,416
Co-rupture Rate	0.0

Otaki Forks: 1, 7.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	false
Co-rupture Count	1,810
Co-rupture Rate	1.5437219E-23

Otaheke North, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Otaheke South, 11.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Rangitikei Offshore 1, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	0.0
