Waimarama 3 & 4 Details
| Property | Value |
|---|---|
| Rupture Count | 77 |
| Ruptures Above Sect Min Mag | 76 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.77, 7.66] |
| Length Range | [18, 140] km |
| Total Rate | 6.334501E-5 /yr |
| Multi-Fault Rate | 6.334501E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

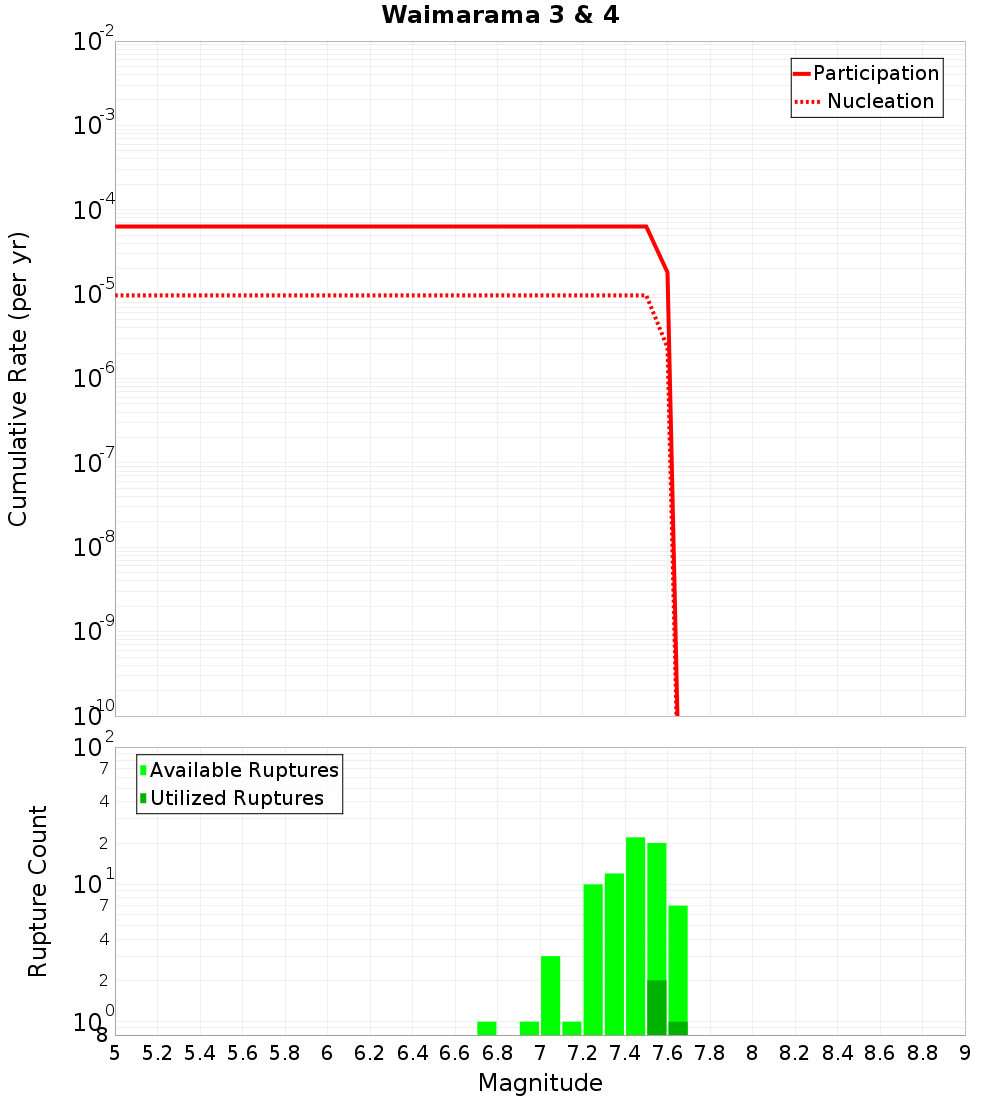

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

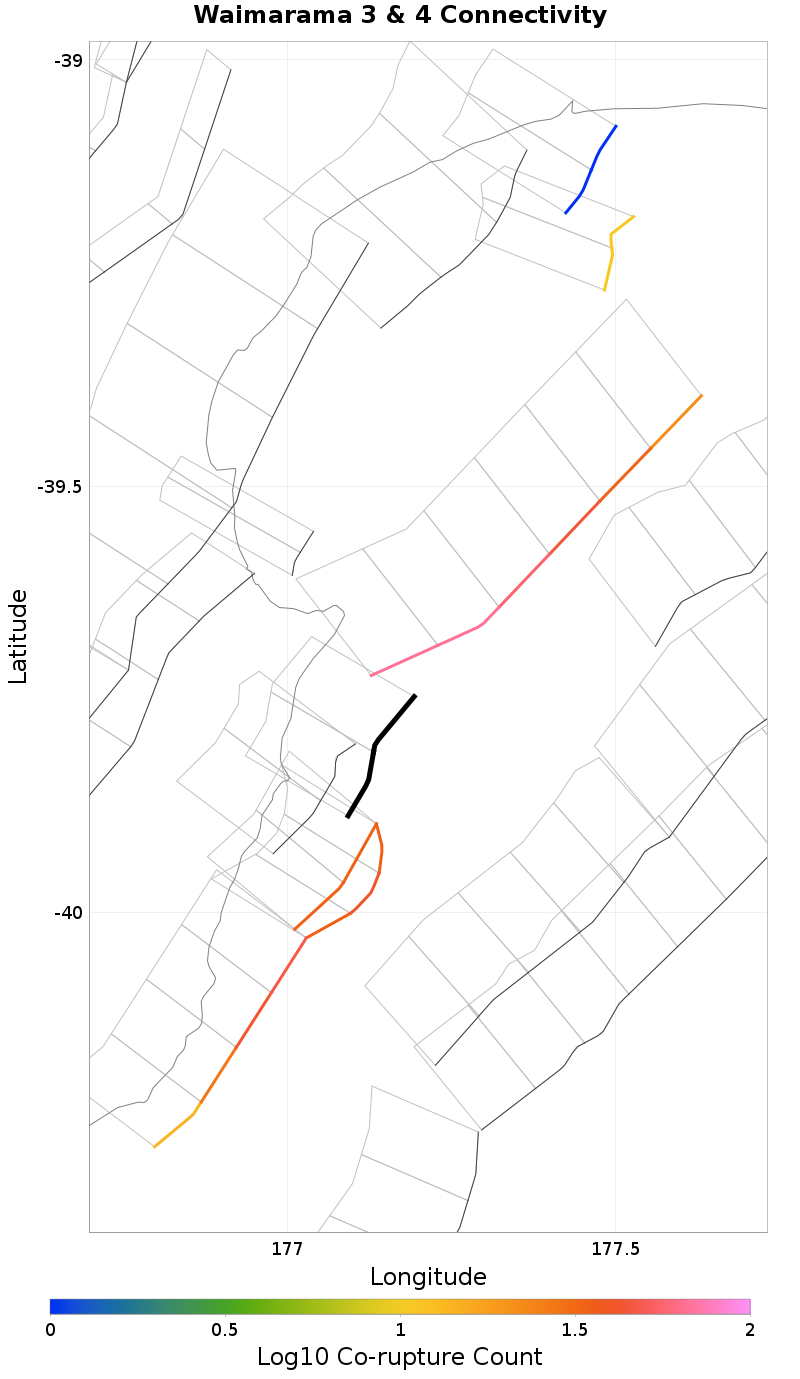

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waimarama 1 & 2, 1.41 km away |
| Kairakau 2, 2.38 km away |
| Kairakau North, 2.41 km away |
| Kidnappers Ridge, 3.48 km away |
| Kairakau South, 14.88 km away |
Waimarama 1 & 2, 1.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kairakau 2, 2.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 41 |
| Co-rupture Rate | 1.8067007E-5 |
Kairakau North, 2.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 34 |
| Co-rupture Rate | 1.5961728E-5 |
Kidnappers Ridge, 3.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 66 |
| Co-rupture Rate | 6.334501E-5 |
Kairakau South, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NzMuMFRtRXNE | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 48 |
| Co-rupture Rate | 3.4028733E-5 |
