Waipukurau - Poukawa Details

Property	Value
Rupture Count	1,338
Ruptures Above Sect Min Mag	1,333
Ruptures w/ Nonzero Rates	18
Magnitude Range	[6.88, 8.23]
Length Range	[19, 408] km
Total Rate	1.3899653E-4 /yr
Multi-Fault Rate	1.05172396E-4 /yr (75.67%)
Directly-Connected Faults	5
All Co-Rupturing Faults	45

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

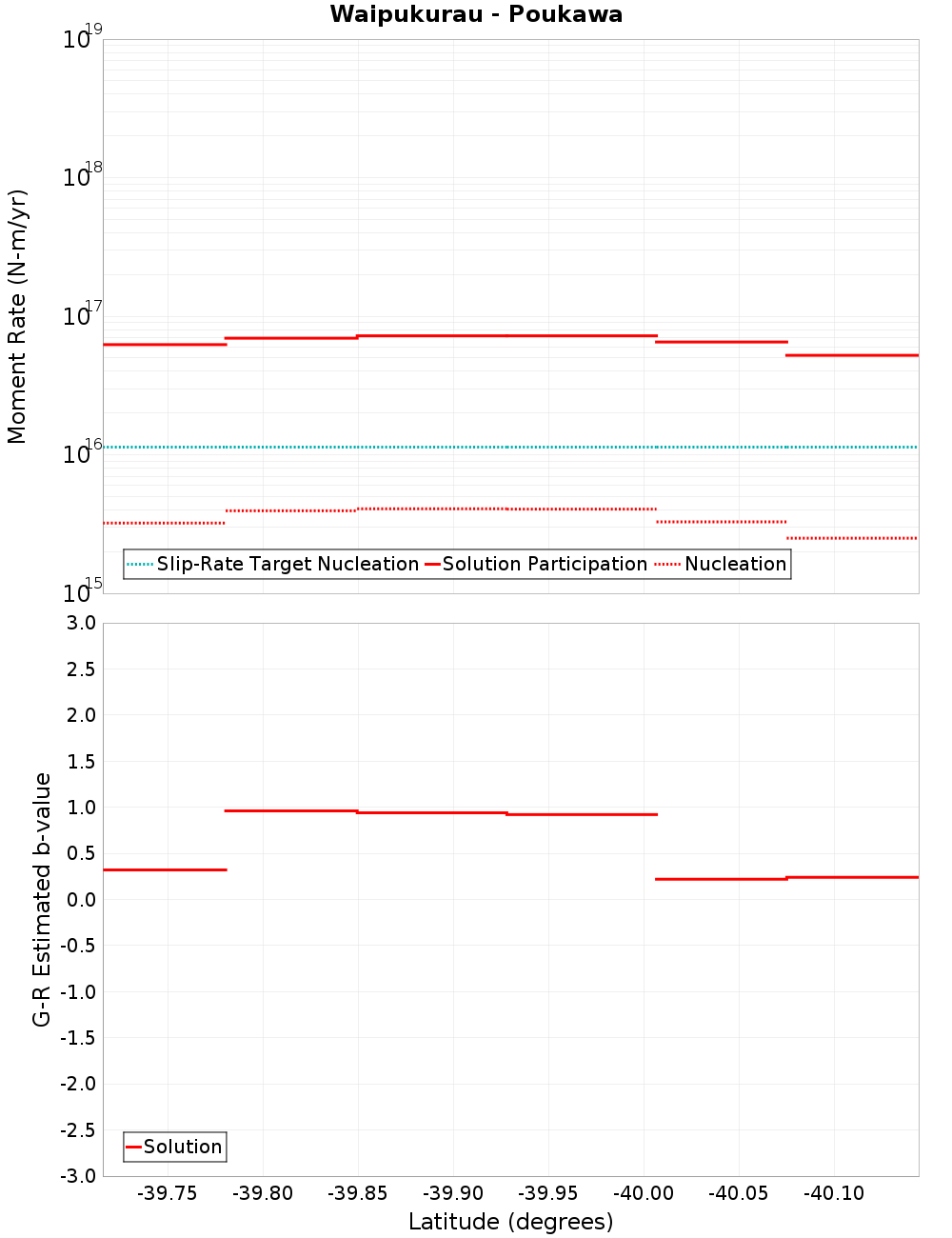

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.34 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away

Awanui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2ODIuMHZRcW42
Connected?	true
Directly Connected?	true
Co-rupture Count	1,110
Co-rupture Rate	5.2260577E-5

Clear Hills - Waikopiro, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2ODIuMHZRcW42
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	2.8331786E-5

Oruawharo - Mangatoro, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2ODIuMHZRcW42
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	6.9062575E-5

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2ODIuMHZRcW42
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	3.2042593E-5

Te Heka, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2ODIuMHZRcW42
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	3.614323E-6

Ruataniwha, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2ODIuMHZRcW42
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	3.892377E-6
