Ben McLeod Details

Property	Value
Rupture Count	2,048
Ruptures Above Sect Min Mag	2,046
Ruptures w/ Nonzero Rates	64
Magnitude Range	[6.95, 8.12]
Length Range	[23, 457] km
Total Rate	3.1965994E-4 /yr
Multi-Fault Rate	3.1965994E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	68

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

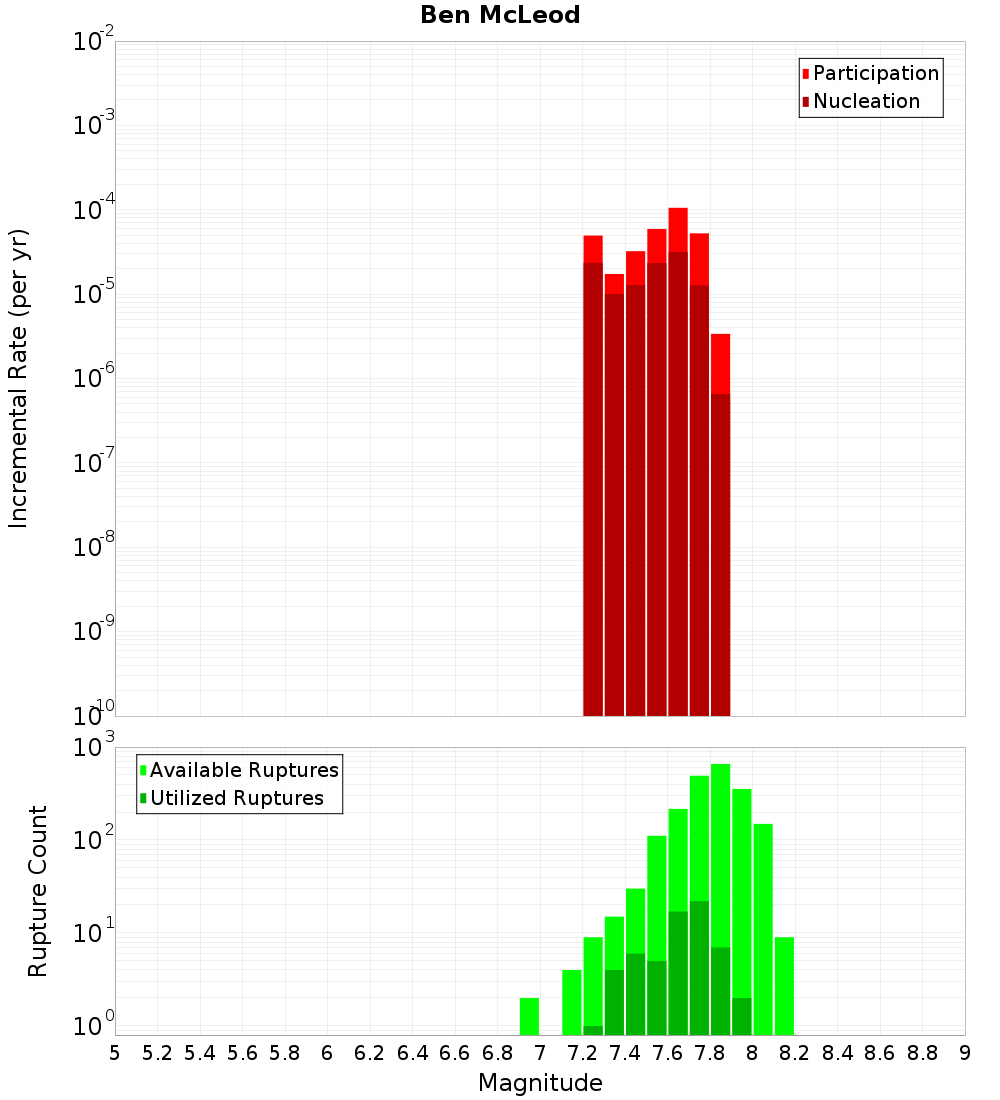

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hutt Peel, 0.04 km away
Klondyke Moor, 0.13 km away
Edith, 0.21 km away
Catherine, 0.22 km away
Fox Peak, 0.38 km away
Lake Heron, 0.47 km away
Sugarloaf, 4.07 km away
Brothers, 8.04 km away
Irishman Creek, 14.47 km away

Hutt Peel, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	1,777
Co-rupture Rate	1.8184795E-5

Klondyke Moor, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	0.0

Edith, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	77
Co-rupture Rate	1.8184794E-5

Catherine, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	195
Co-rupture Rate	1.9657451E-5

Fox Peak, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	1,395
Co-rupture Rate	2.1503949E-4

Lake Heron, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	168
Co-rupture Rate	3.0147514E-4

Sugarloaf, 4.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	2.8925826E-14

Brothers, 8.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	false
Co-rupture Count	214
Co-rupture Rate	7.454208E-6

Irishman Creek, 14.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	false
Co-rupture Count	299
Co-rupture Rate	8.033497E-5
