Titri Central Details

Property	Value
Rupture Count	12
Ruptures Above Sect Min Mag	12
Ruptures w/ Nonzero Rates	1
Magnitude Range	[7.13, 7.68]
Length Range	[30, 120] km
Total Rate	9.829558E-5 /yr
Multi-Fault Rate	9.829558E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

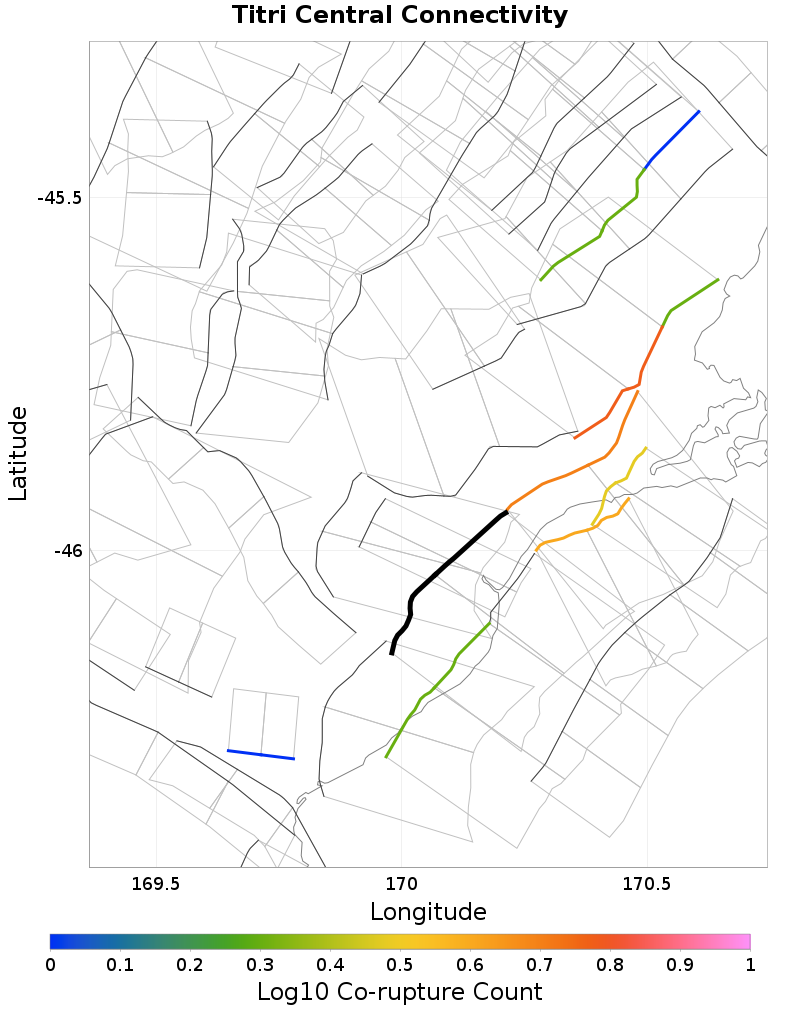

Connectivity
- Nearby Sections

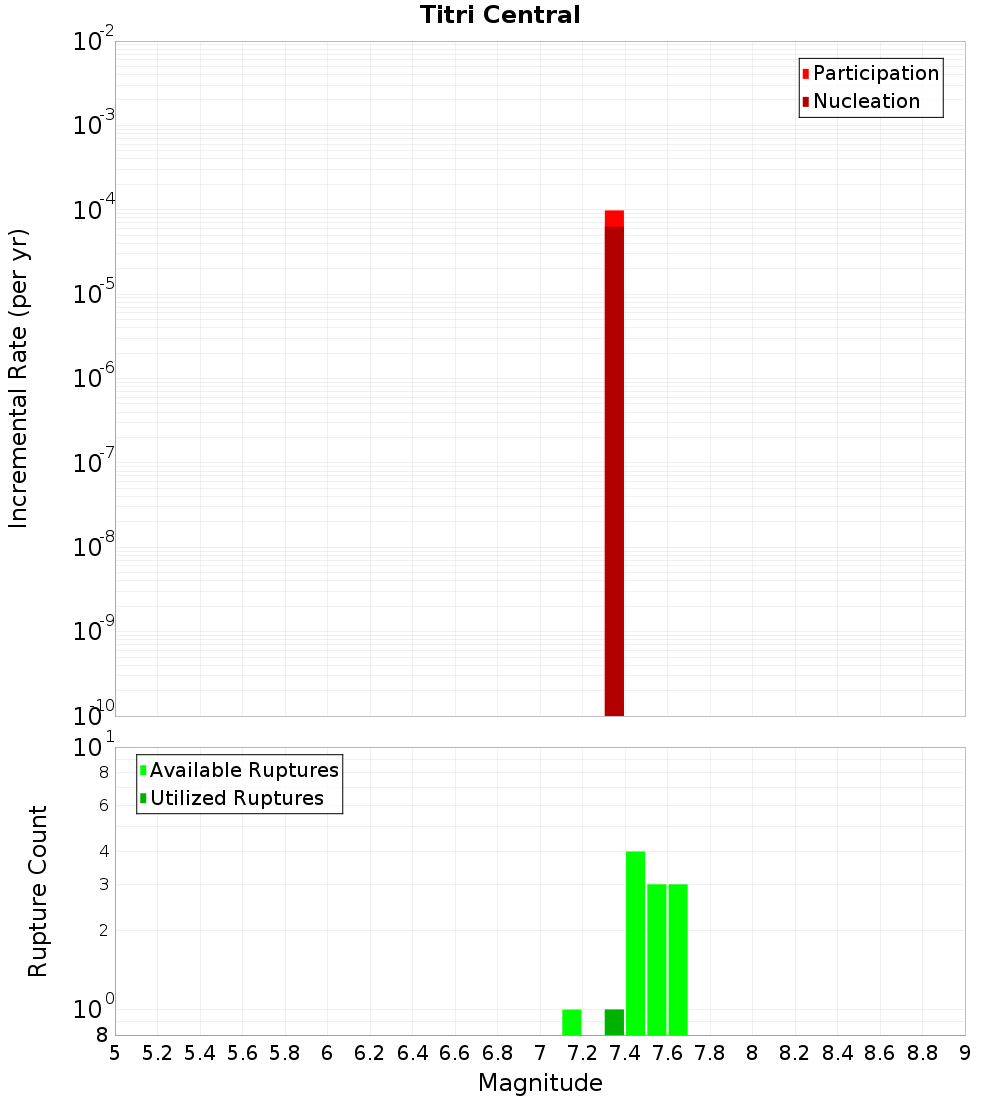

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

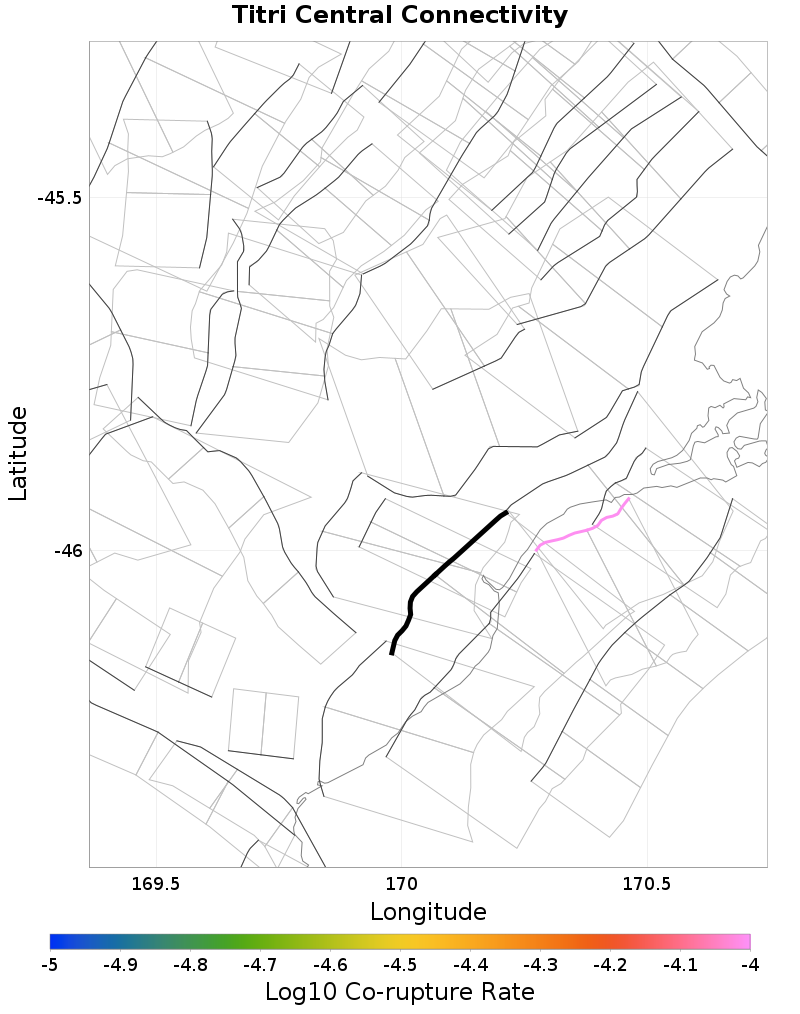

Connectivity

Nearby Sections

Fault Section
Titri North, 0.03 km away
Titri South, 0.34 km away
Green Island, 5.11 km away
Akatore, 5.5 km away
Tuapeka, 6.22 km away
Maungatua - North Taieri, 7.17 km away
Waitahuna 1, 7.94 km away
Waitahuna 2, 8.3 km away
Kaikorai, 10.87 km away

Titri North, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	0.0

Titri South, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Green Island, 5.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	9.829558E-5

Akatore, 5.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Tuapeka, 6.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maungatua - North Taieri, 7.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 1, 7.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 8.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaikorai, 10.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MTAuMHJ3UXBG
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0
