Wellington Hutt Valley: 5 Details

PropertyValue
Rupture Count29,006
Ruptures Above Sect Min Mag29,005
Ruptures w/ Nonzero Rates49
Magnitude Range[6.77, 8.54]
Length Range[14, 777] km
Total Rate9.362668E-4 /yr
Multi-Fault Rate9.362668E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults117

Table Of Contents

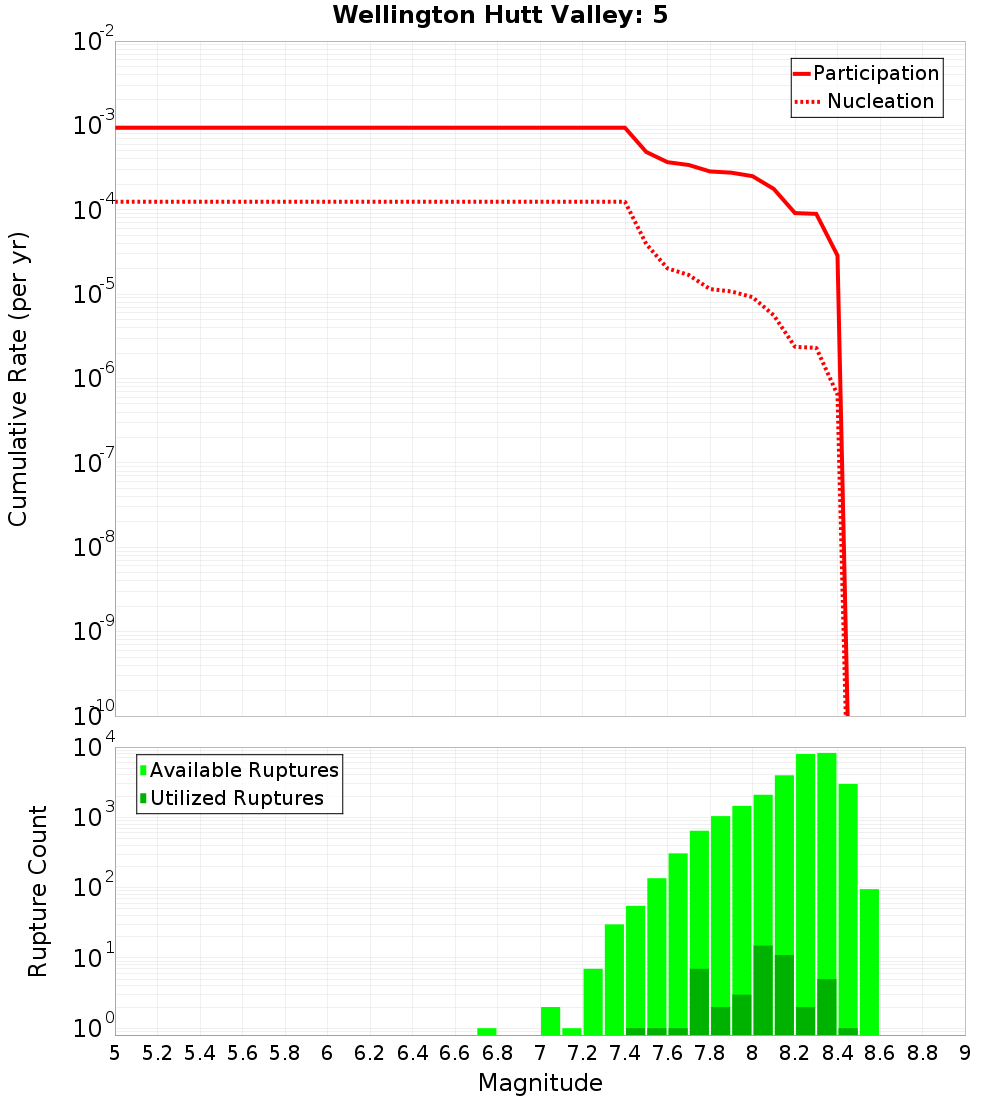

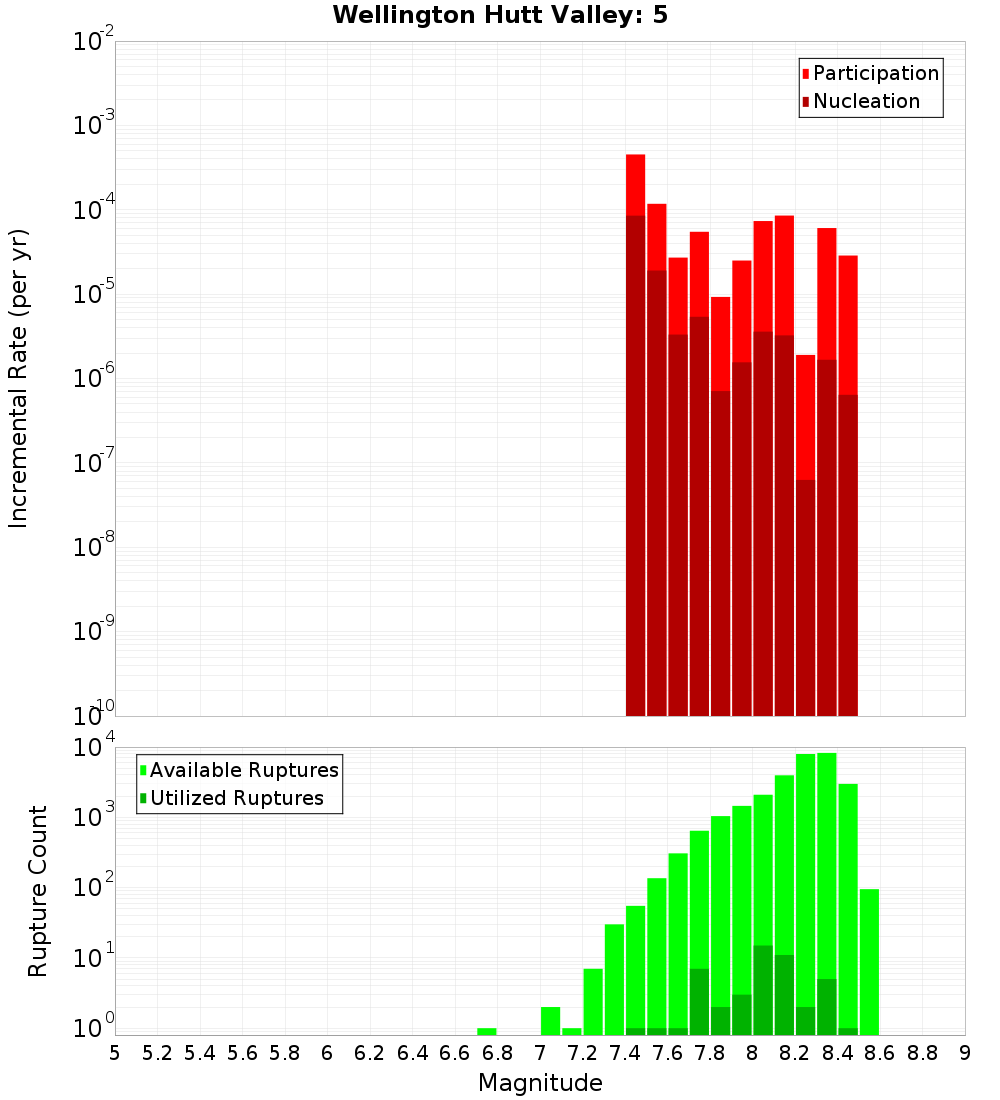

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

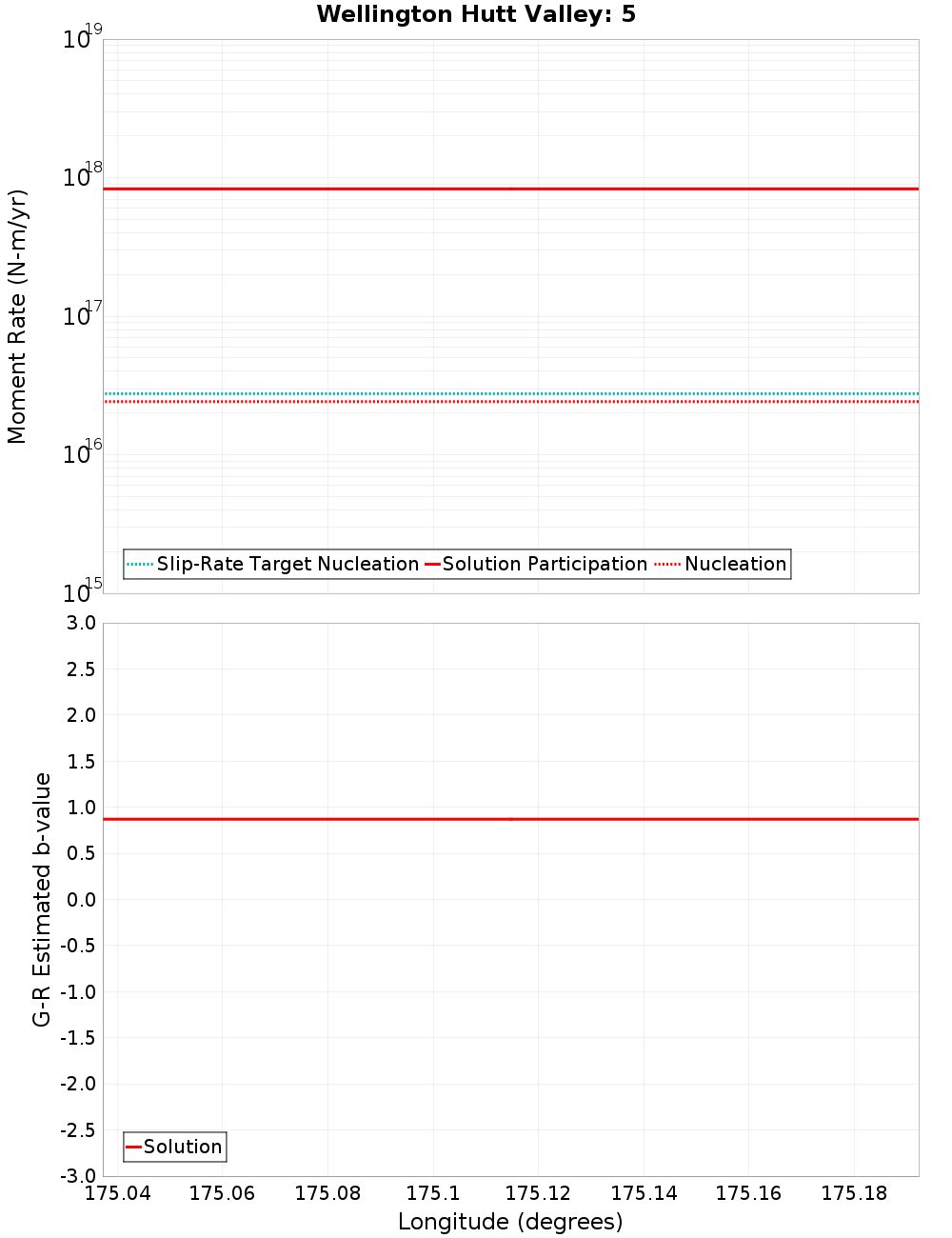

Moment-Rates and b-Values

(top)

Along-strike plot

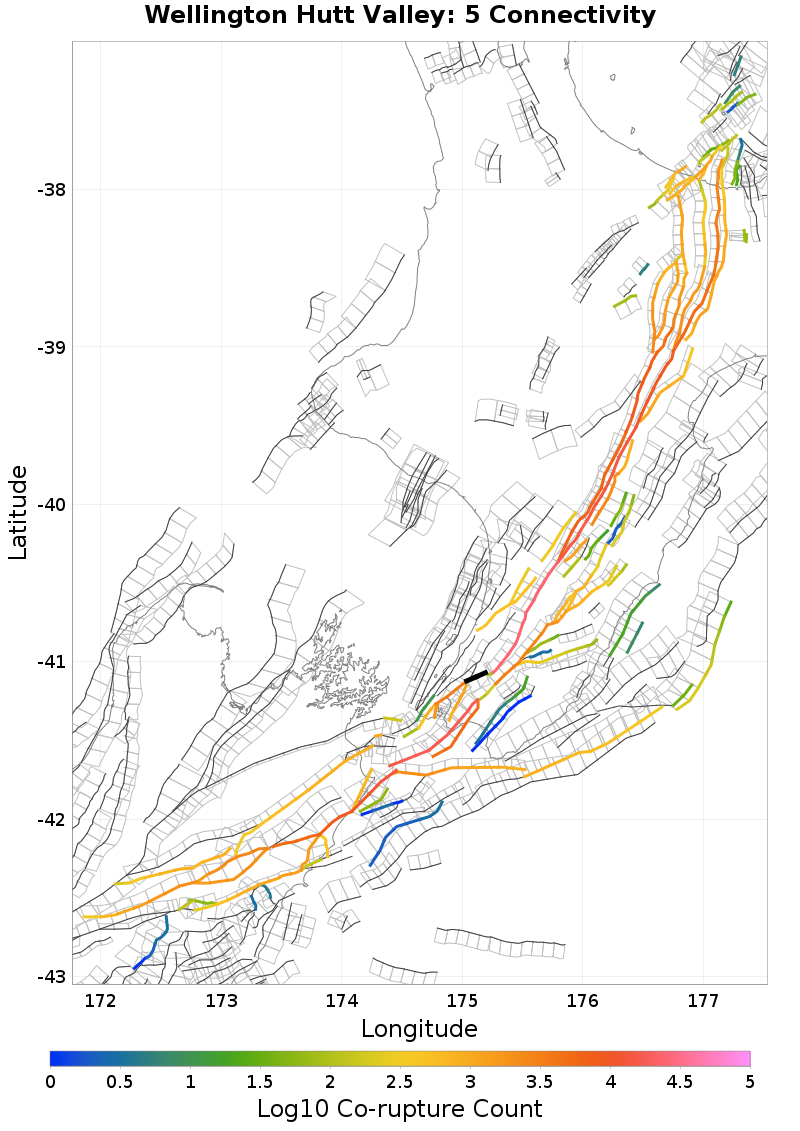

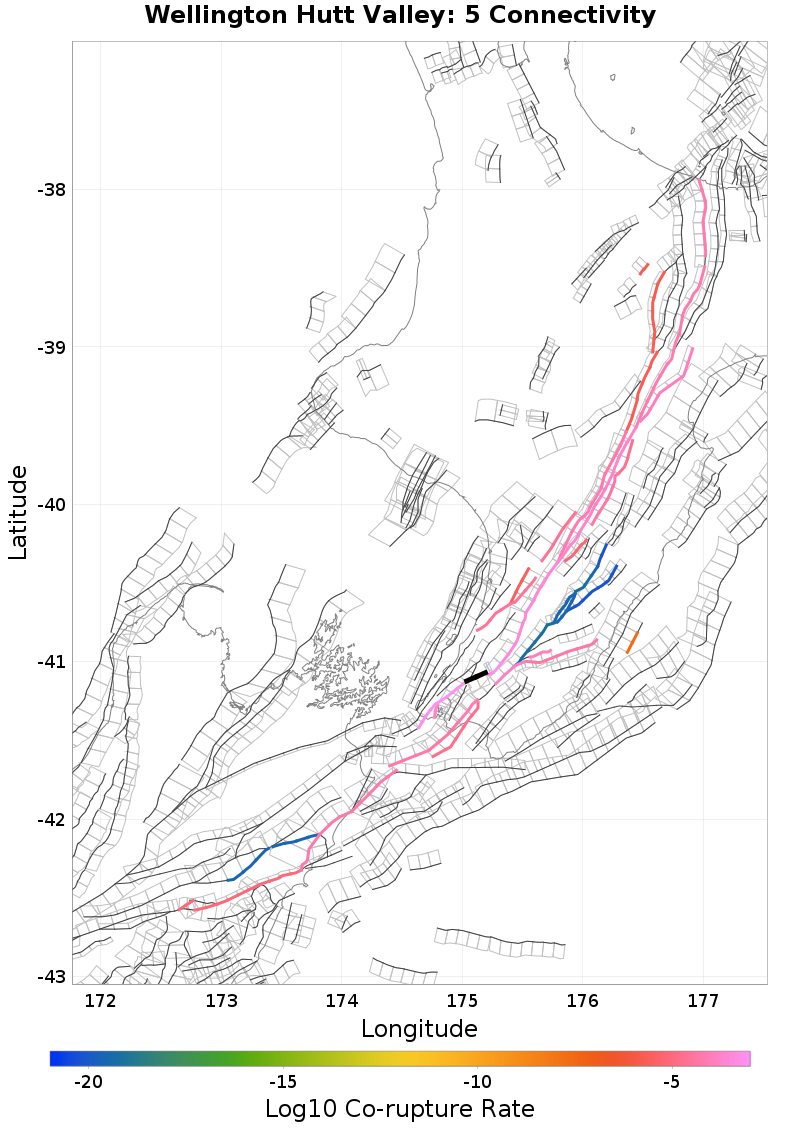

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Akatarawa, 0 km away
Wellington Hutt Valley: 4, 0.01 km away
Wairarapa: 2, 0.33 km away
Wairarapa: 1, 0.94 km away
Wellington: Tararua 1, 1.46 km away
Whitemans Valley, 2.4 km away
Wharekauhau, 4.2 km away
Wellington: Tararua 2, 4.56 km away
Moonshine, 4.9 km away
Bidwill, 6 km away
Otaki Forks: 1, 8.56 km away
Martinborough, 10.73 km away
Ohariu, 12.34 km away

Akatarawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?true
Co-rupture Count3,800
Co-rupture Rate8.5561245E-4

Wairarapa: 2, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?true
Co-rupture Count3,499
Co-rupture Rate1.4478203E-4

Wairarapa: 1, 0.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?true
Co-rupture Count17,931
Co-rupture Rate6.386124E-5

Wellington: Tararua 1, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate4.5230193E-4

Whitemans Valley, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?true
Co-rupture Count1,264
Co-rupture Rate0.0

Wharekauhau, 4.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?true
Co-rupture Count6,524
Co-rupture Rate1.6793148E-5

Wellington: Tararua 2, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?true
Co-rupture Count25,343
Co-rupture Rate7.914848E-4

Moonshine, 4.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bidwill, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 1, 8.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Martinborough, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Ohariu, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjYuMGZUNEZr
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0
