Dingle Details

Property	Value
Rupture Count	22,230
Ruptures Above Sect Min Mag	22,229
Ruptures w/ Nonzero Rates	9
Magnitude Range	[7.06, 8.60]
Length Range	[27, 952] km
Total Rate	6.5039553E-6 /yr
Multi-Fault Rate	6.5039553E-6 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	98

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

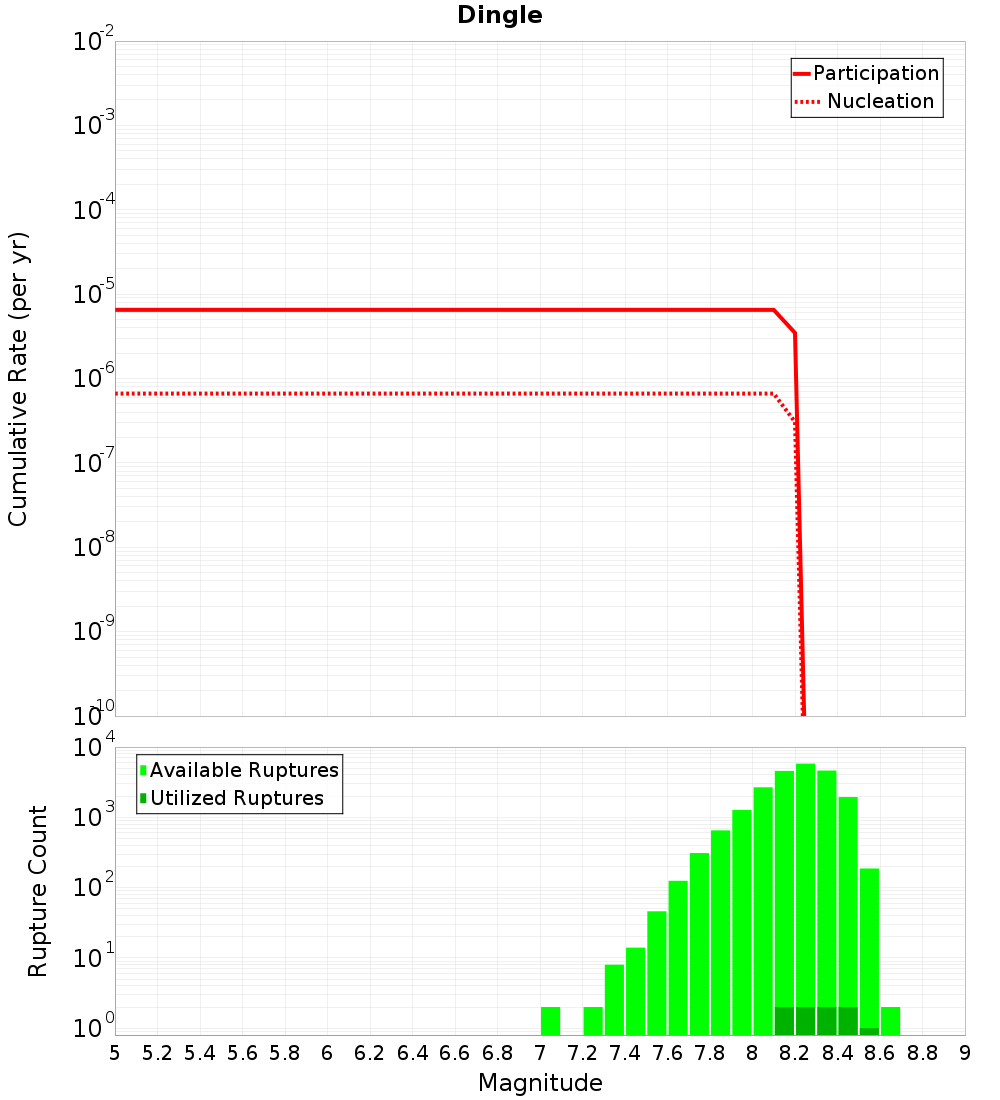

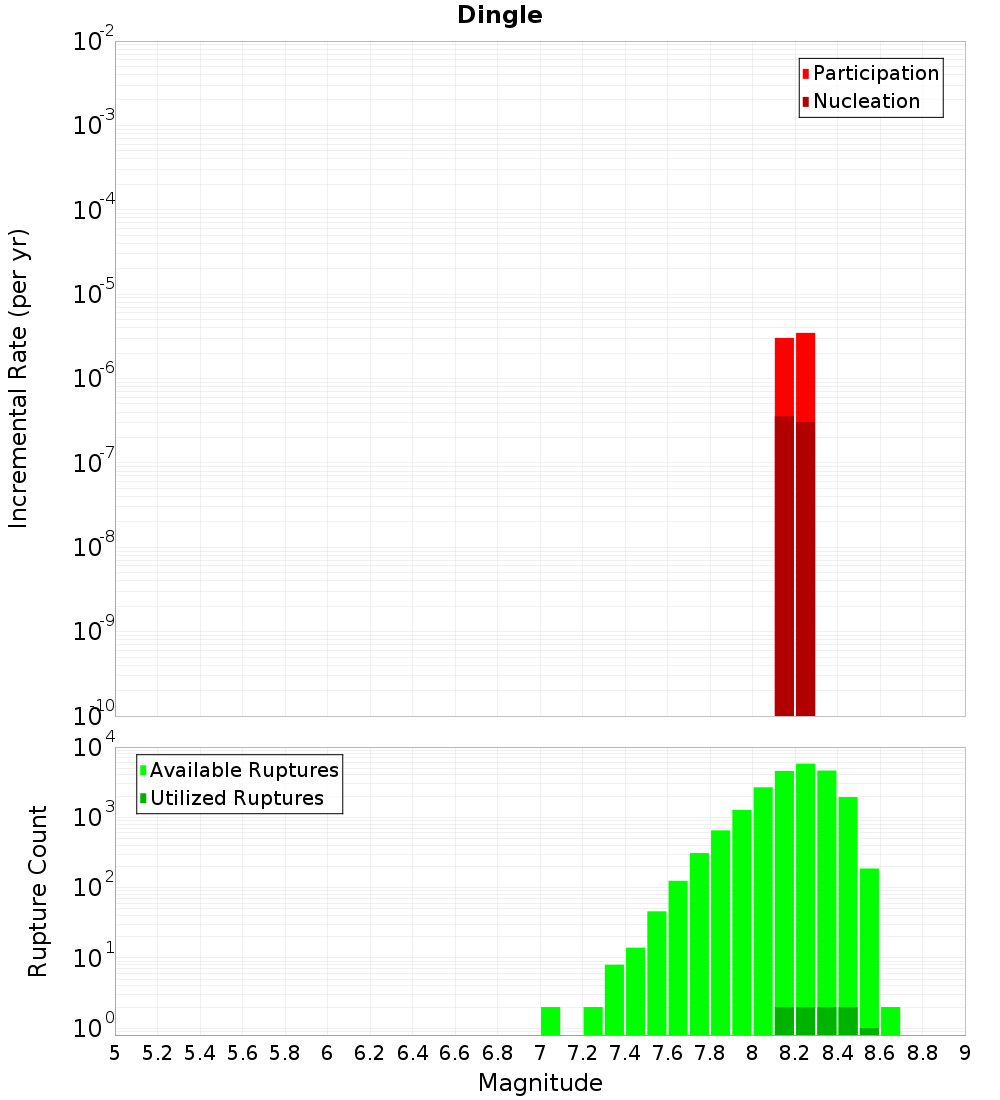

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wanaka, 0.06 km away
Hopkins, 1.8 km away
Timaru Creek, 4.92 km away
Hunter Valley, 6.56 km away
Barrier Range, 7.44 km away
Dromedary, 7.73 km away
Grandview, 9.64 km away
Lindis River, 10.56 km away
Cardrona - Hawea, 11.82 km away

Wanaka, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	true
Directly Connected?	true
Co-rupture Count	15,310
Co-rupture Rate	3.4740274E-6

Hopkins, 1.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	true
Directly Connected?	true
Co-rupture Count	19,929
Co-rupture Rate	6.5039553E-6

Timaru Creek, 4.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	true
Directly Connected?	true
Co-rupture Count	6,483
Co-rupture Rate	3.0299277E-6

Hunter Valley, 6.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Barrier Range, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	true
Directly Connected?	false
Co-rupture Count	32
Co-rupture Rate	0.0

Dromedary, 7.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0

Grandview, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	true
Directly Connected?	false
Co-rupture Count	2,706
Co-rupture Rate	0.0

Lindis River, 10.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cardrona - Hawea, 11.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3MjguMFBYeHRh
Connected?	true
Directly Connected?	false
Co-rupture Count	5,391
Co-rupture Rate	0.0
