Rauoterangi Details
| Property | Value |
|---|---|
| Rupture Count | 109 |
| Ruptures Above Sect Min Mag | 108 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.99, 7.92] |
| Length Range | [24, 245] km |
| Total Rate | 1.3144907E-4 /yr |
| Multi-Fault Rate | 1.0883703E-4 /yr (82.80%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 16 |
Table Of Contents

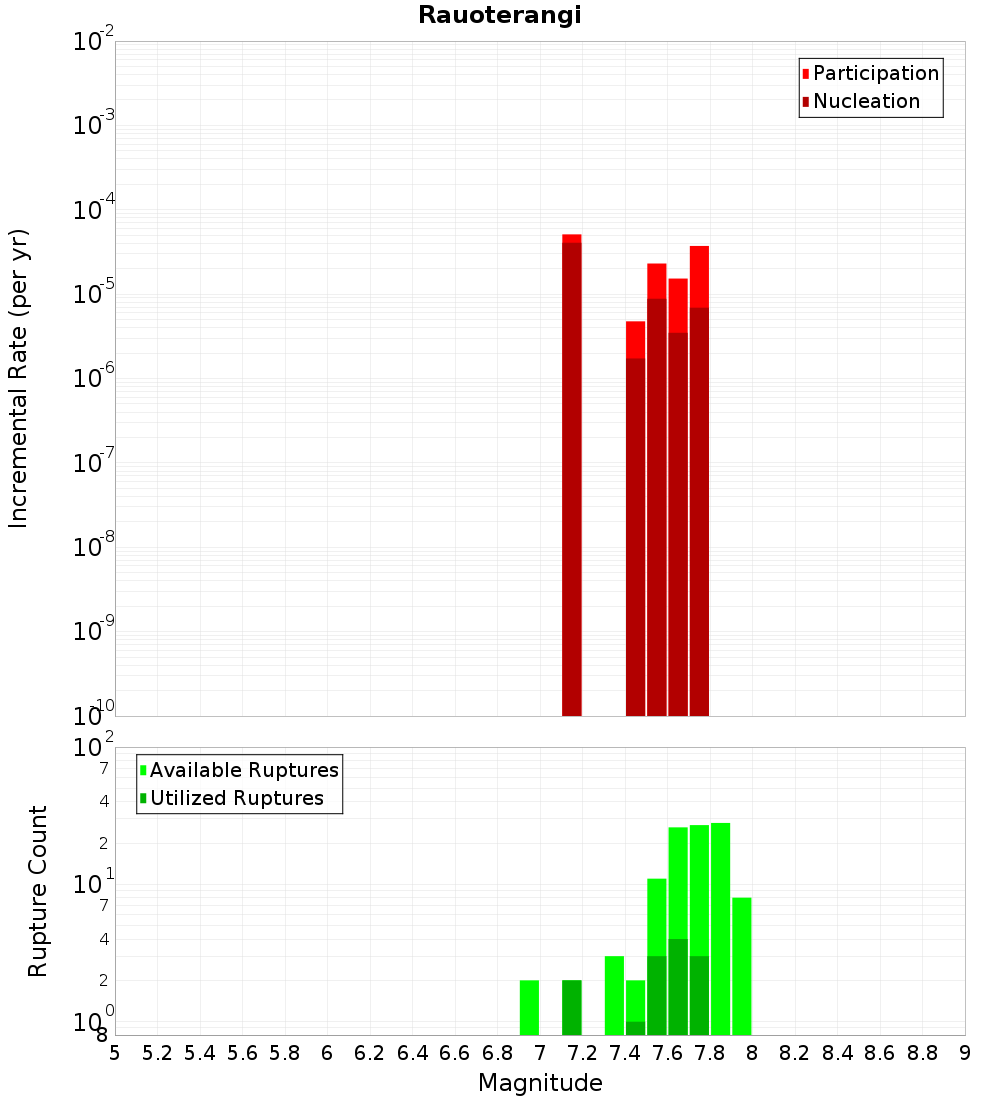

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

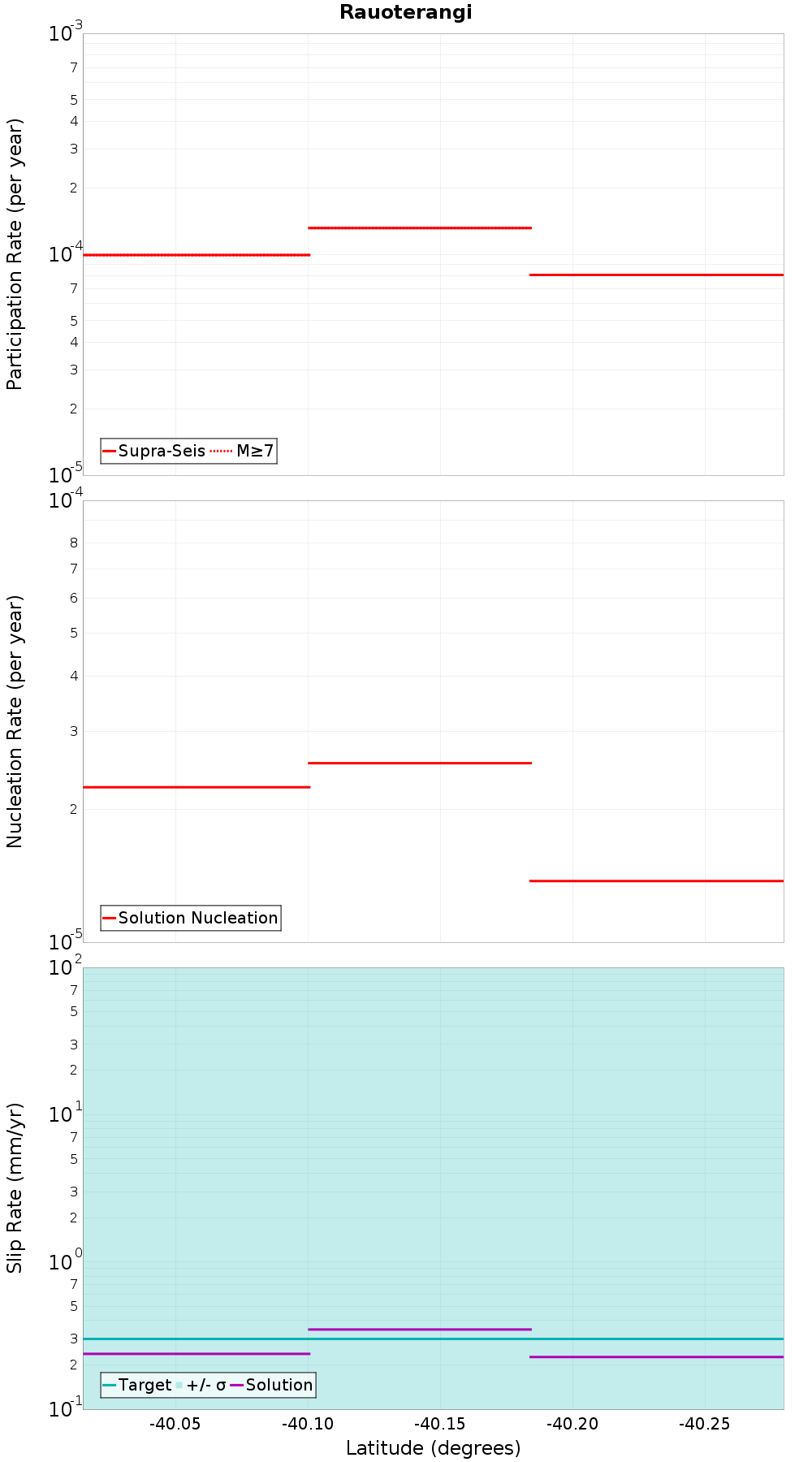

Along-Strike Values
Moment-Rates and b-Values

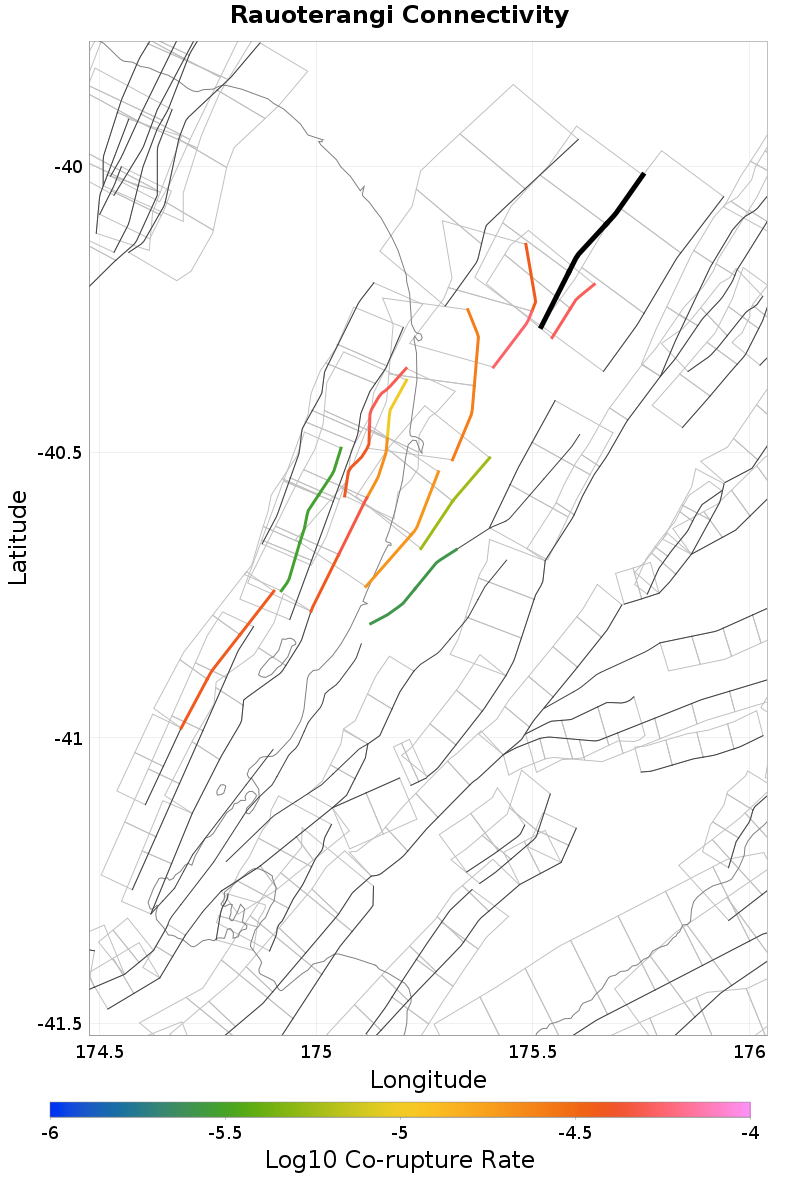

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Mt Stewart, 2.5 km away |
| Taonui, 2.62 km away |
| Mascarin, 11.5 km away |
| Himatangi, 11.71 km away |
| Leedstown, 12.42 km away |
| Pohangina, 12.82 km away |
| Tokomaru, 14.68 km away |
Mt Stewart, 2.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NDYuMFh4V2Q2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 97 |
| Co-rupture Rate | 5.4718366E-5 |
Taonui, 2.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NDYuMFh4V2Q2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 52 |
| Co-rupture Rate | 5.0864393E-5 |
Mascarin, 11.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NDYuMFh4V2Q2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Himatangi, 11.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NDYuMFh4V2Q2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 2.5647292E-5 |
Leedstown, 12.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NDYuMFh4V2Q2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pohangina, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NDYuMFh4V2Q2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tokomaru, 14.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NDYuMFh4V2Q2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
