Albury Details
| Property | Value |
|---|---|
| Rupture Count | 377 |
| Ruptures Above Sect Min Mag | 376 |
| Ruptures w/ Nonzero Rates | 27 |
| Magnitude Range | [6.80, 7.98] |
| Length Range | [21, 307] km |
| Total Rate | 3.841617E-5 /yr |
| Multi-Fault Rate | 3.841617E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

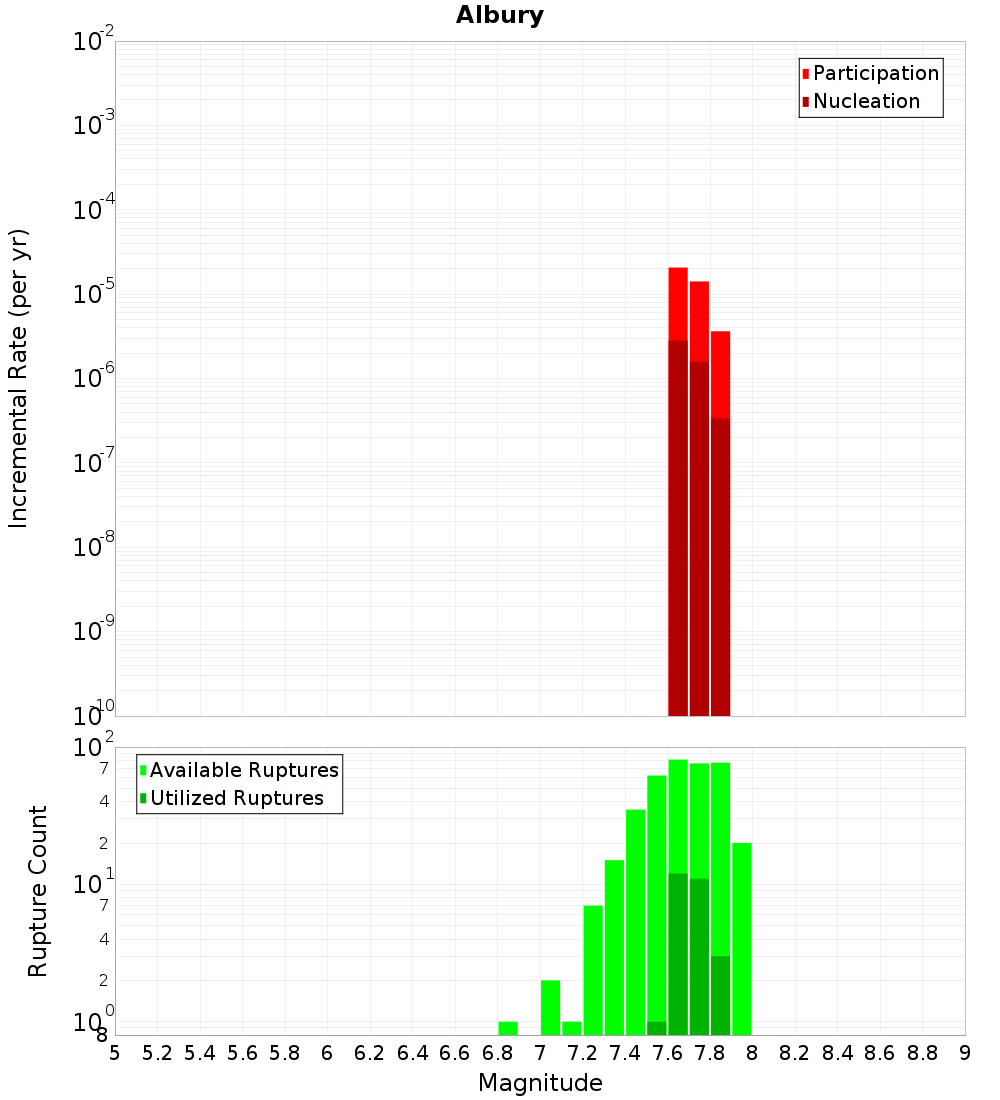

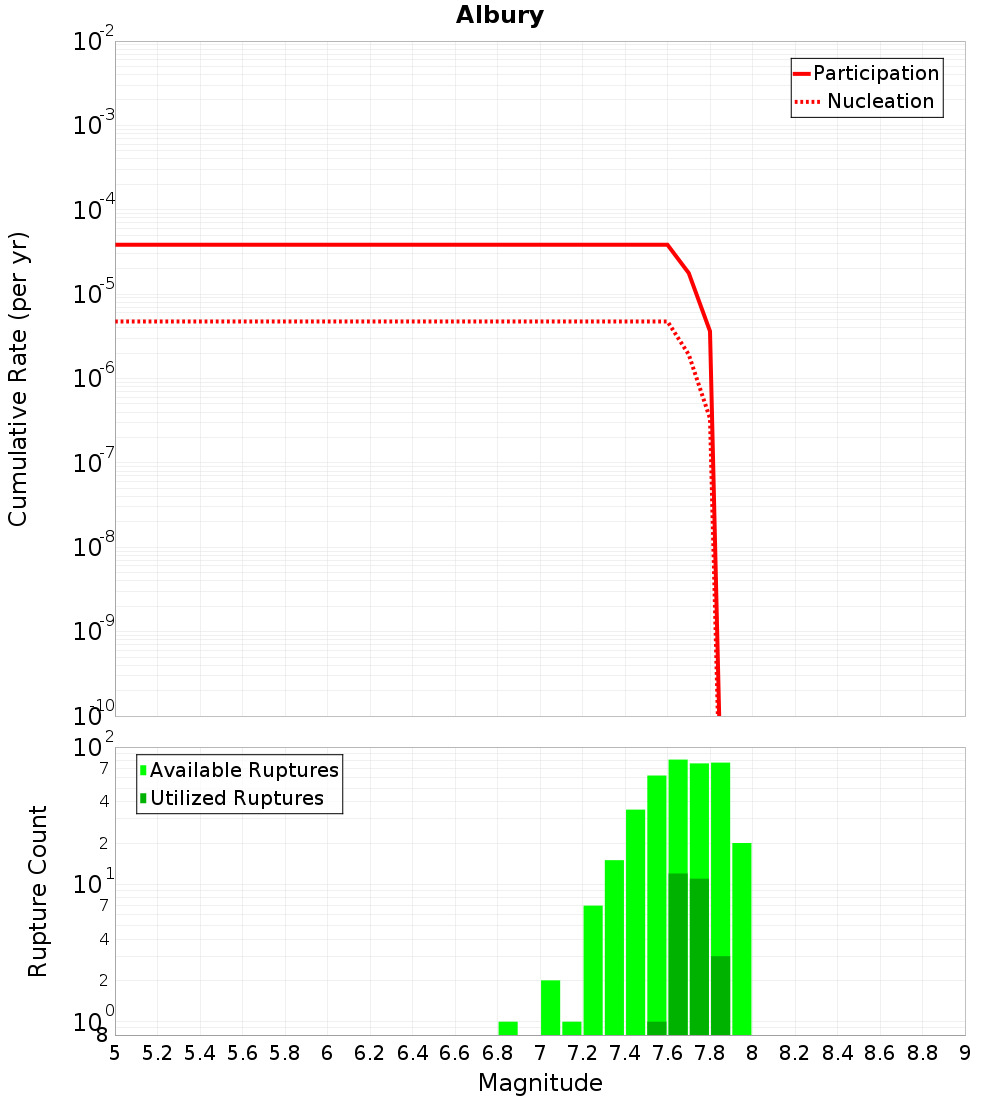

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

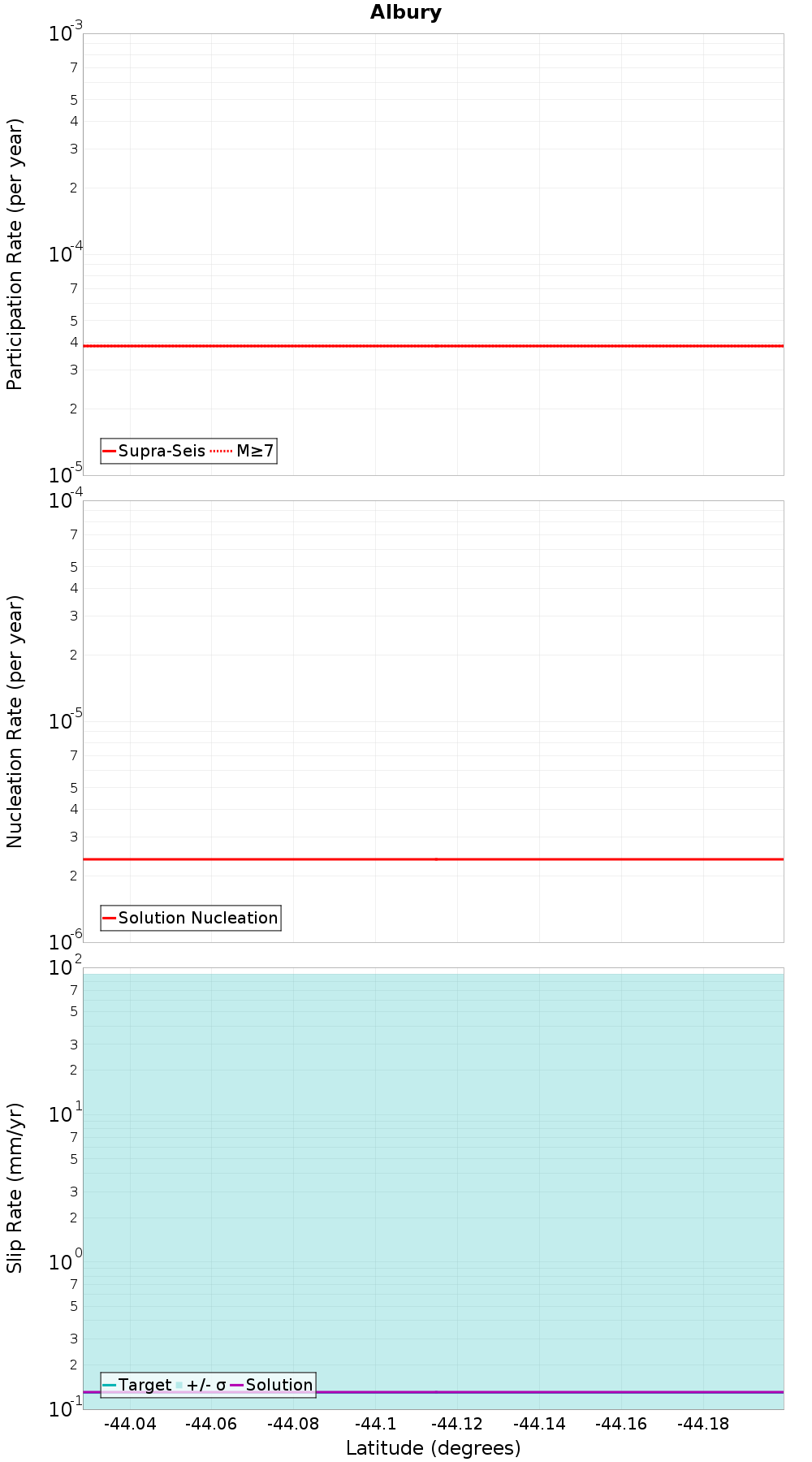

Along-Strike Values
Moment-Rates and b-Values

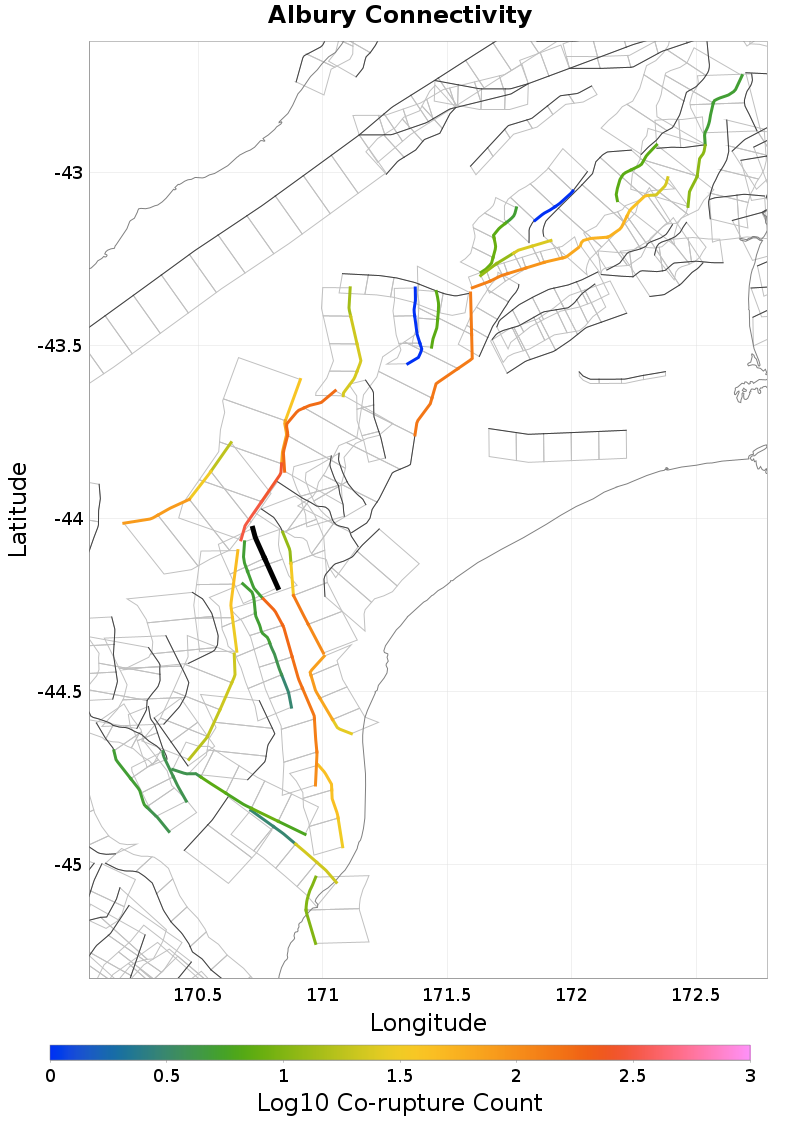

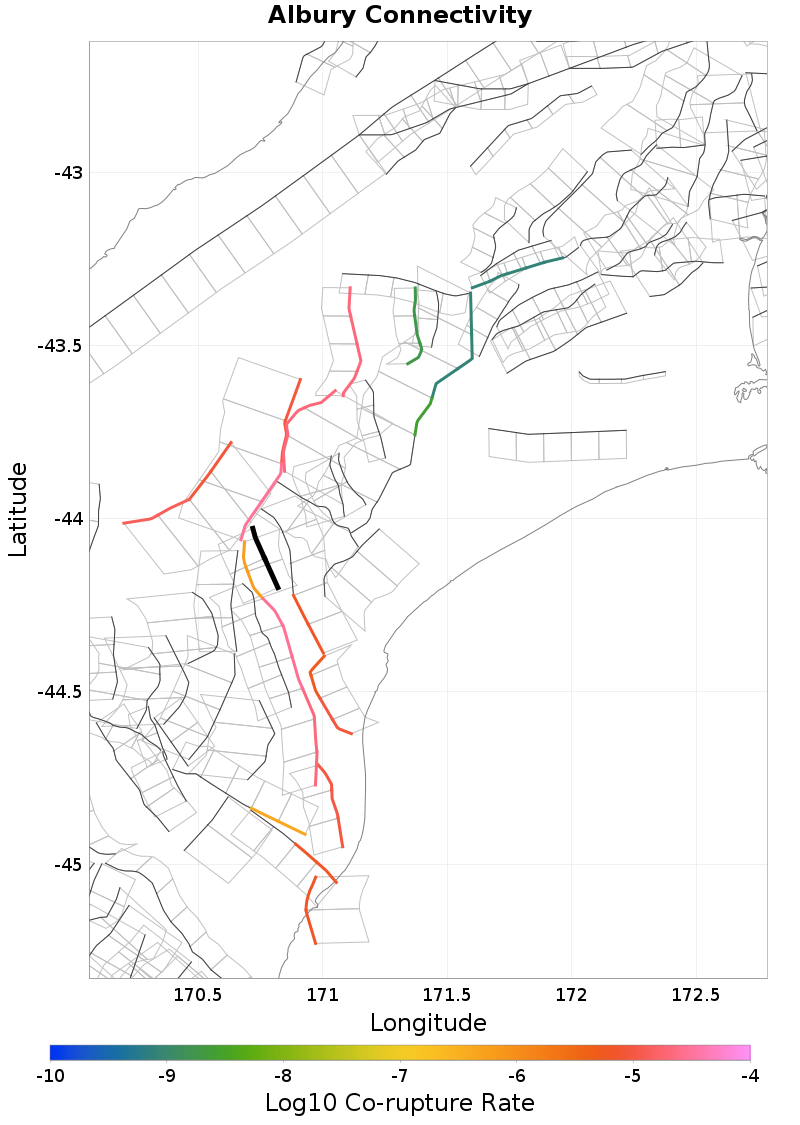

Connectivity
 |  |
|---|
Nearby Sections
Opawa, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 5.979619E-7 |
Irishman Creek, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 80 |
| Co-rupture Rate | 1.3523283E-5 |
Fox Peak, 2.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 317 |
| Co-rupture Rate | 3.035351E-5 |
Hunters, 4.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 196 |
| Co-rupture Rate | 2.974532E-5 |
Brothers, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 139 |
| Co-rupture Rate | 6.7434157E-6 |
Dalgety, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 46 |
| Co-rupture Rate | 0.0 |
Chamberlain, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Sugarloaf, 13.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 14.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjQuMHdpV1pz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
