Pukerua - Shepherds Gully: 3 Details
| Property | Value |
|---|---|
| Rupture Count | 632 |
| Ruptures Above Sect Min Mag | 627 |
| Ruptures w/ Nonzero Rates | 58 |
| Magnitude Range | [6.68, 8.43] |
| Length Range | [17, 942] km |
| Total Rate | 1.9070265E-4 /yr |
| Multi-Fault Rate | 1.9070265E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 49 |
Table Of Contents

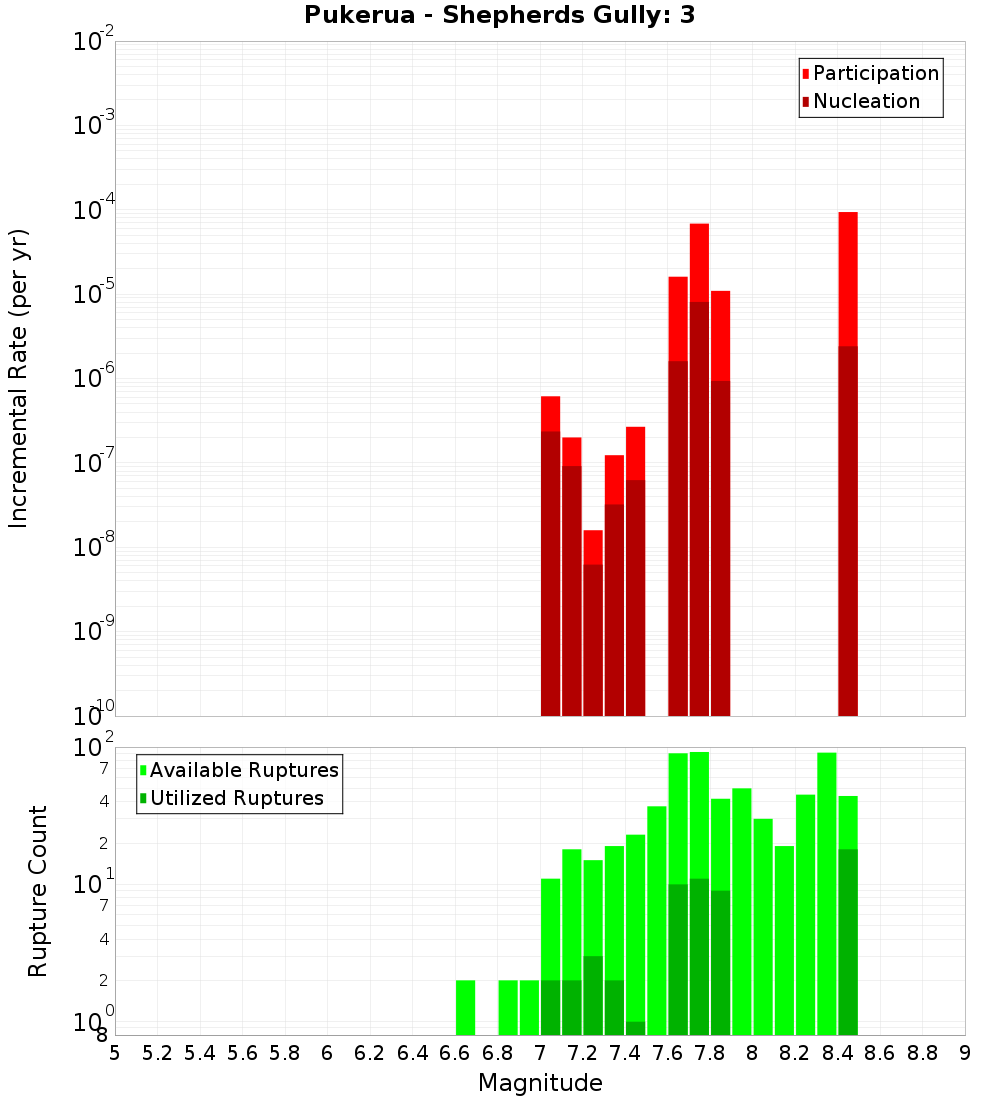

Magnitude-Frequency Distribution

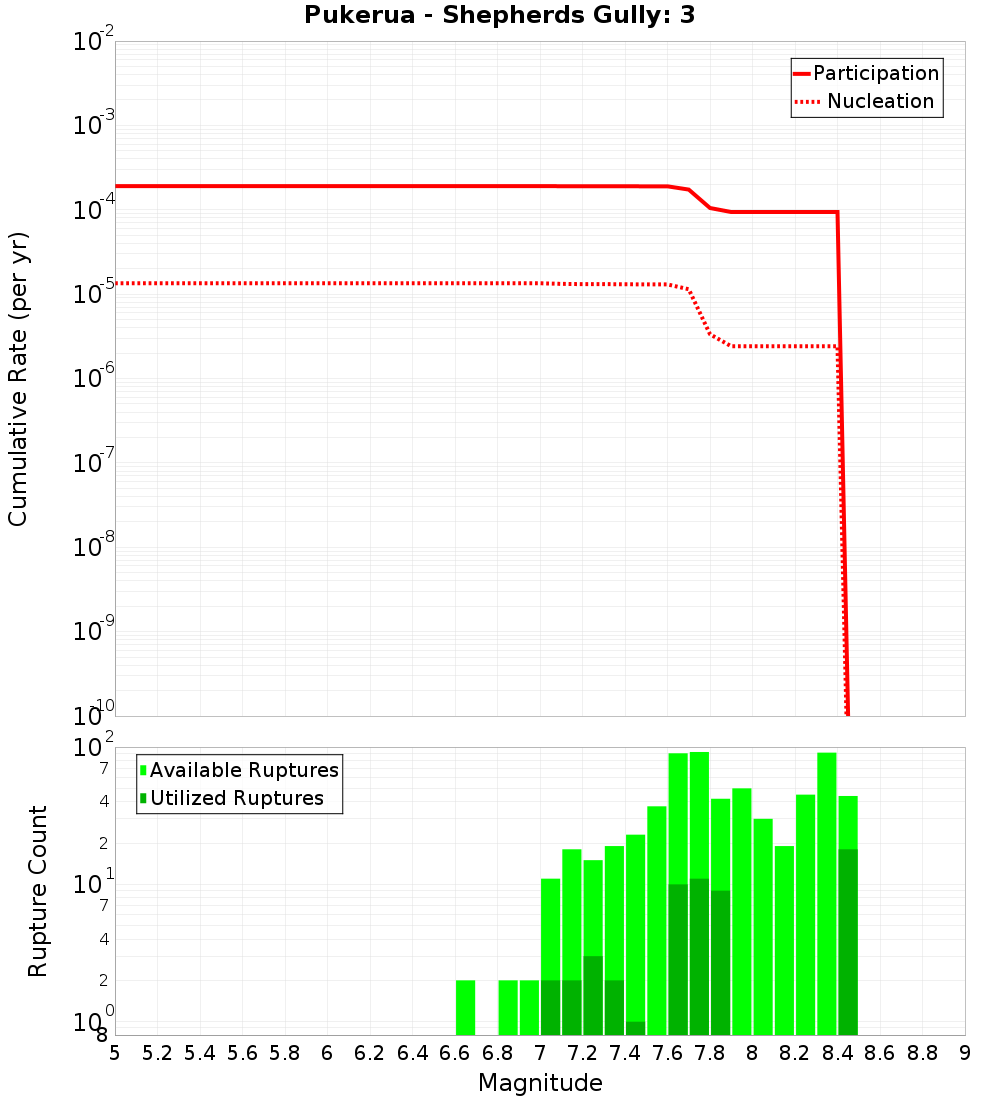

| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Pukerua - Shepherds Gully: 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 431 |
| Co-rupture Rate | 1.7474935E-4 |
Shepherds Gully - Mana, 3.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 79 |
| Co-rupture Rate | 2.5482605E-6 |
Ohariu, 3.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 126 |
| Co-rupture Rate | 2.0018459E-7 |
Otaheke South, 4.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 84 |
| Co-rupture Rate | 2.776731E-6 |
Moonshine, 5.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Whitemans Valley, 6.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 1, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 404 |
| Co-rupture Rate | 1.7474494E-4 |
Okupe 1, 7.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 205 |
| Co-rupture Rate | 1.5941379E-4 |
Wellington Hutt Valley: 3, 8.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 4, 8.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Aotea - Evans Bay, 10.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Akatarawa, 10.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fisherman 1, 13.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 26 |
| Co-rupture Rate | 6.549656E-5 |
Wharekauhau, 13.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Otaki Forks: 1, 14.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 2, 14.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NjcuMGpFWXJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 2.0018459E-7 |
