Martinborough Details

Property	Value
Rupture Count	2,607
Ruptures Above Sect Min Mag	2,603
Ruptures w/ Nonzero Rates	54
Magnitude Range	[6.62, 8.47]
Length Range	[15, 864] km
Total Rate	2.012929E-5 /yr
Multi-Fault Rate	2.012929E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	107

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

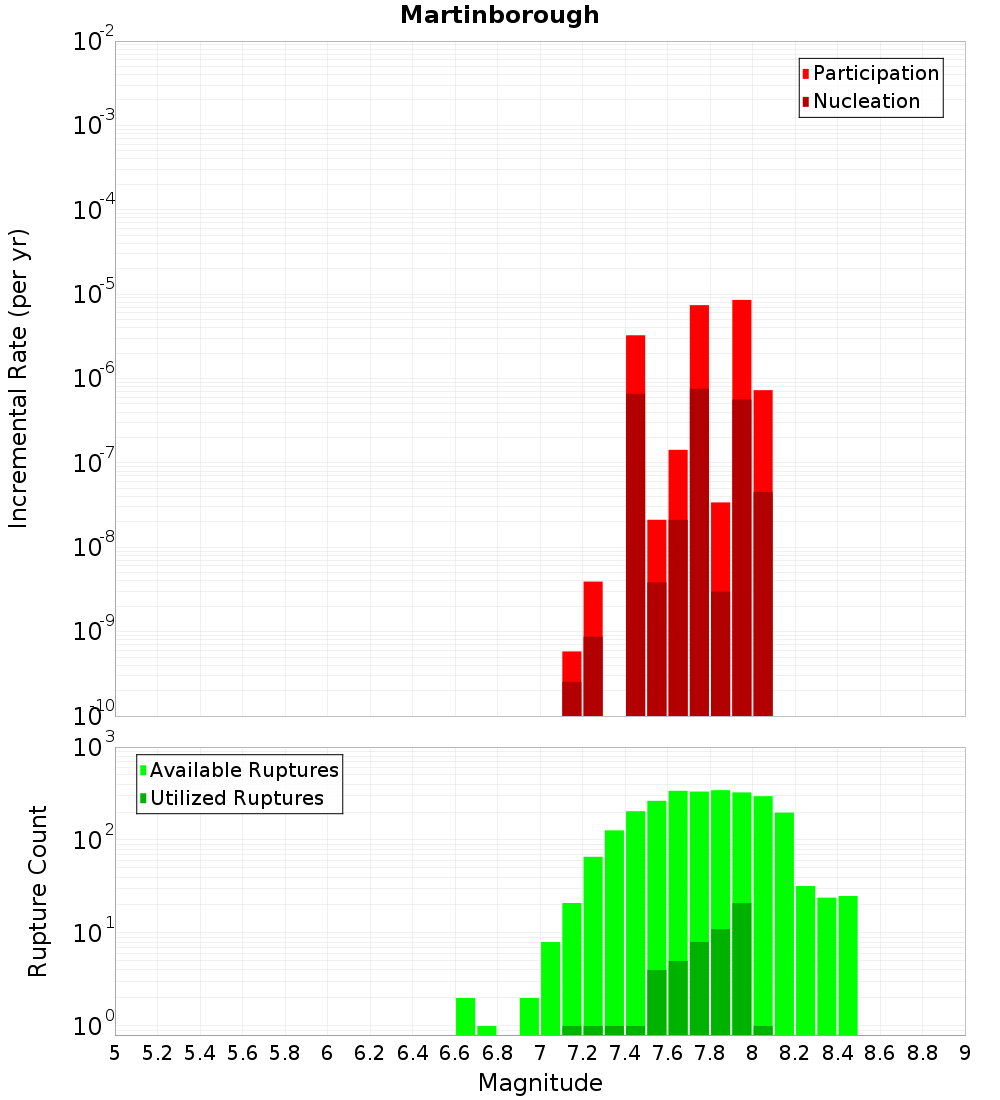

Magnitude-Frequency Distribution

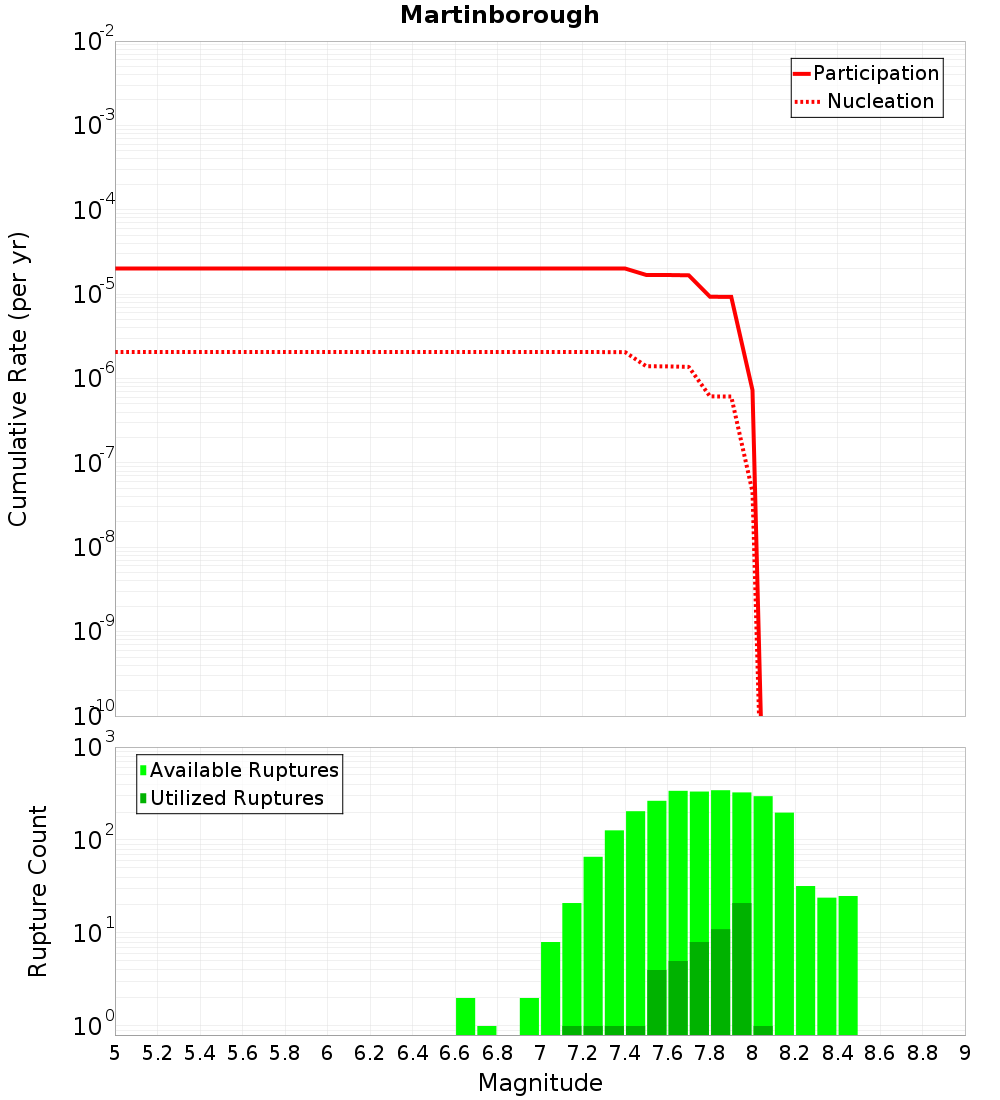

Incremental	Cumulative

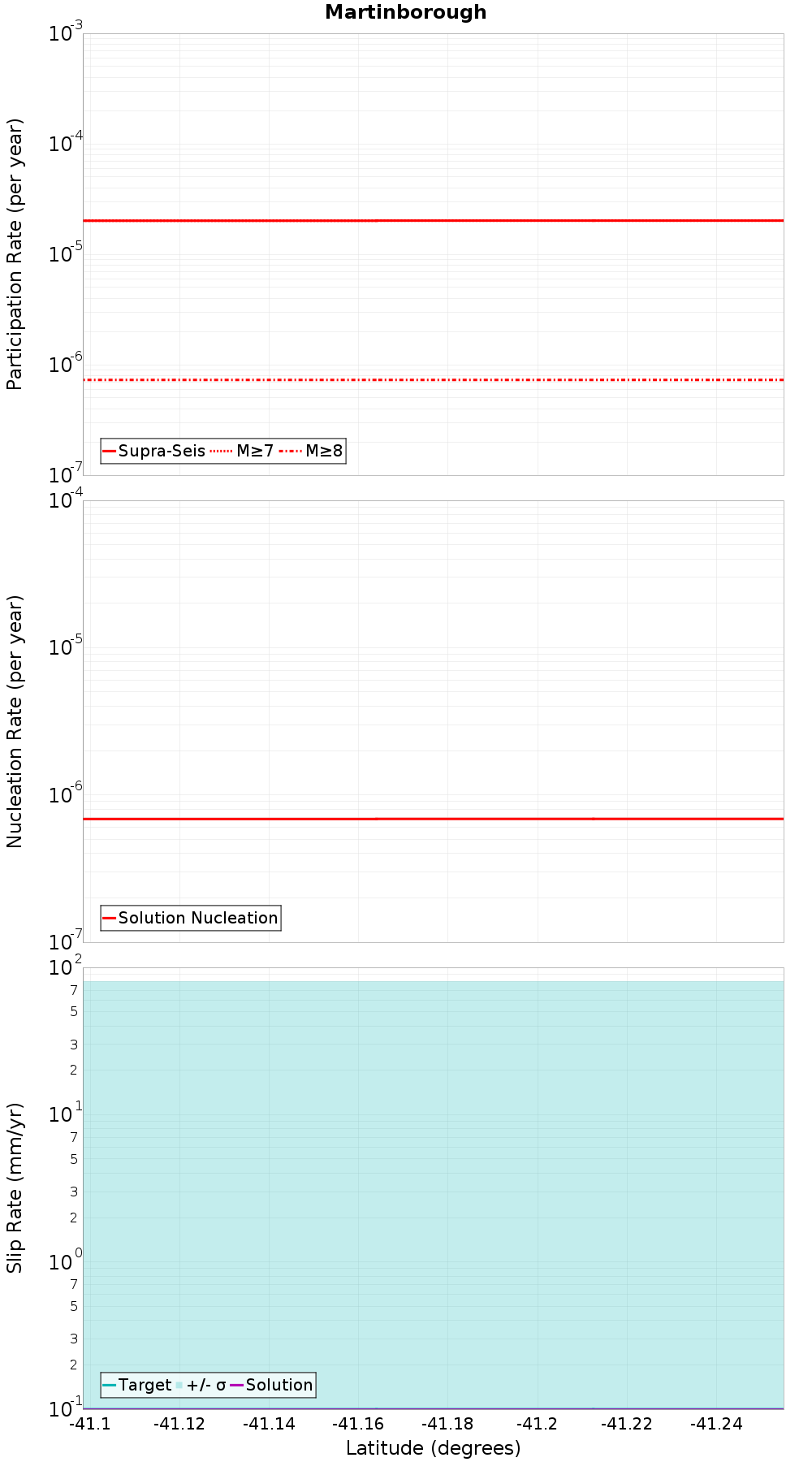

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Carterton, 0.42 km away
Otaraia, 1.89 km away
Bidwill, 2.26 km away
Masterton, 2.34 km away
Dry River - Huangarua: 1, 4.37 km away
Dry River - Huangarua: 2, 4.43 km away
Dry River - Huangarua: 3, 5.61 km away
Wairarapa: 3, 9.53 km away
Wairarapa: 2, 9.66 km away
Wellington Hutt Valley: 5, 10.73 km away
Mokonui Southwest, 12.87 km away

Carterton, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	true
Co-rupture Count	1,659
Co-rupture Rate	1.6408978E-5

Otaraia, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	true
Co-rupture Count	1,492
Co-rupture Rate	1.3762027E-5

Bidwill, 2.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Masterton, 2.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	false
Co-rupture Count	31
Co-rupture Rate	7.3919473E-6

Dry River - Huangarua: 1, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	true
Co-rupture Count	871
Co-rupture Rate	2.9590683E-6

Dry River - Huangarua: 2, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0

Dry River - Huangarua: 3, 5.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	5.826018E-10

Wairarapa: 3, 9.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	true
Co-rupture Count	127
Co-rupture Rate	3.9192214E-9

Wairarapa: 2, 9.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	false
Co-rupture Count	72
Co-rupture Rate	3.9192214E-9

Wellington Hutt Valley: 5, 10.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Mokonui Southwest, 12.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3NzYuMFpKNkV6
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
