Hope: Seaward Details

Property	Value
Rupture Count	13,726
Ruptures Above Sect Min Mag	13,718
Ruptures w/ Nonzero Rates	387
Magnitude Range	[6.62, 8.52]
Length Range	[16, 946] km
Total Rate	6.4895477E-4 /yr
Multi-Fault Rate	6.4895477E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	155

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

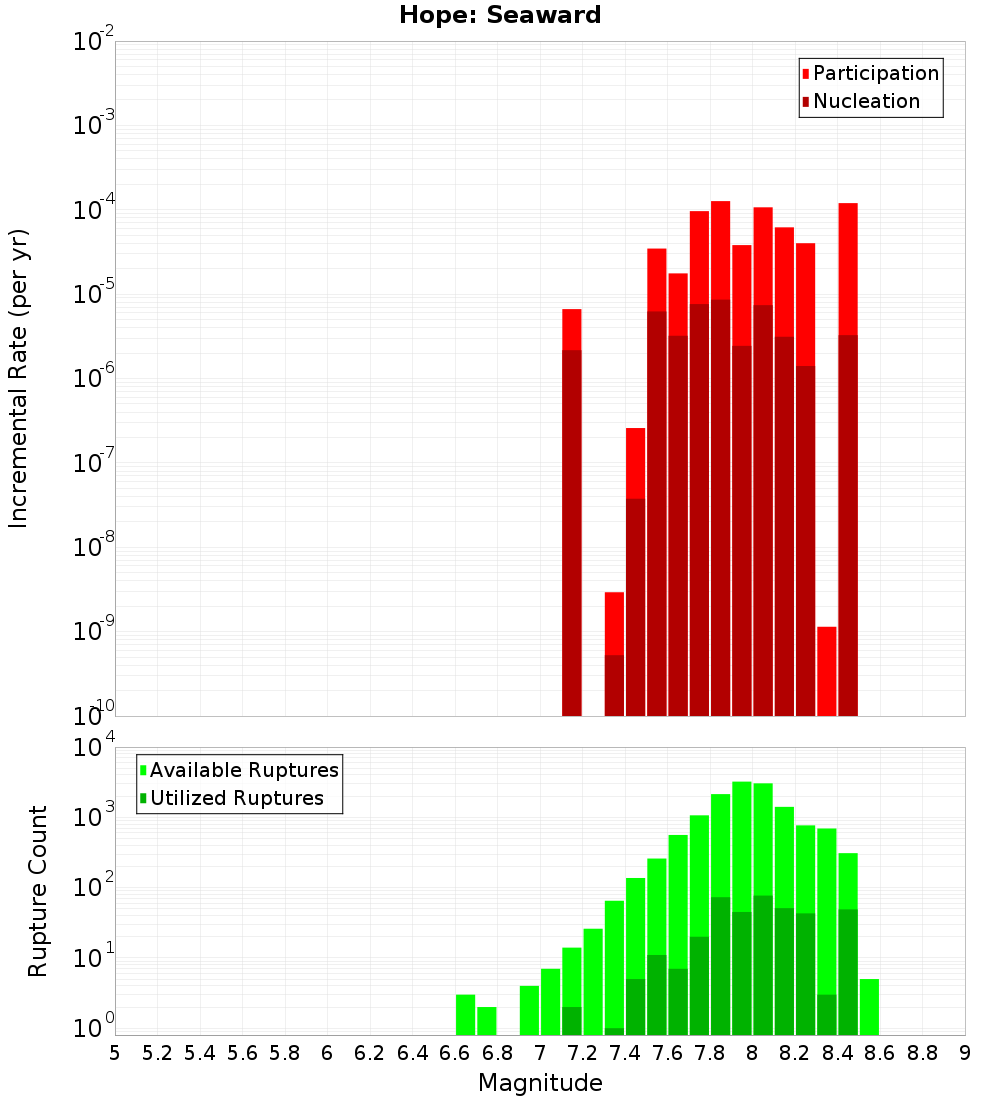

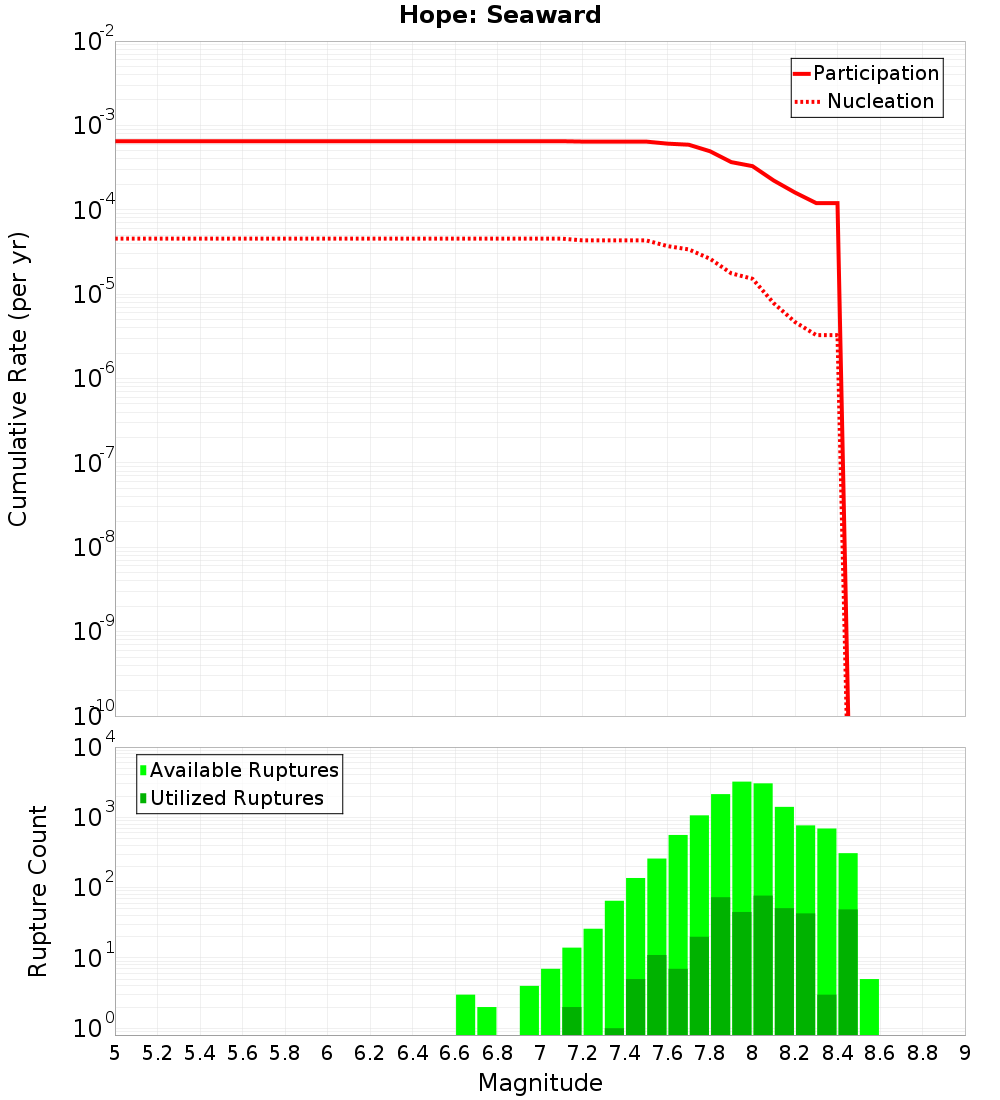

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

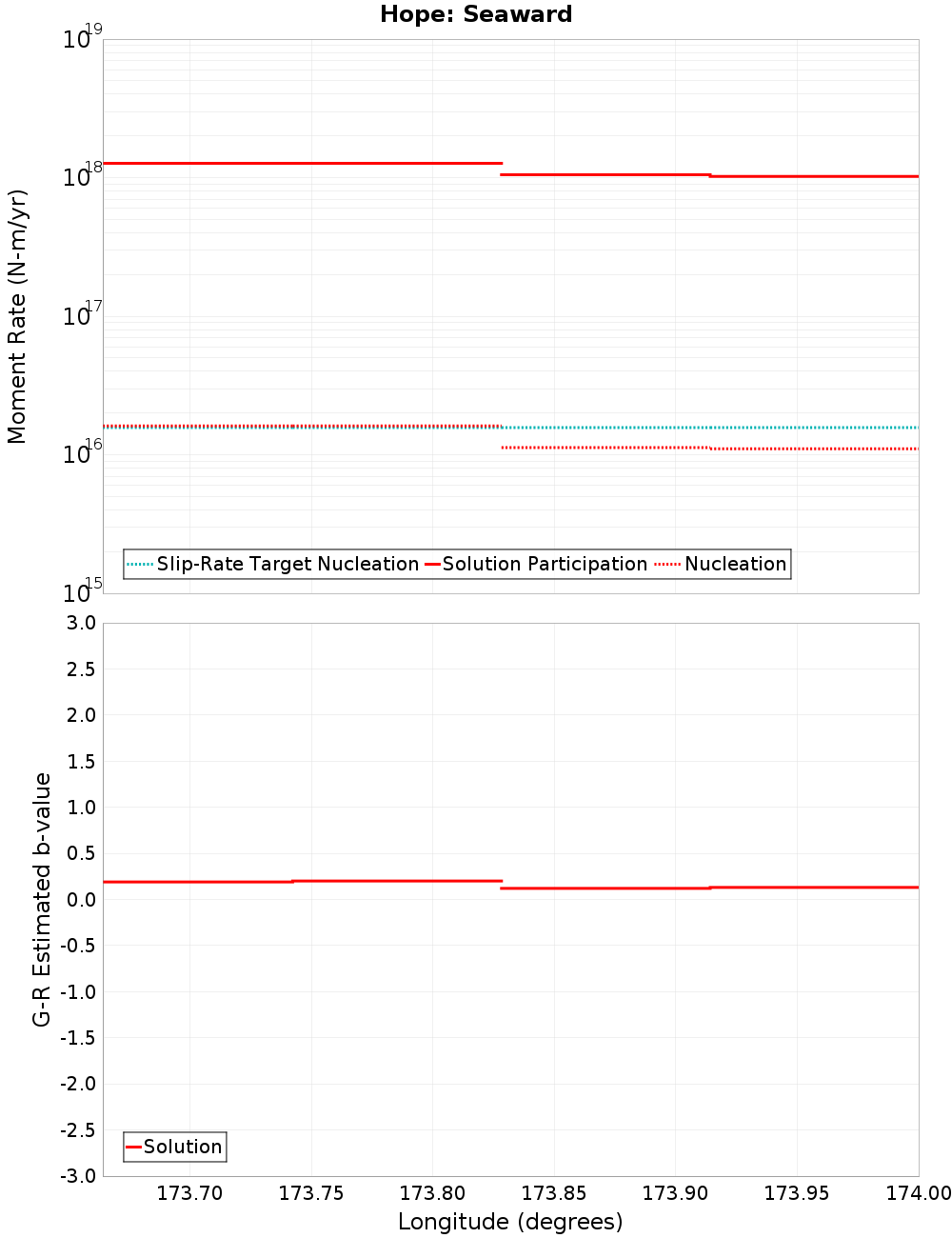

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Conway, 0 km away
Jordan, 0 km away
Papatea, 0.03 km away
Kaikoura - Mangamaunu, 1.03 km away
Hope: Te Rapa, 3.47 km away
Upper Slope, 10.39 km away
Fidget, 13.67 km away

Hope: Conway, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMENXMnVX
Connected?	true
Directly Connected?	true
Co-rupture Count	12,247
Co-rupture Rate	6.271566E-4

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMENXMnVX
Connected?	true
Directly Connected?	false
Co-rupture Count	118
Co-rupture Rate	6.3356237E-7

Papatea, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMENXMnVX
Connected?	true
Directly Connected?	true
Co-rupture Count	3,358
Co-rupture Rate	2.4589399E-4

Kaikoura - Mangamaunu, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMENXMnVX
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	5.9169546E-5

Hope: Te Rapa, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMENXMnVX
Connected?	true
Directly Connected?	true
Co-rupture Count	9,186
Co-rupture Rate	3.7301035E-4

Upper Slope, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMENXMnVX
Connected?	true
Directly Connected?	false
Co-rupture Count	1,113
Co-rupture Rate	4.4463883E-5

Fidget, 13.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMENXMnVX
Connected?	true
Directly Connected?	false
Co-rupture Count	14
Co-rupture Rate	0.0
