Te Arawa 2 Details

PropertyValue
Rupture Count2,060
Ruptures Above Sect Min Mag2,059
Ruptures w/ Nonzero Rates296
Magnitude Range[6.82, 8.30]
Length Range[16, 549] km
Total Rate1.0773921E-4 /yr
Multi-Fault Rate1.0773921E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults53

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

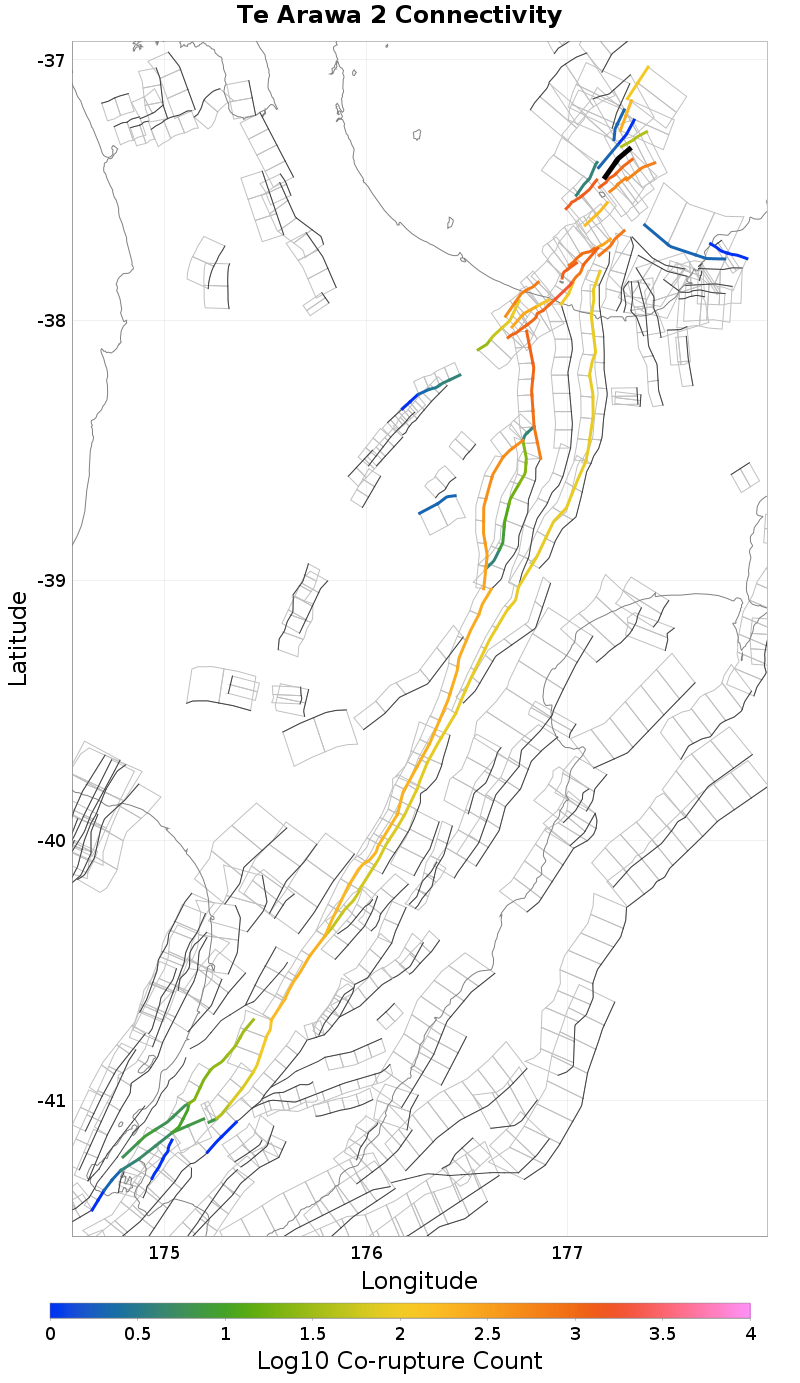

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.13 km away
Te Arawa 1, 1.19 km away
Te Arawa 3, 1.67 km away
Whakaari 4, 3.86 km away
Volkner 4, 4.02 km away
Tuatoru 1, 4.64 km away
Hariki, 5.17 km away
Volkner 3, 6 km away
Calypso 2, 6.99 km away
Otara West 1, 7.42 km away
Otara East 1, 7.74 km away
White Island 2, 10.07 km away
Otara West 2, 11.66 km away
Opotiki 3, 14.7 km away
Ohiwa 1, 14.95 km away

Tuatoru 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?true
Co-rupture Count627
Co-rupture Rate2.806533E-5

Te Arawa 1, 1.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?true
Co-rupture Count1,257
Co-rupture Rate6.8831745E-5

Te Arawa 3, 1.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate7.8727777E-7

Whakaari 4, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?true
Co-rupture Count1,281
Co-rupture Rate7.739529E-5

Volkner 4, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.6895561E-11

Tuatoru 1, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?true
Co-rupture Count547
Co-rupture Rate1.3675918E-5

Hariki, 5.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Volkner 3, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.6895561E-11

Calypso 2, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?true
Co-rupture Count169
Co-rupture Rate1.5650921E-6

Otara West 1, 7.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.6895561E-11

Otara East 1, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?false
Co-rupture Count223
Co-rupture Rate2.5474126E-5

White Island 2, 10.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?false
Co-rupture Count742
Co-rupture Rate4.5521145E-5

Otara West 2, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk3ODQuMExONHY4
Connected?true
Directly Connected?false
Co-rupture Count269
Co-rupture Rate1.7865204E-5
