Torlesse Details

Property	Value
Rupture Count	502
Ruptures Above Sect Min Mag	488
Ruptures w/ Nonzero Rates	20
Magnitude Range	[6.49, 8.07]
Length Range	[13, 297] km
Total Rate	3.413401E-4 /yr
Multi-Fault Rate	3.413401E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	31

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

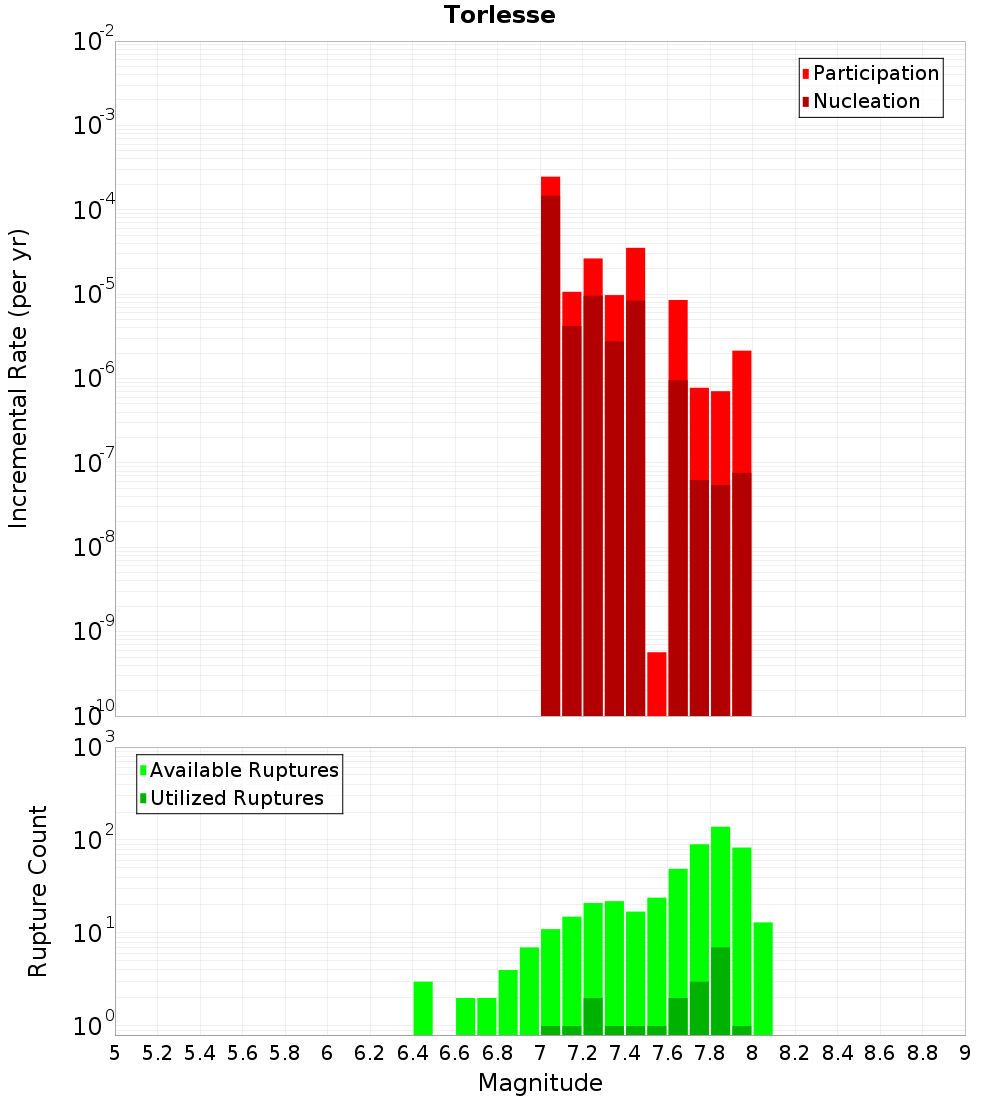

Magnitude-Frequency Distribution

Incremental	Cumulative

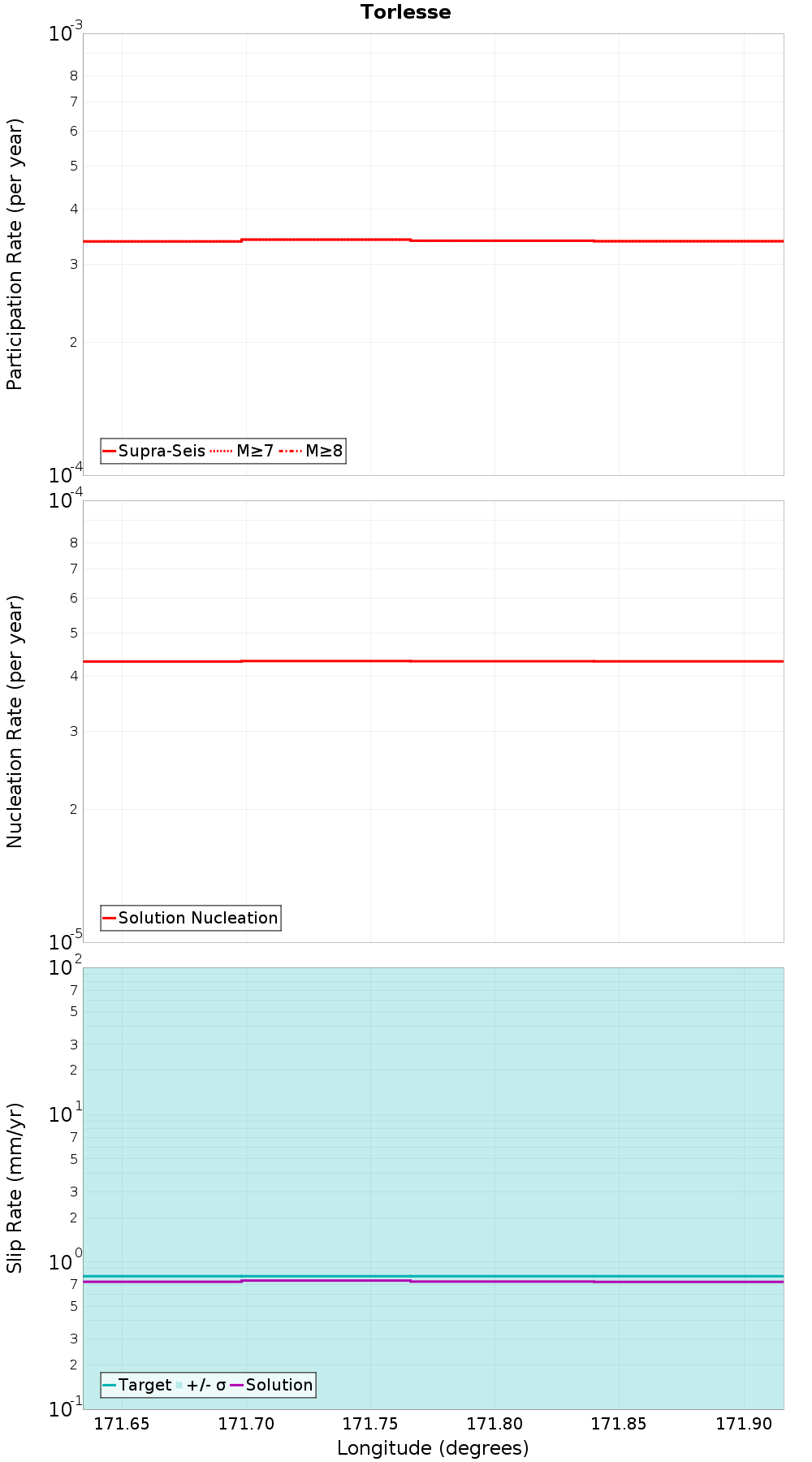

Along-Strike Values

Moment-Rates and b-Values

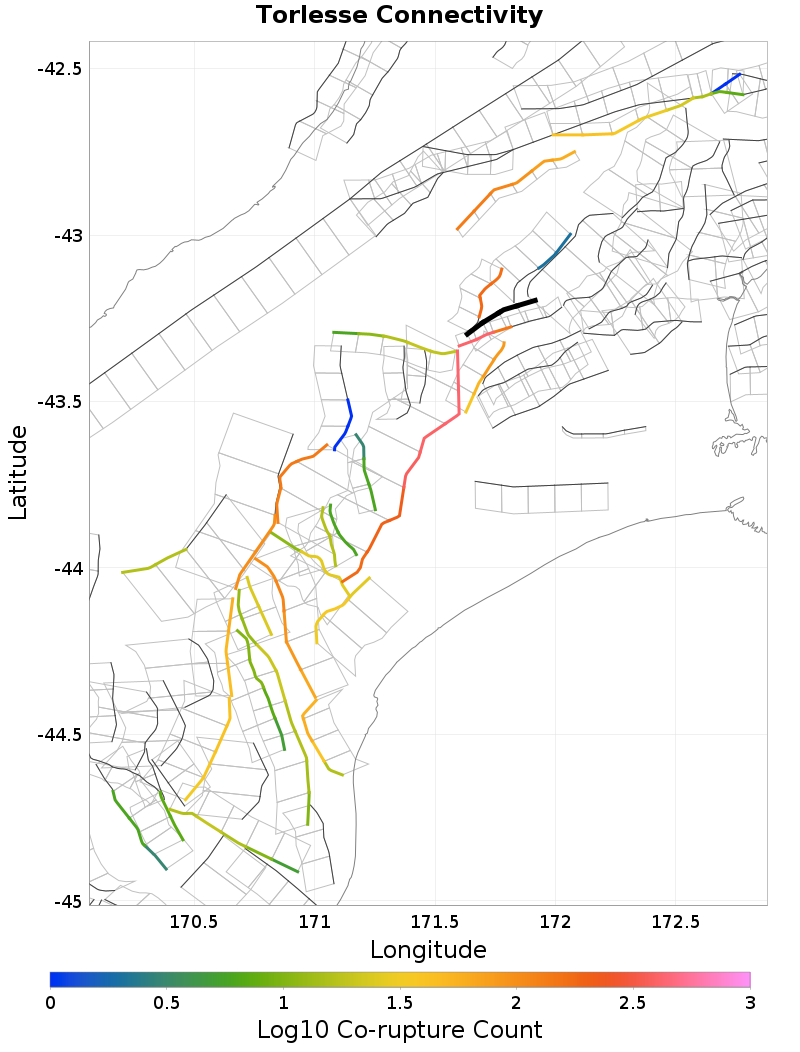

Connectivity

Nearby Sections

Fault Section
Porters Pass, 0.31 km away
Big Ben, 0.37 km away
Esk South, 0.4 km away
Cheeseman, 0.67 km away
Sailor, 1.39 km away
Hutt Peel, 6.36 km away
Double Hill, 6.89 km away
Lees Valley, 9.41 km away
Knowles Top, 11.34 km away
Hororata, 12.36 km away
Starvation - Ashley, 12.83 km away
Kowai - View Hill, 13.54 km away

Porters Pass, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	true
Directly Connected?	true
Co-rupture Count	412
Co-rupture Rate	3.3159915E-4

Big Ben, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	true
Directly Connected?	true
Co-rupture Count	82
Co-rupture Rate	4.6874764E-5

Esk South, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cheeseman, 0.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	true
Directly Connected?	true
Co-rupture Count	177
Co-rupture Rate	2.1385524E-6

Sailor, 1.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Hutt Peel, 6.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	true
Directly Connected?	false
Co-rupture Count	417
Co-rupture Rate	4.7535523E-5

Double Hill, 6.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	4.5134584E-5

Lees Valley, 9.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Knowles Top, 11.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hororata, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Starvation - Ashley, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kowai - View Hill, 13.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
