Vernon 1 Details

PropertyValue
Rupture Count750
Ruptures Above Sect Min Mag745
Ruptures w/ Nonzero Rates107
Magnitude Range[6.28, 8.50]
Length Range[6, 888] km
Total Rate5.636497E-4 /yr
Multi-Fault Rate5.636497E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults45

Table Of Contents

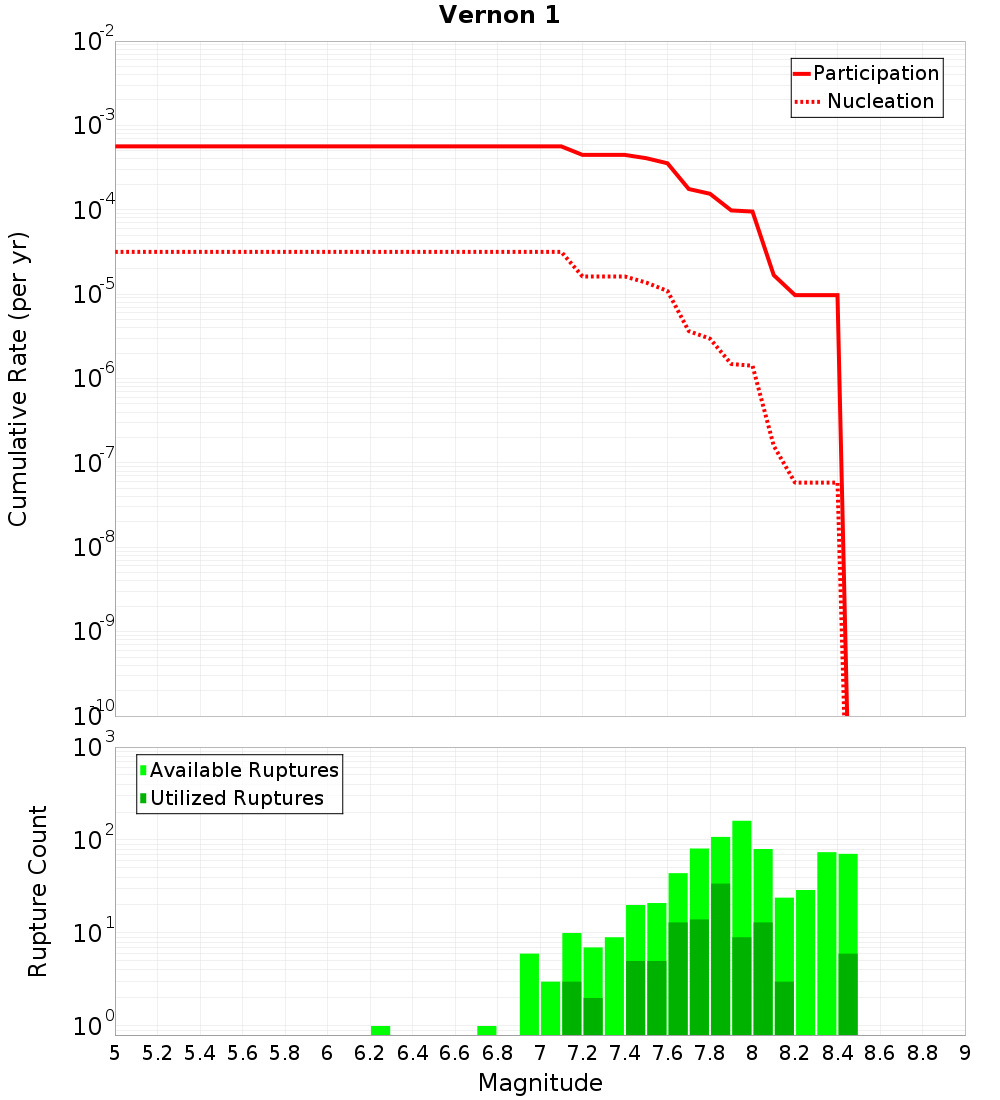

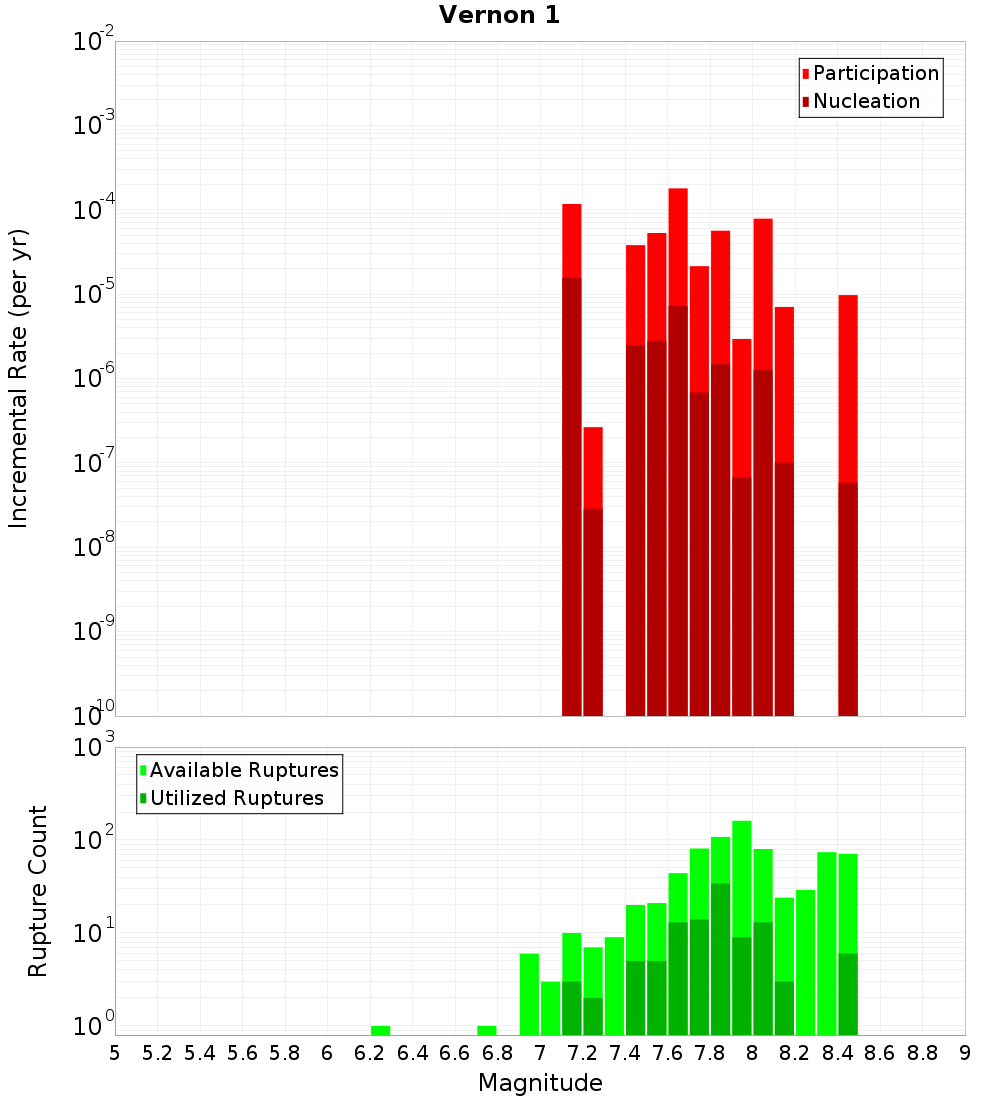

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

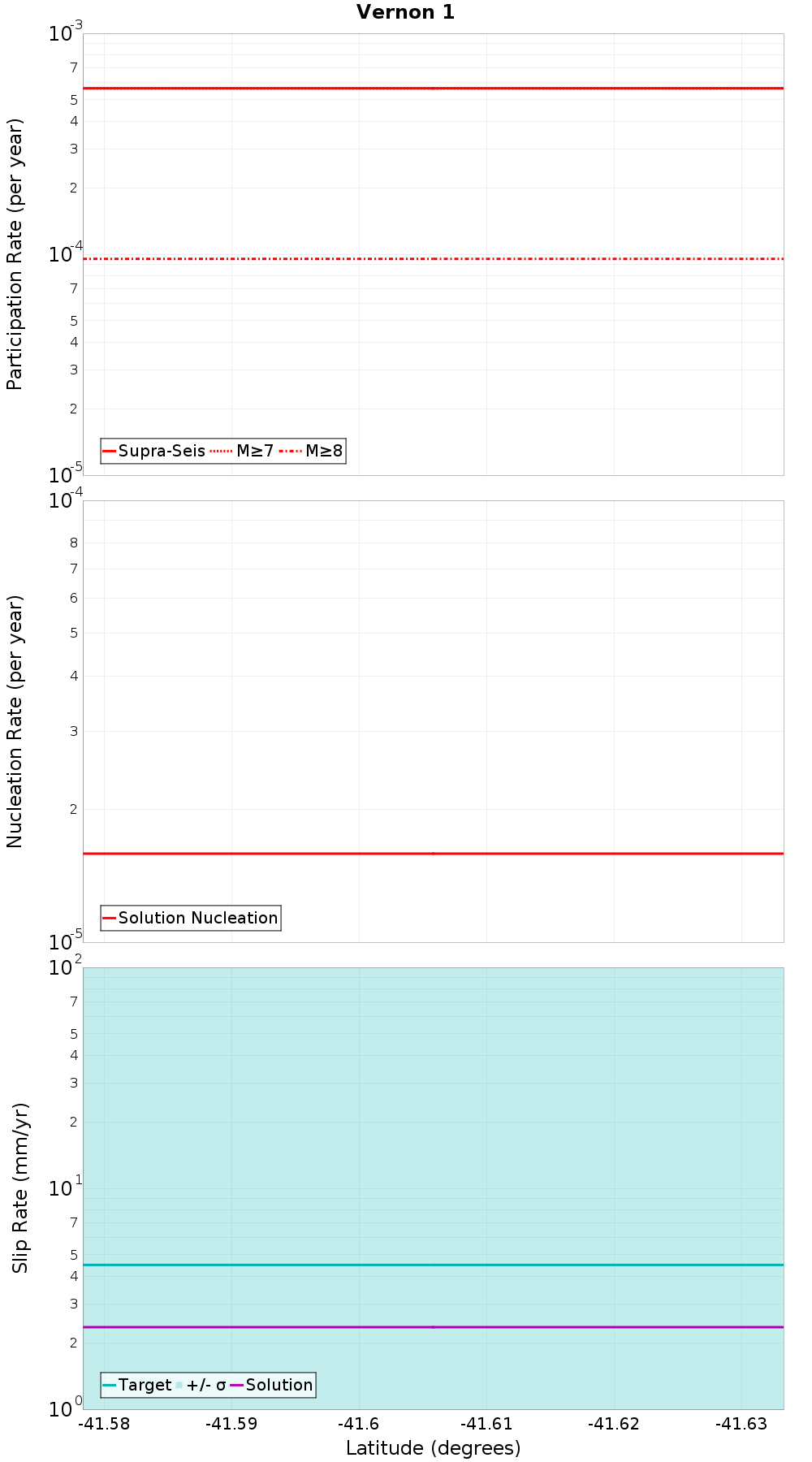

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

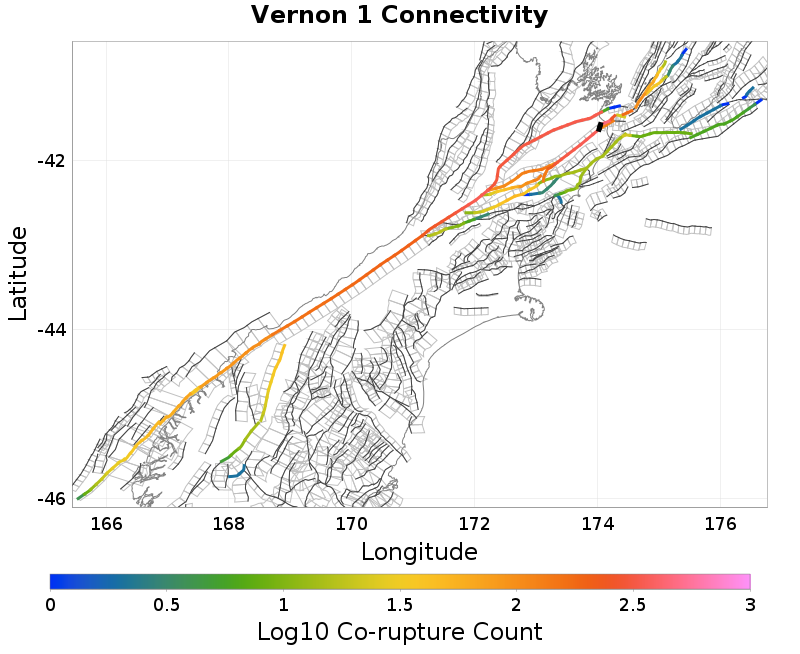

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awatere: Northeast 1, 0 km away
Awatere: Northeast 2, 0 km away
Vernon 2, 0 km away
Vernon 3, 4.6 km away
Cloudy 1, 7.79 km away
Vernon 4, 9.49 km away
Needles East 2, 10.47 km away
Cloudy 3, 13.54 km away
Wairau, 14 km away

Awatere: Northeast 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?true
Directly Connected?true
Co-rupture Count362
Co-rupture Rate4.0675452E-4

Awatere: Northeast 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?true
Directly Connected?true
Co-rupture Count131
Co-rupture Rate1.8685599E-6

Vernon 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?true
Directly Connected?true
Co-rupture Count450
Co-rupture Rate4.0044574E-4

Vernon 3, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 1, 7.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?true
Directly Connected?false
Co-rupture Count259
Co-rupture Rate3.4272045E-5

Vernon 4, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 10.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate1.8685599E-6

Wairau, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMDNZYTZt
Connected?true
Directly Connected?true
Co-rupture Count341
Co-rupture Rate1.550266E-4
