Hope: Kakapo-2-Hamner Details

Property	Value
Rupture Count	7,603
Ruptures Above Sect Min Mag	7,601
Ruptures w/ Nonzero Rates	589
Magnitude Range	[6.37, 8.52]
Length Range	[6, 946] km
Total Rate	0.001709506 /yr
Multi-Fault Rate	0.001709506 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	150

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

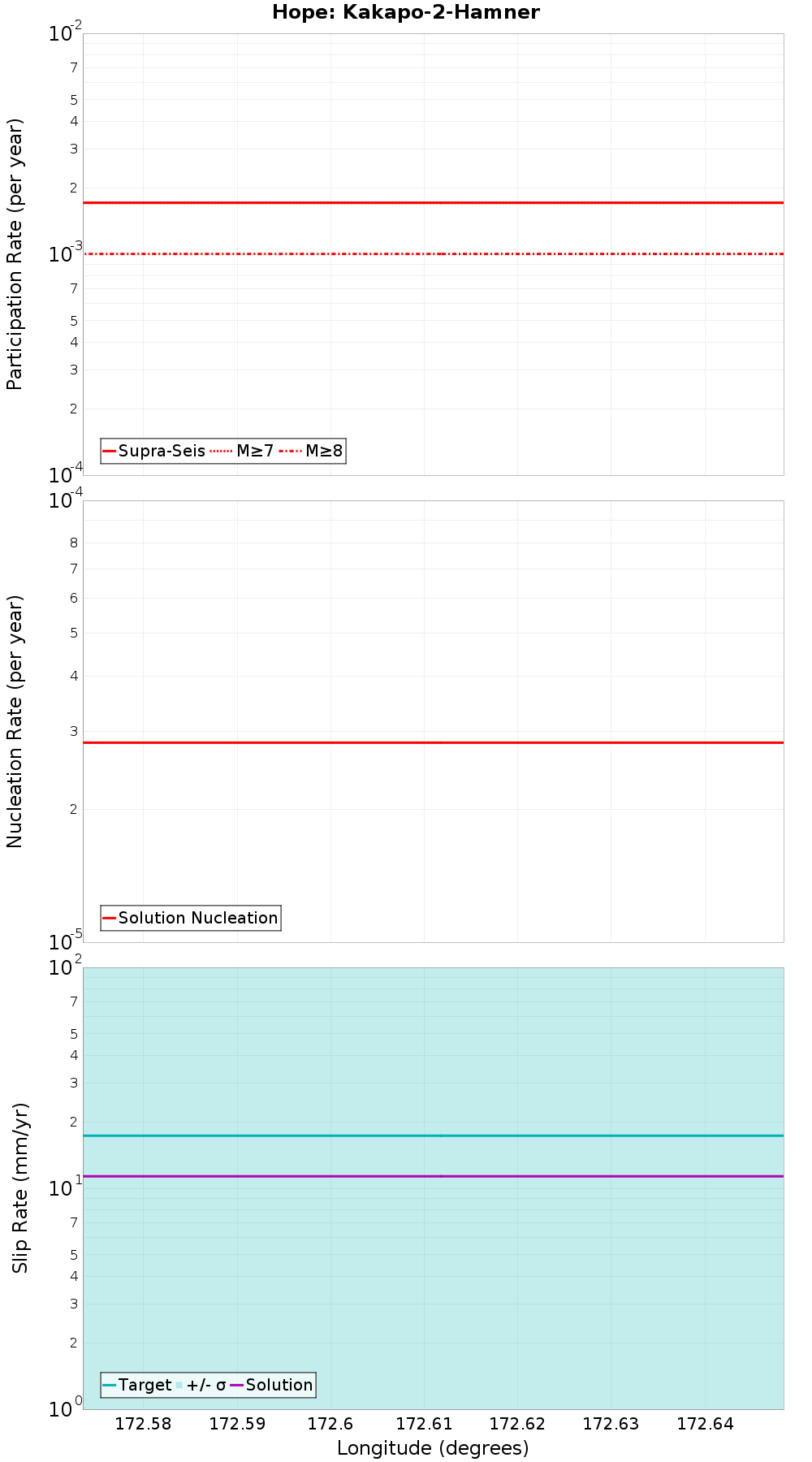

Along-Strike Values

Moment-Rates and b-Values

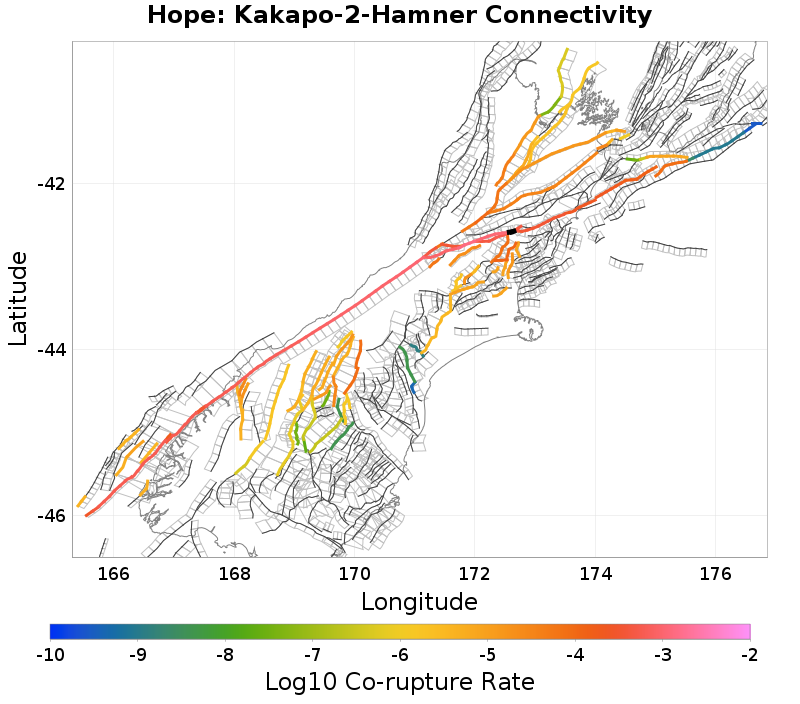

Connectivity

Nearby Sections

Fault Section
Kakapo, 0 km away
Hope: Hanmer NW, 0 km away
Hope: Hope River, 0 km away
Hope: Hamner SW, 0 km away
Esk North, 4.29 km away
Hanmer, 7.2 km away
Hope: Hamner SE, 10.42 km away
Clarence: Southwest, 12.23 km away
Hurunui Peak, 12.99 km away

Kakapo, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,436
Co-rupture Rate	6.116423E-4

Hope: Hanmer NW, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	true
Directly Connected?	false
Co-rupture Count	4,428
Co-rupture Rate	4.495102E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	true
Directly Connected?	true
Co-rupture Count	5,367
Co-rupture Rate	0.0011141631

Hope: Hamner SW, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	true
Directly Connected?	true
Co-rupture Count	5,950
Co-rupture Rate	5.386908E-4

Esk North, 4.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	7.41672E-5

Hanmer, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hamner SE, 10.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	true
Directly Connected?	false
Co-rupture Count	2,627
Co-rupture Rate	3.4246355E-4

Clarence: Southwest, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	true
Directly Connected?	false
Co-rupture Count	169
Co-rupture Rate	0.0

Hurunui Peak, 12.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDEuMHV6TjZt
Connected?	true
Directly Connected?	false
Co-rupture Count	377
Co-rupture Rate	1.089948E-4
