Dryburgh Details
| Property | Value |
|---|---|
| Rupture Count | 183 |
| Ruptures Above Sect Min Mag | 182 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.90, 8.24] |
| Length Range | [19, 349] km |
| Total Rate | 8.451164E-6 /yr |
| Multi-Fault Rate | 8.451164E-6 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 23 |
Table Of Contents

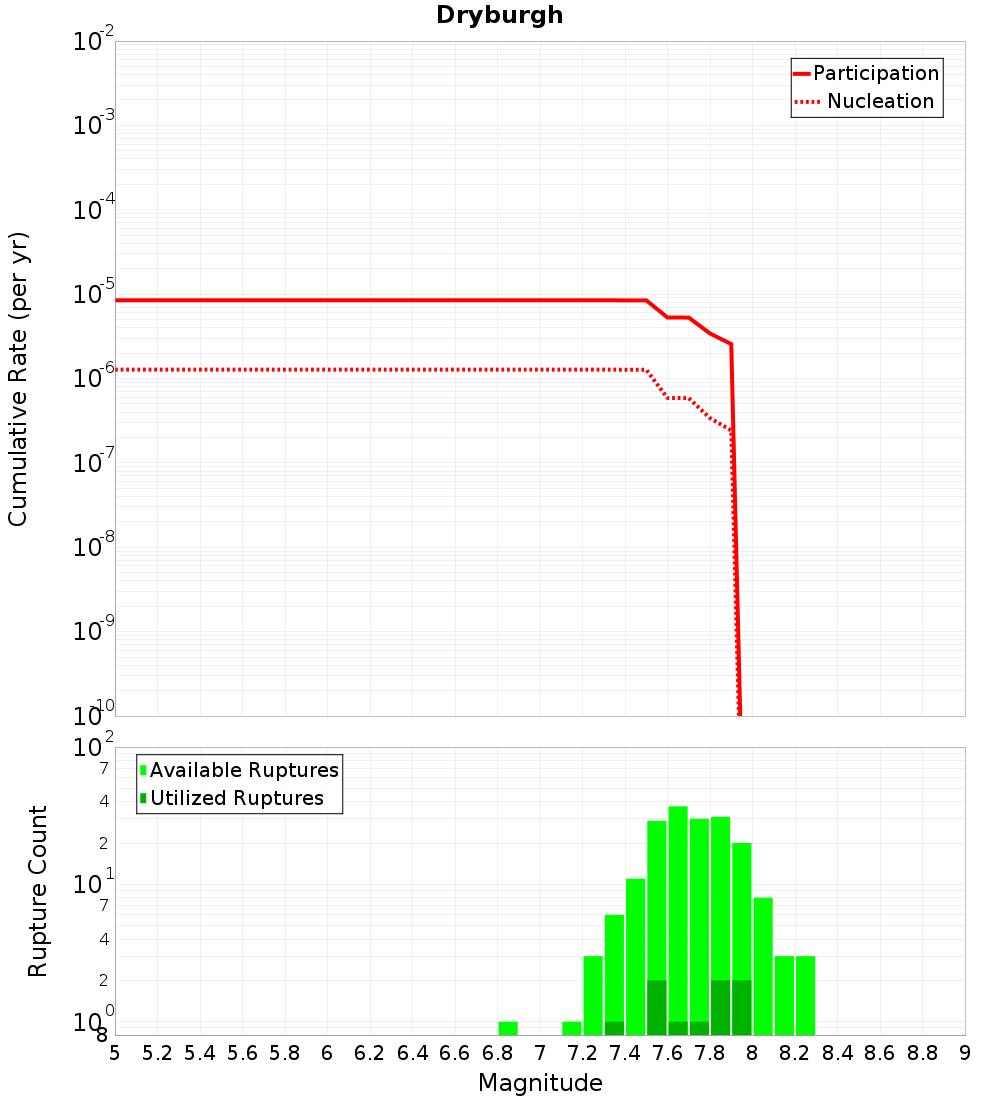

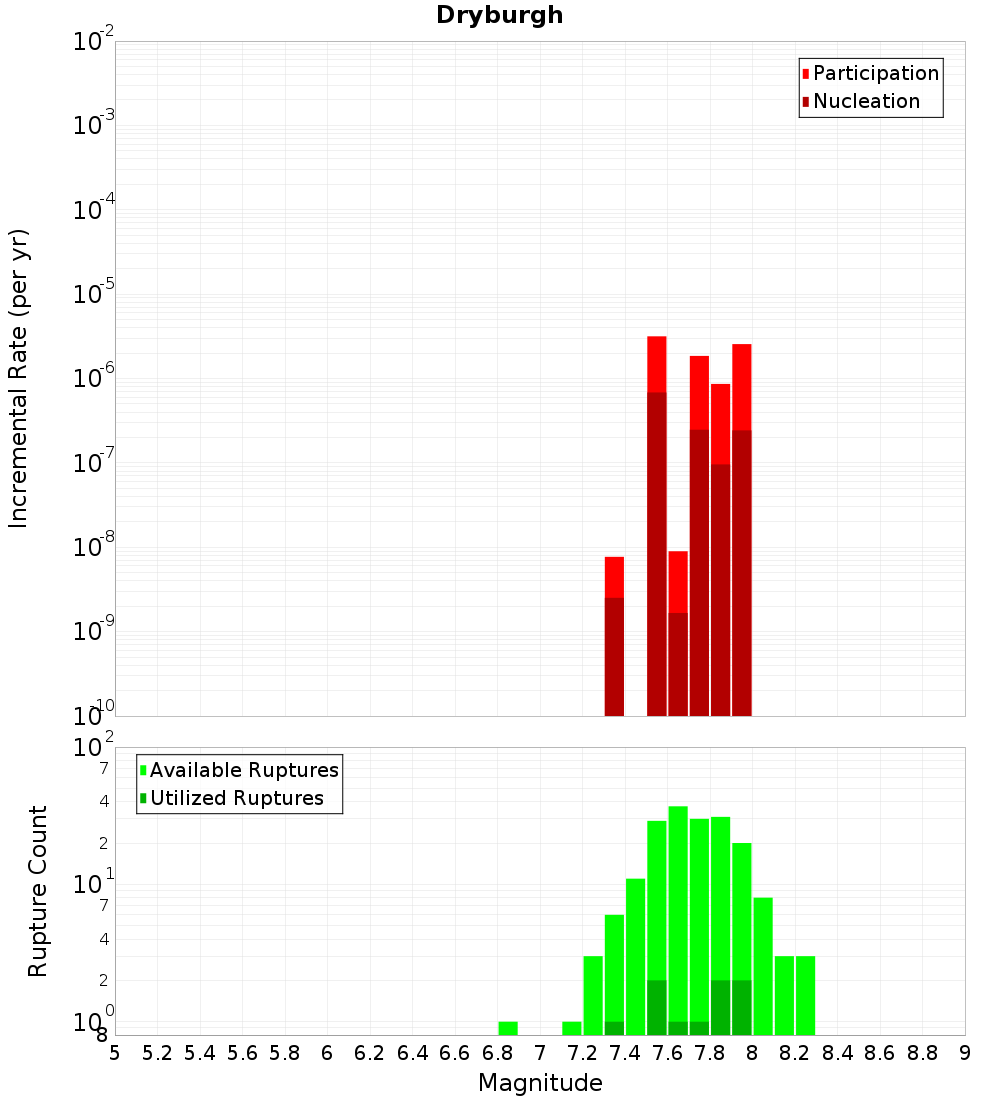

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Kirkliston, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 120 |
| Co-rupture Rate | 7.433119E-6 |
Mt Sutton, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 34 |
| Co-rupture Rate | 1.0013782E-6 |
Campbell Hills, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Stonewall, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 137 |
| Co-rupture Rate | 8.964945E-9 |
Waitangi, 1.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Gibson, 3.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 1.6666622E-8 |
Awahokomo, 3.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fern Gully, 4.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Grampian, 13.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 22 |
| Co-rupture Rate | 3.1615127E-6 |
Middle Range, 14.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Falstone, 14.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MDkuMGUzYXk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
