Cheeseman Details

Property	Value
Rupture Count	729
Ruptures Above Sect Min Mag	723
Ruptures w/ Nonzero Rates	13
Magnitude Range	[6.58, 8.17]
Length Range	[13, 298] km
Total Rate	4.6456174E-5 /yr
Multi-Fault Rate	4.6456174E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	31

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

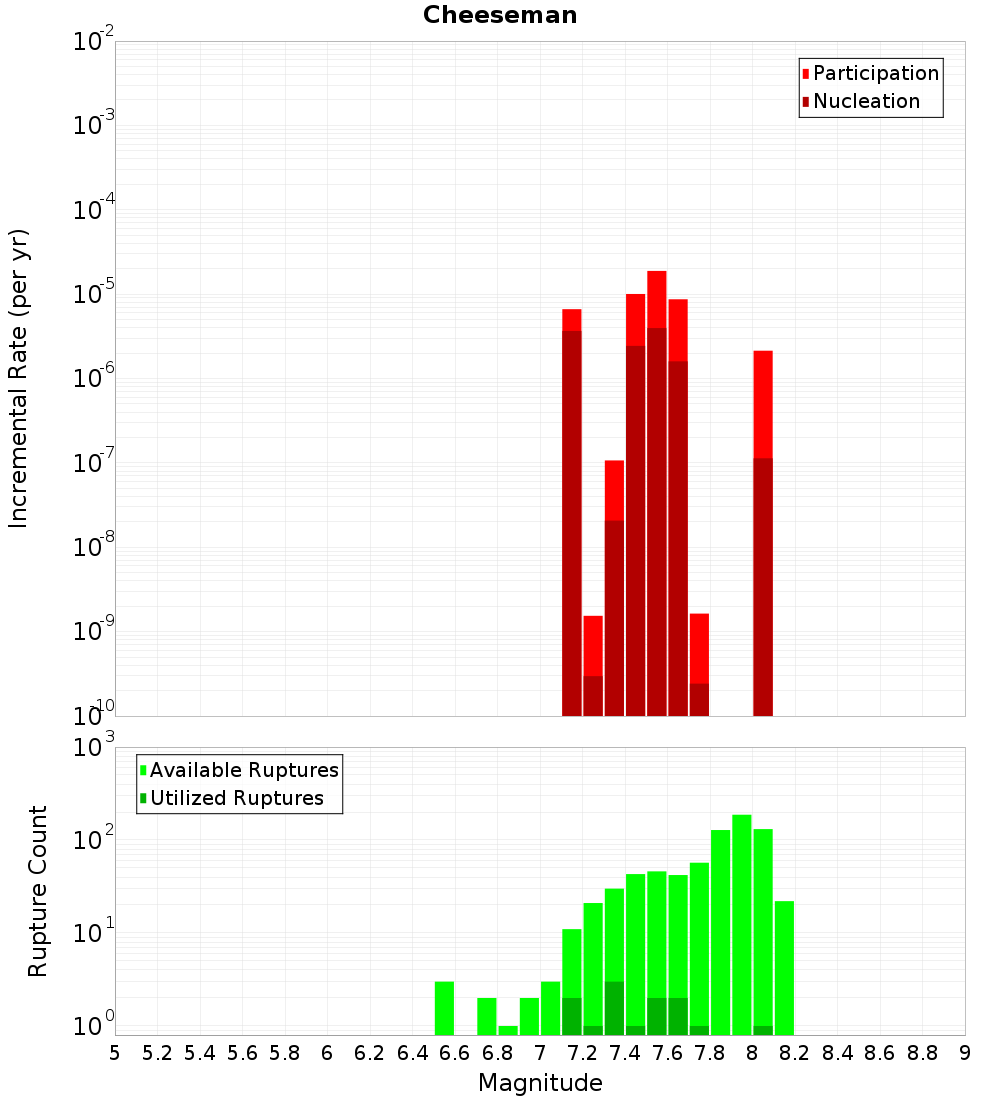

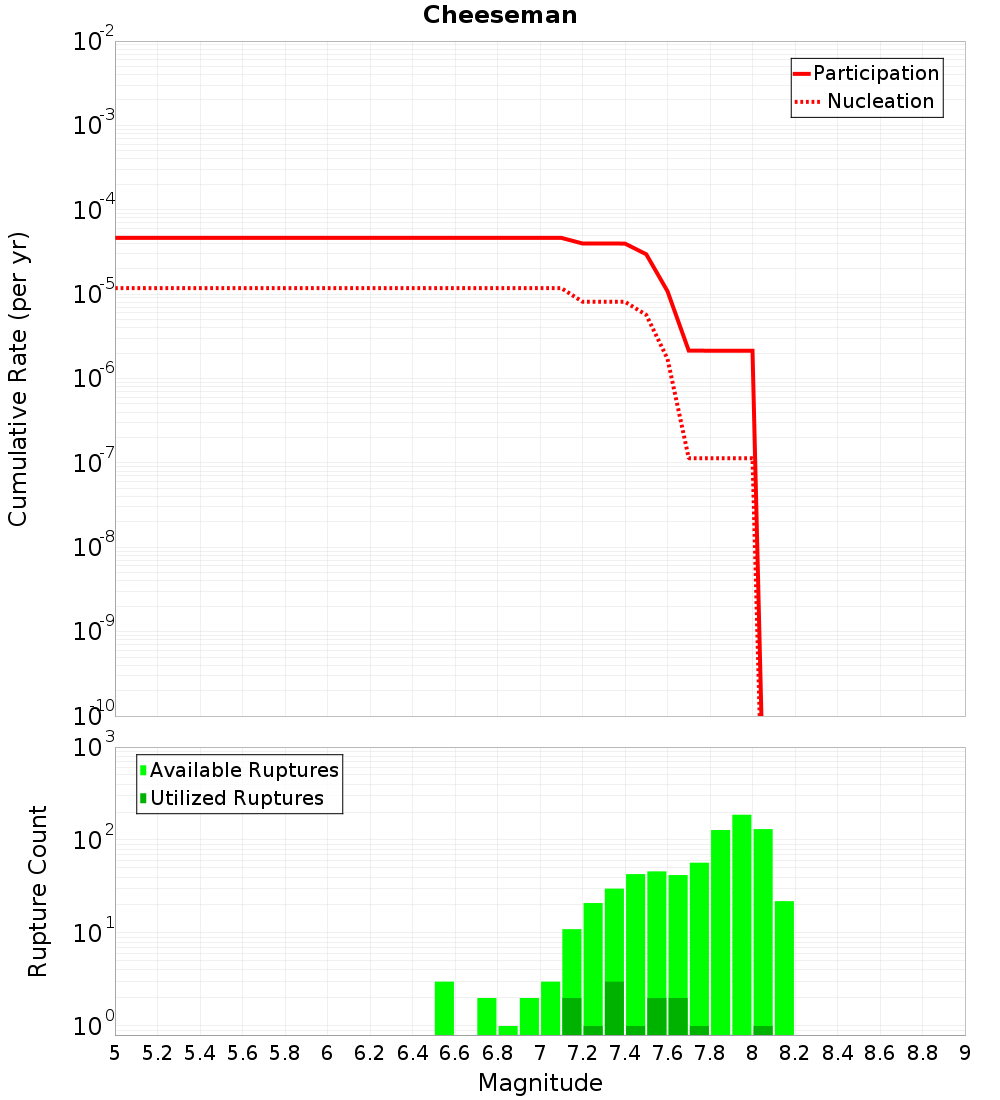

Magnitude-Frequency Distribution

Incremental	Cumulative

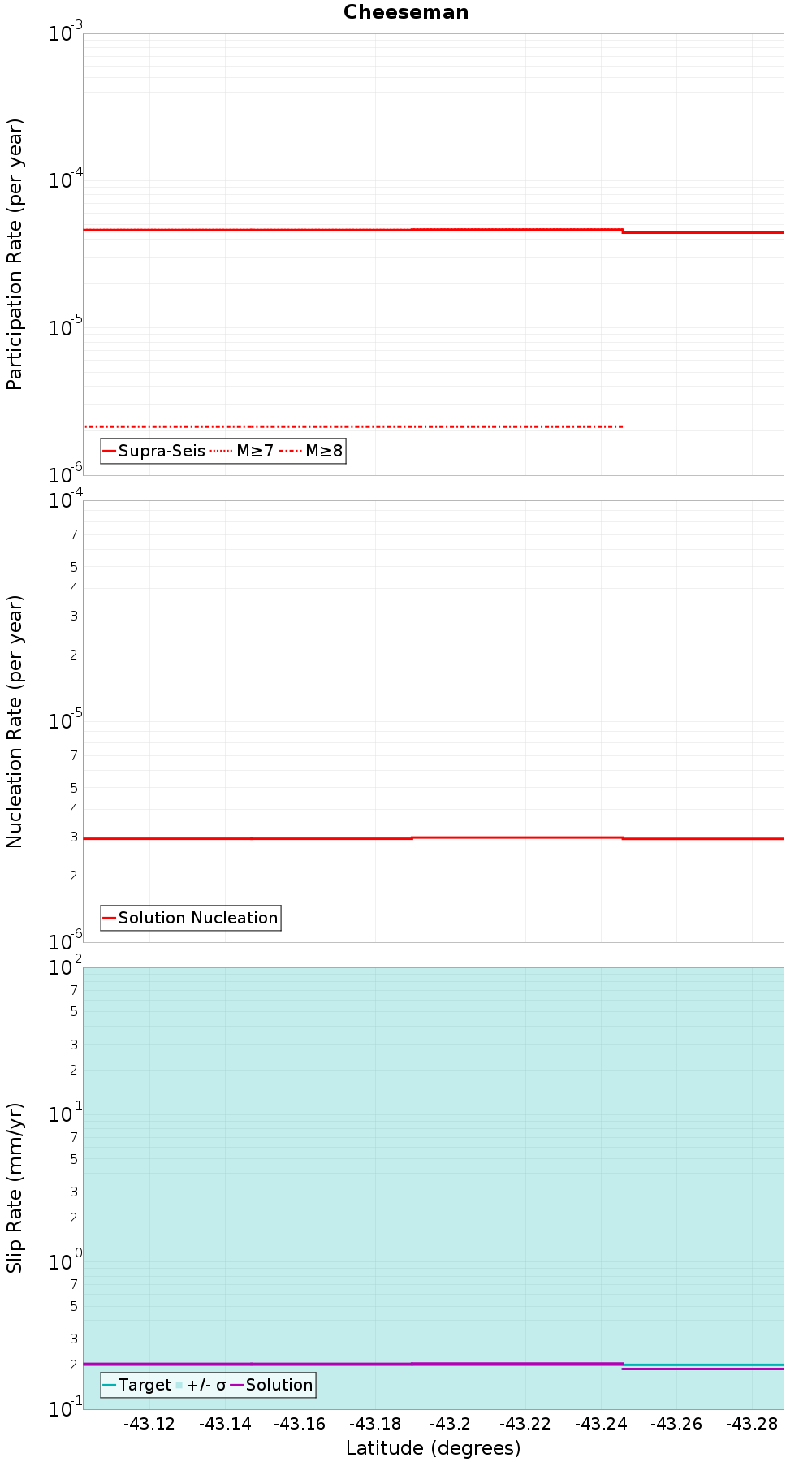

Along-Strike Values

Moment-Rates and b-Values

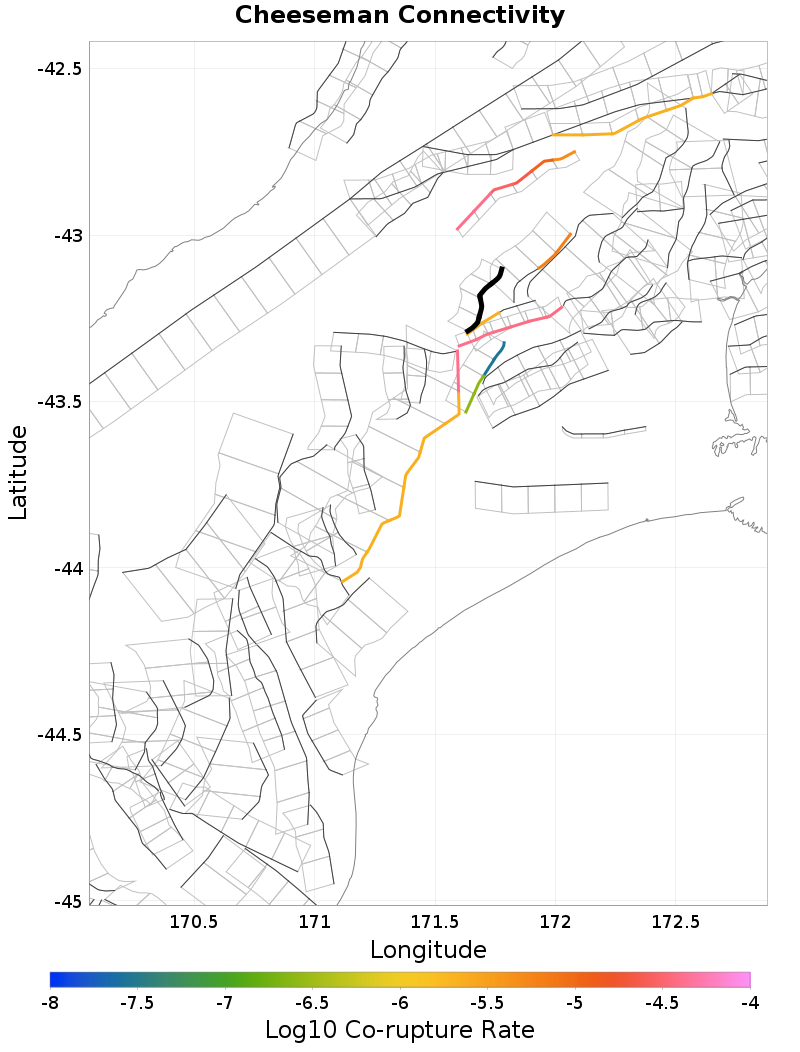

Connectivity

Nearby Sections

Fault Section
Torlesse, 0.67 km away
Porters Pass, 3.57 km away
Sailor, 4.42 km away
Hutt Peel, 7.5 km away
Double Hill, 7.96 km away
Big Ben, 9.71 km away
Esk South, 10.29 km away
Poulter, 10.59 km away
Redcliffe, 14.96 km away

Torlesse, 0.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	true
Directly Connected?	true
Co-rupture Count	177
Co-rupture Rate	2.1633139E-6

Porters Pass, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	true
Directly Connected?	false
Co-rupture Count	181
Co-rupture Rate	3.9795796E-5

Sailor, 4.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	true
Directly Connected?	true
Co-rupture Count	97
Co-rupture Rate	6.42872E-6

Hutt Peel, 7.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	true
Directly Connected?	true
Co-rupture Count	626
Co-rupture Rate	4.0025818E-5

Double Hill, 7.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	0.0

Big Ben, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	2.5766926E-7

Esk South, 10.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poulter, 10.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	true
Directly Connected?	true
Co-rupture Count	368
Co-rupture Rate	3.971664E-5

Redcliffe, 14.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MjguMGpwTFNu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
