Fowlers Details

Property	Value
Rupture Count	11,342
Ruptures Above Sect Min Mag	11,337
Ruptures w/ Nonzero Rates	140
Magnitude Range	[6.99, 8.58]
Length Range	[21, 787] km
Total Rate	1.4372543E-4 /yr
Multi-Fault Rate	1.3640826E-4 /yr (94.91%)
Directly-Connected Faults	7
All Co-Rupturing Faults	184

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

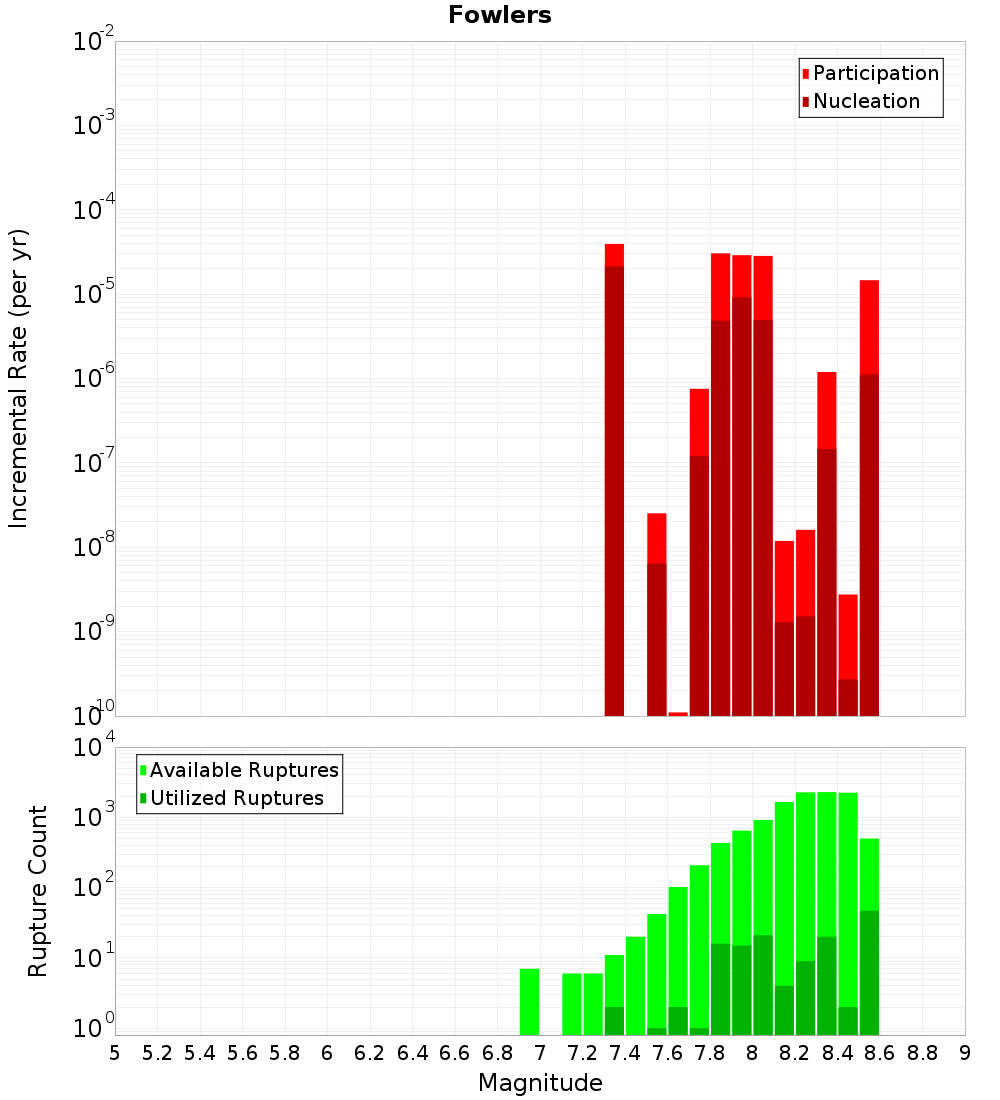

Magnitude-Frequency Distribution

Incremental	Cumulative

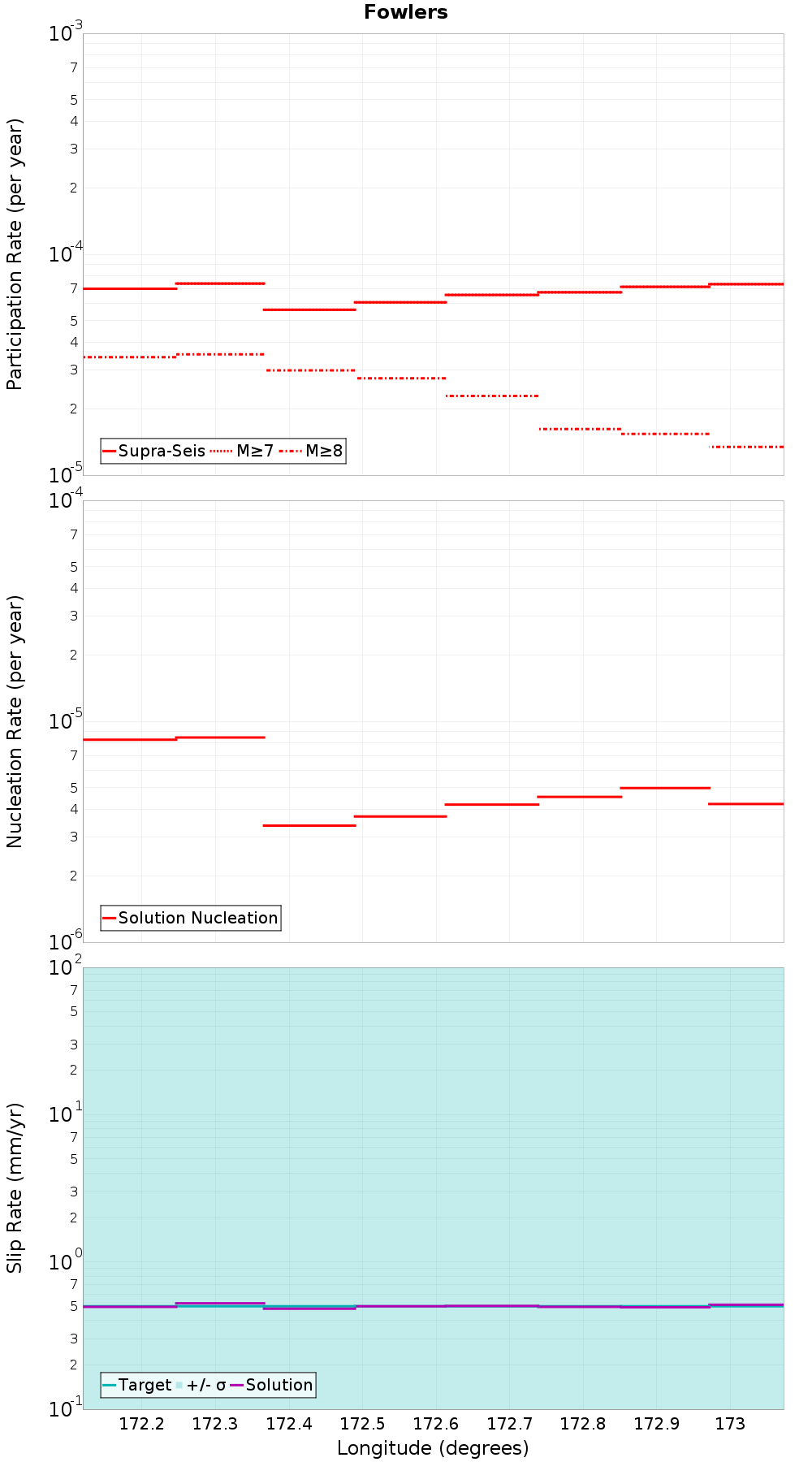

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Clarence: Central, 0.07 km away
Alpine: Springs Junction to Tophouse, 0.19 km away
Alpine: Kaniere to Springs Junction, 0.24 km away
Barefell, 0.26 km away
Elliott, 0.4 km away
Clarence: Southwest, 2.09 km away
Awatere: Southwest, 4.56 km away
Awatere: Northeast 1, 14.06 km away

Clarence: Central, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MzcuMFNnZ0x4
Connected?	true
Directly Connected?	true
Co-rupture Count	3,012
Co-rupture Rate	3.176863E-5

Alpine: Springs Junction to Tophouse, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MzcuMFNnZ0x4
Connected?	true
Directly Connected?	true
Co-rupture Count	335
Co-rupture Rate	4.2315696E-5

Alpine: Kaniere to Springs Junction, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MzcuMFNnZ0x4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,408
Co-rupture Rate	2.1226615E-5

Barefell, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MzcuMFNnZ0x4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,159
Co-rupture Rate	5.1948264E-5

Elliott, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MzcuMFNnZ0x4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,114
Co-rupture Rate	5.8188202E-6

Clarence: Southwest, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MzcuMFNnZ0x4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,413
Co-rupture Rate	4.1493454E-6

Awatere: Southwest, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MzcuMFNnZ0x4
Connected?	true
Directly Connected?	true
Co-rupture Count	527
Co-rupture Rate	1.0300936E-5

Awatere: Northeast 1, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4MzcuMFNnZ0x4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,348
Co-rupture Rate	6.222395E-5
