Uruti East - PorWest 1 Details

Property	Value
Rupture Count	15,040
Ruptures Above Sect Min Mag	15,031
Ruptures w/ Nonzero Rates	154
Magnitude Range	[6.77, 8.43]
Length Range	[22, 973] km
Total Rate	3.404891E-4 /yr
Multi-Fault Rate	3.404891E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	101

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

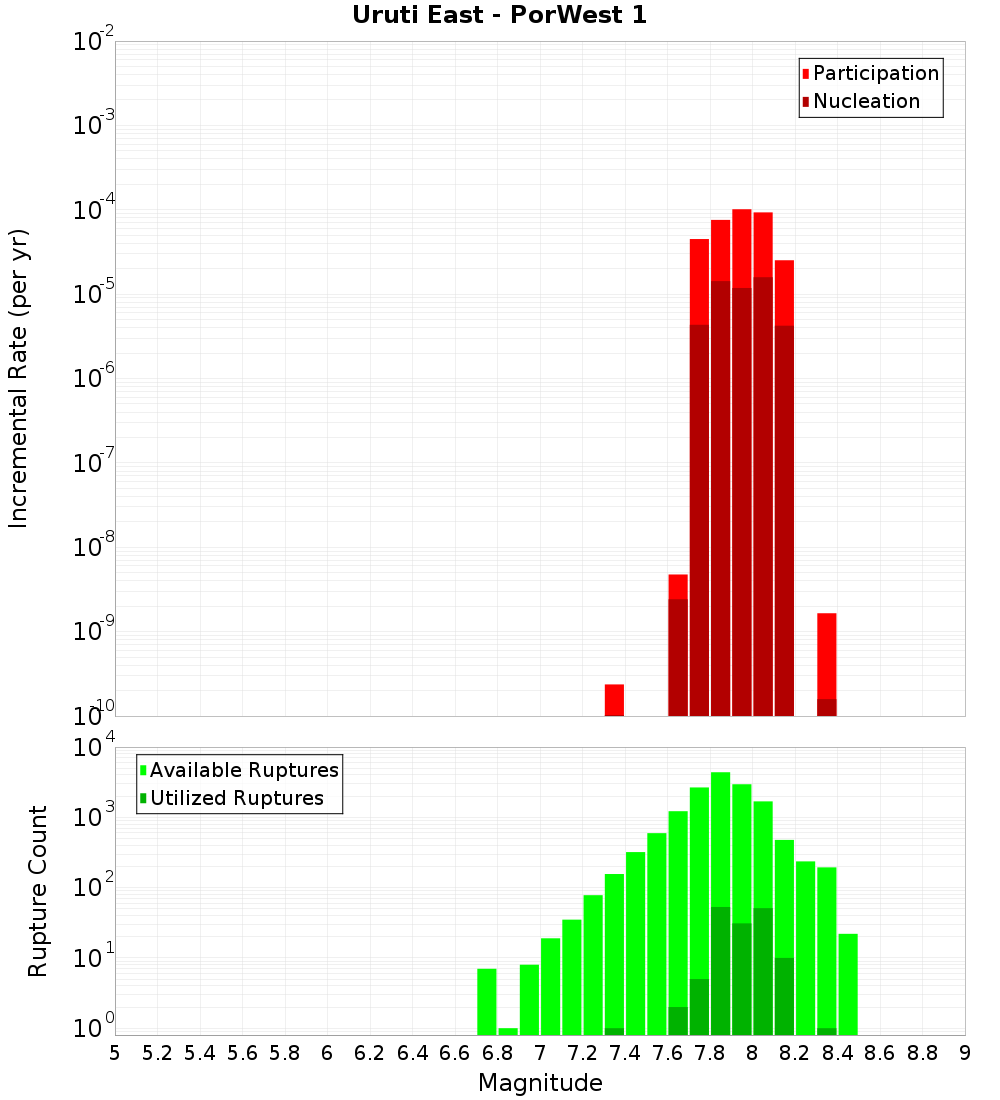

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 0.29 km away
Uruti Basin 2, 1.76 km away
Uruti Ridge 2, 2.58 km away
Madden Banks, 4.32 km away
Opouawe - Uruti, 5.54 km away
Pahaua, 7.19 km away
Uruti North, 10.36 km away

Uruti Basin, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NDkuMEFmZ3FT
Connected?	true
Directly Connected?	true
Co-rupture Count	7,469
Co-rupture Rate	2.3924252E-4

Uruti Basin 2, 1.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NDkuMEFmZ3FT
Connected?	true
Directly Connected?	true
Co-rupture Count	3,014
Co-rupture Rate	1.473216E-5

Uruti Ridge 2, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NDkuMEFmZ3FT
Connected?	true
Directly Connected?	true
Co-rupture Count	4,770
Co-rupture Rate	1.3201348E-4

Madden Banks, 4.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NDkuMEFmZ3FT
Connected?	true
Directly Connected?	true
Co-rupture Count	3,041
Co-rupture Rate	1.5189197E-4

Opouawe - Uruti, 5.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NDkuMEFmZ3FT
Connected?	true
Directly Connected?	true
Co-rupture Count	10,772
Co-rupture Rate	1.6965342E-4

Pahaua, 7.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NDkuMEFmZ3FT
Connected?	true
Directly Connected?	false
Co-rupture Count	2,502
Co-rupture Rate	4.6514942E-5

Uruti North, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NDkuMEFmZ3FT
Connected?	true
Directly Connected?	true
Co-rupture Count	778
Co-rupture Rate	4.7195807E-9
