Kelly Details

PropertyValue
Rupture Count61,108
Ruptures Above Sect Min Mag61,093
Ruptures w/ Nonzero Rates759
Magnitude Range[6.61, 8.49]
Length Range[17, 973] km
Total Rate0.003280415 /yr
Multi-Fault Rate0.003280415 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults174

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

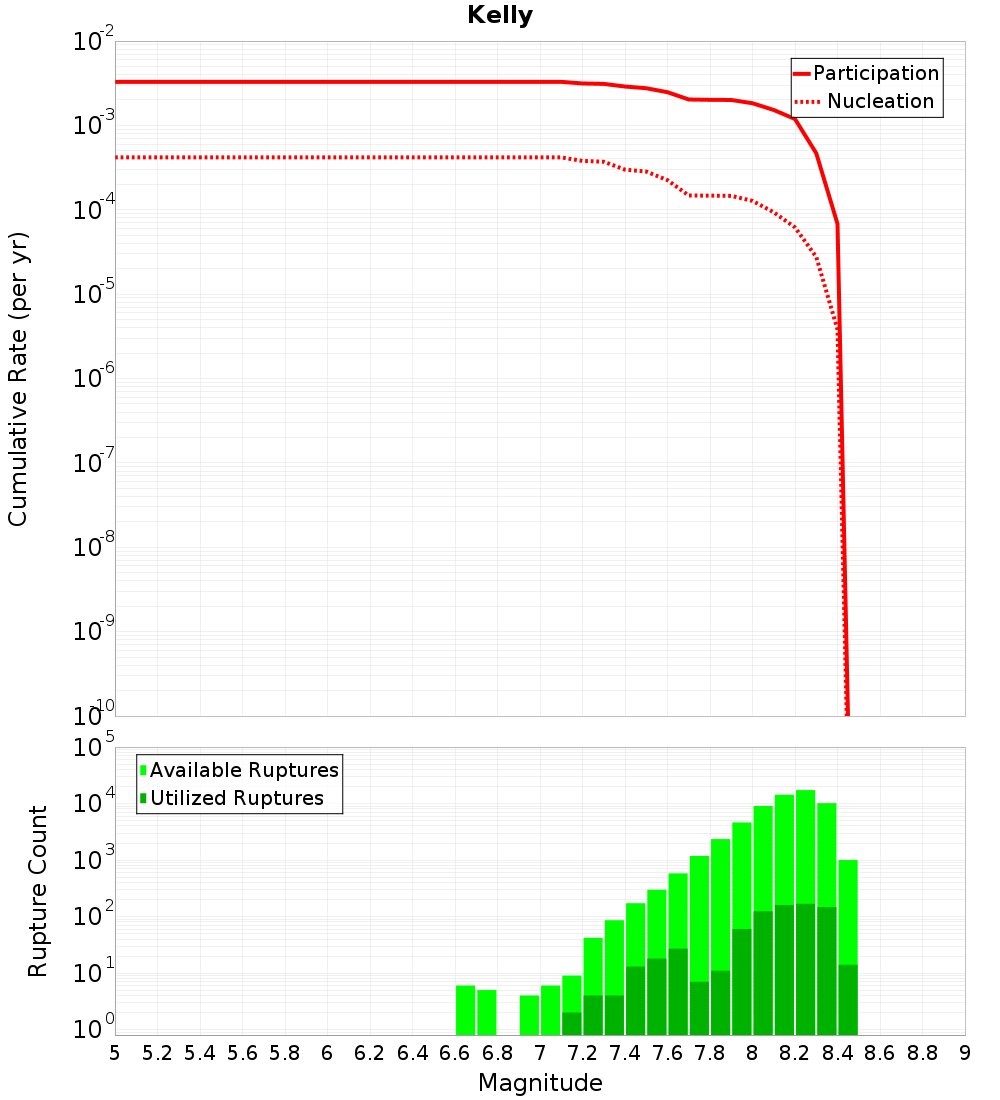

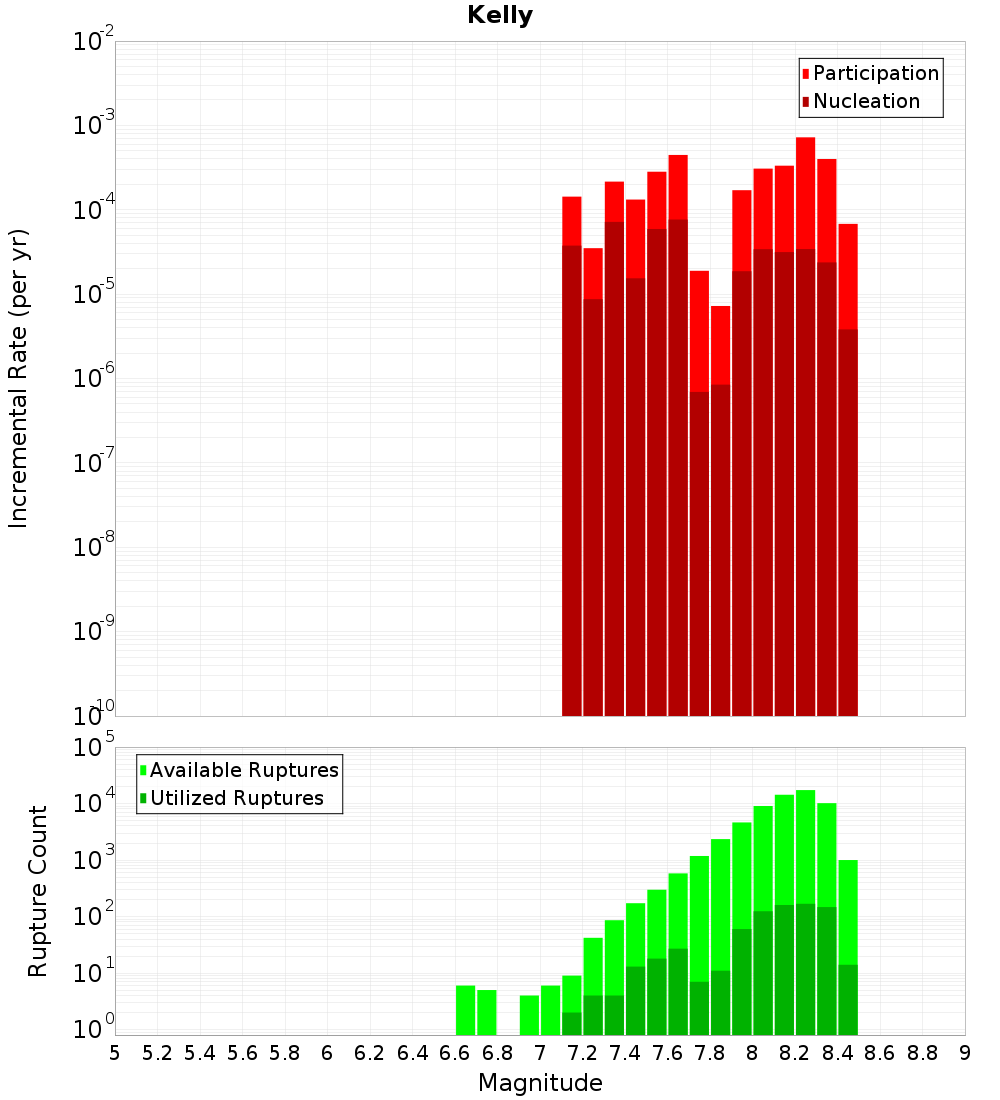

Incremental PlotCumulative Plot

Along-Strike Values

(top)

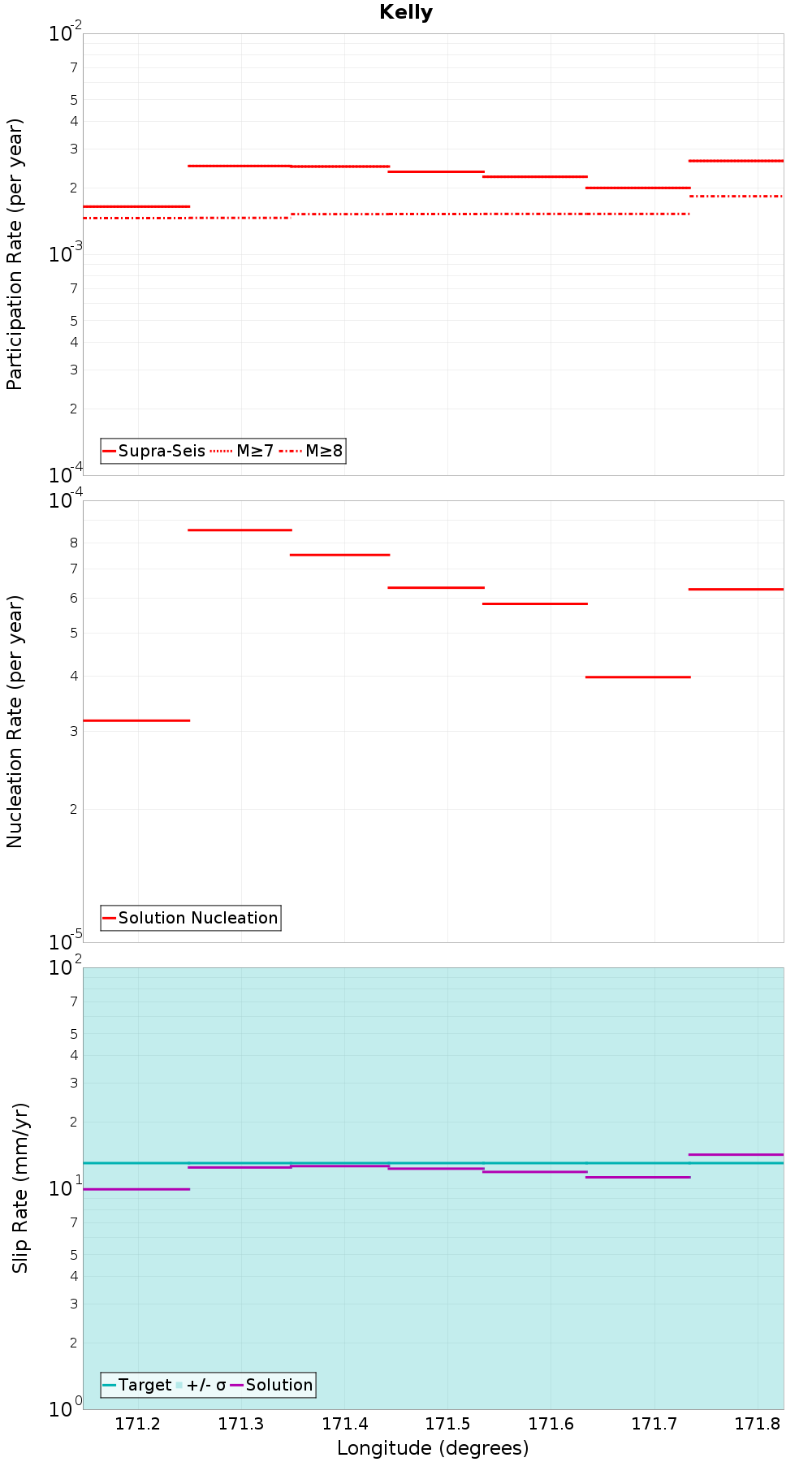

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

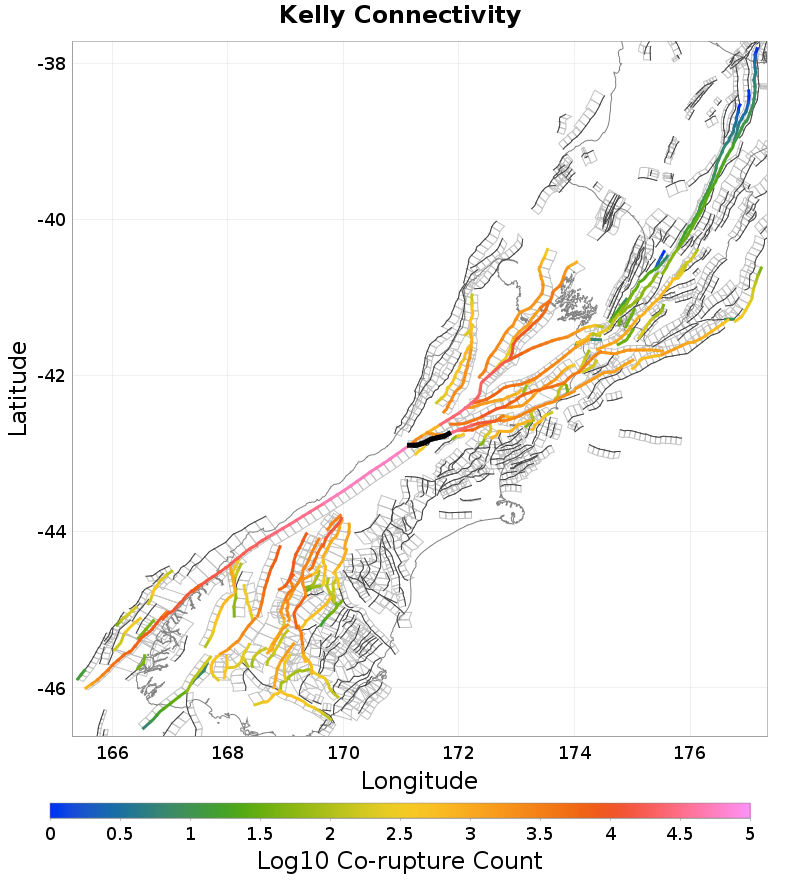

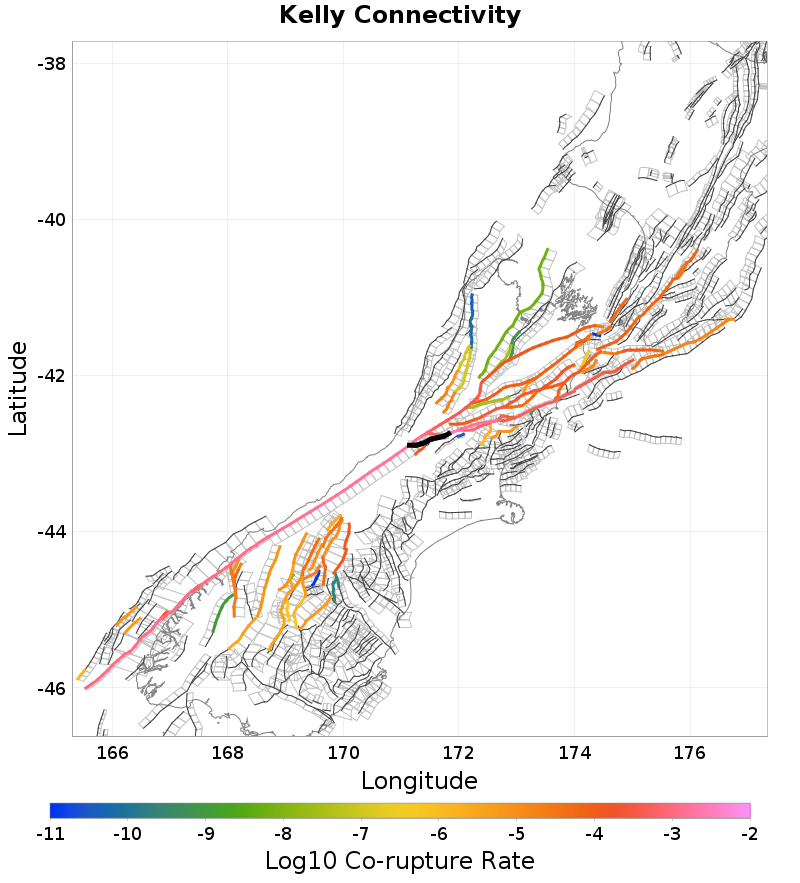

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Poulter, 9.5 km away
Cape Foulwind 1, 11.56 km away
Clarence: Southwest, 13.14 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?true
Co-rupture Count56,730
Co-rupture Rate0.0019453708

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?true
Co-rupture Count29,970
Co-rupture Rate0.0025011713

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?true
Co-rupture Count2,576
Co-rupture Rate6.489757E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?true
Co-rupture Count37,700
Co-rupture Rate0.0017535111

Browning Pass, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?false
Co-rupture Count321
Co-rupture Rate1.5227501E-4

Poulter, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?false
Co-rupture Count375
Co-rupture Rate2.7533099E-11

Cape Foulwind 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?false
Co-rupture Count10,808
Co-rupture Rate3.4893074E-4

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?false
Co-rupture Count7,156
Co-rupture Rate7.643871E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk4NjguMFRERmdh
Connected?true
Directly Connected?false
Co-rupture Count23,160
Co-rupture Rate0.0018589906
