Matata Details

Property	Value
Rupture Count	10,356
Ruptures Above Sect Min Mag	10,348
Ruptures w/ Nonzero Rates	206
Magnitude Range	[6.55, 8.38]
Length Range	[14, 694] km
Total Rate	6.0754636E-4 /yr
Multi-Fault Rate	6.0754636E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	73

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

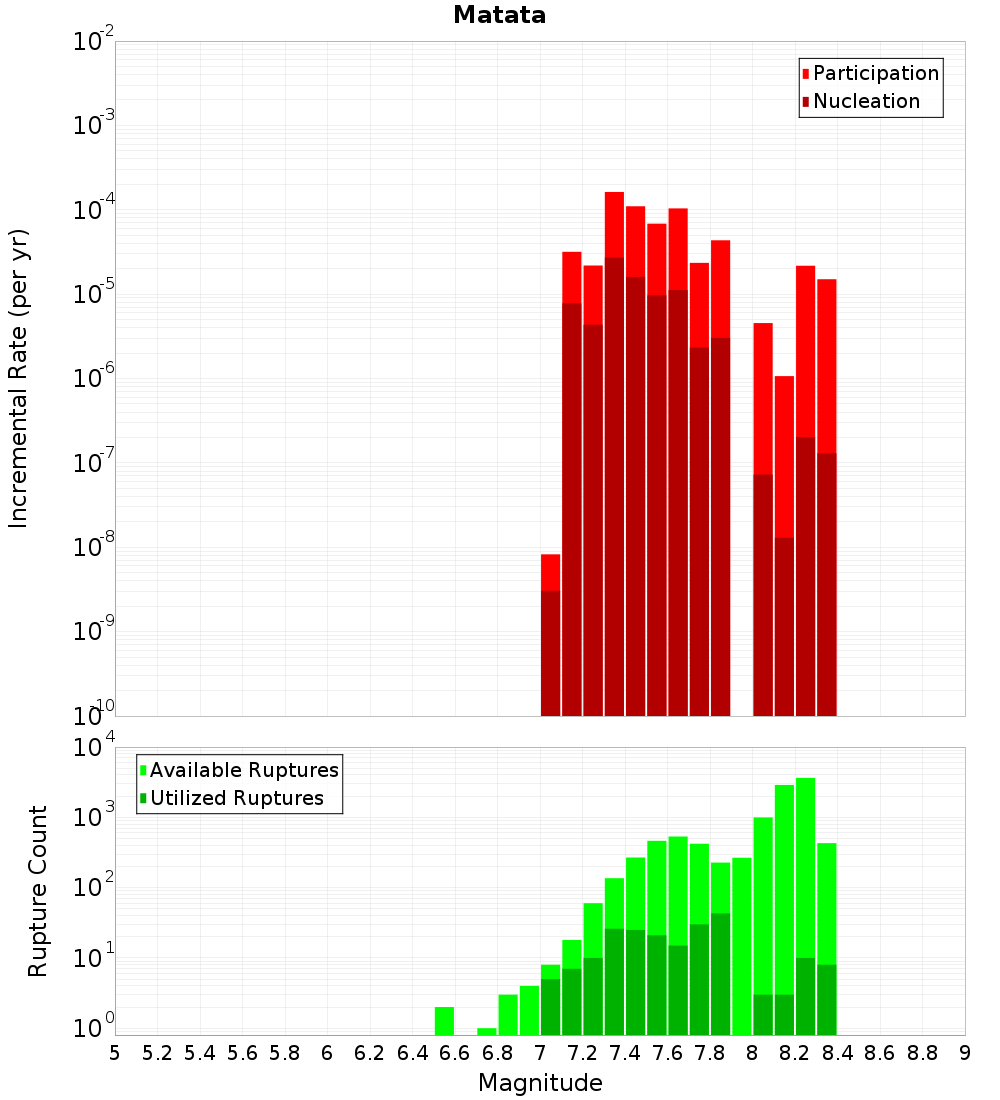

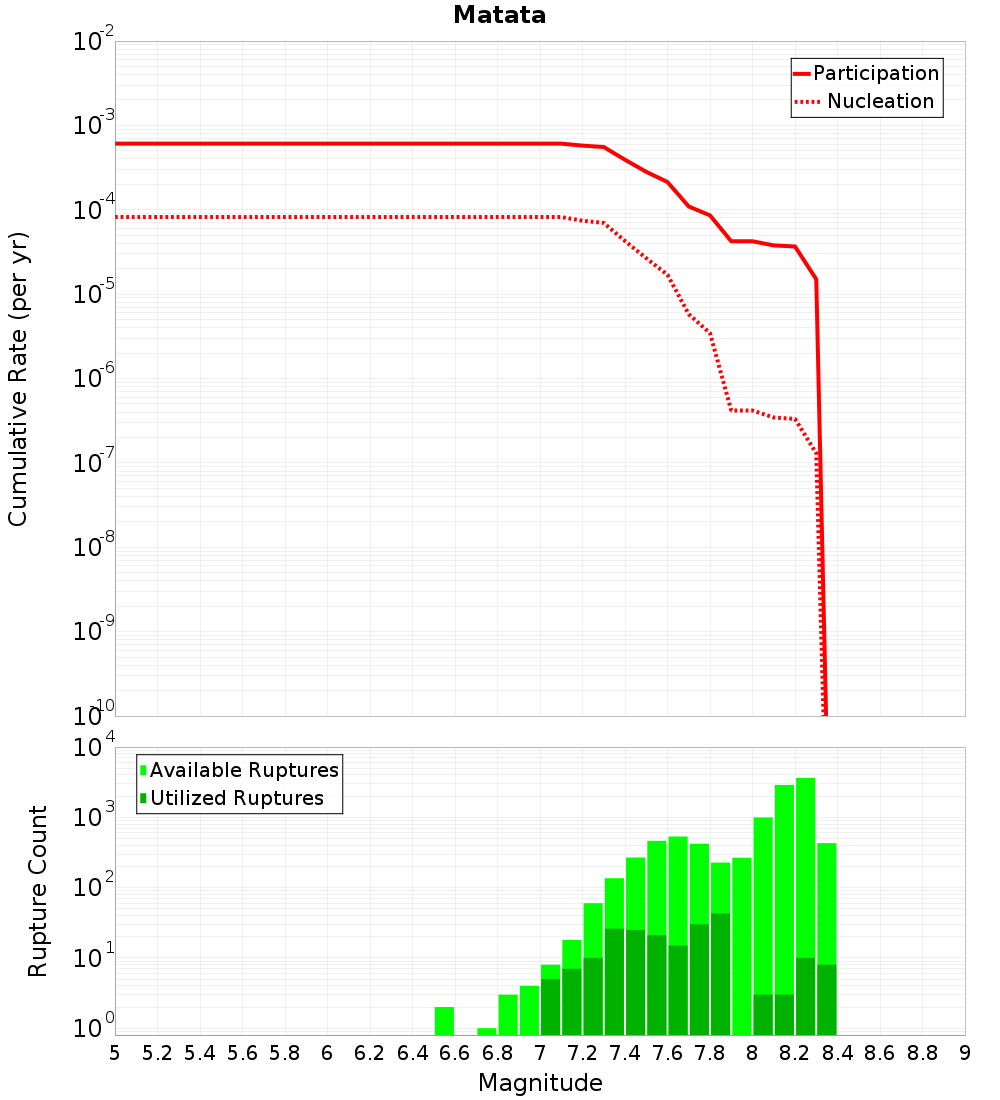

Magnitude-Frequency Distribution

Incremental	Cumulative

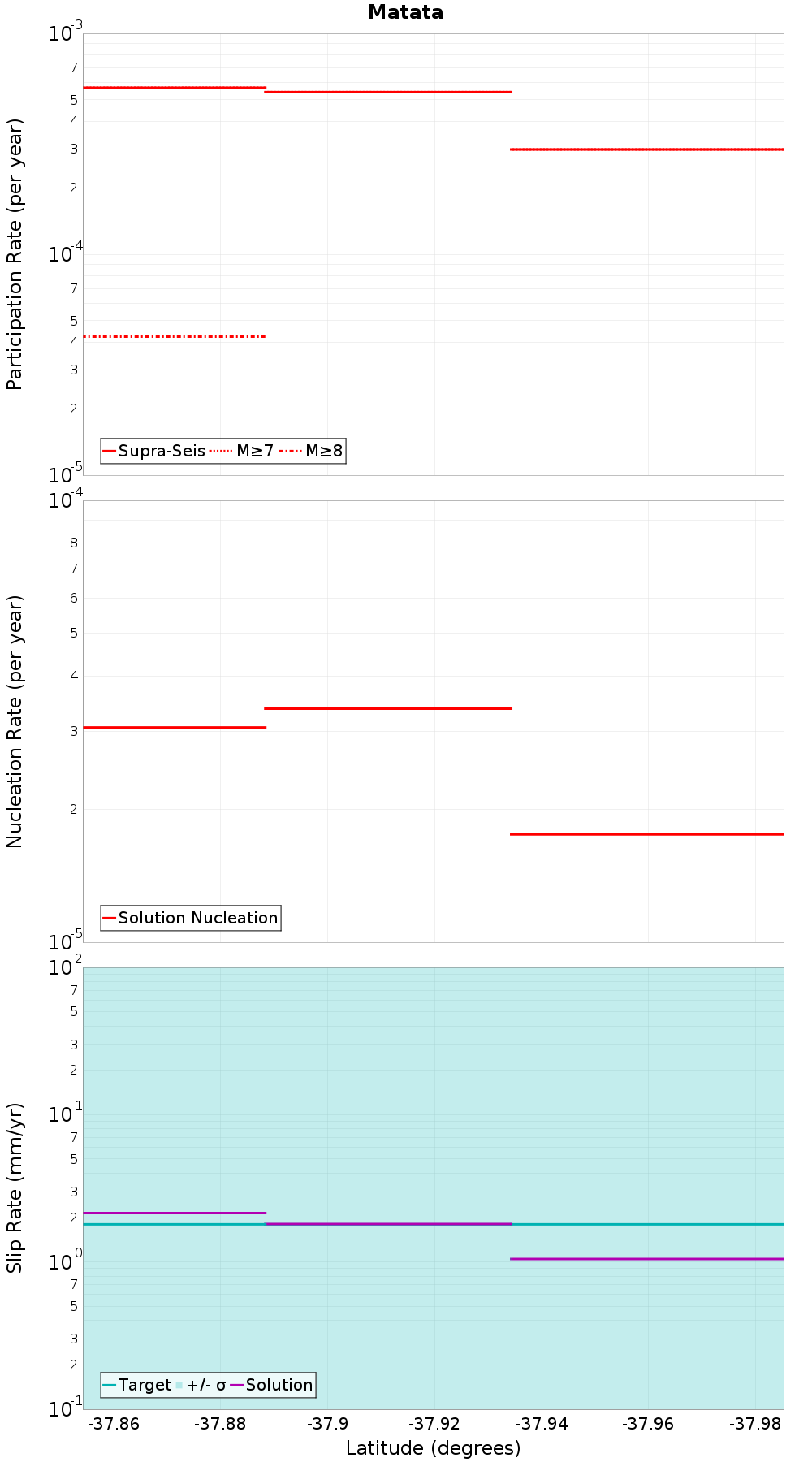

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.14 km away
White Island 1, 0.2 km away
Edgecumbe 1987, 0.29 km away
Keepa, 0.66 km away
Braemar, 0.98 km away
Whakatane: North, 1.44 km away
Waiohau: North, 2.01 km away
Otakiri, 4.49 km away
Rangitaiki 1, 9.11 km away
Waimana: North, 14.4 km away

Edgecumbe Coastal, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	true
Co-rupture Count	941
Co-rupture Rate	1.2191485E-4

White Island 1, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	true
Co-rupture Count	8,030
Co-rupture Rate	5.3694216E-4

Edgecumbe 1987, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	false
Co-rupture Count	918
Co-rupture Rate	2.5650639E-8

Keepa, 0.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	true
Co-rupture Count	4,955
Co-rupture Rate	7.8098434E-5

Braemar, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,203
Co-rupture Rate	2.783338E-4

Whakatane: North, 1.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiohau: North, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,361
Co-rupture Rate	1.9103017E-4

Otakiri, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,679
Co-rupture Rate	1.2508377E-4

Rangitaiki 1, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,841
Co-rupture Rate	1.965638E-4

Waimana: North, 14.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MDguMGFtc0p0
Connected?	true
Directly Connected?	false
Co-rupture Count	6,877
Co-rupture Rate	5.9467235E-5
