Paparoa West Details

Property	Value
Rupture Count	2,224
Ruptures Above Sect Min Mag	2,213
Ruptures w/ Nonzero Rates	148
Magnitude Range	[6.76, 8.14]
Length Range	[18, 396] km
Total Rate	5.7749613E-4 /yr
Multi-Fault Rate	4.975955E-4 /yr (86.16%)
Directly-Connected Faults	6
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

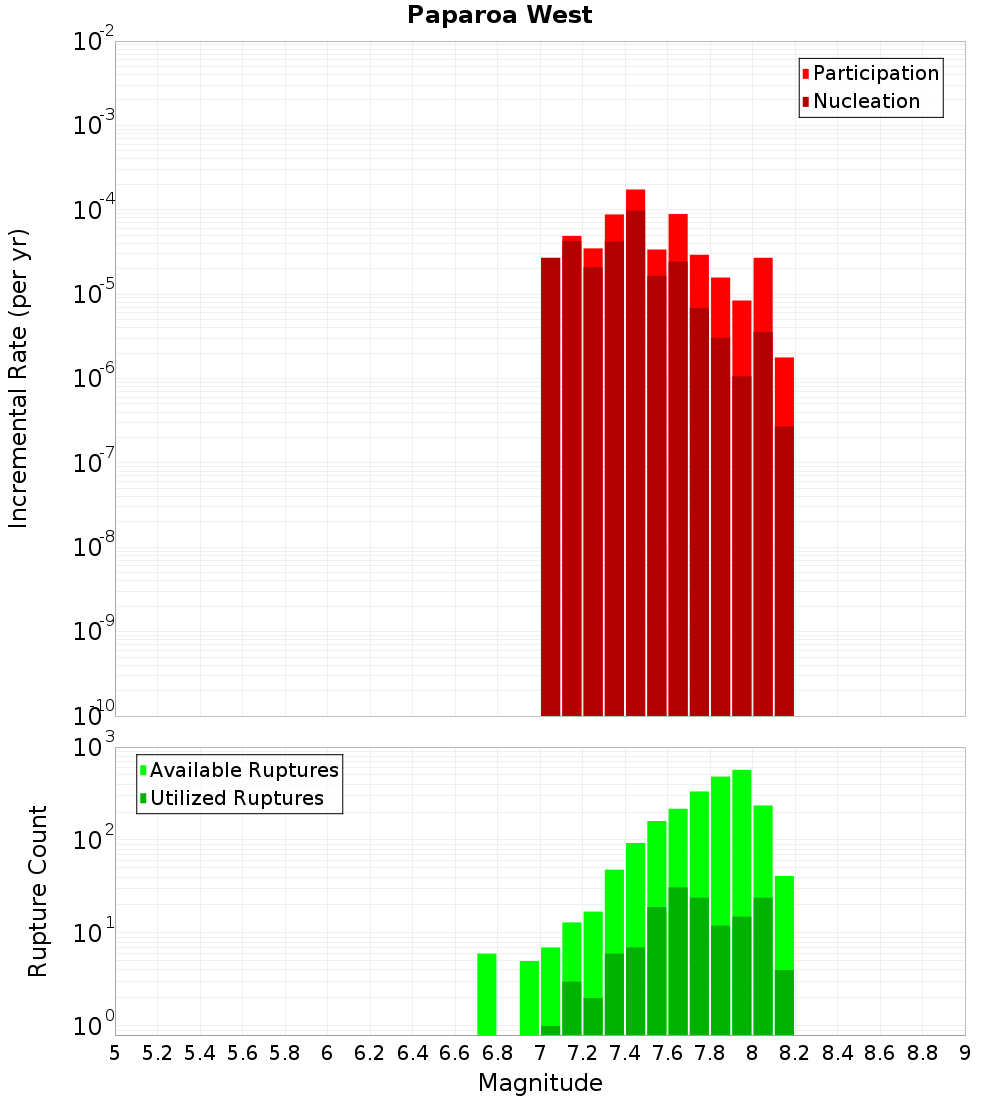

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

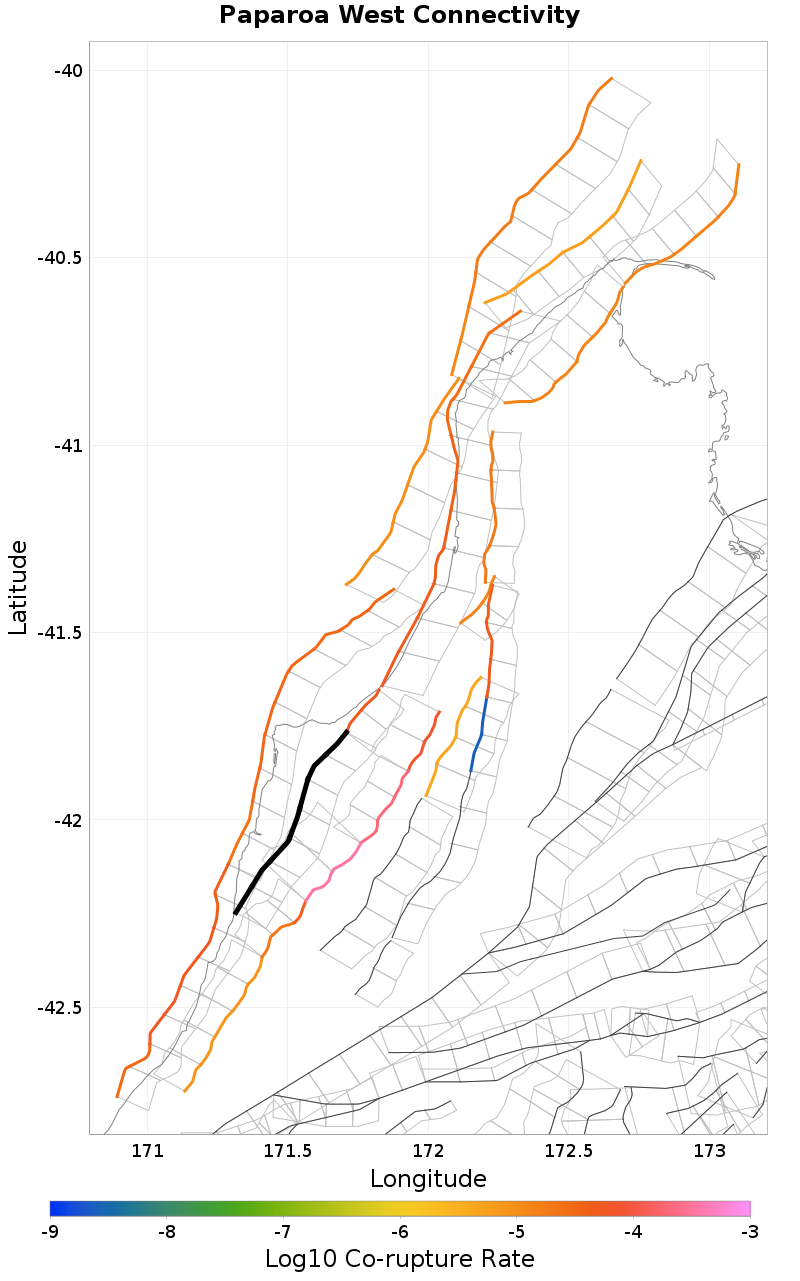

Connectivity

Nearby Sections

Fault Section
Paparoa West: North, 0 km away
Maimai, 0.14 km away
Maimai: South, 0.22 km away
Inangahua, 1.12 km away
Maimai: North, 1.82 km away
Cape Foulwind 1, 4.61 km away
Maimai: Brunner Anticline, 7.81 km away
Cape Foulwind 2, 8.12 km away

Paparoa West: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTIuMDRaNng0
Connected?	true
Directly Connected?	true
Co-rupture Count	910
Co-rupture Rate	5.263828E-5

Maimai, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTIuMDRaNng0
Connected?	true
Directly Connected?	true
Co-rupture Count	280
Co-rupture Rate	3.311509E-4

Maimai: South, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTIuMDRaNng0
Connected?	true
Directly Connected?	true
Co-rupture Count	697
Co-rupture Rate	4.419575E-5

Inangahua, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTIuMDRaNng0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,198
Co-rupture Rate	7.339837E-5

Maimai: North, 1.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTIuMDRaNng0
Connected?	true
Directly Connected?	true
Co-rupture Count	670
Co-rupture Rate	2.0548311E-4

Cape Foulwind 1, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTIuMDRaNng0
Connected?	true
Directly Connected?	true
Co-rupture Count	616
Co-rupture Rate	6.174649E-5

Maimai: Brunner Anticline, 7.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTIuMDRaNng0
Connected?	true
Directly Connected?	false
Co-rupture Count	332
Co-rupture Rate	7.746371E-6

Cape Foulwind 2, 8.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTIuMDRaNng0
Connected?	true
Directly Connected?	false
Co-rupture Count	71
Co-rupture Rate	3.252859E-5
