Levin Anticline Details
| Property | Value |
|---|---|
| Rupture Count | 114 |
| Ruptures Above Sect Min Mag | 114 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [7.06, 7.91] |
| Length Range | [22, 189] km |
| Total Rate | 4.847164E-5 /yr |
| Multi-Fault Rate | 4.847164E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 30 |
Table Of Contents

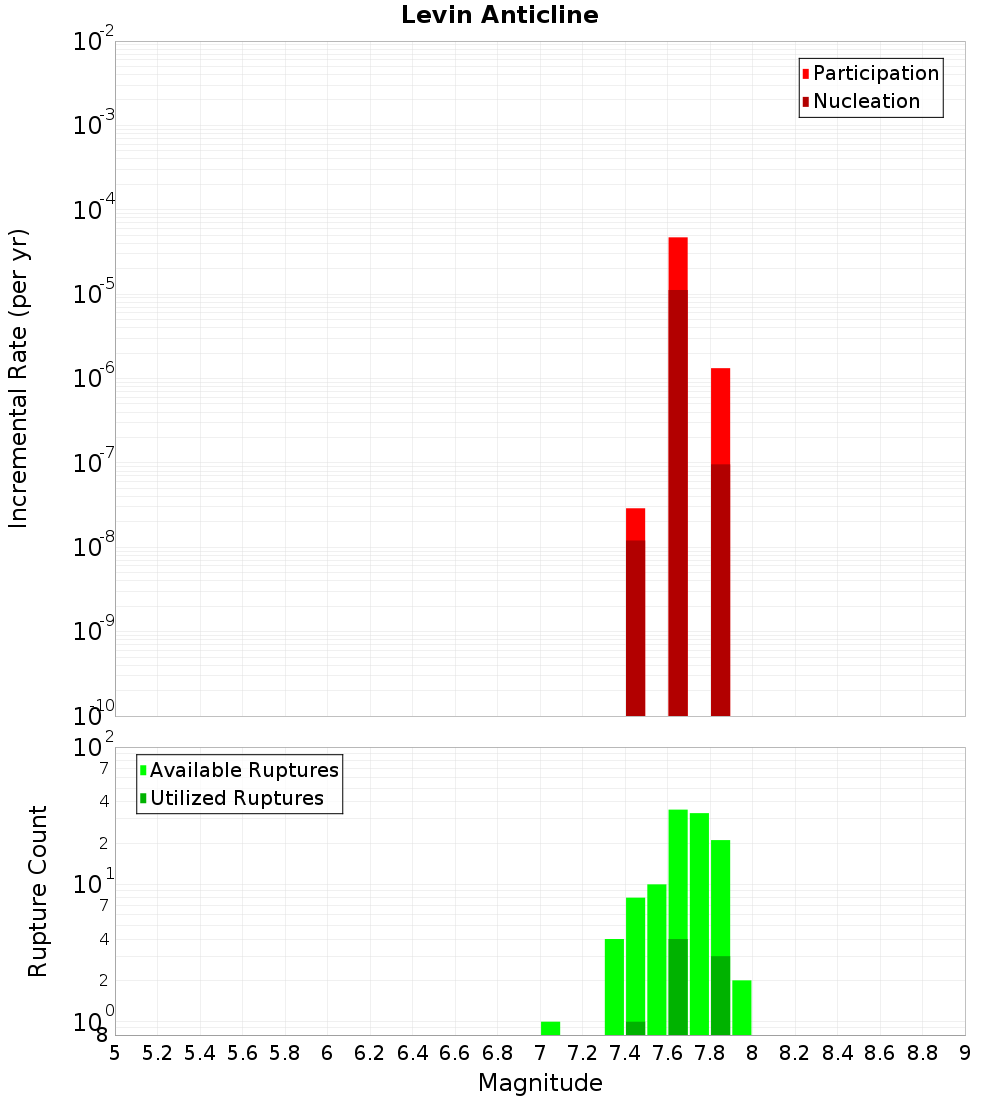

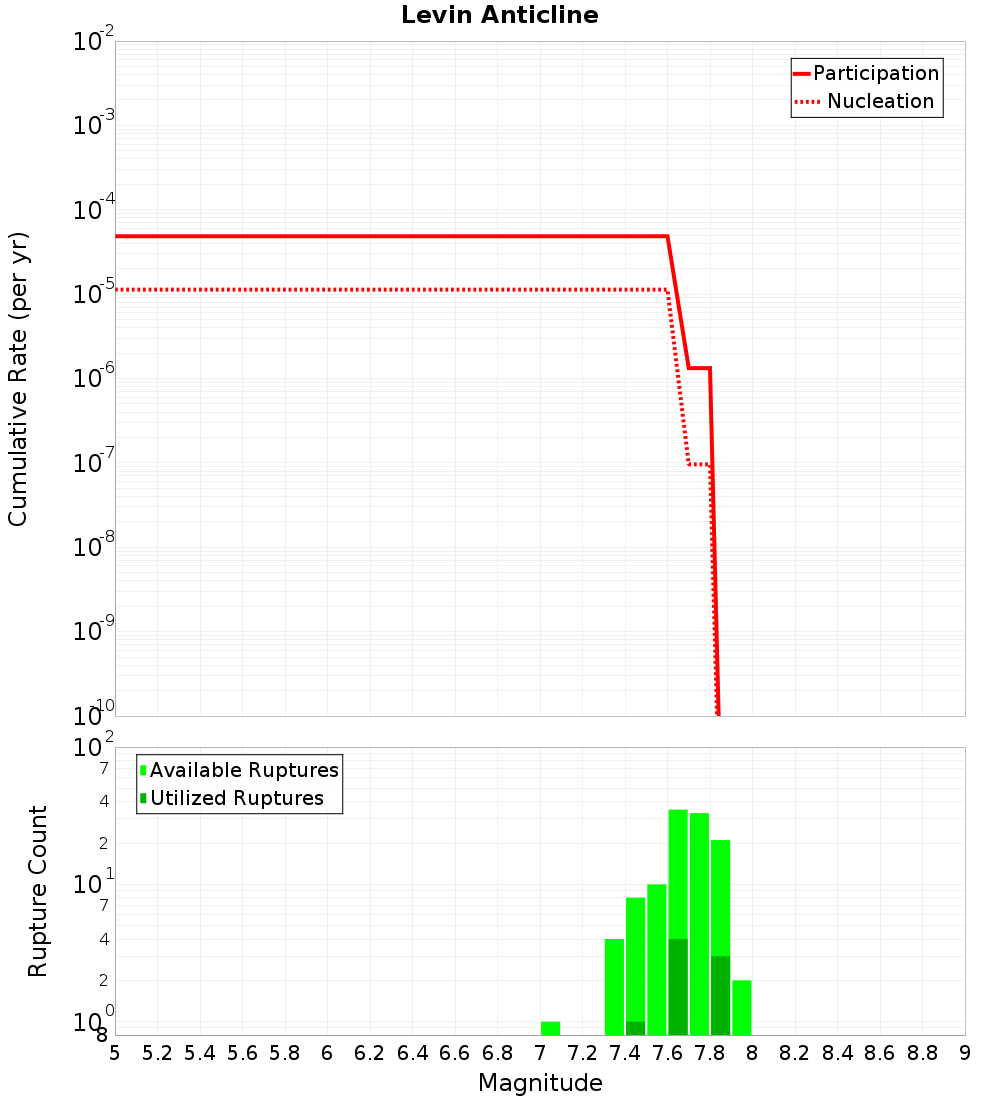

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

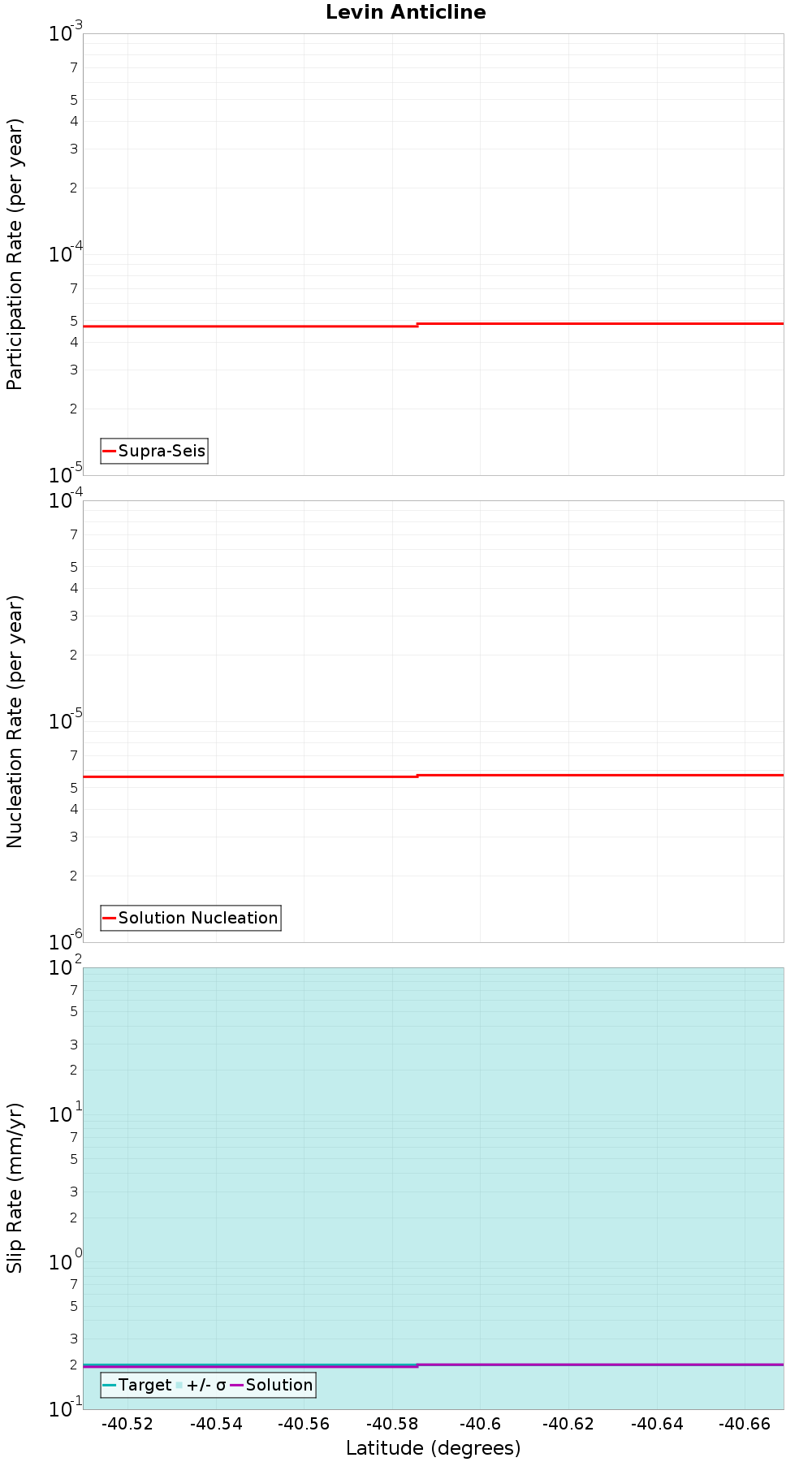

Along-Strike Values
Moment-Rates and b-Values

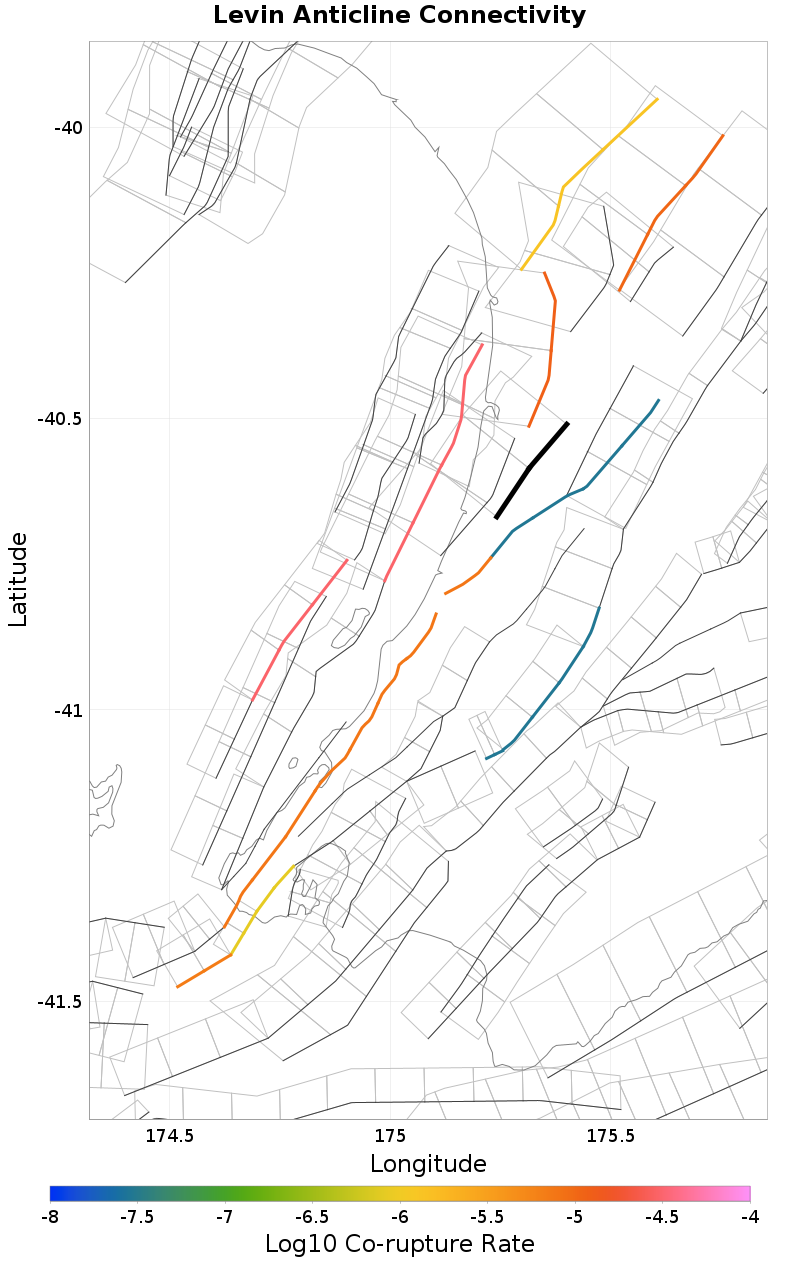

Connectivity
 |  |
|---|
Nearby Sections
Rangitikei Offshore 1, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Poroutawhao, 2.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
Himatangi, 2.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 59 |
| Co-rupture Rate | 1.1816177E-5 |
Mascarin, 2.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Northern Ohariu, 4.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 101 |
| Co-rupture Rate | 7.692217E-6 |
Tokomaru, 5.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otaheke North, 10.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 3.0289057E-5 |
Mt Stewart, 11.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Onepoto, 13.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fisherman 3, 13.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otaki Forks: 2, 14.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTQuME5McXEy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
