Mt Lawry Details

PropertyValue
Rupture Count428
Ruptures Above Sect Min Mag427
Ruptures w/ Nonzero Rates21
Magnitude Range[6.61, 8.03]
Length Range[16, 444] km
Total Rate1.0225986E-4 /yr
Multi-Fault Rate1.0225986E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults51

Table Of Contents

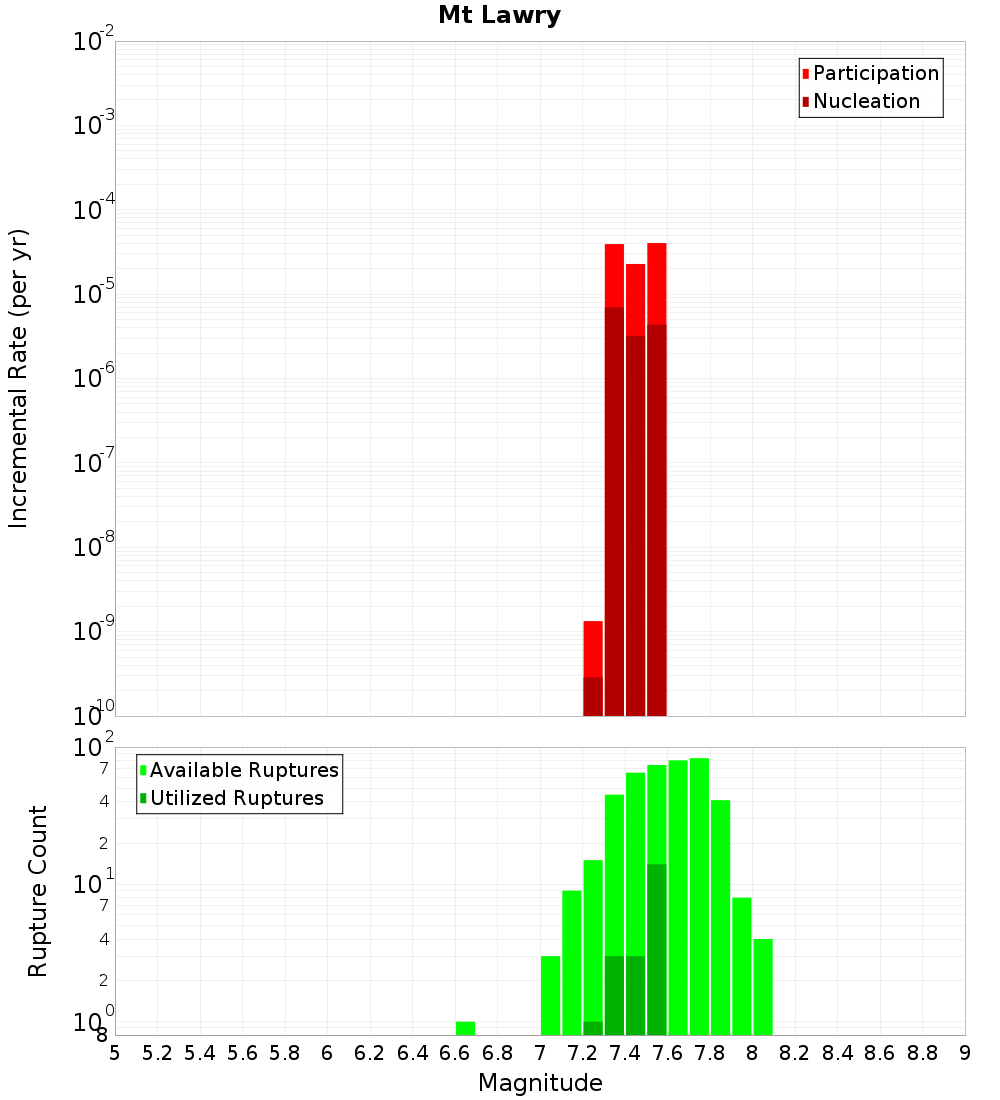

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

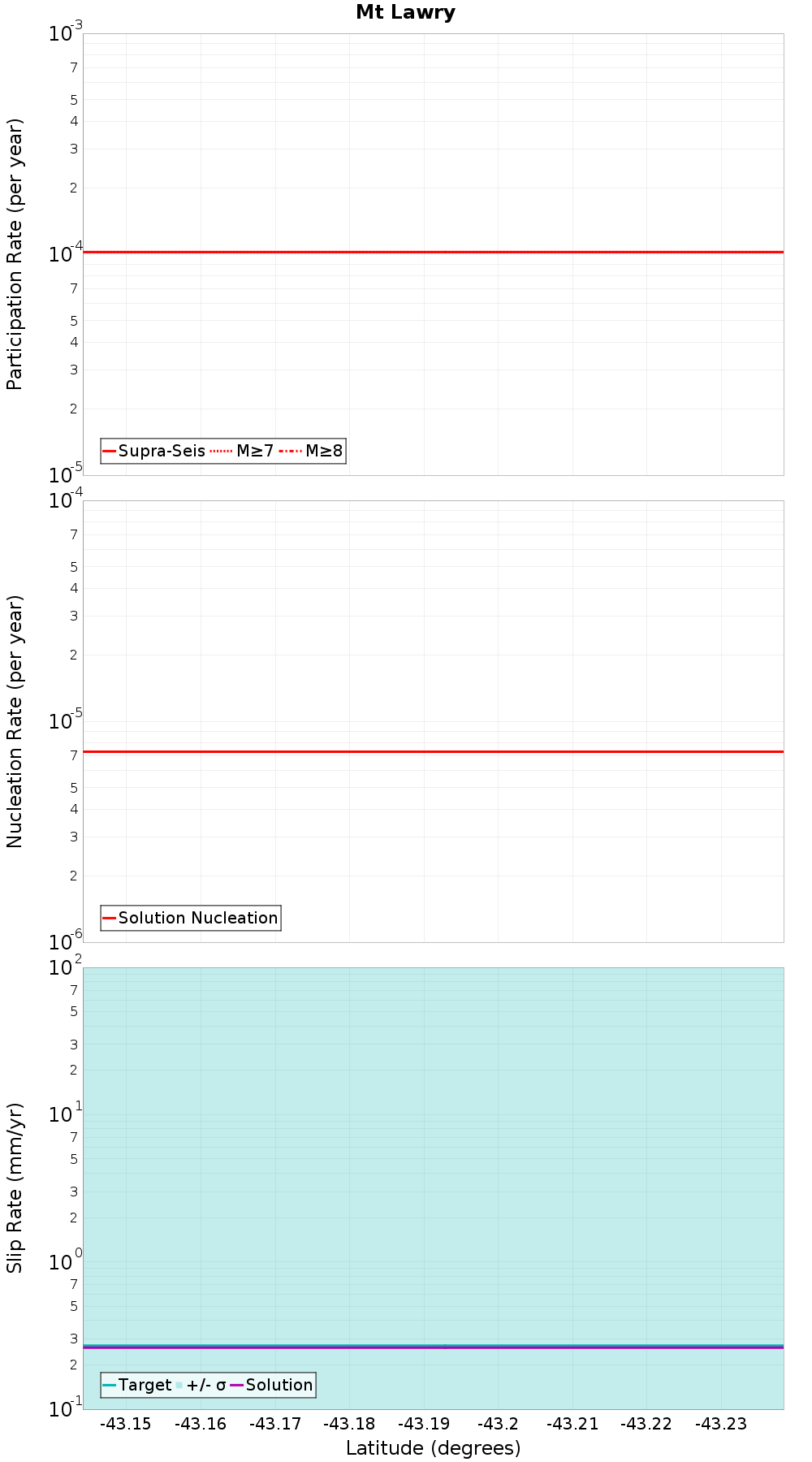

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

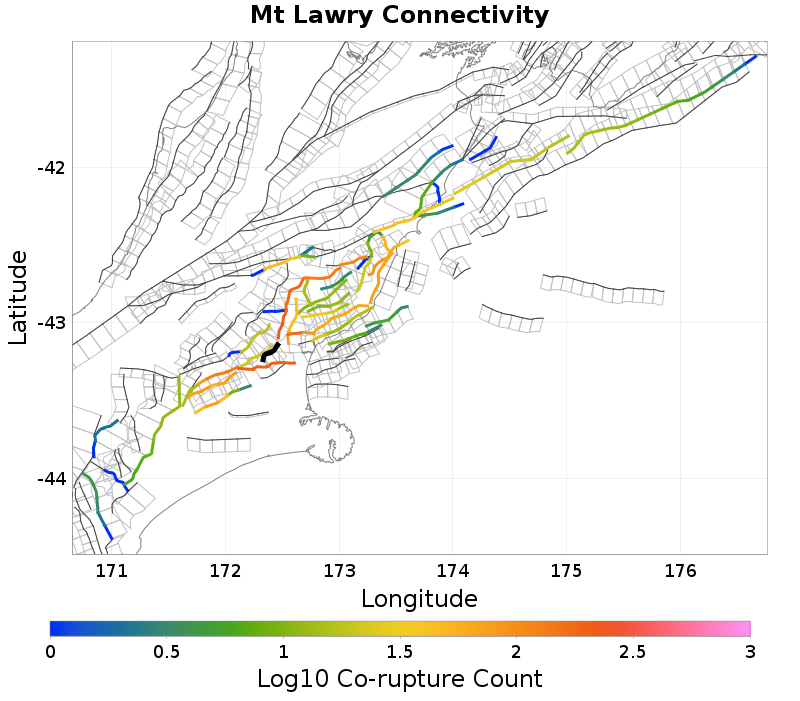

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Starvation - Ashley, 0.17 km away
Springbank, 0.46 km away
Knowles Top, 1.45 km away
Boby Stream, 4.87 km away
Mt Arden, 5.15 km away
Doctors, 7.57 km away
Pancake, 9.34 km away
Lees Valley, 11.49 km away
AmberBlyth, 14.29 km away

Starvation - Ashley, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?true
Directly Connected?true
Co-rupture Count225
Co-rupture Rate0.0

Springbank, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Boby Stream, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?true
Directly Connected?true
Co-rupture Count160
Co-rupture Rate1.0225986E-4

Mt Arden, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?true
Directly Connected?true
Co-rupture Count232
Co-rupture Rate0.0

Doctors, 7.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?true
Directly Connected?false
Co-rupture Count75
Co-rupture Rate1.7476177E-5

Pancake, 9.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 11.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

AmberBlyth, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MTUuMDRaVFZY
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate3.4683537E-5
