Hope: Te Rapa Details

Property	Value
Rupture Count	11,199
Ruptures Above Sect Min Mag	11,184
Ruptures w/ Nonzero Rates	225
Magnitude Range	[6.62, 8.52]
Length Range	[16, 946] km
Total Rate	5.278914E-4 /yr
Multi-Fault Rate	5.278914E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	106

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

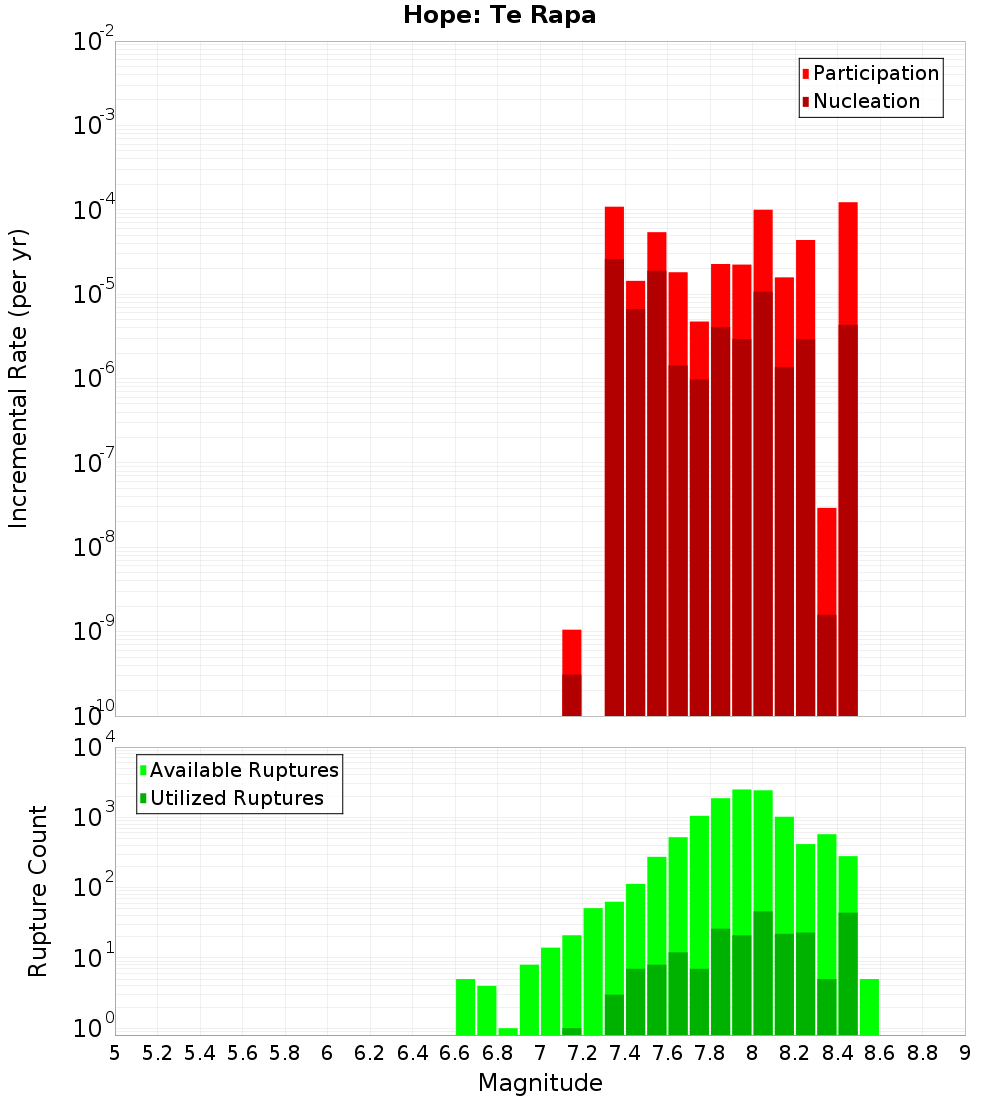

Magnitude-Frequency Distribution

Incremental	Cumulative

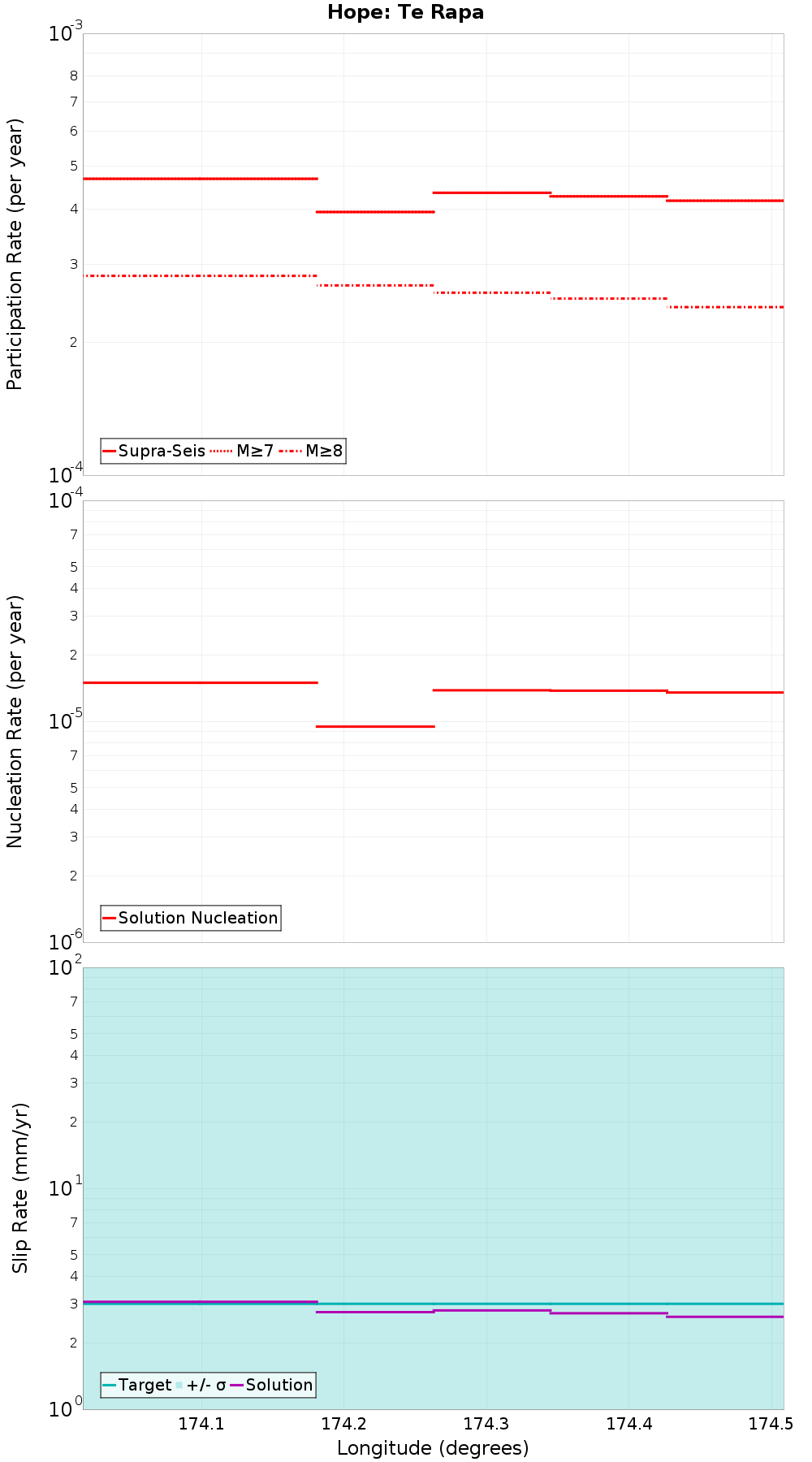

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Te Rapa 1, 0 km away
Upper Slope, 0.1 km away
Hope: Seaward, 3.47 km away
London Hill, 4.43 km away
Wharanui, 4.7 km away
Chancet, 8.16 km away
Kaikoura - Mangamaunu, 8.9 km away
Kekerengu Bank, 8.98 km away
Papatea, 11.56 km away
Campbell Bank, 12.5 km away
Te Rapa 2, 14.01 km away

Te Rapa 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	true
Co-rupture Count	6,906
Co-rupture Rate	3.3236746E-4

Upper Slope, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	true
Co-rupture Count	1,500
Co-rupture Rate	3.0841045E-5

Hope: Seaward, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	true
Co-rupture Count	9,186
Co-rupture Rate	4.1082306E-4

London Hill, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	true
Co-rupture Count	185
Co-rupture Rate	4.5147033E-8

Wharanui, 4.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chancet, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	true
Co-rupture Count	1,133
Co-rupture Rate	4.2545766E-5

Kaikoura - Mangamaunu, 8.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	1.3599073E-4

Kekerengu Bank, 8.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	7.966901E-6

Papatea, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Campbell Bank, 12.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	false
Co-rupture Count	1,077
Co-rupture Rate	3.4565666E-5

Te Rapa 2, 14.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjYuMFpIZHZB
Connected?	true
Directly Connected?	false
Co-rupture Count	6,711
Co-rupture Rate	3.0070642E-4
