Lyell South Details
| Property | Value |
|---|---|
| Rupture Count | 2,183 |
| Ruptures Above Sect Min Mag | 2,178 |
| Ruptures w/ Nonzero Rates | 173 |
| Magnitude Range | [6.90, 8.56] |
| Length Range | [19, 814] km |
| Total Rate | 9.186535E-5 /yr |
| Multi-Fault Rate | 9.186535E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 32 |
Table Of Contents

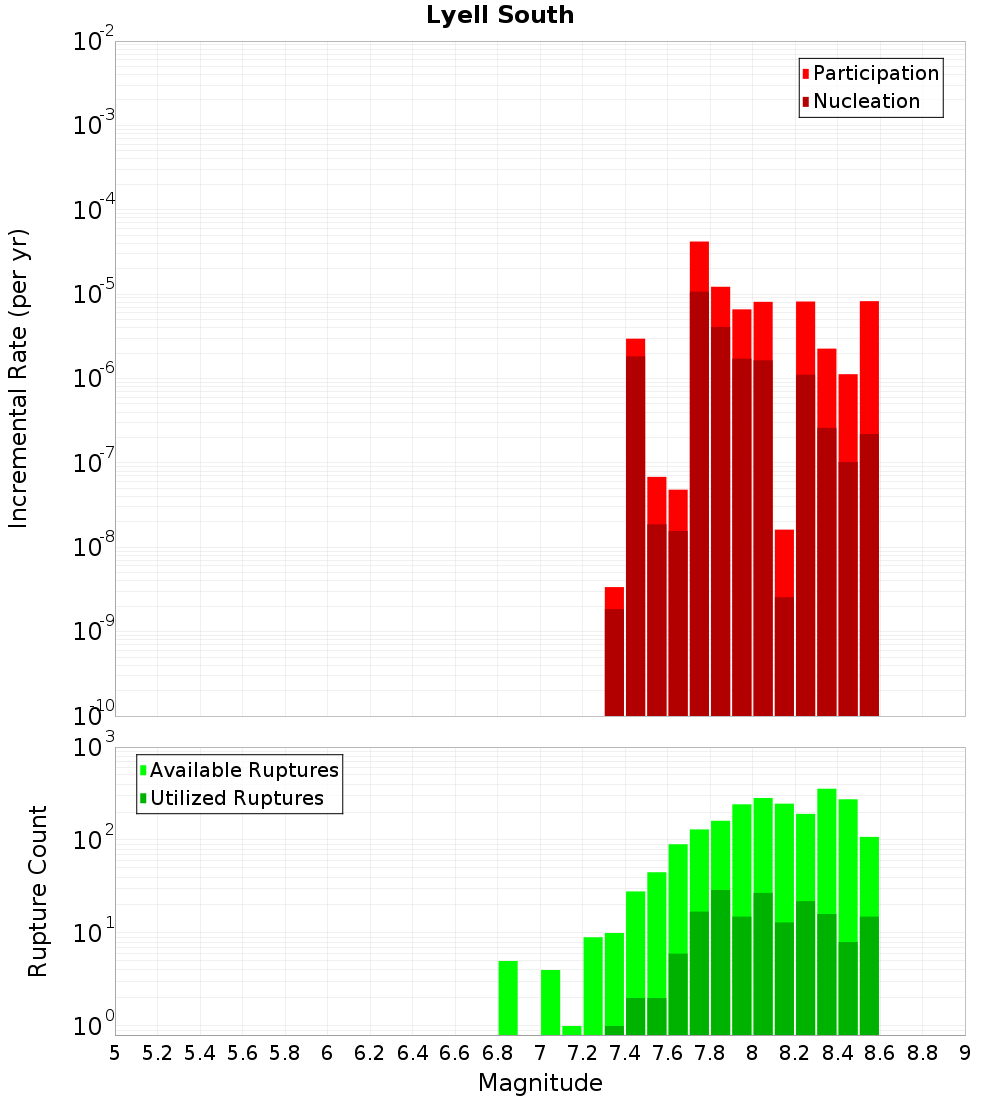

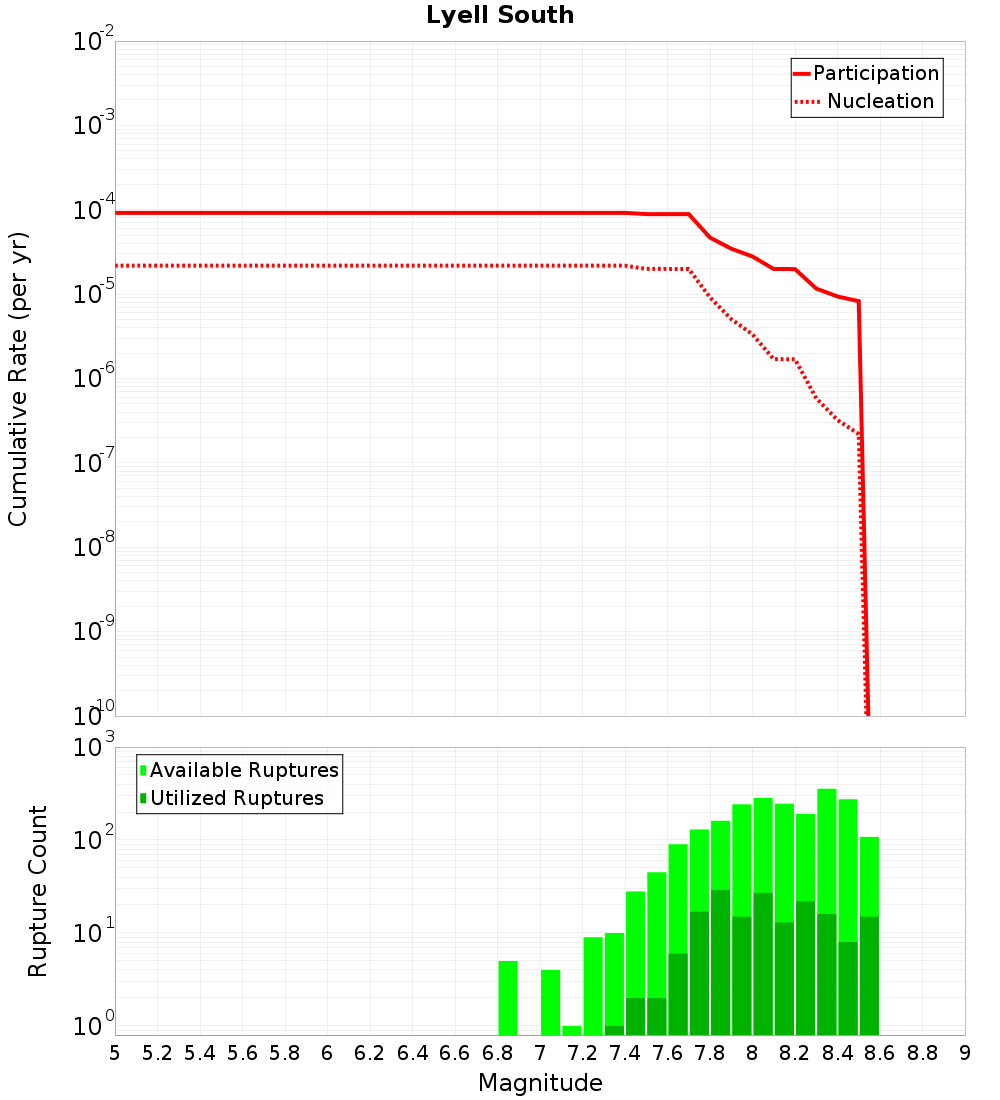

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lyell, 1.51 km away |
| White Creek, 6.32 km away |
| Maimai: North, 7.01 km away |
| White Creek - buried, 7.39 km away |
| Inangahua, 9 km away |
| Maimai, 9.15 km away |
| Maimai: South, 11.15 km away |
Lyell, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjkuMHFQRG5I | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,377 |
| Co-rupture Rate | 5.7467503E-5 |
White Creek, 6.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjkuMHFQRG5I | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,891 |
| Co-rupture Rate | 8.2664745E-5 |
Maimai: North, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjkuMHFQRG5I | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 131 |
| Co-rupture Rate | 3.5510884E-6 |
White Creek - buried, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjkuMHFQRG5I | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,318 |
| Co-rupture Rate | 4.722698E-5 |
Inangahua, 9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjkuMHFQRG5I | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 249 |
| Co-rupture Rate | 5.835773E-7 |
Maimai, 9.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjkuMHFQRG5I | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 0.0 |
Maimai: South, 11.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MjkuMHFQRG5I | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 71 |
| Co-rupture Rate | 7.849339E-6 |
