Brothers Details
| Property | Value |
|---|---|
| Rupture Count | 1,857 |
| Ruptures Above Sect Min Mag | 1,853 |
| Ruptures w/ Nonzero Rates | 41 |
| Magnitude Range | [6.88, 8.25] |
| Length Range | [21, 538] km |
| Total Rate | 1.8243241E-5 /yr |
| Multi-Fault Rate | 1.8243241E-5 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 64 |
Table Of Contents

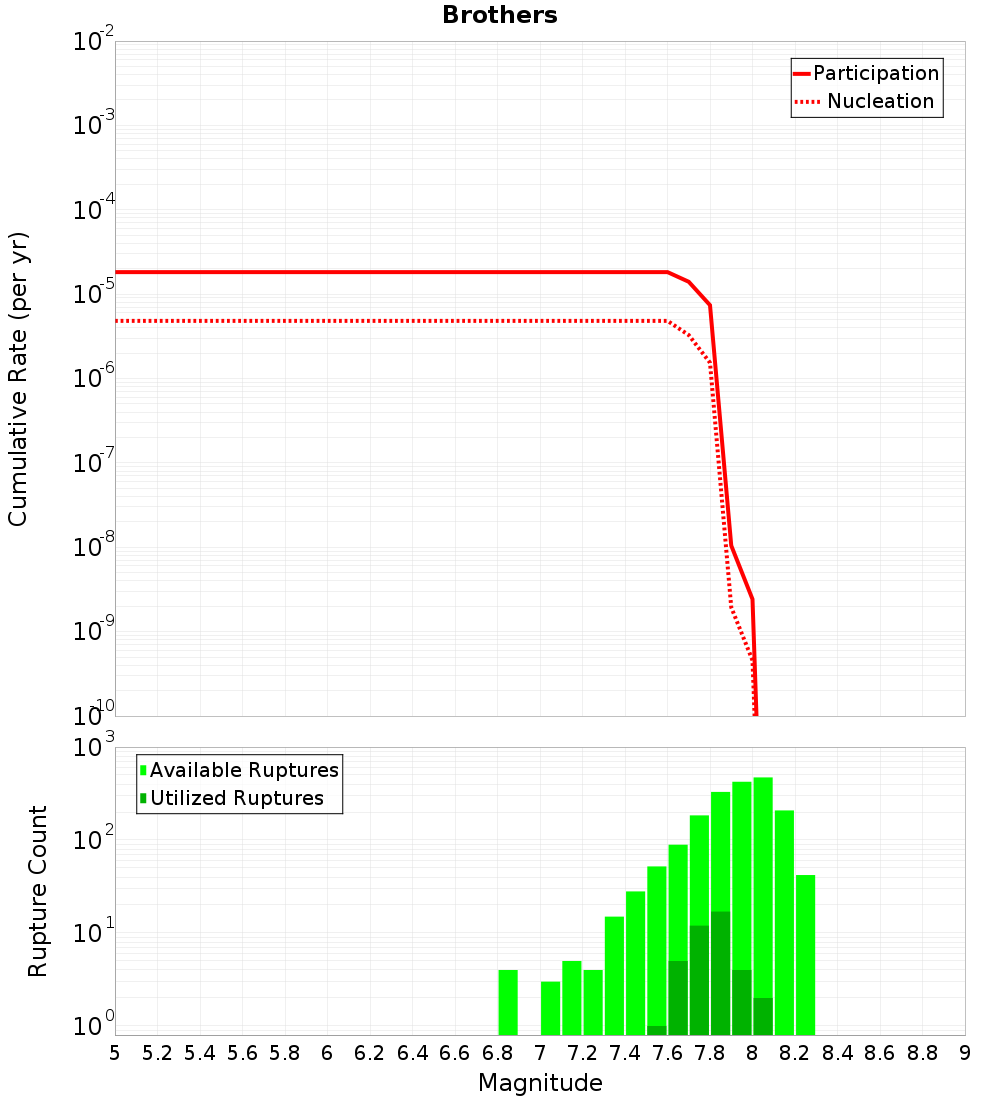

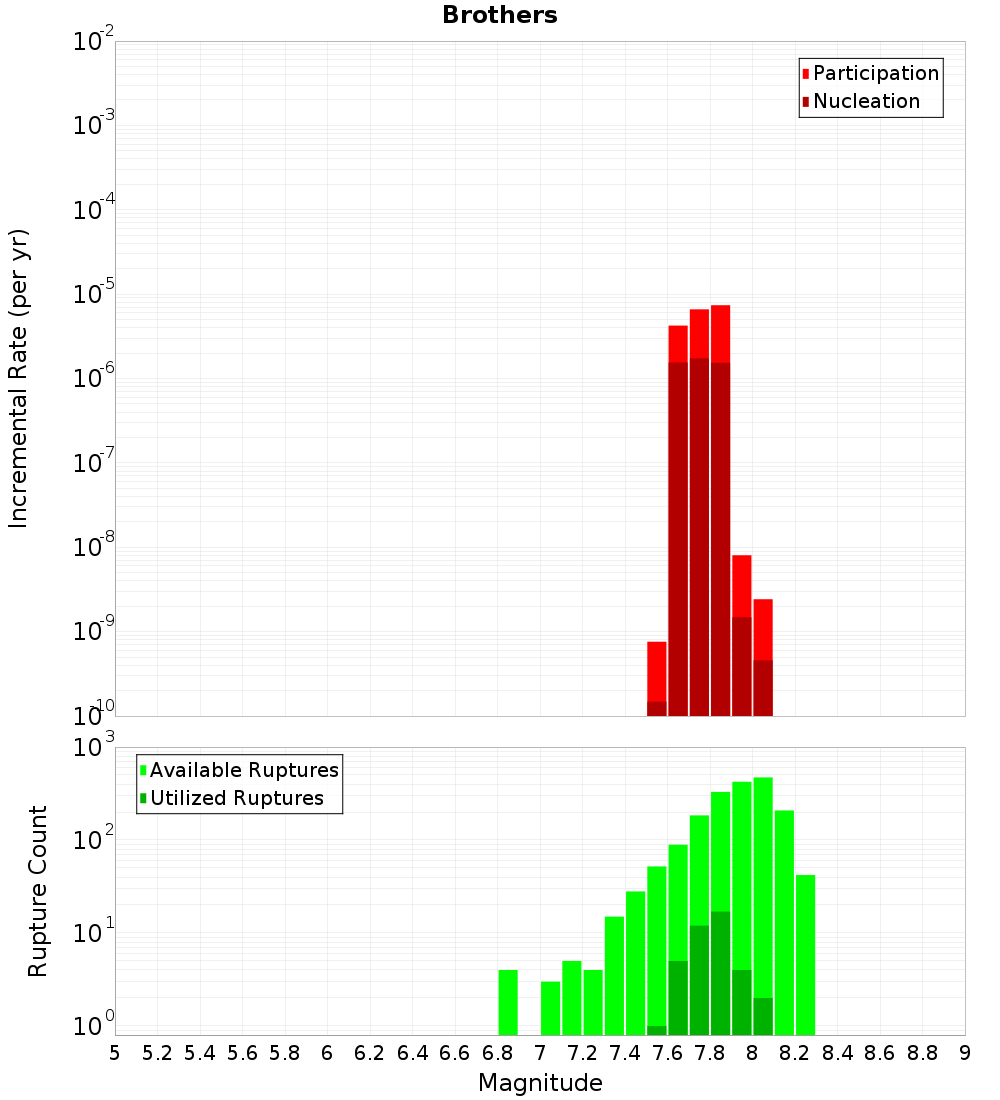

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

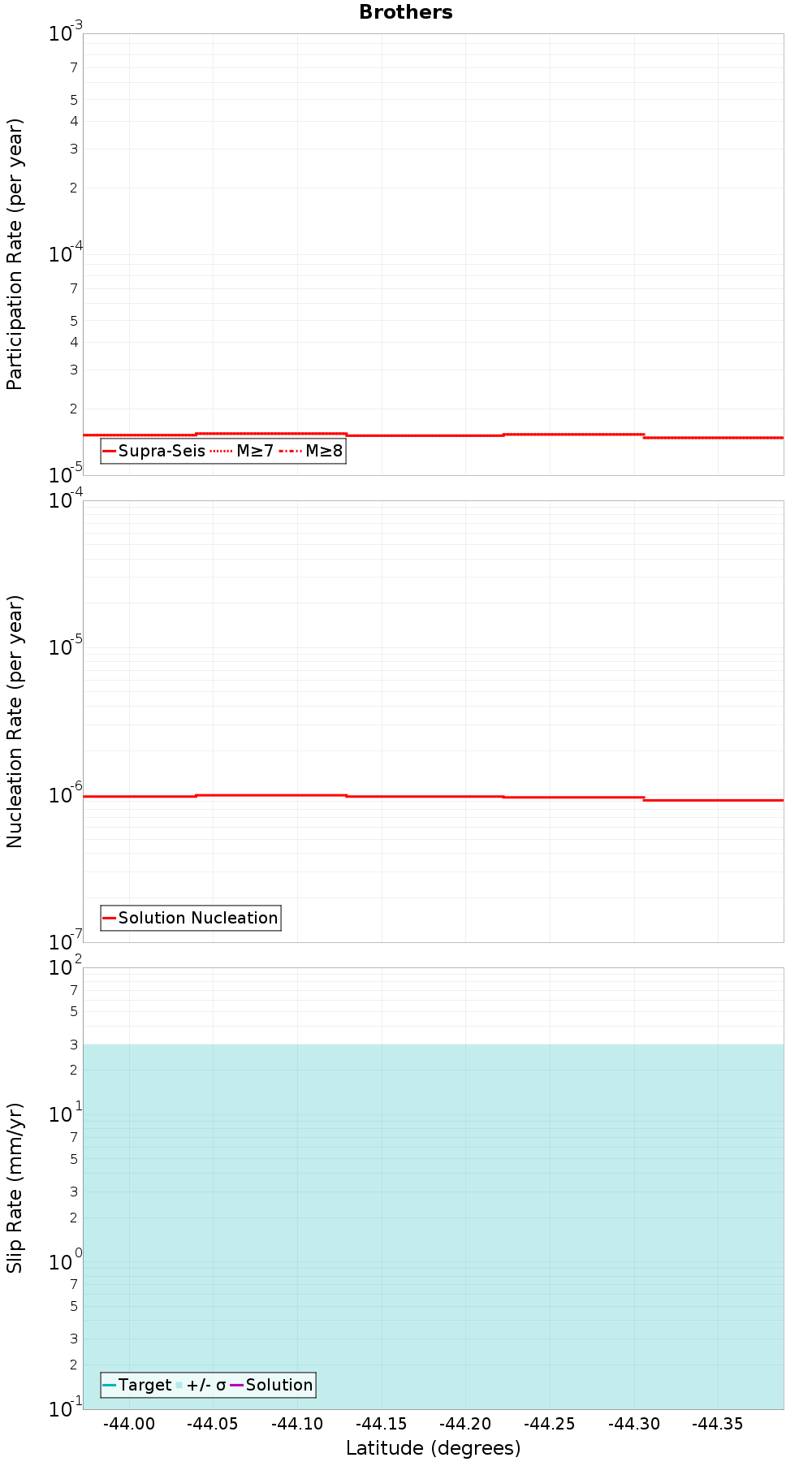

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Sugarloaf, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 6.7887584E-11 |
Hutt Peel, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,646 |
| Co-rupture Rate | 7.646301E-6 |
Catherine, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 175 |
| Co-rupture Rate | 2.3690346E-7 |
Maungati, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 696 |
| Co-rupture Rate | 9.941906E-6 |
Fox Peak, 1.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 214 |
| Co-rupture Rate | 1.0360036E-5 |
Edith, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 4.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 155 |
| Co-rupture Rate | 2.0522334E-7 |
Albury, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 139 |
| Co-rupture Rate | 2.820957E-6 |
Irishman Creek, 7.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 7.539011E-6 |
Hunters, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 75 |
| Co-rupture Rate | 6.427486E-7 |
Ben McLeod, 8.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 214 |
| Co-rupture Rate | 3.0578603E-6 |
Opawa, 8.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chamberlain, 12.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5MzEuMENHRnlj | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
