Awatere: Southwest Details

PropertyValue
Rupture Count30,478
Ruptures Above Sect Min Mag30,473
Ruptures w/ Nonzero Rates476
Magnitude Range[7.04, 8.68]
Length Range[23, 1,082] km
Total Rate0.0011493055 /yr
Multi-Fault Rate9.0745185E-4 /yr (78.96%)
Directly-Connected Faults8
All Co-Rupturing Faults117

Table Of Contents

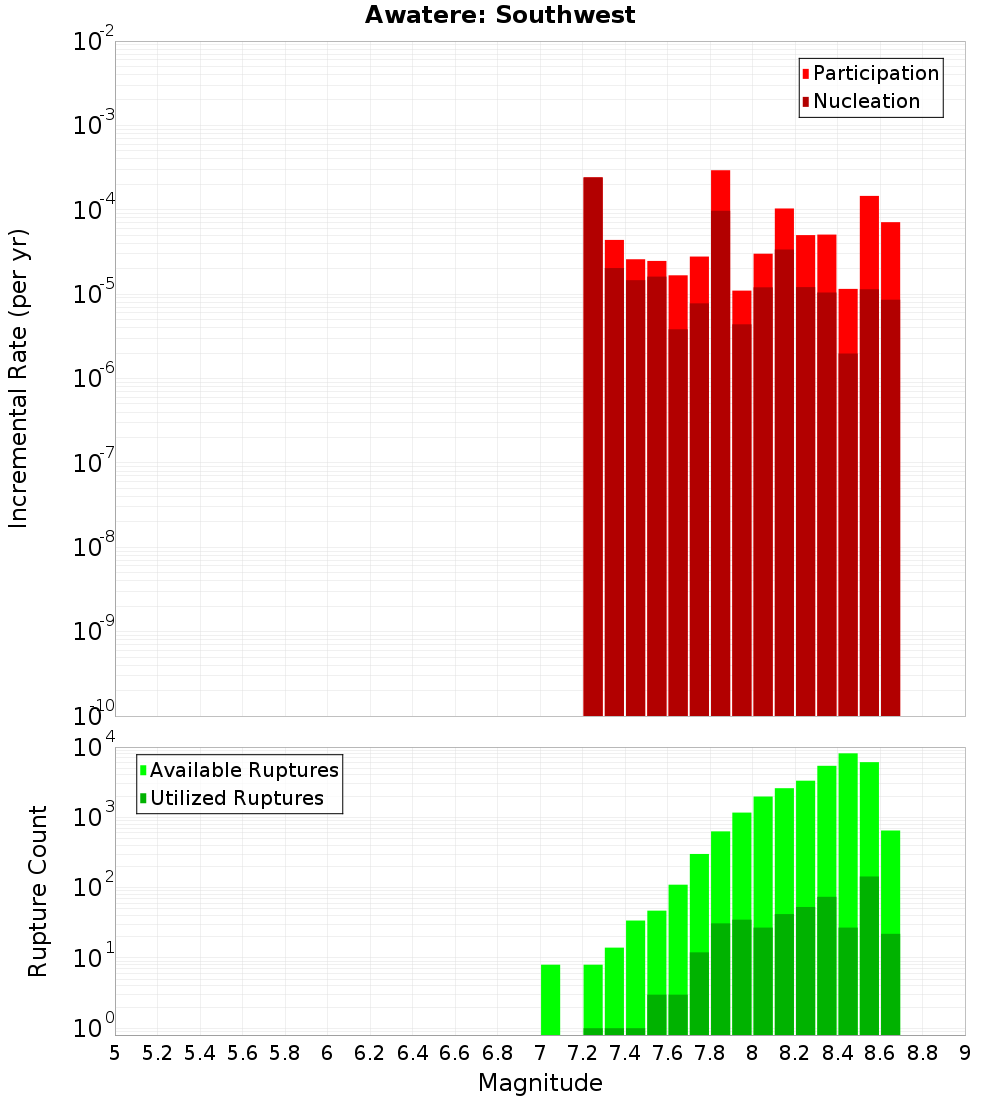

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

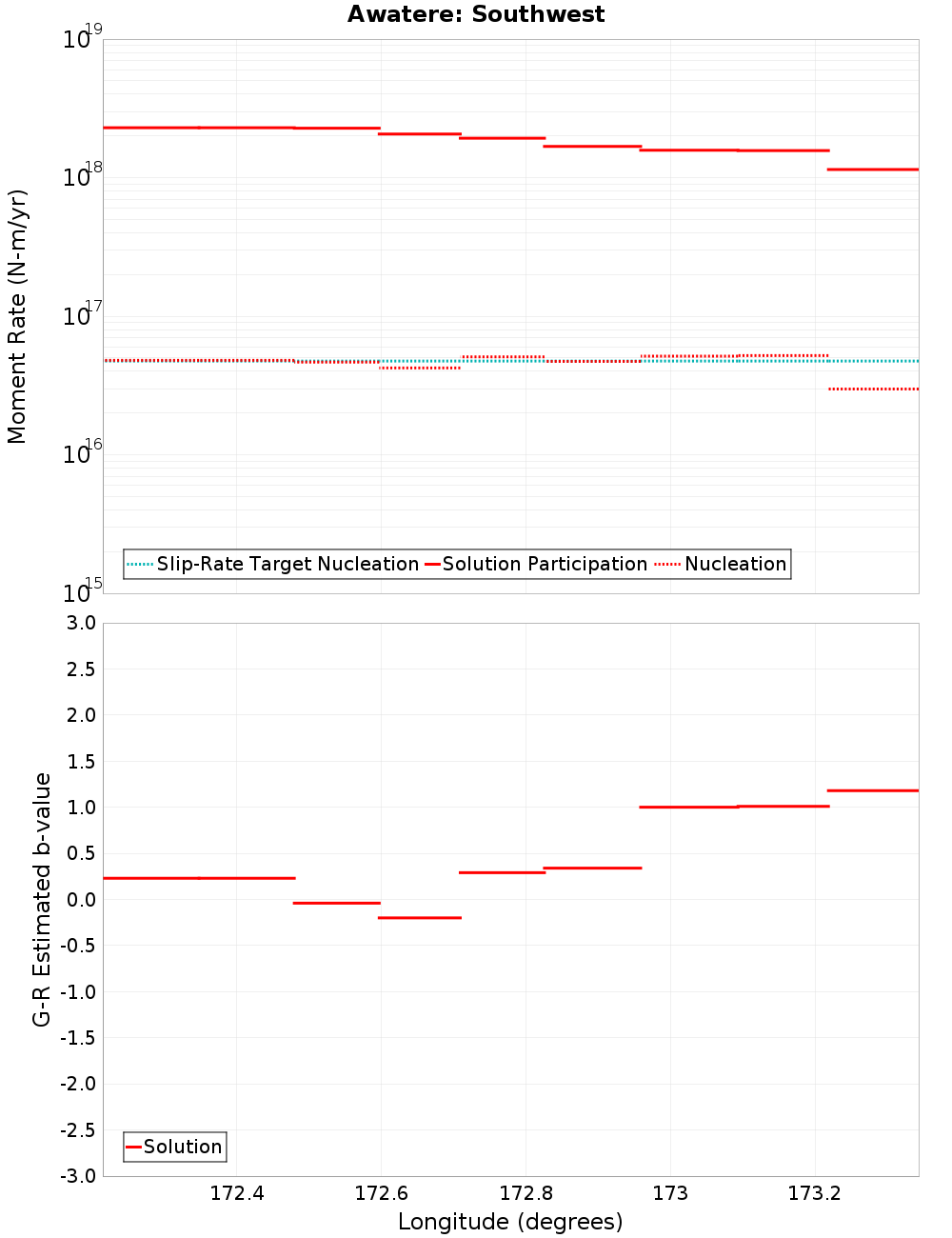

Moment-Rates and b-Values

(top)

Along-strike plot

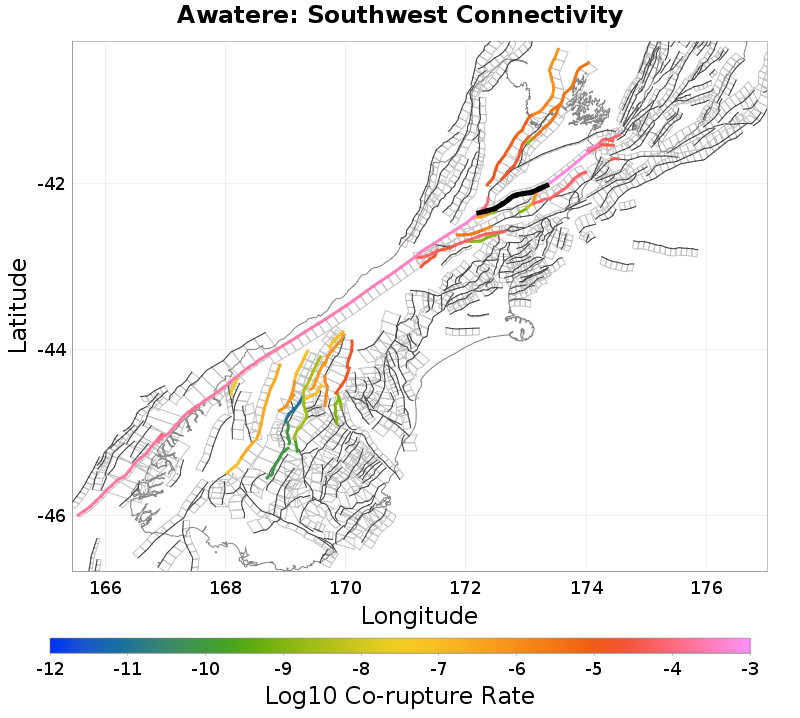

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Awatere: Northeast 1, 0.1 km away
Barefell, 0.17 km away
Fowlers, 4.56 km away
Tutaki, 9.47 km away
Elliott, 10.34 km away
Clarence: Northeast, 11.07 km away
Flaxmore - Waimea - Tahunanui, 12.08 km away
Clarence: Central, 12.19 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?true
Co-rupture Count692
Co-rupture Rate9.498312E-5

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?true
Co-rupture Count28,012
Co-rupture Rate4.6901352E-4

Awatere: Northeast 1, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?true
Co-rupture Count14,826
Co-rupture Rate5.923912E-4

Barefell, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?true
Co-rupture Count235
Co-rupture Rate7.069769E-7

Fowlers, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?true
Co-rupture Count527
Co-rupture Rate4.31979E-7

Tutaki, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?true
Co-rupture Count4,677
Co-rupture Rate1.2261923E-5

Elliott, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Clarence: Northeast, 11.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?false
Co-rupture Count326
Co-rupture Rate6.6309134E-5

Flaxmore - Waimea - Tahunanui, 12.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?true
Co-rupture Count3,354
Co-rupture Rate1.7534256E-5

Clarence: Central, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NTEuMDVjRHE0
Connected?true
Directly Connected?true
Co-rupture Count1,199
Co-rupture Rate6.631594E-5
