High Peak - Sheffield Details

PropertyValue
Rupture Count4,415
Ruptures Above Sect Min Mag4,408
Ruptures w/ Nonzero Rates117
Magnitude Range[6.71, 8.33]
Length Range[16, 526] km
Total Rate7.292951E-5 /yr
Multi-Fault Rate7.2922434E-5 /yr (99.99%)
Directly-Connected Faults4
All Co-Rupturing Faults64

Table Of Contents

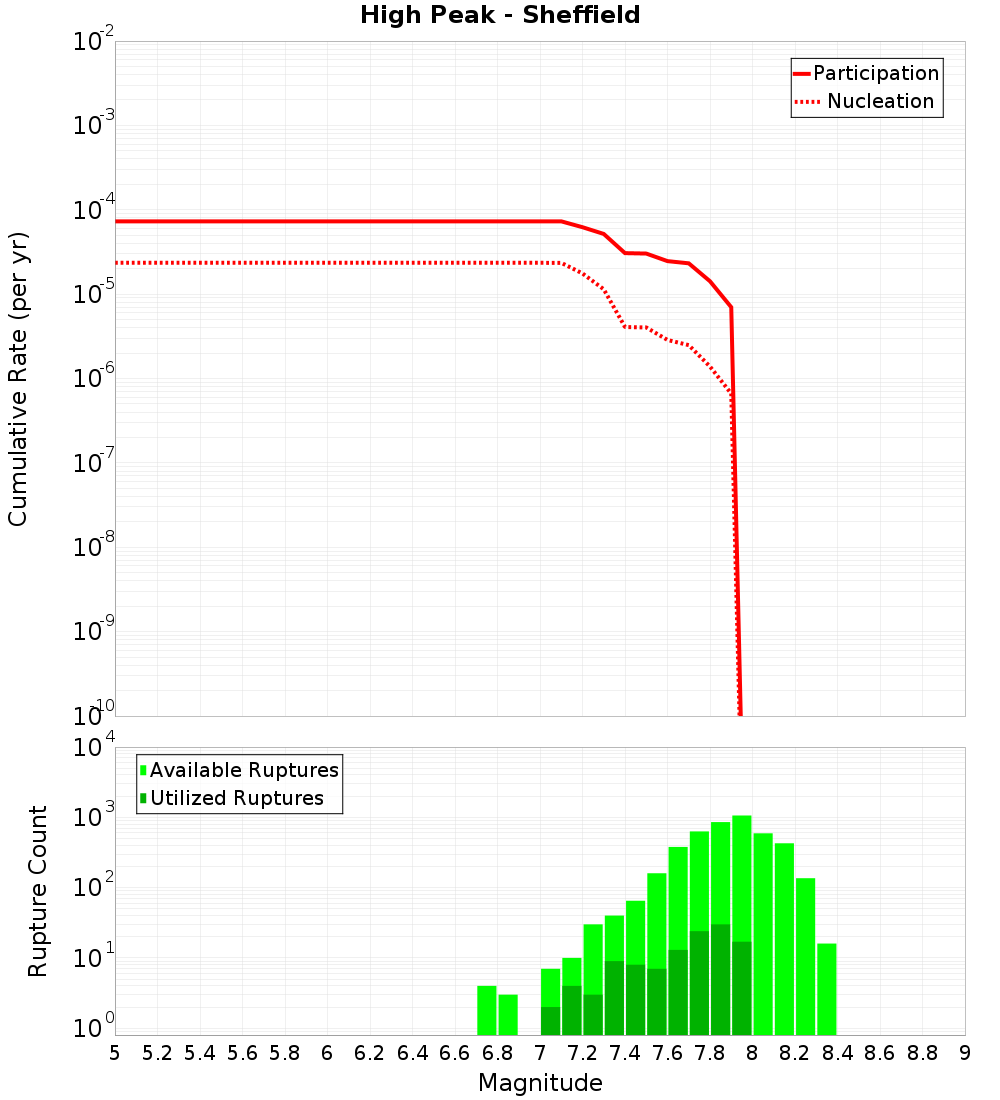

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

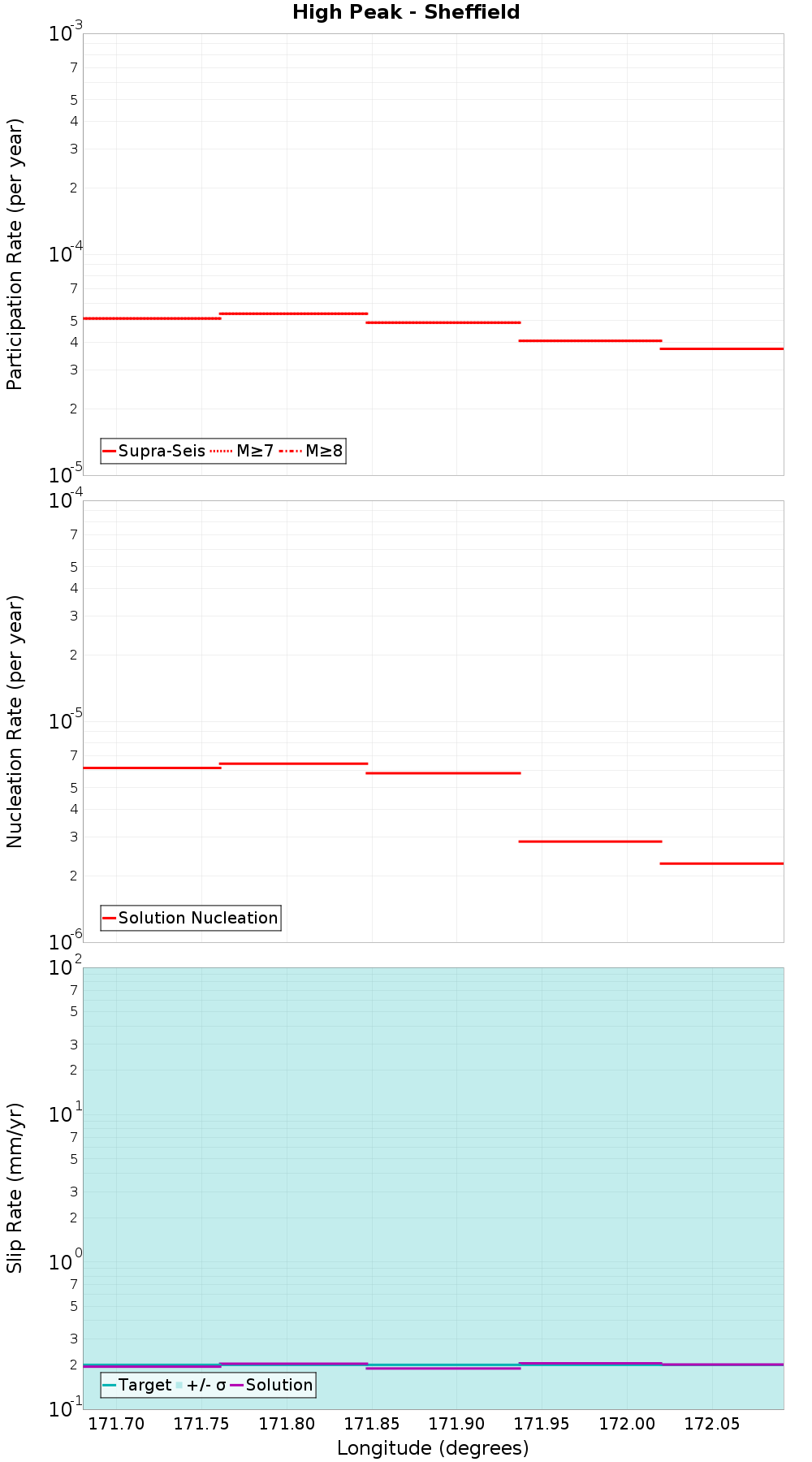

Along-Strike Values

(top)

Along-strike plot

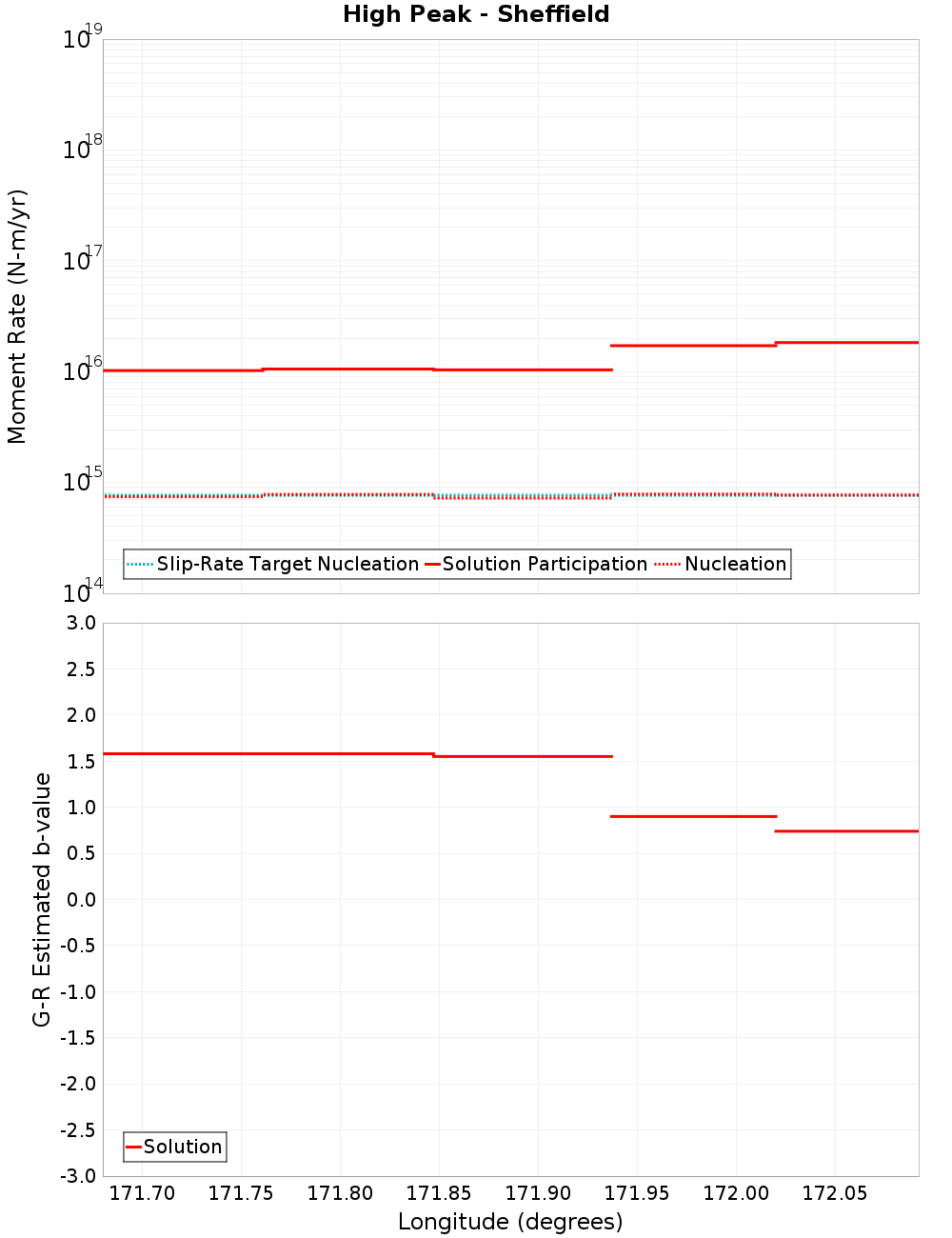

Moment-Rates and b-Values

(top)

Along-strike plot

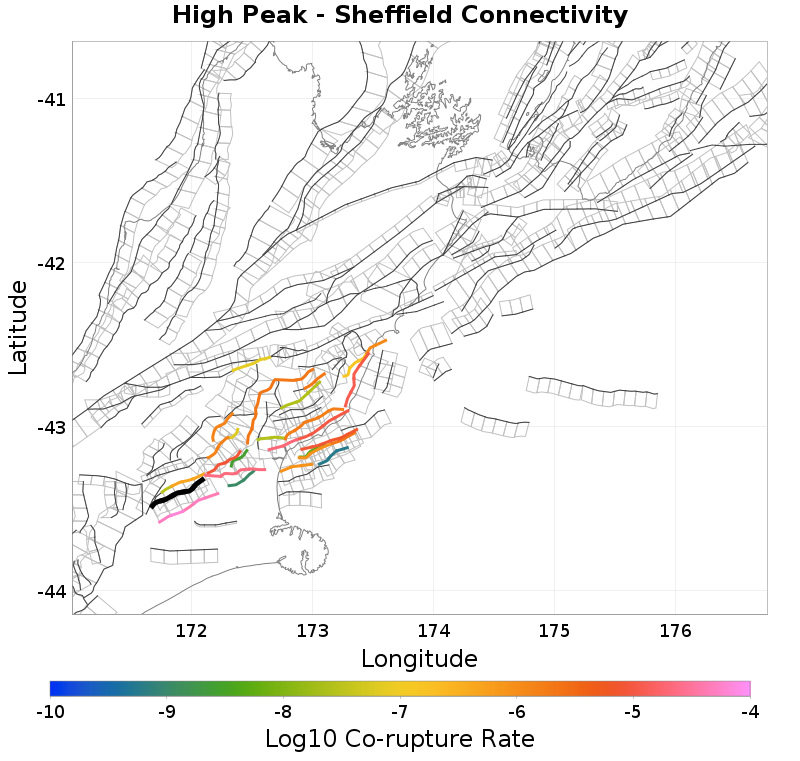

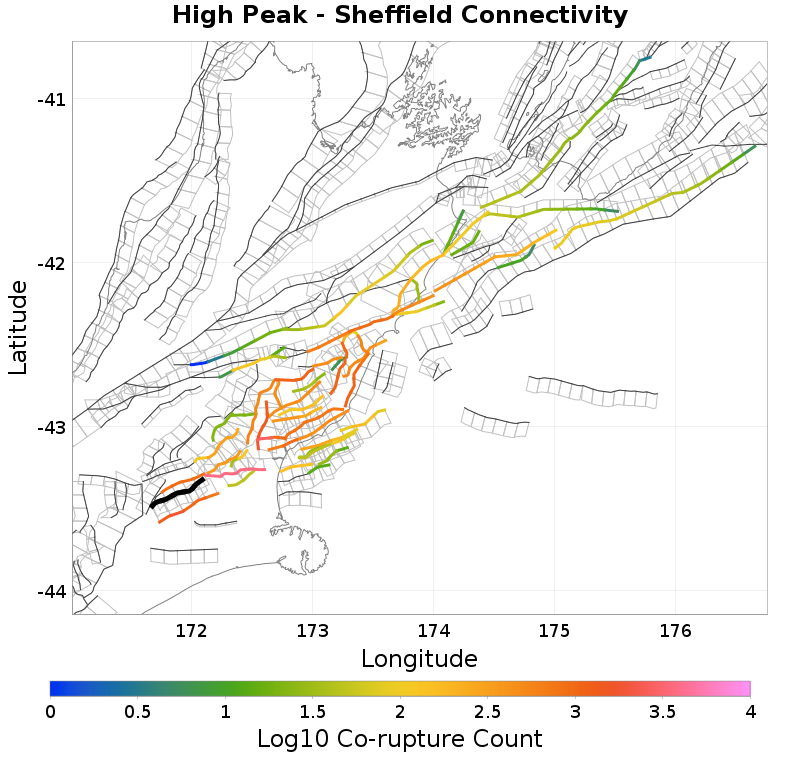

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hororata, 0.14 km away
Big Ben, 1.56 km away
Kowai - View Hill, 1.73 km away
Starvation - Ashley, 3.73 km away
Knowles Top, 6 km away
Hutt Peel, 6.61 km away
Lees Valley, 11.61 km away
Porters Pass, 12.52 km away
Esk South, 12.68 km away
Springbank, 13.42 km away
Greendale, 14.22 km away

Hororata, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?true
Directly Connected?true
Co-rupture Count2,414
Co-rupture Rate7.748137E-5

Big Ben, 1.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 1.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?true
Directly Connected?true
Co-rupture Count908
Co-rupture Rate4.7881724E-7

Starvation - Ashley, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?true
Directly Connected?true
Co-rupture Count3,893
Co-rupture Rate2.252686E-5

Knowles Top, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?true
Directly Connected?true
Co-rupture Count366
Co-rupture Rate8.4118155E-6

Hutt Peel, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?true
Directly Connected?false
Co-rupture Count345
Co-rupture Rate1.4817689E-6

Porters Pass, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 12.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate1.0999677E-9

Greendale, 14.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjIuMFNLOE1X
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
