Uruti East - PorWest 1 Details

Property	Value
Rupture Count	15,040
Ruptures Above Sect Min Mag	15,033
Ruptures w/ Nonzero Rates	173
Magnitude Range	[6.87, 8.53]
Length Range	[22, 973] km
Total Rate	2.8404E-4 /yr
Multi-Fault Rate	2.8402213E-4 /yr (99.99%)
Directly-Connected Faults	6
All Co-Rupturing Faults	101

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

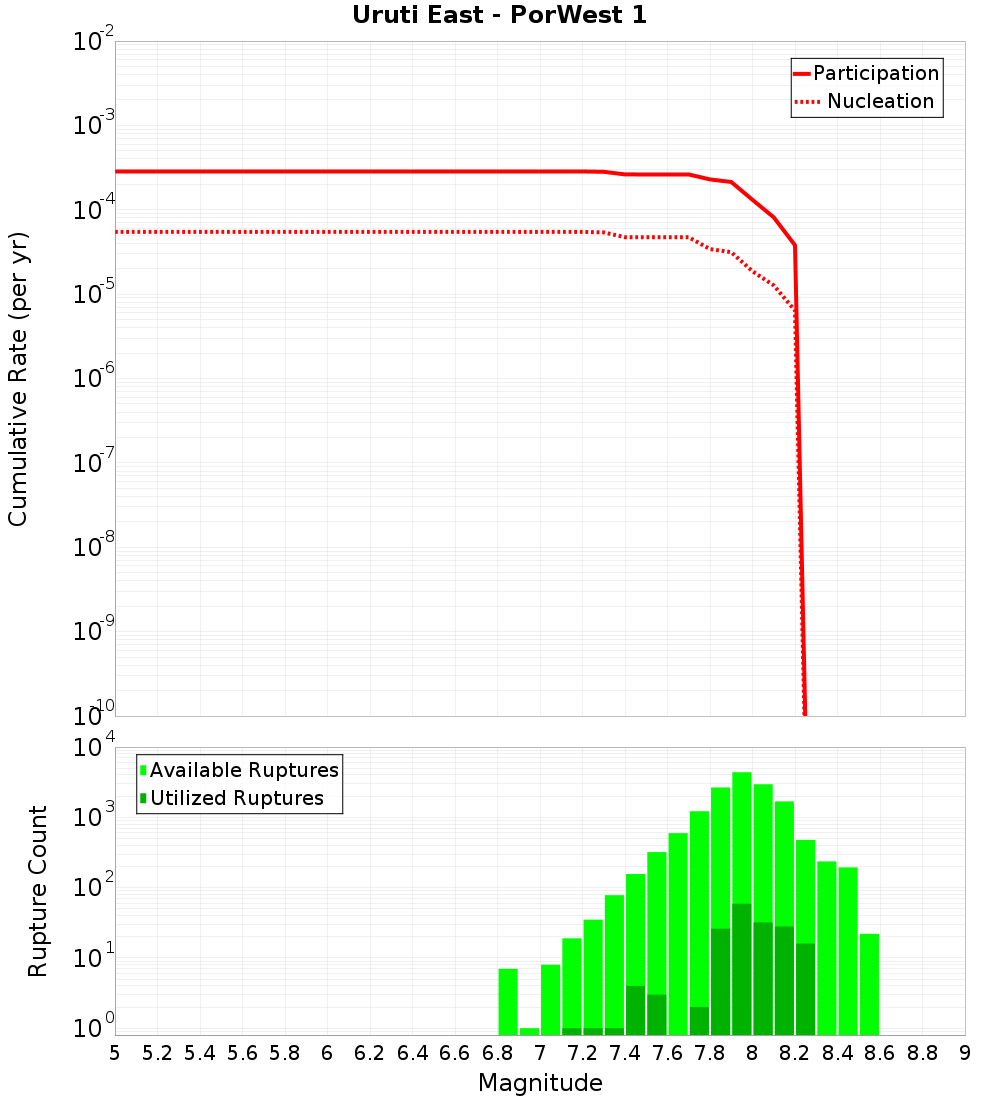

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

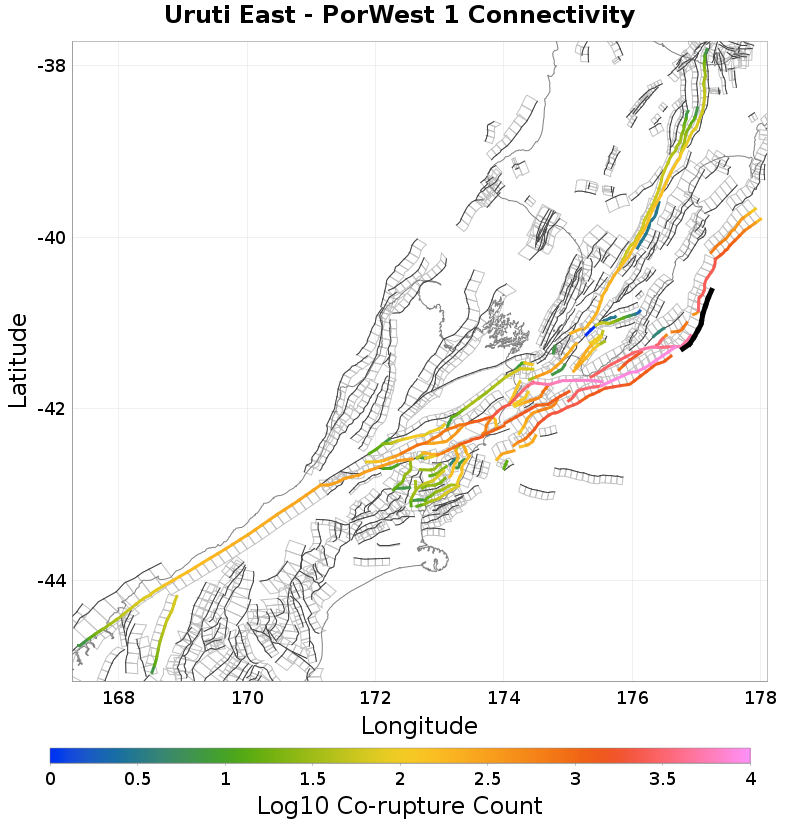

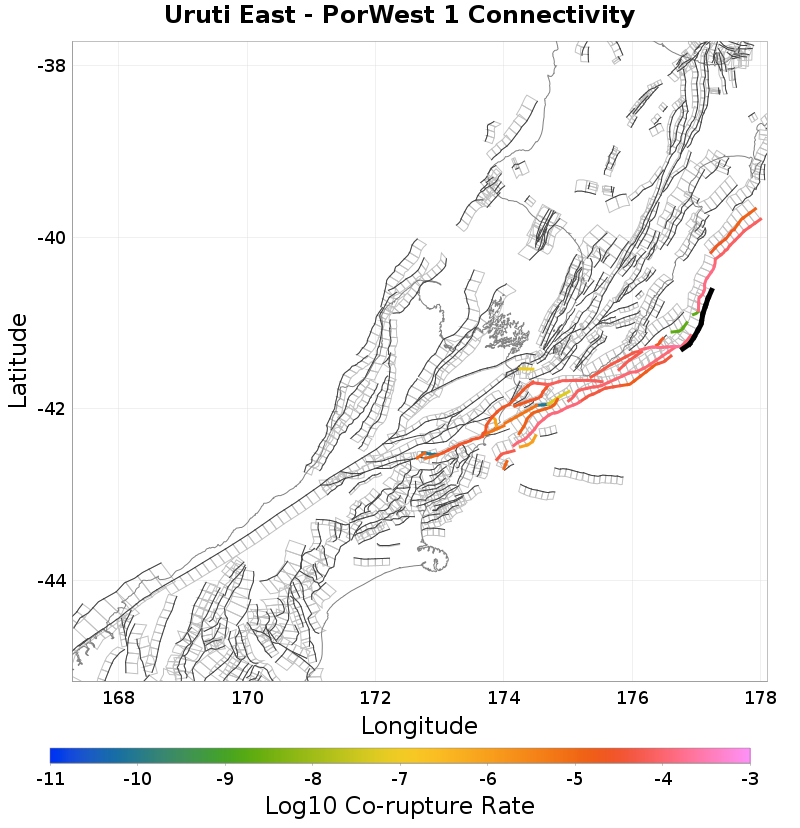

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 0.29 km away
Uruti Basin 2, 1.76 km away
Uruti Ridge 2, 2.58 km away
Madden Banks, 4.32 km away
Opouawe - Uruti, 5.54 km away
Pahaua, 7.19 km away
Uruti North, 10.36 km away

Uruti Basin, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjUuMGozYWRM
Connected?	true
Directly Connected?	true
Co-rupture Count	7,469
Co-rupture Rate	2.0032244E-4

Uruti Basin 2, 1.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjUuMGozYWRM
Connected?	true
Directly Connected?	true
Co-rupture Count	3,014
Co-rupture Rate	2.4310433E-5

Uruti Ridge 2, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjUuMGozYWRM
Connected?	true
Directly Connected?	true
Co-rupture Count	4,770
Co-rupture Rate	1.1635167E-4

Madden Banks, 4.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjUuMGozYWRM
Connected?	true
Directly Connected?	true
Co-rupture Count	3,041
Co-rupture Rate	1.4000978E-4

Opouawe - Uruti, 5.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjUuMGozYWRM
Connected?	true
Directly Connected?	true
Co-rupture Count	10,772
Co-rupture Rate	1.344048E-4

Pahaua, 7.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjUuMGozYWRM
Connected?	true
Directly Connected?	false
Co-rupture Count	2,502
Co-rupture Rate	6.6474175E-5

Uruti North, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjUuMGozYWRM
Connected?	true
Directly Connected?	true
Co-rupture Count	778
Co-rupture Rate	1.9397026E-9
