North Canterbury Shelf 2 Details

PropertyValue
Rupture Count194
Ruptures Above Sect Min Mag191
Ruptures w/ Nonzero Rates34
Magnitude Range[6.64, 7.96]
Length Range[13, 257] km
Total Rate3.7193804E-5 /yr
Multi-Fault Rate3.7193804E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults22

Table Of Contents

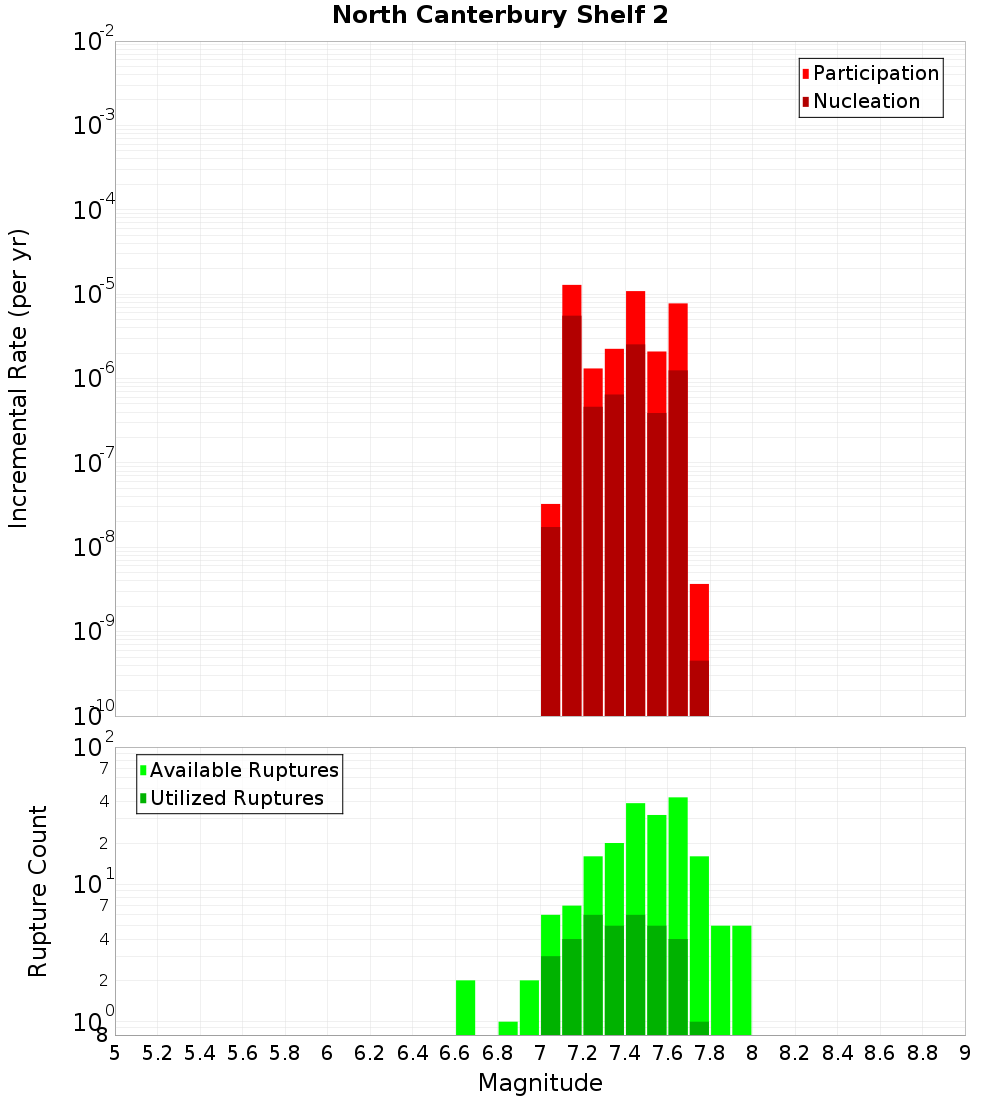

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

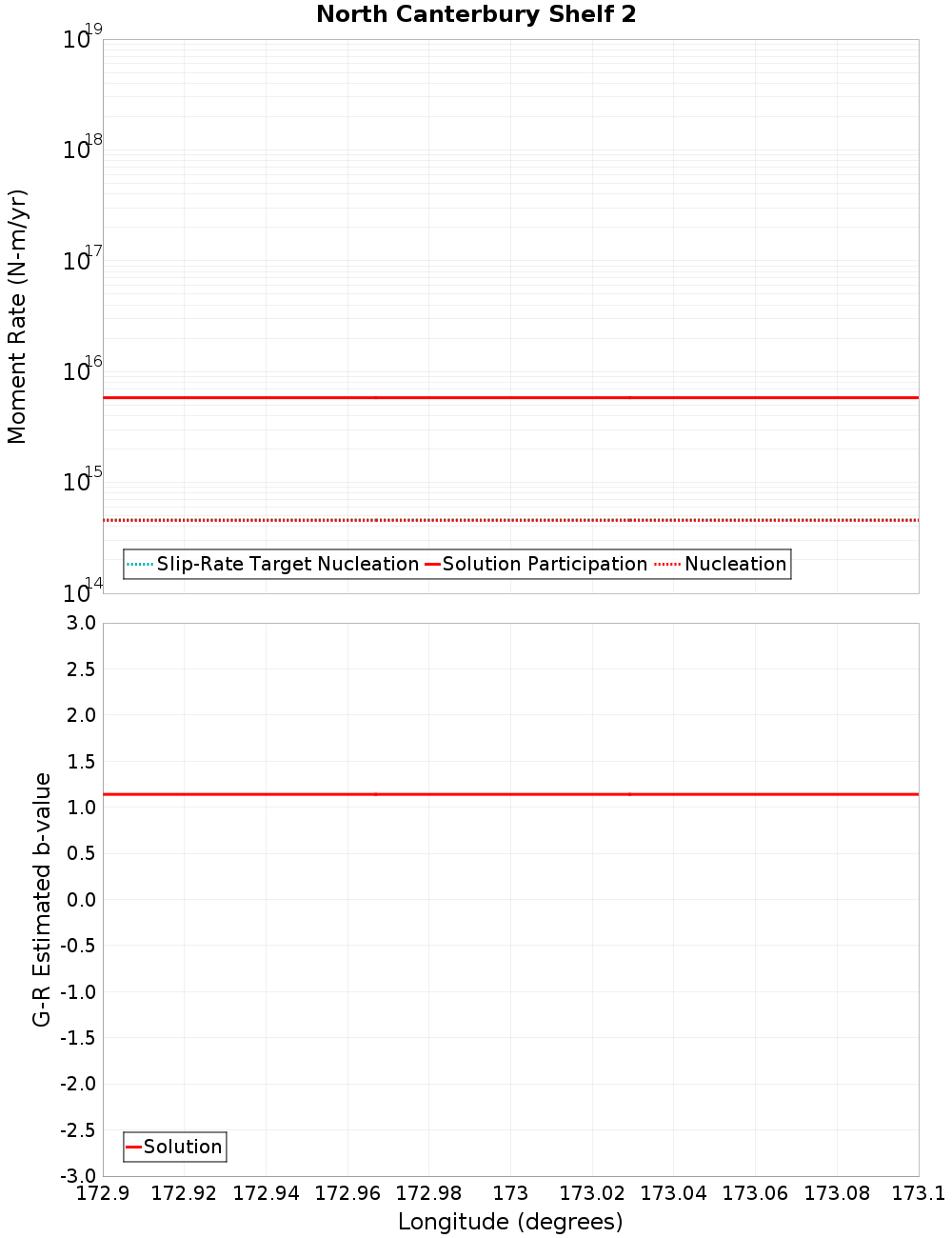

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Leithfield - NCVI - NCVII, 0.49 km away
Motunau, 0.72 km away
Waikuku, 4.61 km away
AmberBlyth, 4.87 km away
North Canterbury Shelf 4, 7.11 km away
Pegasus Bay, 8.24 km away
North Canterbury Shelf 11, 9.96 km away
OmihiLwrHuru, 11.23 km away
Point Gibson, 14.3 km away
Boby Stream, 14.97 km away

Leithfield - NCVI - NCVII, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate2.1114733E-5

Motunau, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate4.8163556E-6

Waikuku, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate1.1544926E-5

AmberBlyth, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate1.12545695E-5

North Canterbury Shelf 4, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pegasus Bay, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 11, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate3.8906364E-6

OmihiLwrHuru, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?true
Directly Connected?false
Co-rupture Count70
Co-rupture Rate1.5914106E-6

Boby Stream, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
