Raukumara 16 Details
| Property | Value |
|---|---|
| Rupture Count | 3 |
| Ruptures Above Sect Min Mag | 2 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.72, 7.43] |
| Length Range | [9, 41] km |
| Total Rate | 1.558083E-4 /yr |
| Multi-Fault Rate | 1.558083E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

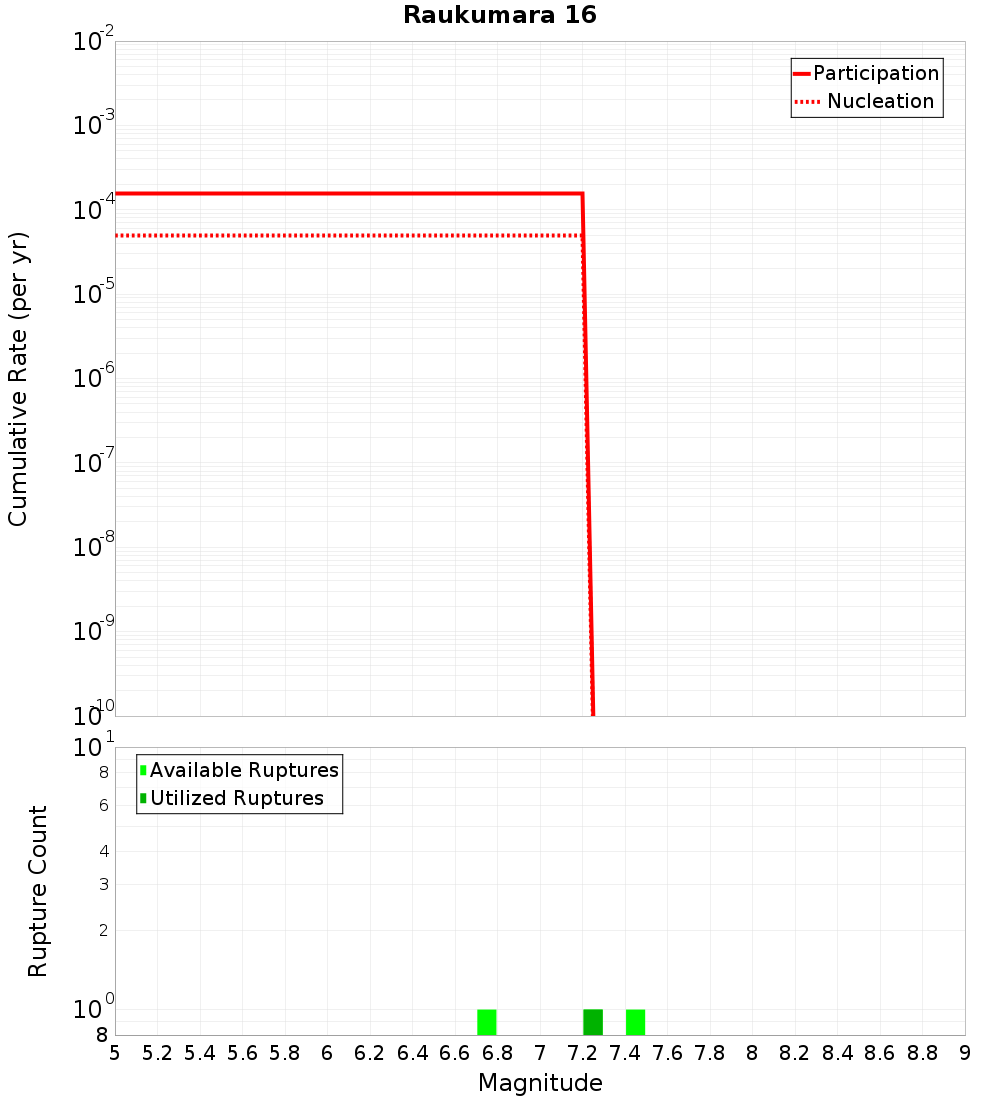

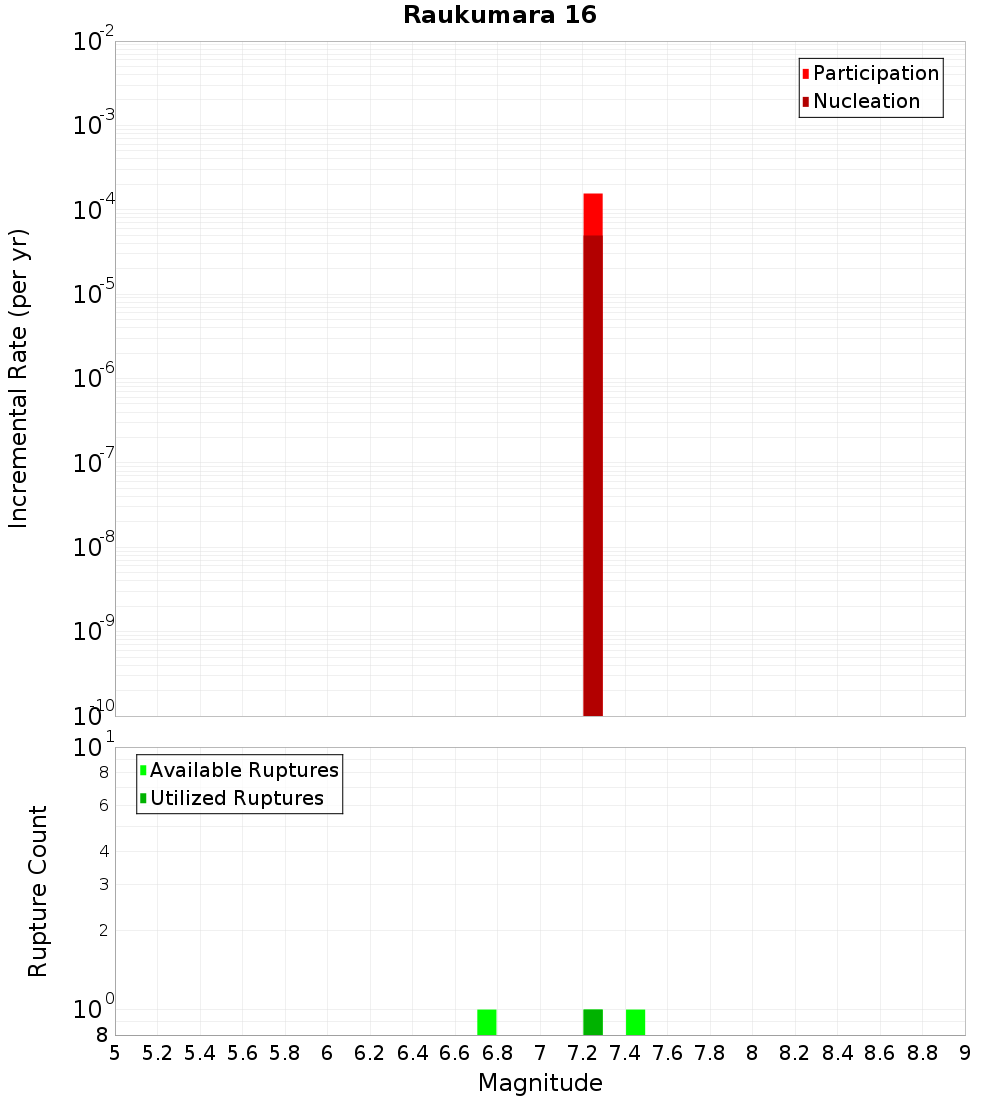

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motu, 0.14 km away |
| Opape 1, 0.44 km away |
| Tirohanga, 7.99 km away |
| Kotare - Moutuhora, 8.71 km away |
| Raukumara 17, 12.04 km away |
| Raukumara 18, 12.68 km away |
Motu, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.558083E-4 |
Opape 1, 0.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Tirohanga, 7.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kotare - Moutuhora, 8.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 17, 12.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 18, 12.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
