Spey - Mica Burn Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 4 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [7.01, 7.31] |
| Length Range | [20, 41] km |
| Total Rate | 3.635189E-5 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 0 |
| All Co-Rupturing Faults | 0 |
Table Of Contents

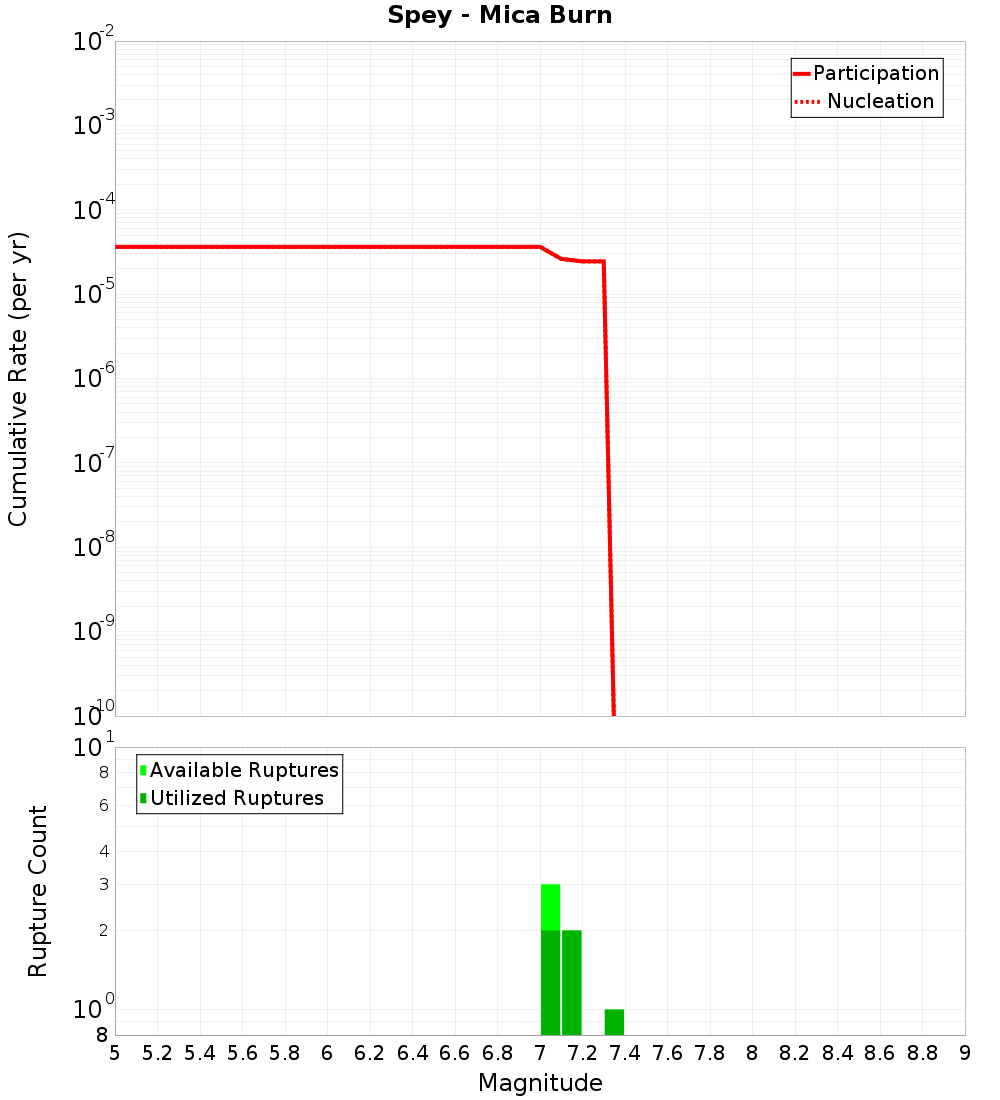

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

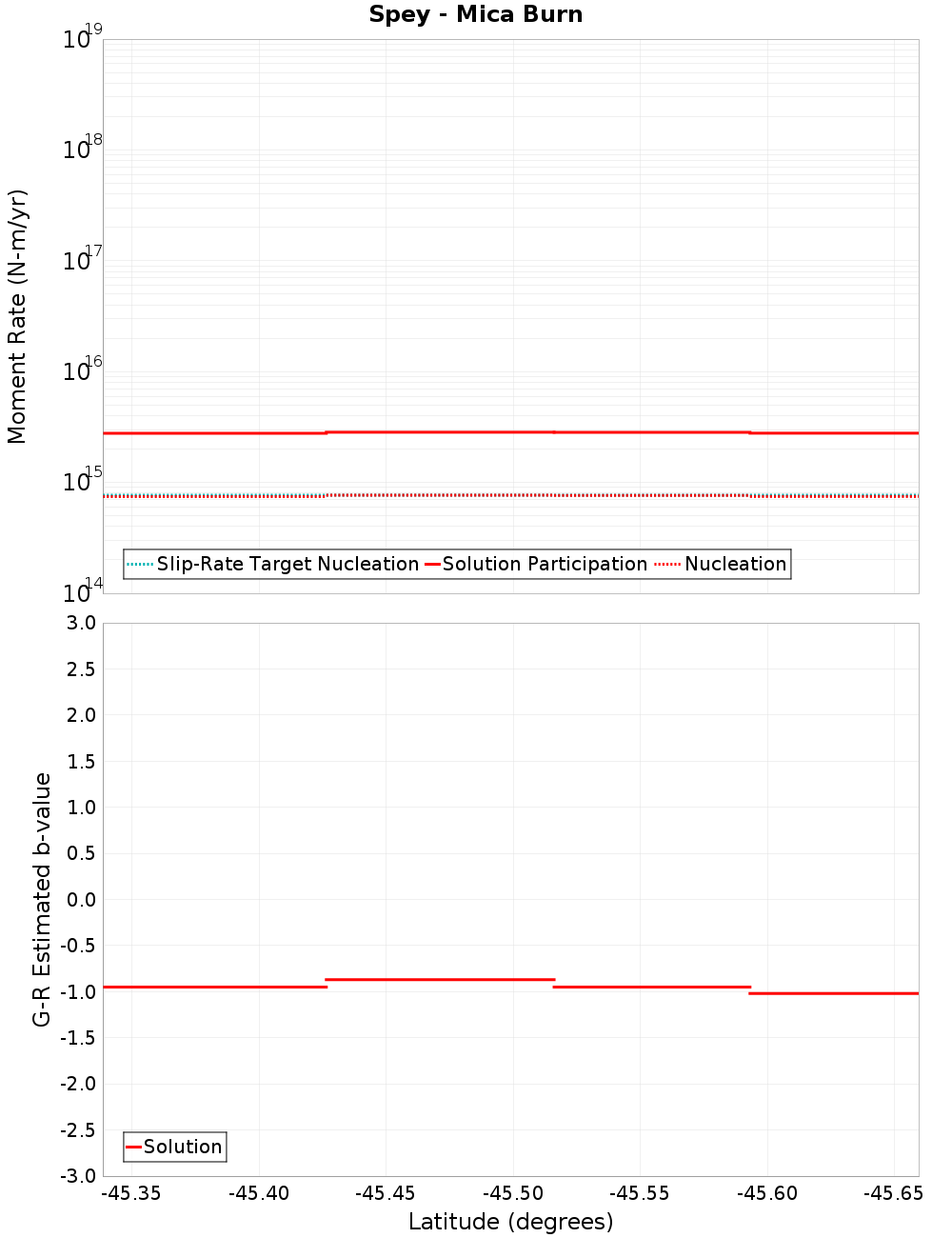

Moment-Rates and b-Values

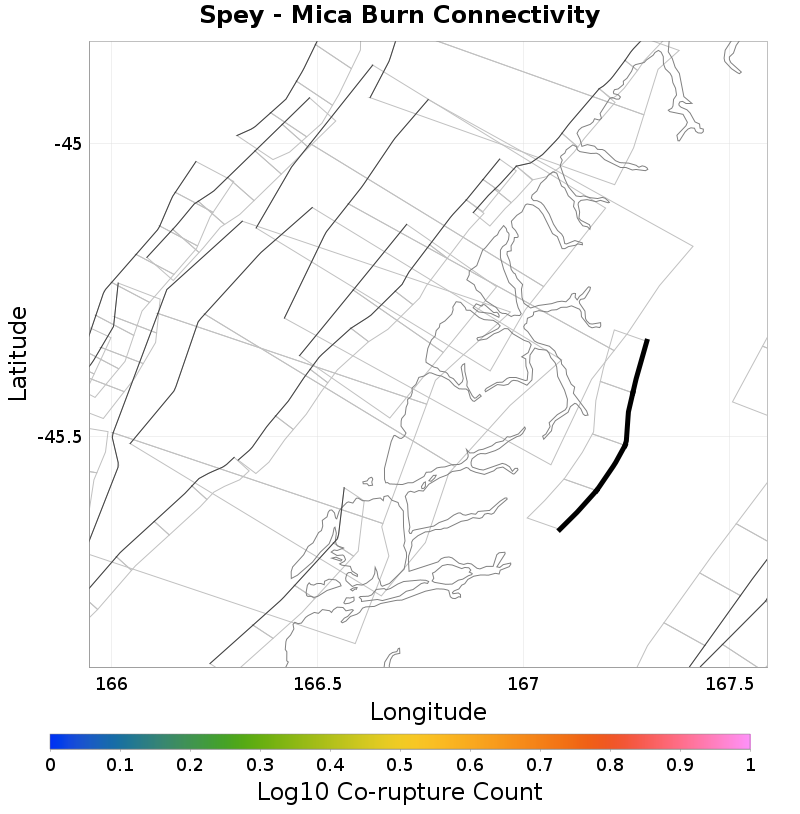

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| South Wedge 2, 1.3 km away |
| South Wedge 3-6-10, 8.22 km away |
South Wedge 2, 1.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 3-6-10, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5NjYuMFB5SjRH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
