Caswell High 1 Details

PropertyValue
Rupture Count885
Ruptures Above Sect Min Mag868
Ruptures w/ Nonzero Rates186
Magnitude Range[6.71, 8.66]
Length Range[15, 967] km
Total Rate2.594912E-4 /yr
Multi-Fault Rate2.2358878E-4 /yr (86.16%)
Directly-Connected Faults4
All Co-Rupturing Faults29

Table Of Contents

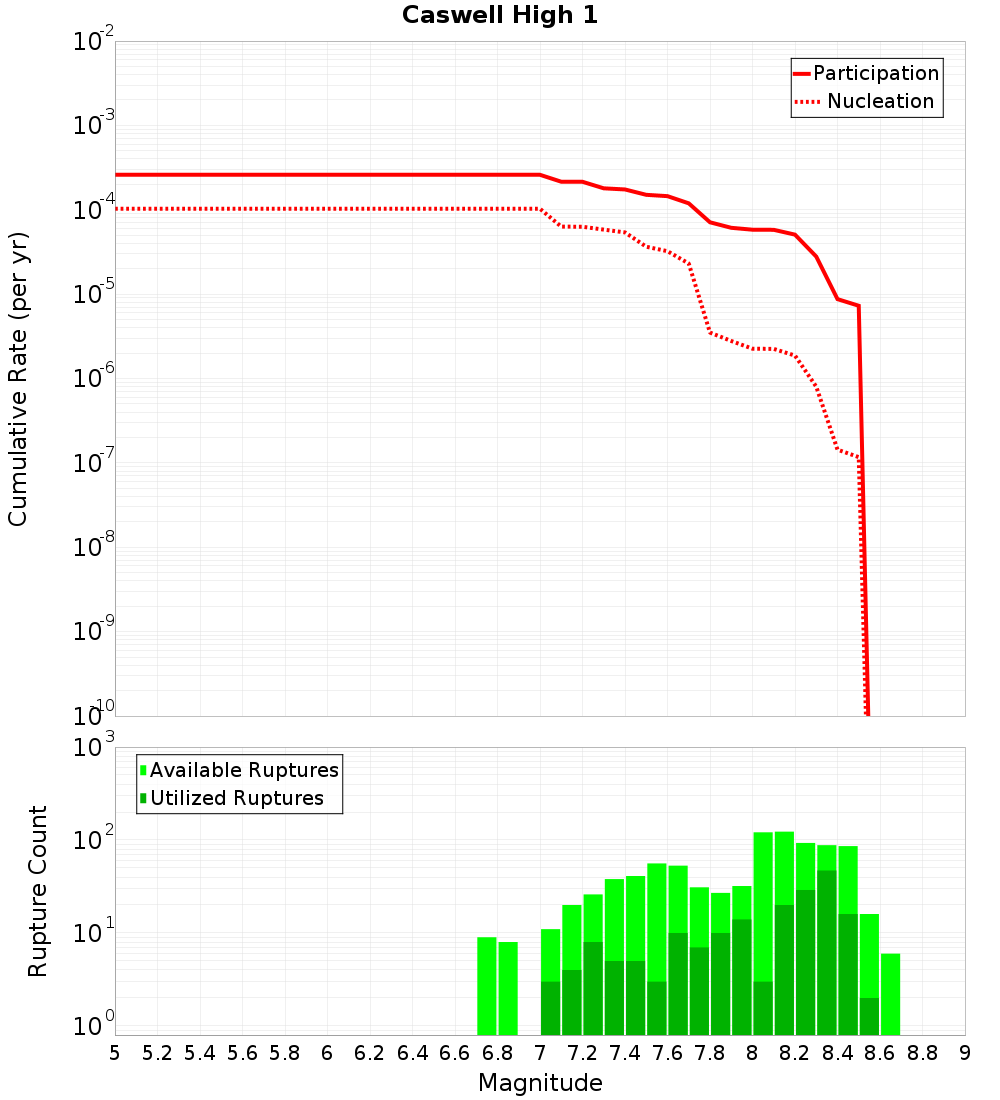

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

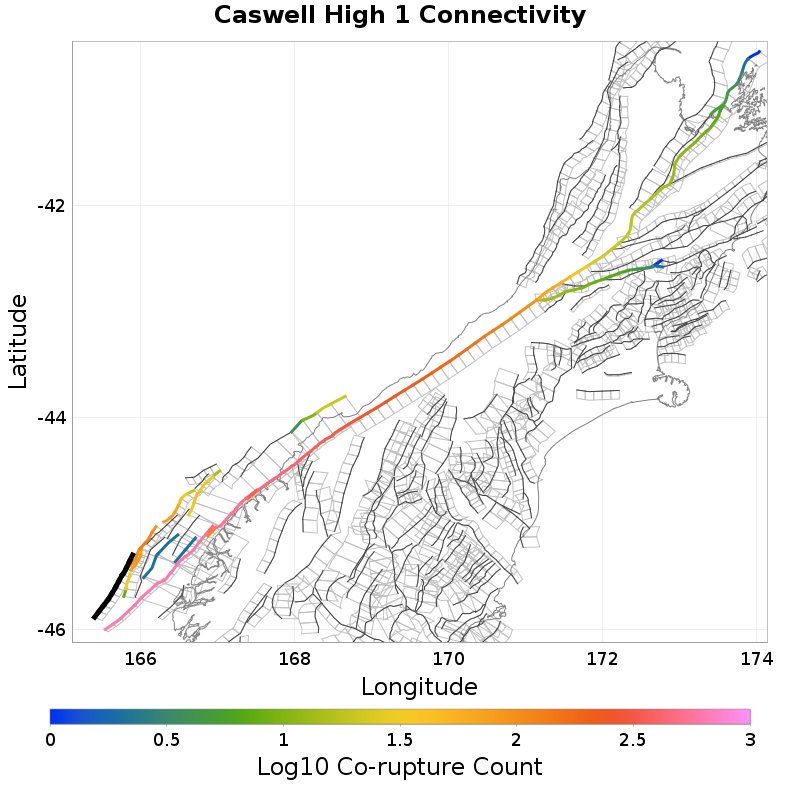

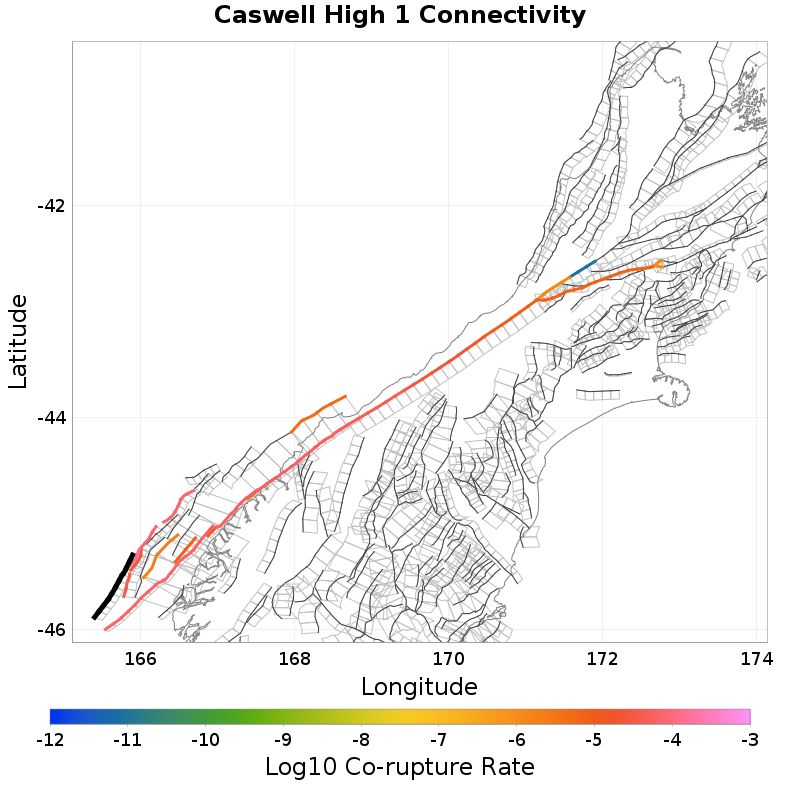

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 4, 2.01 km away
Caswell High 3, 4.37 km away
Caswell 211, 4.71 km away
Alpine: Resolution - Five Fingers, 11.73 km away
South Wedge 5, 13.13 km away

Caswell High 4, 2.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count158
Co-rupture Rate1.4628298E-4

Caswell High 3, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate2.2383972E-5

Caswell 211, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate3.487943E-5

Alpine: Resolution - Five Fingers, 11.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count644
Co-rupture Rate7.1018E-5

South Wedge 5, 13.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
