Otaheke South Details

PropertyValue
Rupture Count868
Ruptures Above Sect Min Mag867
Ruptures w/ Nonzero Rates44
Magnitude Range[7.06, 8.12]
Length Range[23, 245] km
Total Rate8.5039064E-5 /yr
Multi-Fault Rate8.5039064E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults29

Table Of Contents

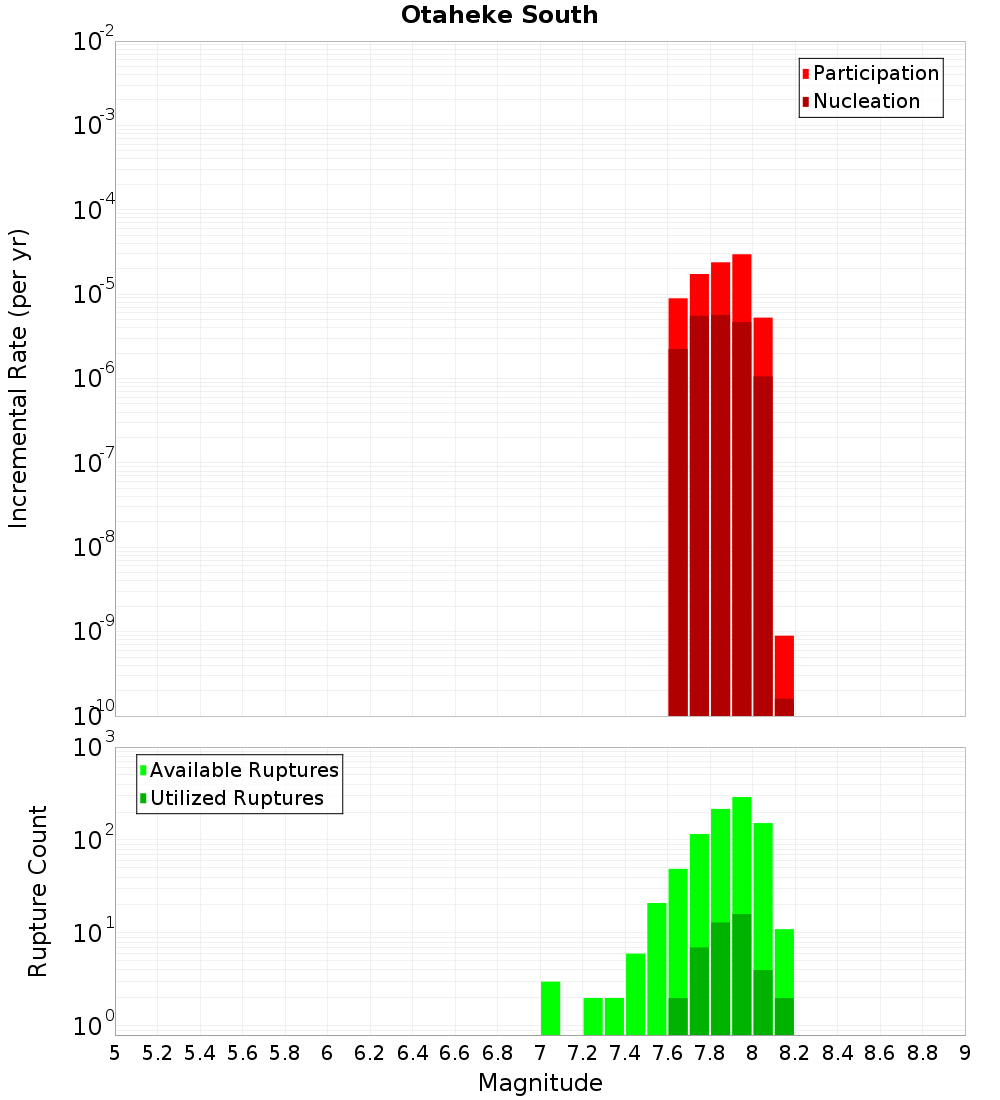

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

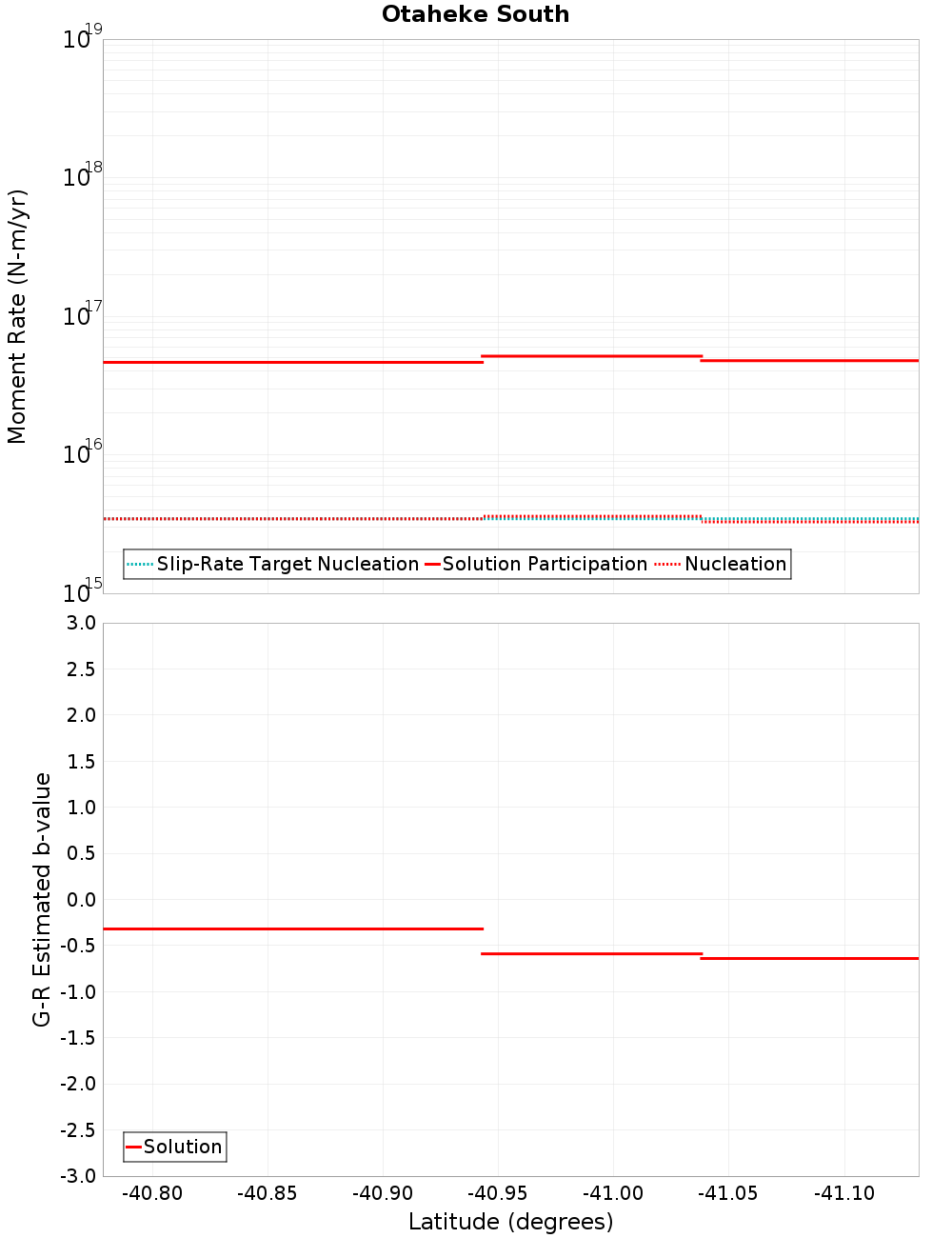

Moment-Rates and b-Values

(top)

Along-strike plot

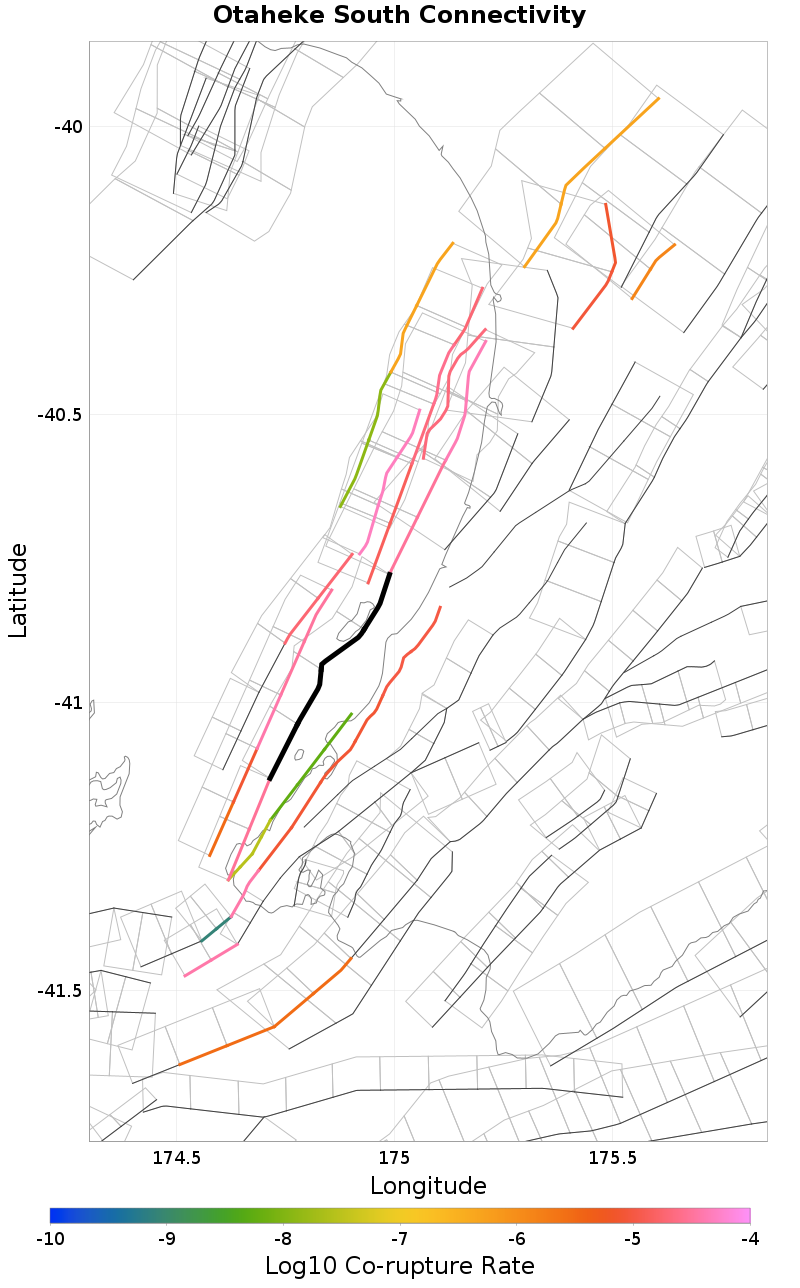

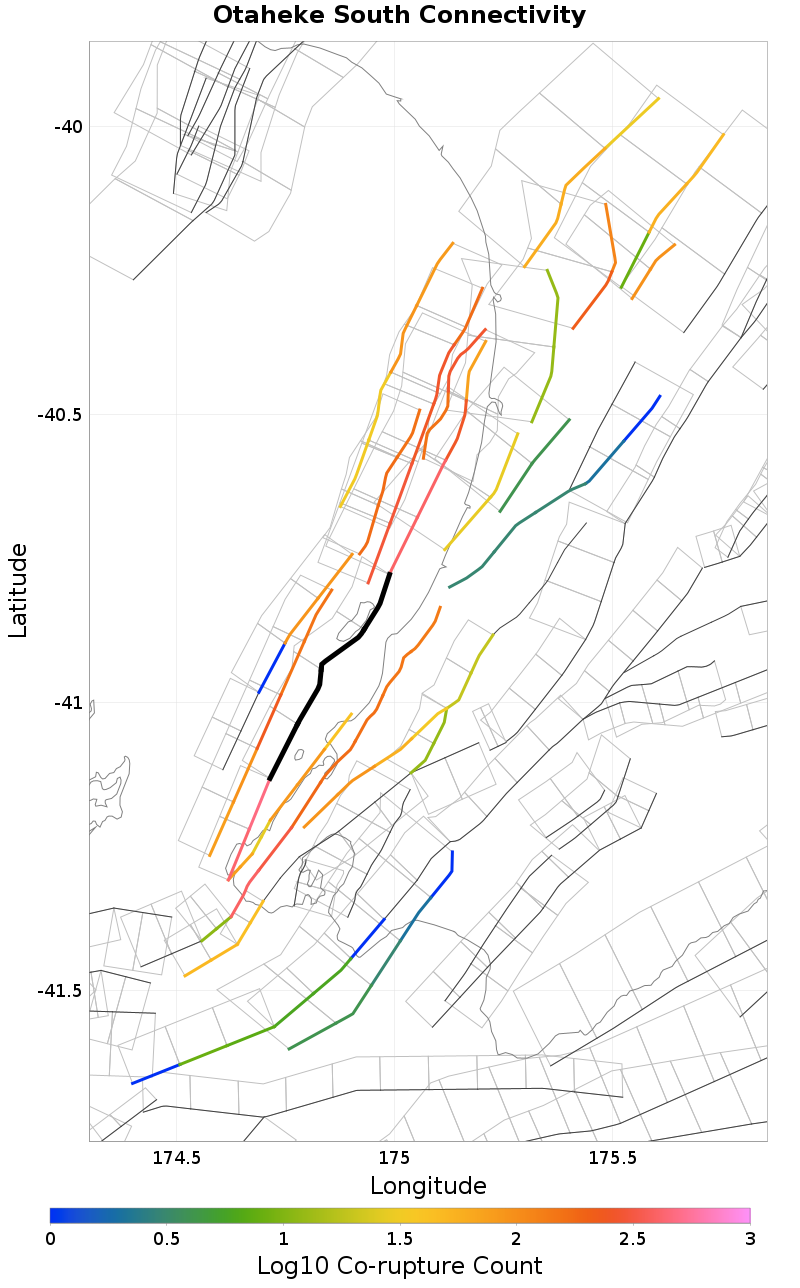

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Shepherds Gully - Mana, 0 km away
Otaheke North, 0 km away
Onepoto, 3.21 km away
Okupe 1, 4.46 km away
Pukerua - Shepherds Gully: 3, 4.95 km away
Fisherman 3, 6.67 km away
Mascarin, 7.25 km away
Fisherman 2, 7.87 km away
Pukerua - Shepherds Gully: 2, 8.06 km away
Ohariu, 8.6 km away
Fisherman 1, 8.64 km away
Poroutawhao, 10.02 km away
Moonshine, 11.31 km away
Northern Ohariu, 11.86 km away
Pukerua - Shepherds Gully: 1, 14.97 km away

Shepherds Gully - Mana, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count471
Co-rupture Rate2.9370807E-5

Otaheke North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count407
Co-rupture Rate5.4852273E-5

Onepoto, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count386
Co-rupture Rate2.6457257E-5

Okupe 1, 4.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count235
Co-rupture Rate3.8200593E-5

Pukerua - Shepherds Gully: 3, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?false
Co-rupture Count84
Co-rupture Rate5.5402705E-9

Fisherman 3, 6.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate4.9092232E-5

Mascarin, 7.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate4.794564E-7

Fisherman 2, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate1.8469333E-5

Pukerua - Shepherds Gully: 2, 8.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate2.8523711E-8

Ohariu, 8.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?true
Co-rupture Count470
Co-rupture Rate3.955622E-5

Fisherman 1, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poroutawhao, 10.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Moonshine, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate0.0

Northern Ohariu, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5ODEuMENEMlVt
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate2.9332126E-8
