Dry River - Huangarua: 3 Details
| Property | Value |
|---|---|
| Rupture Count | 354 |
| Ruptures Above Sect Min Mag | 351 |
| Ruptures w/ Nonzero Rates | 38 |
| Magnitude Range | [6.39, 8.21] |
| Length Range | [7, 374] km |
| Total Rate | 1.368854E-4 /yr |
| Multi-Fault Rate | 1.368854E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 35 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

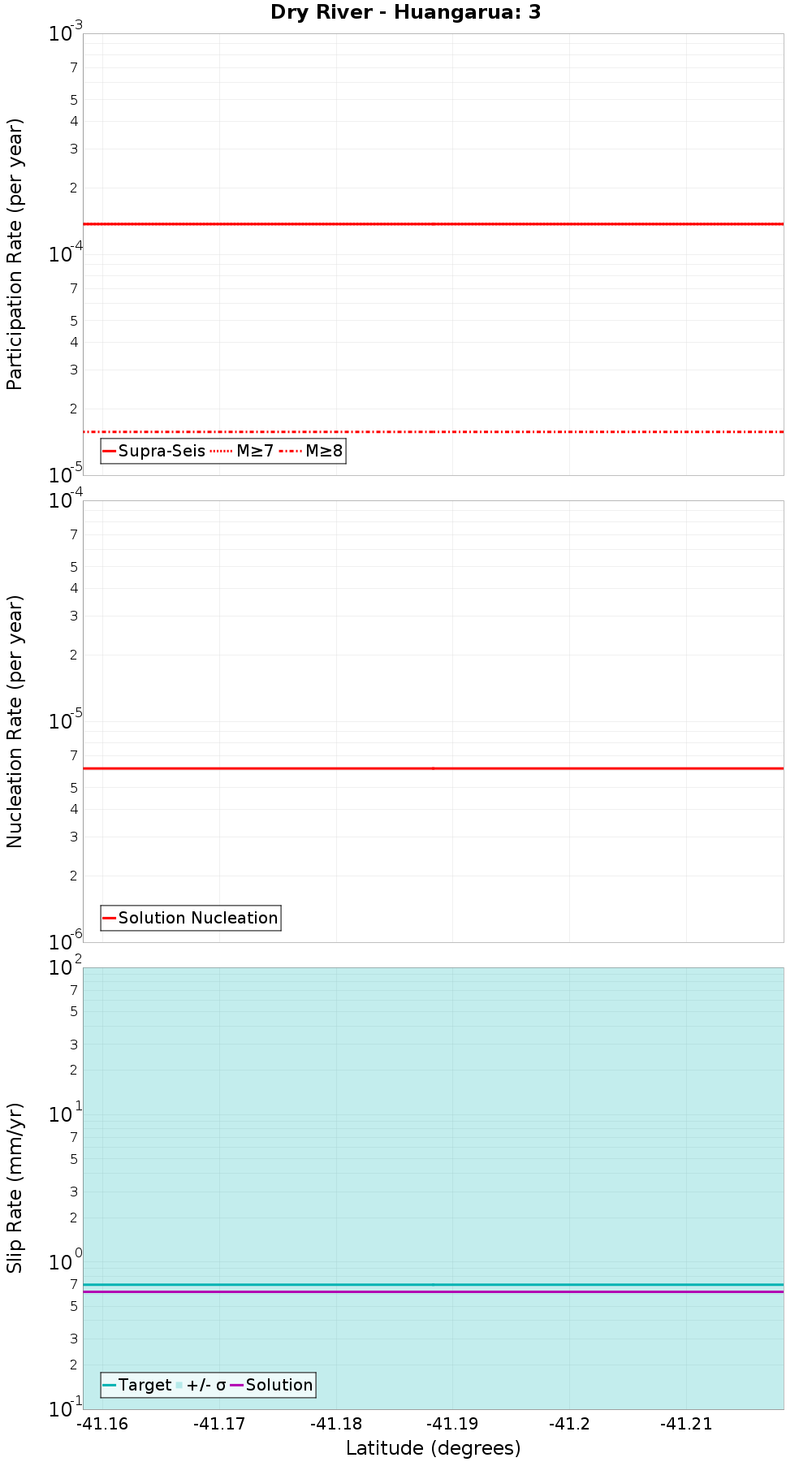

Along-Strike Values
Moment-Rates and b-Values

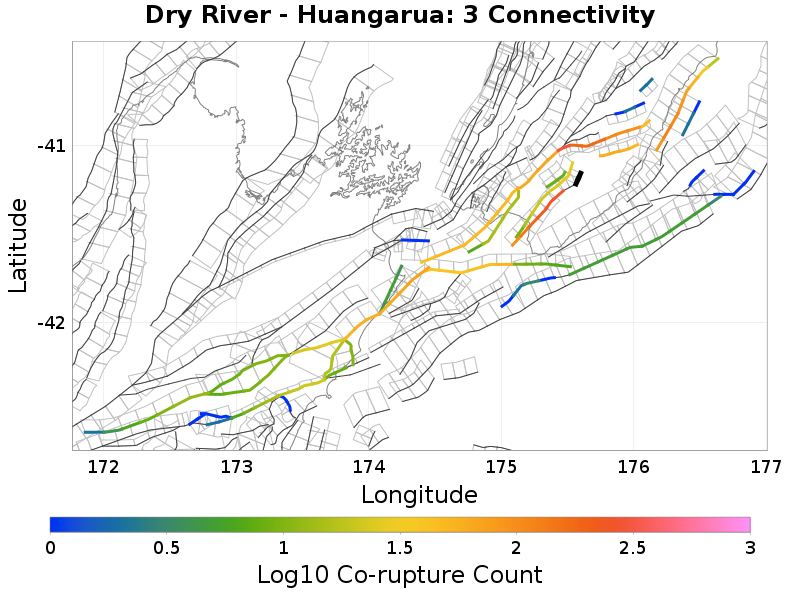

Connectivity
 |  |
|---|
Nearby Sections
Dry River - Huangarua: 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Martinborough, 5.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 2.7426411E-8 |
Dry River - Huangarua: 1, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 267 |
| Co-rupture Rate | 2.0550835E-5 |
Masterton, 8.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Bidwill, 8.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 6.9454086E-7 |
Carterton, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 291 |
| Co-rupture Rate | 1.2012137E-4 |
Otaraia, 13.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 21 |
| Co-rupture Rate | 1.9261063E-11 |
