The Humps Details

PropertyValue
Rupture Count2,781
Ruptures Above Sect Min Mag2,780
Ruptures w/ Nonzero Rates34
Magnitude Range[7.04, 8.55]
Length Range[20, 781] km
Total Rate1.0693464E-4 /yr
Multi-Fault Rate9.7908814E-5 /yr (91.56%)
Directly-Connected Faults4
All Co-Rupturing Faults76

Table Of Contents

Magnitude-Frequency Distribution

(top)

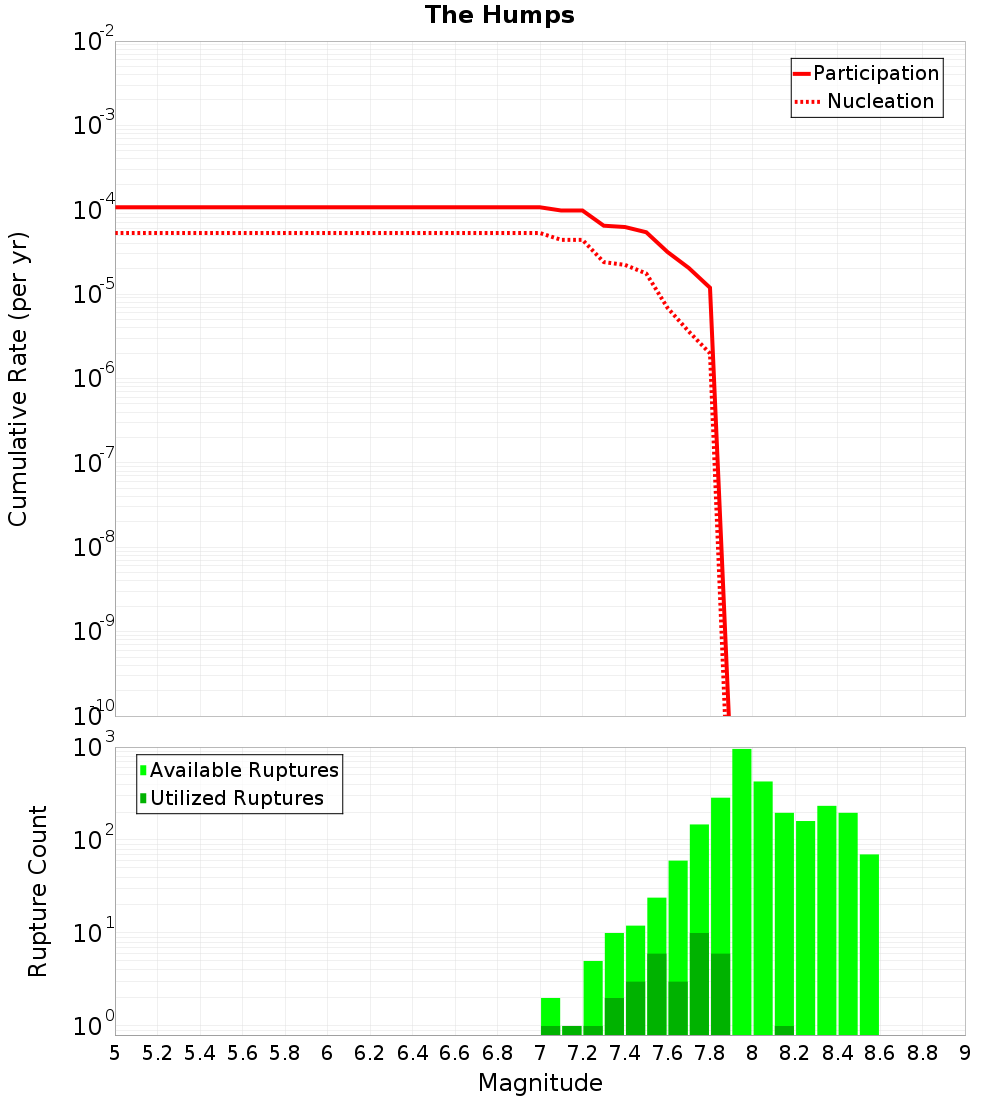

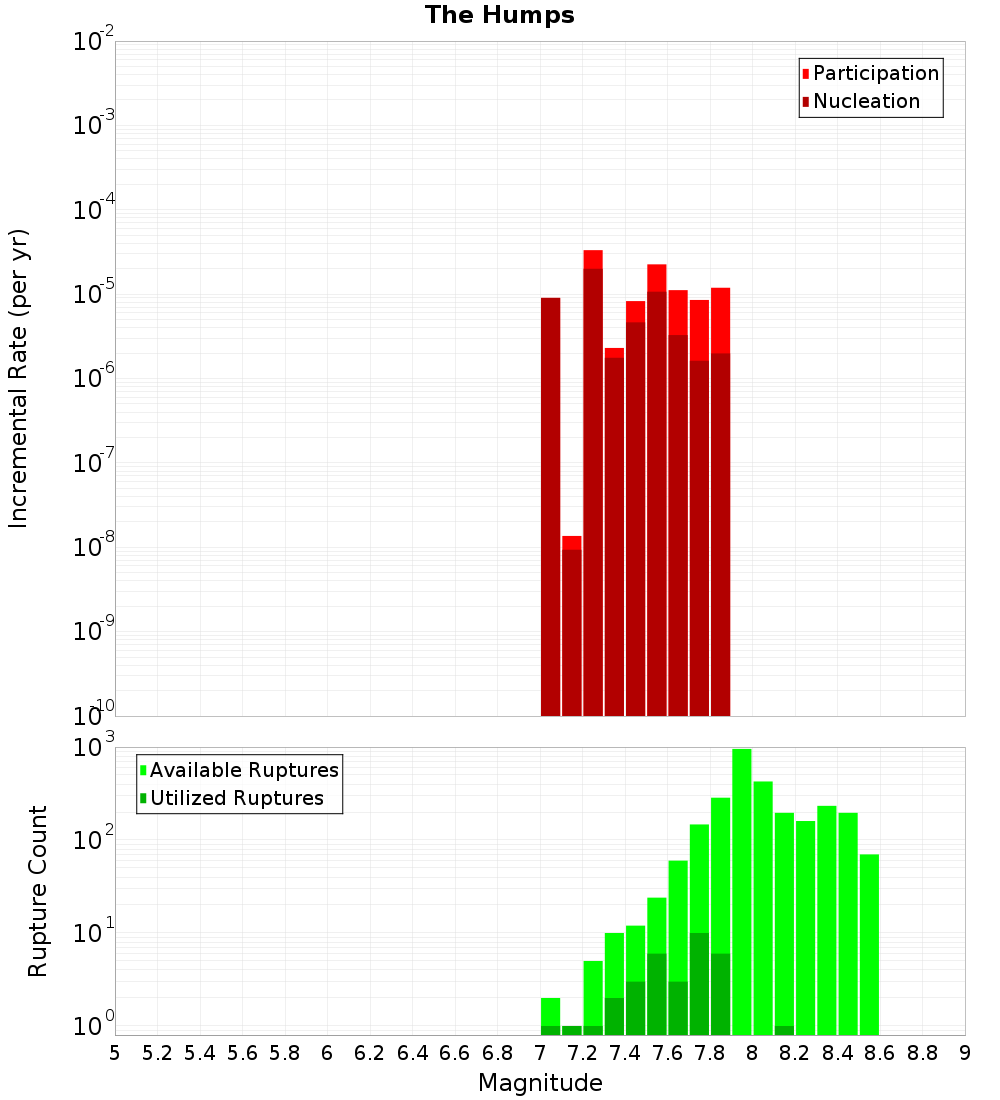

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kaiwara North, 0.22 km away
Hundalee, 0.25 km away
Leader: South, 0.28 km away
Mt Culverden, 1.72 km away
Leader: Central, 2.9 km away
Leonard Mound, 4.72 km away
Hope: Hamner SE, 7.7 km away
Lowry, 8.15 km away
Hanmer, 9.06 km away
Leader: North, 9.77 km away
Hope: Conway, 10.44 km away
Hope: Hamner SW, 10.61 km away
Hawkswood, 11.31 km away
StoneJug, 14.2 km away

Kaiwara North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?true
Co-rupture Count2,395
Co-rupture Rate5.6025205E-5

Leader: South, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate2.2562004E-5

Mt Culverden, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?true
Co-rupture Count2,643
Co-rupture Rate2.6076557E-5

Leader: Central, 2.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?false
Co-rupture Count460
Co-rupture Rate0.0

Leonard Mound, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate6.941968E-5

Hope: Hamner SE, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 8.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate5.513016E-6

Hanmer, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: North, 9.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?false
Co-rupture Count186
Co-rupture Rate0.0

Hope: Conway, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate0.0

Hope: Hamner SW, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkswood, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?false
Co-rupture Count124
Co-rupture Rate6.9940183E-9

StoneJug, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTAuMFBLaWpp
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate0.0
