Ohena 2 Details
| Property | Value |
|---|---|
| Rupture Count | 83 |
| Ruptures Above Sect Min Mag | 81 |
| Ruptures w/ Nonzero Rates | 80 |
| Magnitude Range | [7.00, 7.85] |
| Length Range | [20, 126] km |
| Total Rate | 5.1907395E-5 /yr |
| Multi-Fault Rate | 5.1869207E-5 /yr (99.93%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

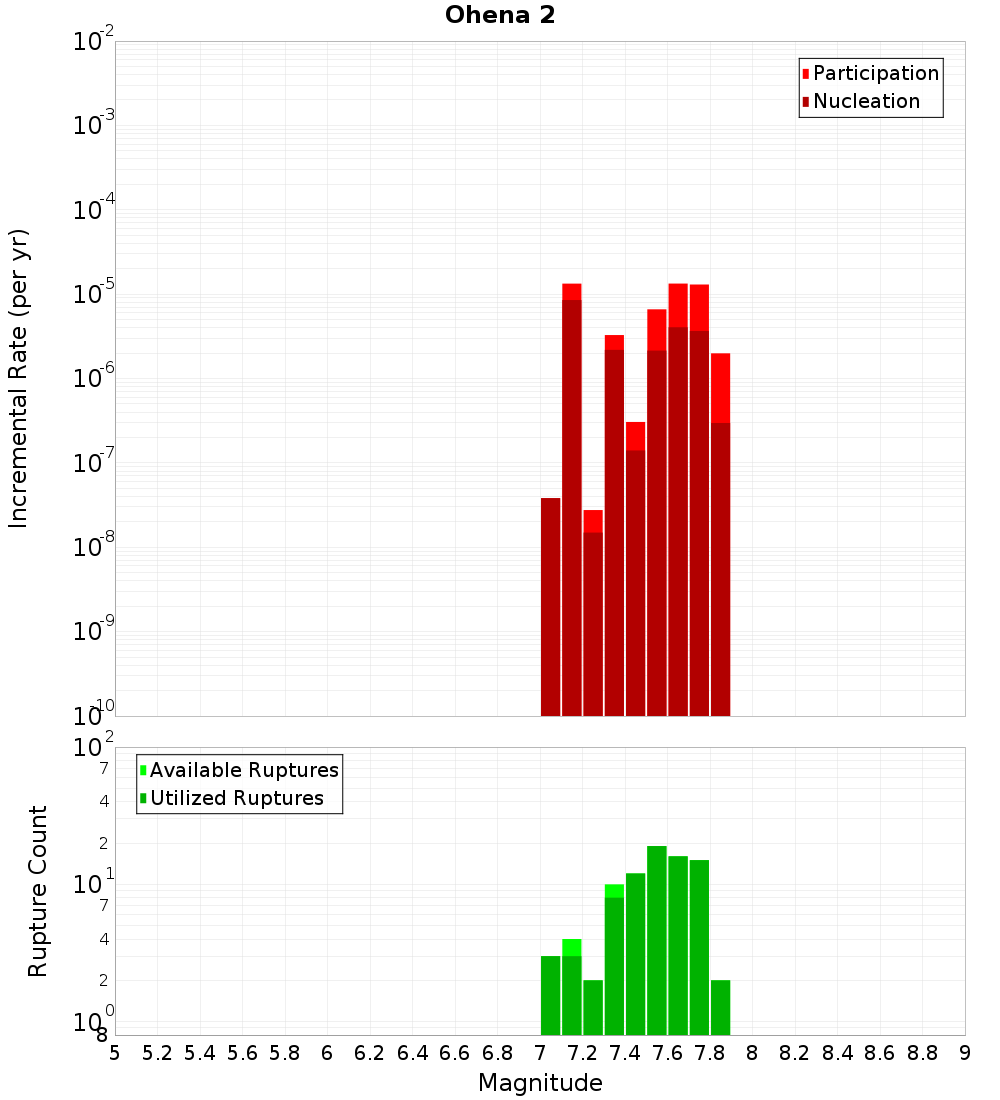

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

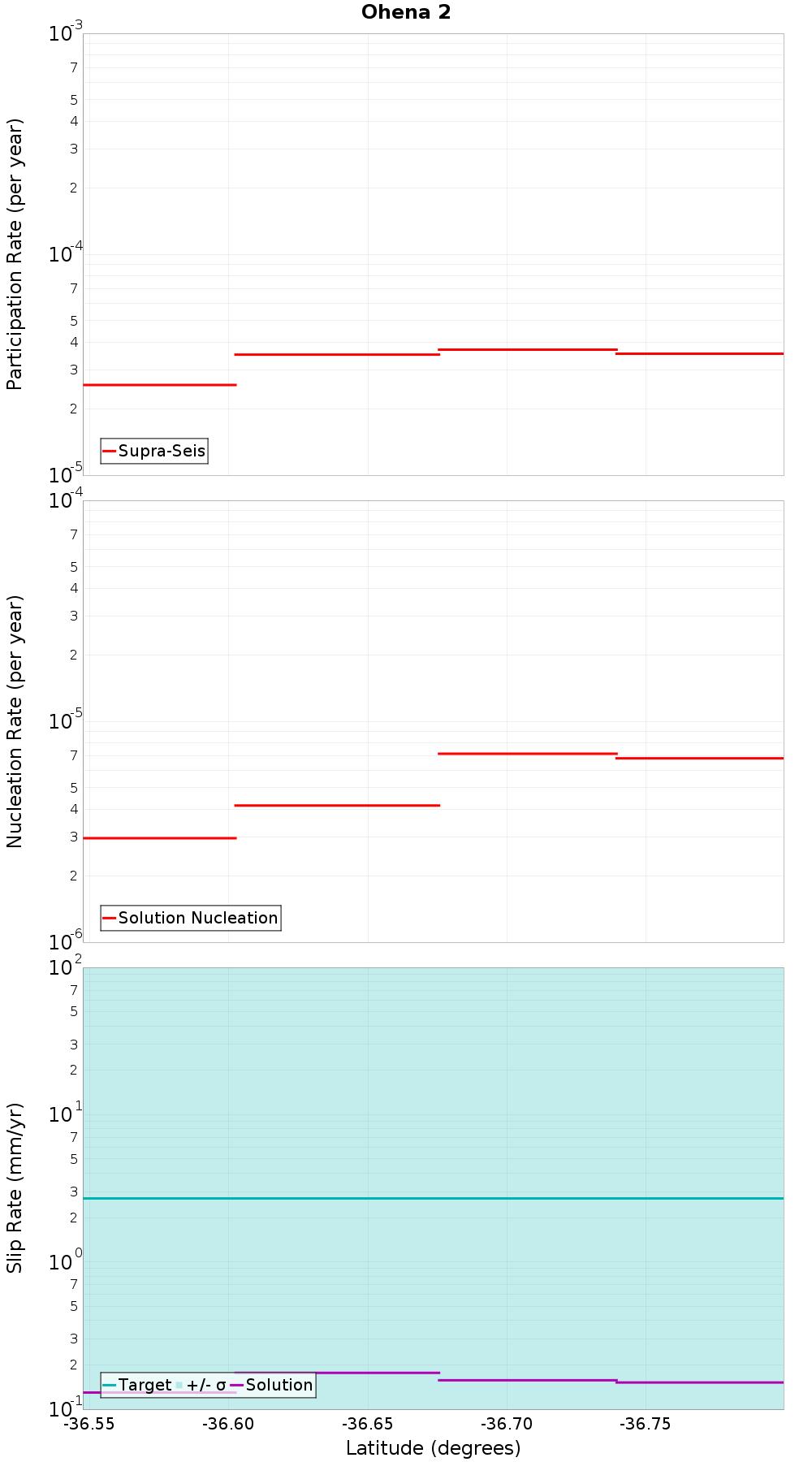

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Tauranga Trough West 2, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTIuMHVzQWZT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 29 |
| Co-rupture Rate | 1.8843606E-5 |
Ngatoro South 5, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTIuMHVzQWZT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 25 |
| Co-rupture Rate | 2.581077E-5 |
Ohena 3, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTIuMHVzQWZT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 1.1369158E-5 |
Tauranga Trough East 2, 2.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTIuMHVzQWZT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 32 |
| Co-rupture Rate | 1.9648529E-5 |
Ohena 4, 4.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTIuMHVzQWZT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.3148487E-8 |
Ngatoro South 2, 6.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTIuMHVzQWZT | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 2, 14.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTIuMHVzQWZT | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 8.863344E-6 |
