Leedstown Details
| Property | Value |
|---|---|
| Rupture Count | 231 |
| Ruptures Above Sect Min Mag | 231 |
| Ruptures w/ Nonzero Rates | 31 |
| Magnitude Range | [7.28, 8.09] |
| Length Range | [28, 232] km |
| Total Rate | 3.200269E-5 /yr |
| Multi-Fault Rate | 3.1860745E-5 /yr (99.56%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 22 |
Table Of Contents

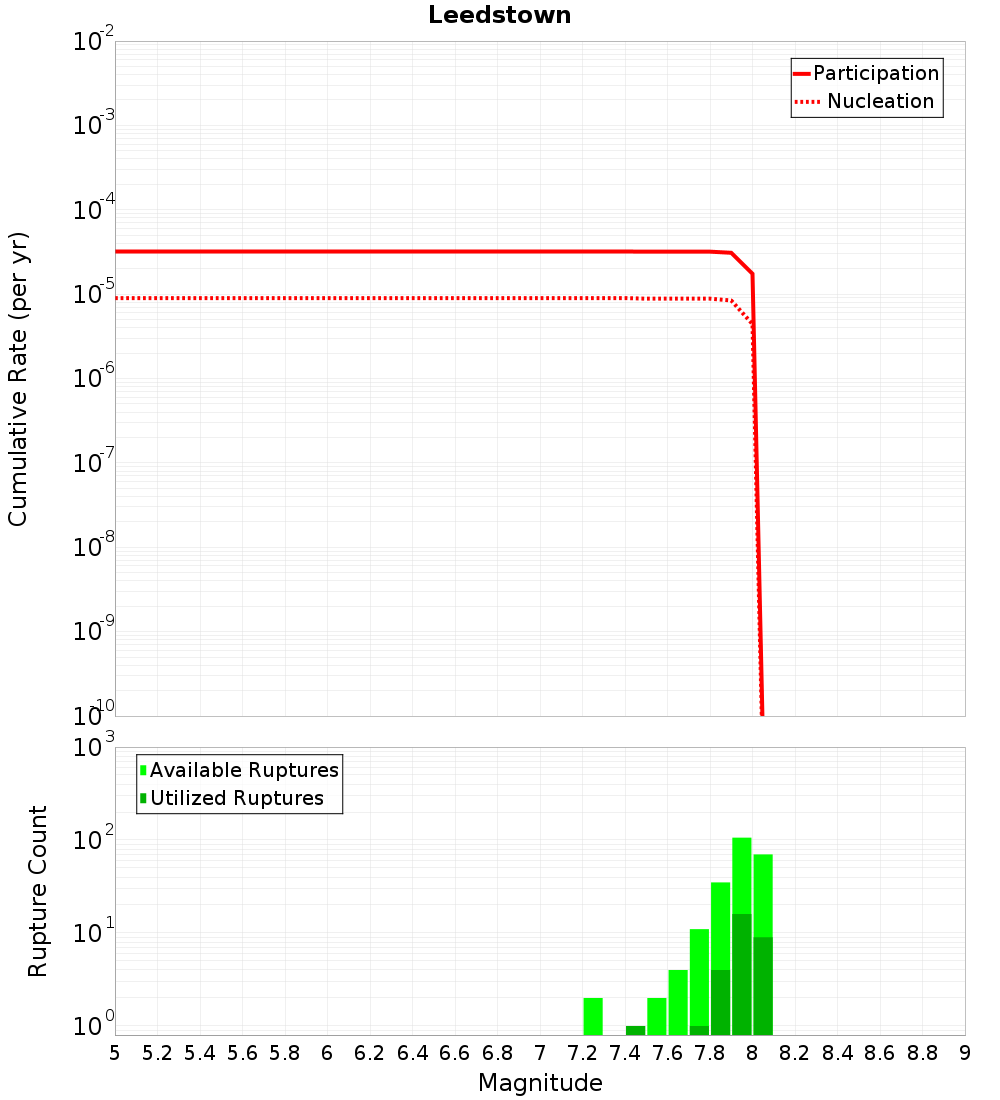

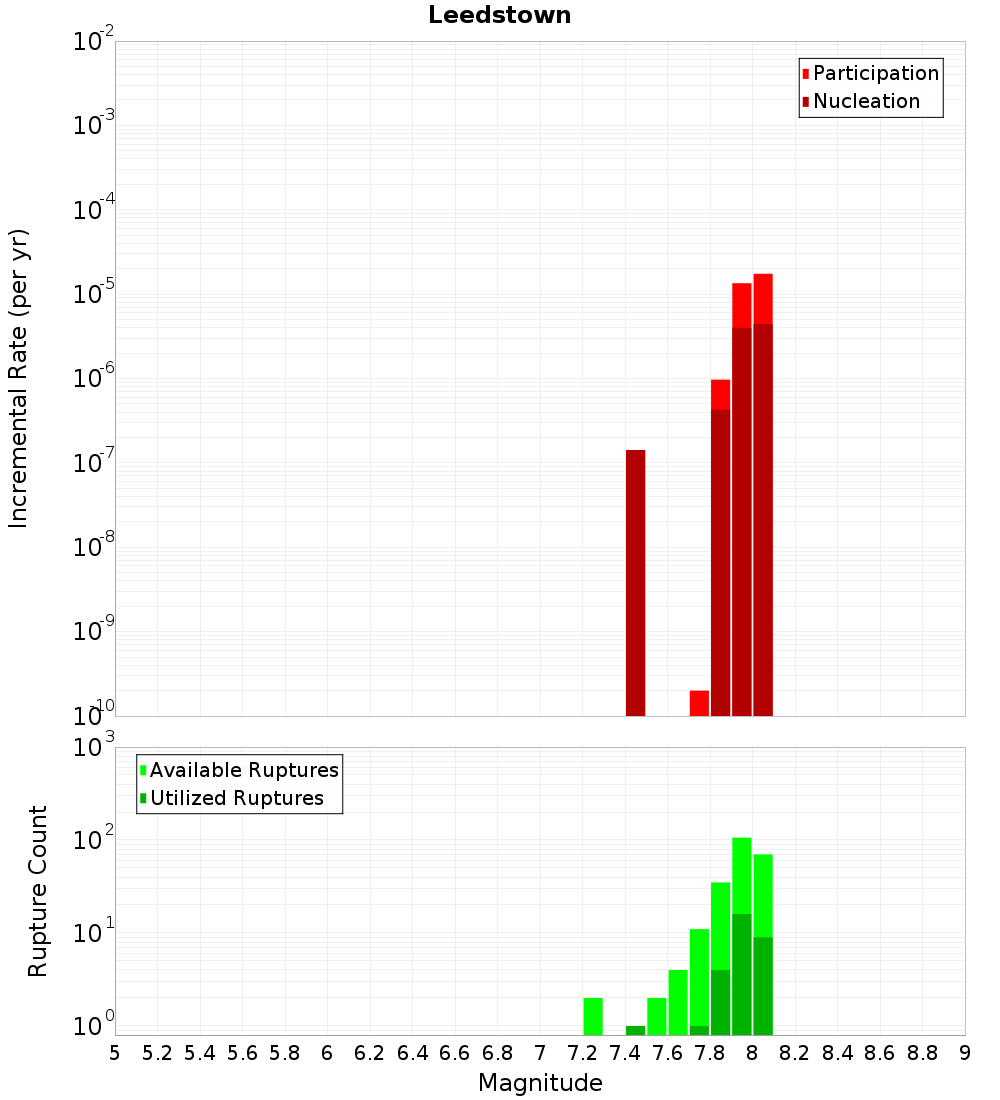

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

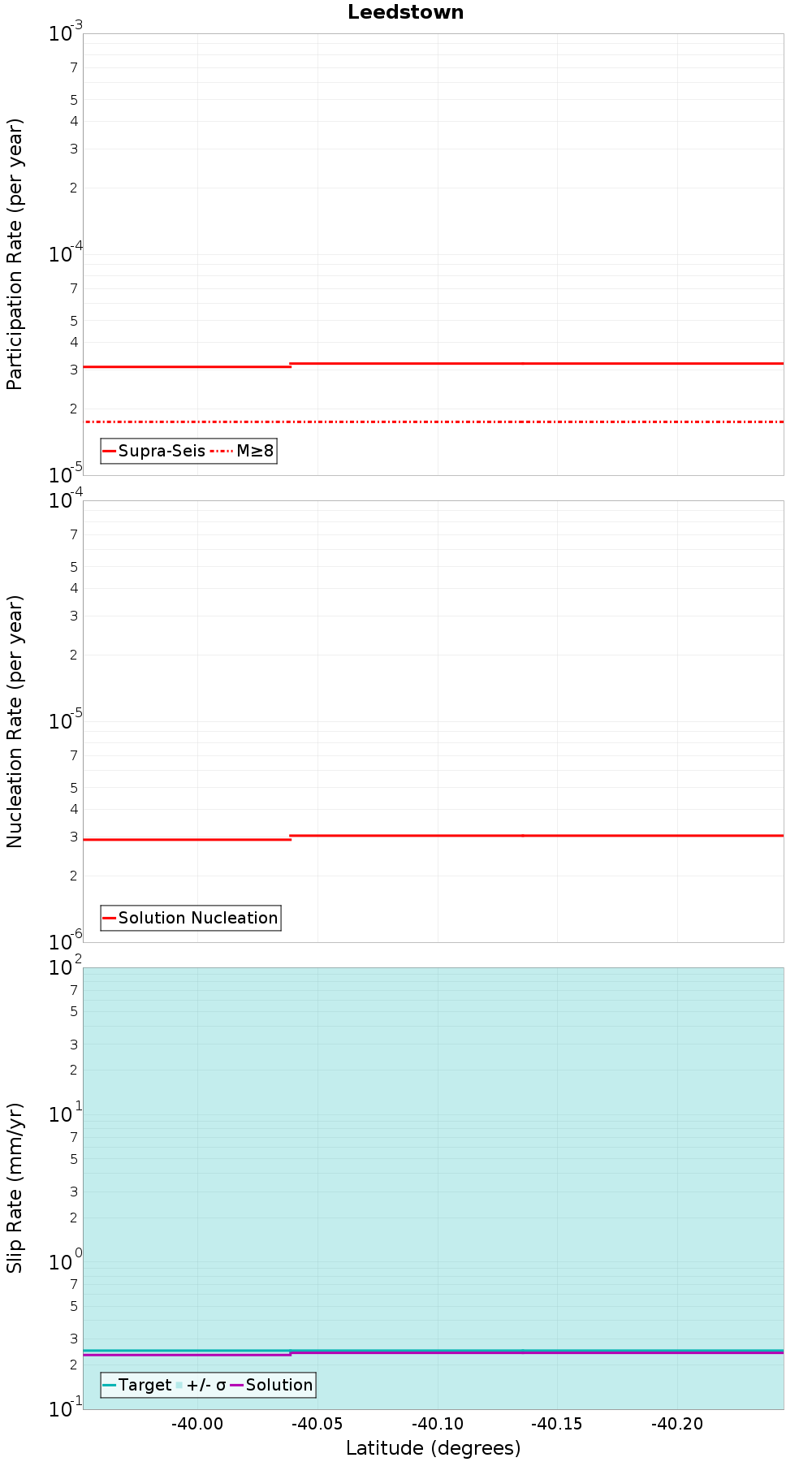

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Himatangi, 3.59 km away |
| Mascarin, 3.96 km away |
| Mt Stewart, 6.13 km away |
| Onepoto, 9.01 km away |
| Rauoterangi, 12.42 km away |
| Rangitikei Offshore 1, 14.33 km away |
Himatangi, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTQuMExhUDk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 86 |
| Co-rupture Rate | 1.8233917E-5 |
Mascarin, 3.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTQuMExhUDk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 144 |
| Co-rupture Rate | 1.3626827E-5 |
Mt Stewart, 6.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTQuMExhUDk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Onepoto, 9.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTQuMExhUDk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 90 |
| Co-rupture Rate | 1.5717995E-5 |
Rauoterangi, 12.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTQuMExhUDk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangitikei Offshore 1, 14.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTQuMExhUDk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
