Boby Stream Details
| Property | Value |
|---|---|
| Rupture Count | 9,248 |
| Ruptures Above Sect Min Mag | 9,248 |
| Ruptures w/ Nonzero Rates | 118 |
| Magnitude Range | [7.00, 8.35] |
| Length Range | [18, 538] km |
| Total Rate | 6.0742368E-5 /yr |
| Multi-Fault Rate | 6.0742368E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 81 |
Table Of Contents

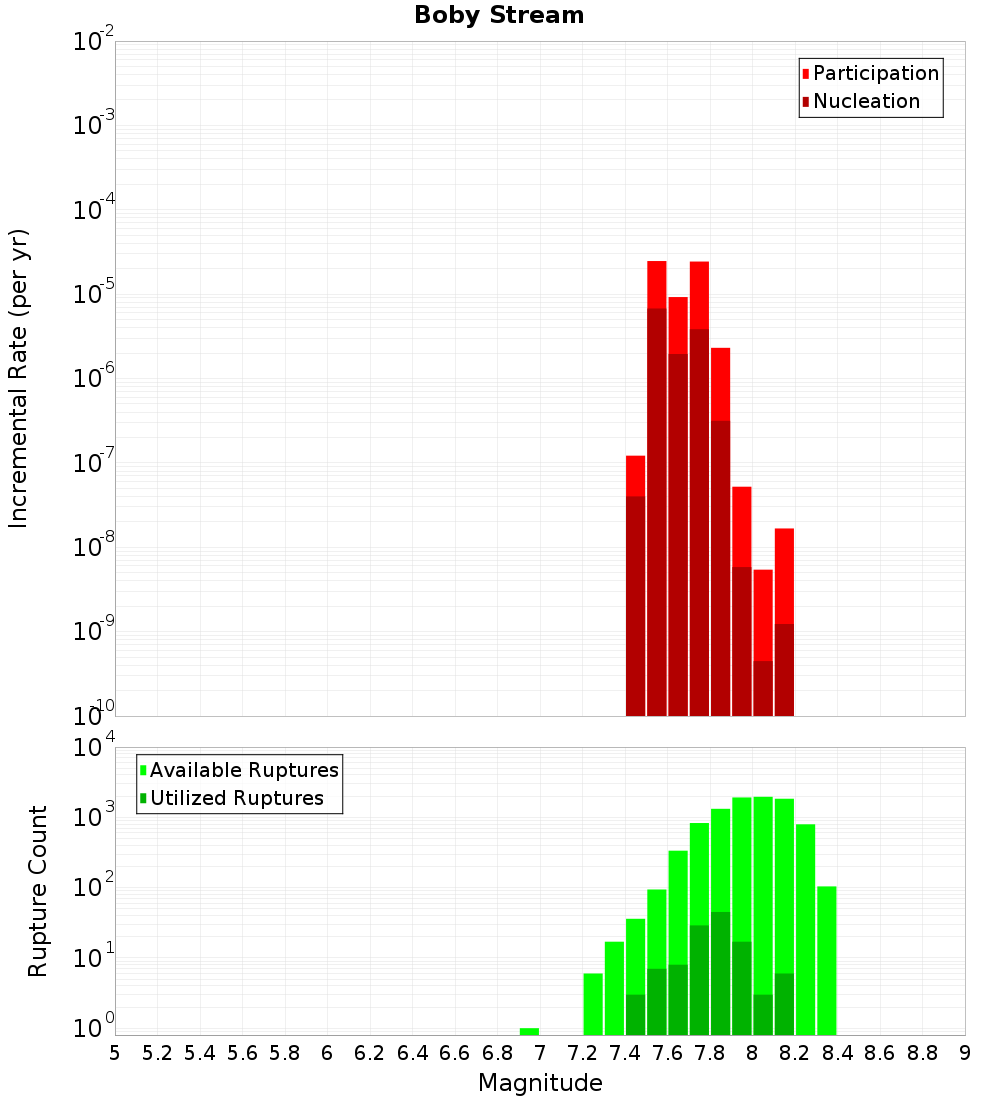

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Doctors, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,039 |
| Co-rupture Rate | 5.0094563E-6 |
Starvation - Ashley, 0.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,865 |
| Co-rupture Rate | 2.4449564E-6 |
OmihiLwrHuru, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,217 |
| Co-rupture Rate | 3.0064015E-5 |
AmberBlyth, 3.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,371 |
| Co-rupture Rate | 2.6717127E-5 |
Mt Lawry, 4.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 160 |
| Co-rupture Rate | 5.251707E-5 |
Kaiwara South, 6.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,372 |
| Co-rupture Rate | 4.8495813E-6 |
Mt Arden, 6.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Springbank, 9.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 187 |
| Co-rupture Rate | 1.17054215E-8 |
Pancake, 10 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lees Valley, 10.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,612 |
| Co-rupture Rate | 2.0693612E-6 |
Lowry, 10.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,475 |
| Co-rupture Rate | 2.4406489E-5 |
Alexander, 10.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 740 |
| Co-rupture Rate | 3.88655E-6 |
Motunau, 13.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 253 |
| Co-rupture Rate | 6.2514378E-6 |
Knowles Top, 13.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
North Canterbury Shelf 2, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Leithfield - NCVI - NCVII, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 55 |
| Co-rupture Rate | 0.0 |
