Waipuna Details
| Property | Value |
|---|---|
| Rupture Count | 17 |
| Ruptures Above Sect Min Mag | 17 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [7.22, 8.08] |
| Length Range | [28, 239] km |
| Total Rate | 5.289036E-5 /yr |
| Multi-Fault Rate | 5.289036E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 9 |
Table Of Contents

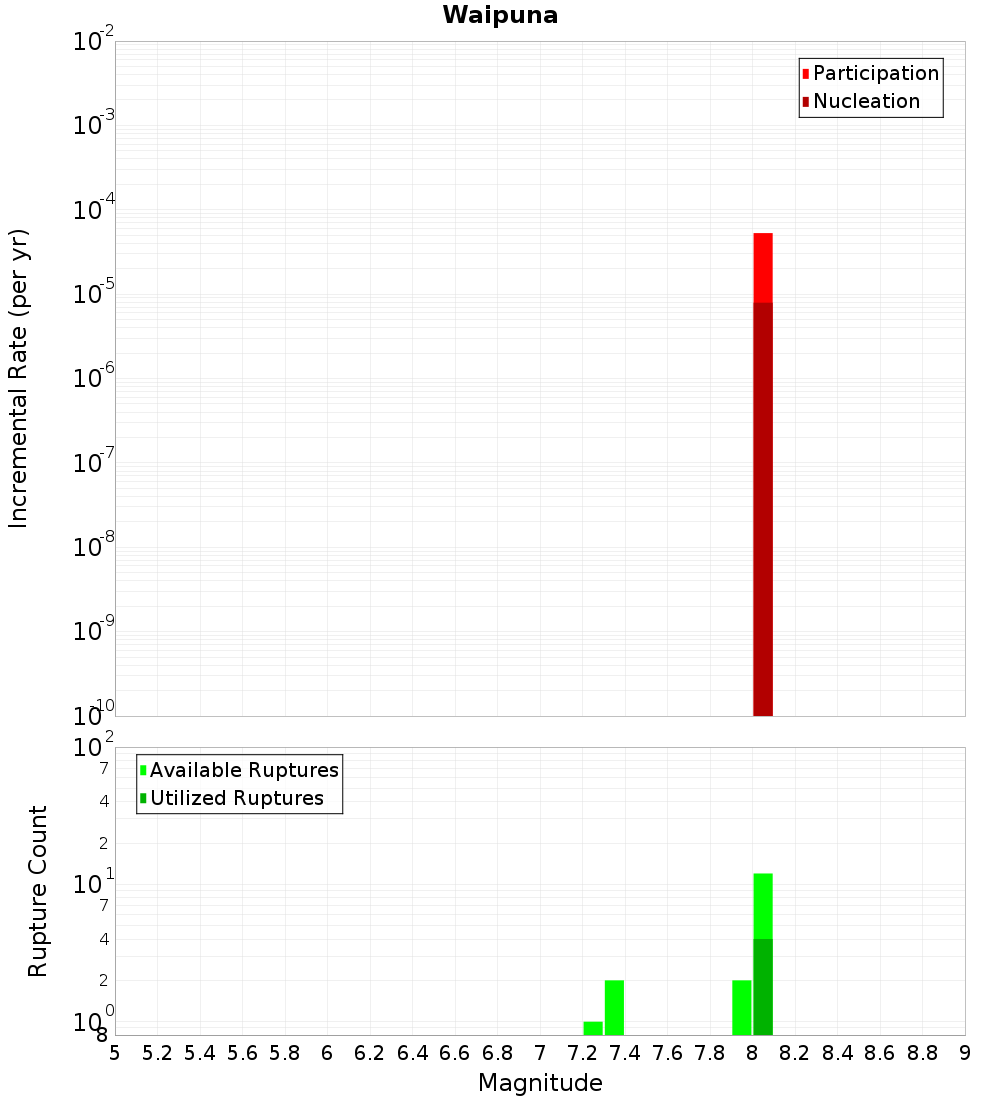

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

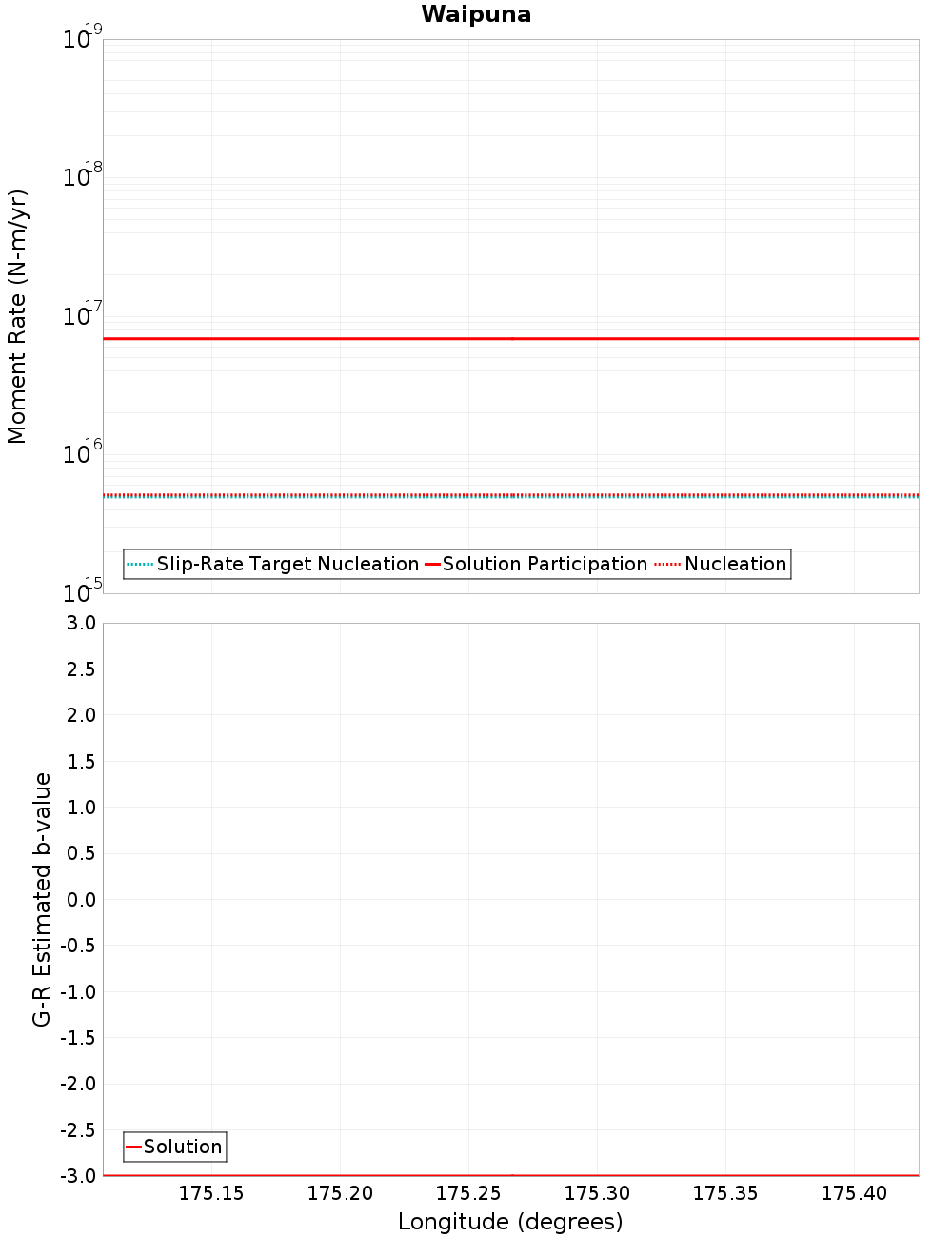

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Harris Road, 0.19 km away |
| Rangipo Central, 7.6 km away |
| Rangipo South, 10.71 km away |
Harris Road, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangipo Central, 7.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 3.8475002E-5 |
Rangipo South, 10.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGY2ejNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 1.4415357E-5 |
