Riversdale North Details

Property	Value
Rupture Count	1,525
Ruptures Above Sect Min Mag	1,518
Ruptures w/ Nonzero Rates	71
Magnitude Range	[6.58, 8.13]
Length Range	[16, 505] km
Total Rate	6.080833E-4 /yr
Multi-Fault Rate	6.080833E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	41

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

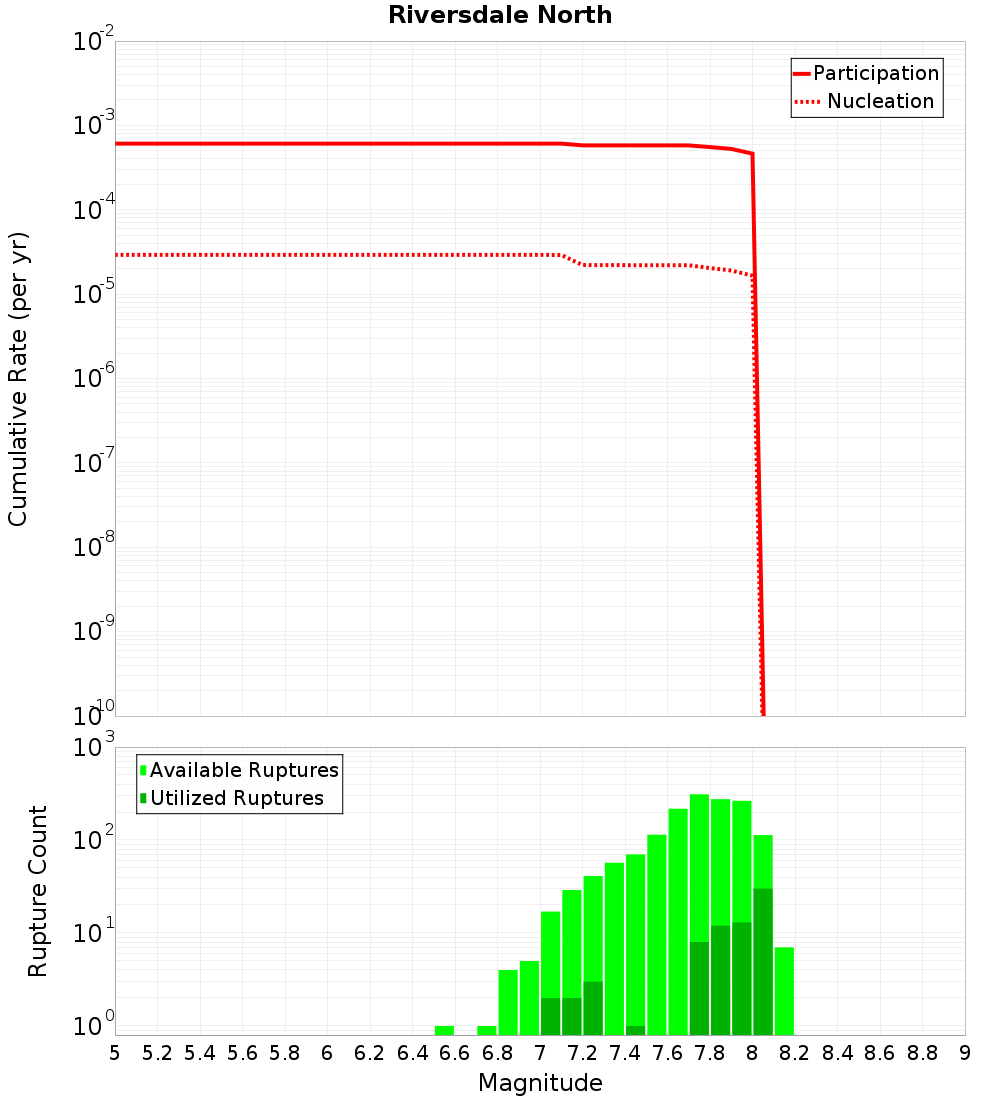

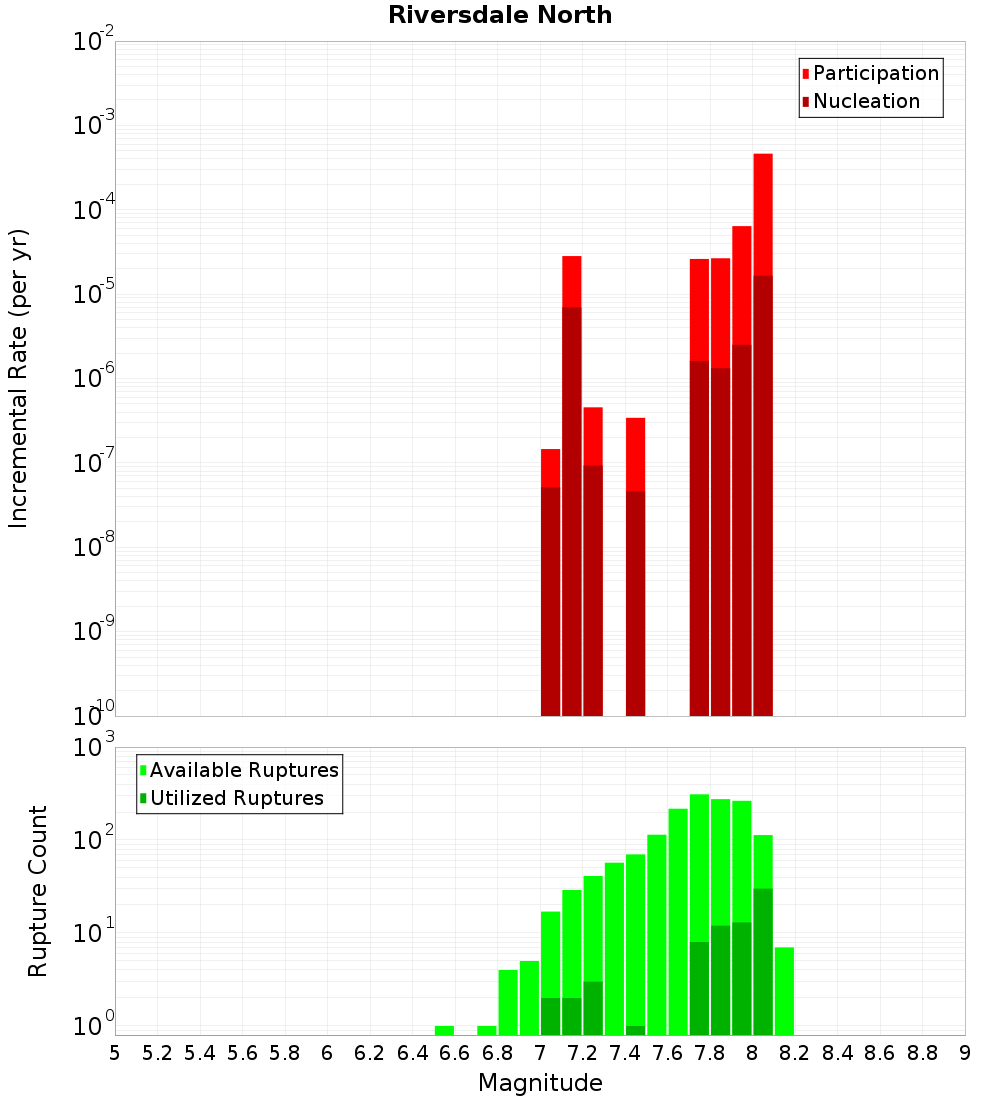

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Riversdale, 1.12 km away
Carterton, 2 km away
Mataikona, 2.18 km away
Uruti Point, 3.13 km away
Kaumingi, 4.3 km away
Whareama Bank, 7.05 km away
Mataikona East, 9.36 km away
Mokonui Northeast, 13.07 km away
Palliser - Kaiwhata, 14.39 km away

Riversdale, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	true
Directly Connected?	true
Co-rupture Count	803
Co-rupture Rate	5.536219E-4

Carterton, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	true
Directly Connected?	true
Co-rupture Count	129
Co-rupture Rate	5.527356E-5

Mataikona, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	true
Directly Connected?	true
Co-rupture Count	1,234
Co-rupture Rate	5.525283E-4

Uruti Point, 3.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	true
Directly Connected?	true
Co-rupture Count	719
Co-rupture Rate	5.438282E-5

Kaumingi, 4.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whareama Bank, 7.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	8.3576765E-8

Mataikona East, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	4.498538E-7

Mokonui Northeast, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	2.8600507E-5

Palliser - Kaiwhata, 14.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk5OTcuMGdWV1Vi
Connected?	true
Directly Connected?	false
Co-rupture Count	1,394
Co-rupture Rate	5.792292E-4
