Goodger Details

Property	Value
Rupture Count	2,547
Ruptures Above Sect Min Mag	2,546
Ruptures w/ Nonzero Rates	84
Magnitude Range	[6.82, 8.39]
Length Range	[21, 749] km
Total Rate	2.1025795E-5 /yr
Multi-Fault Rate	2.1025795E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	59

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

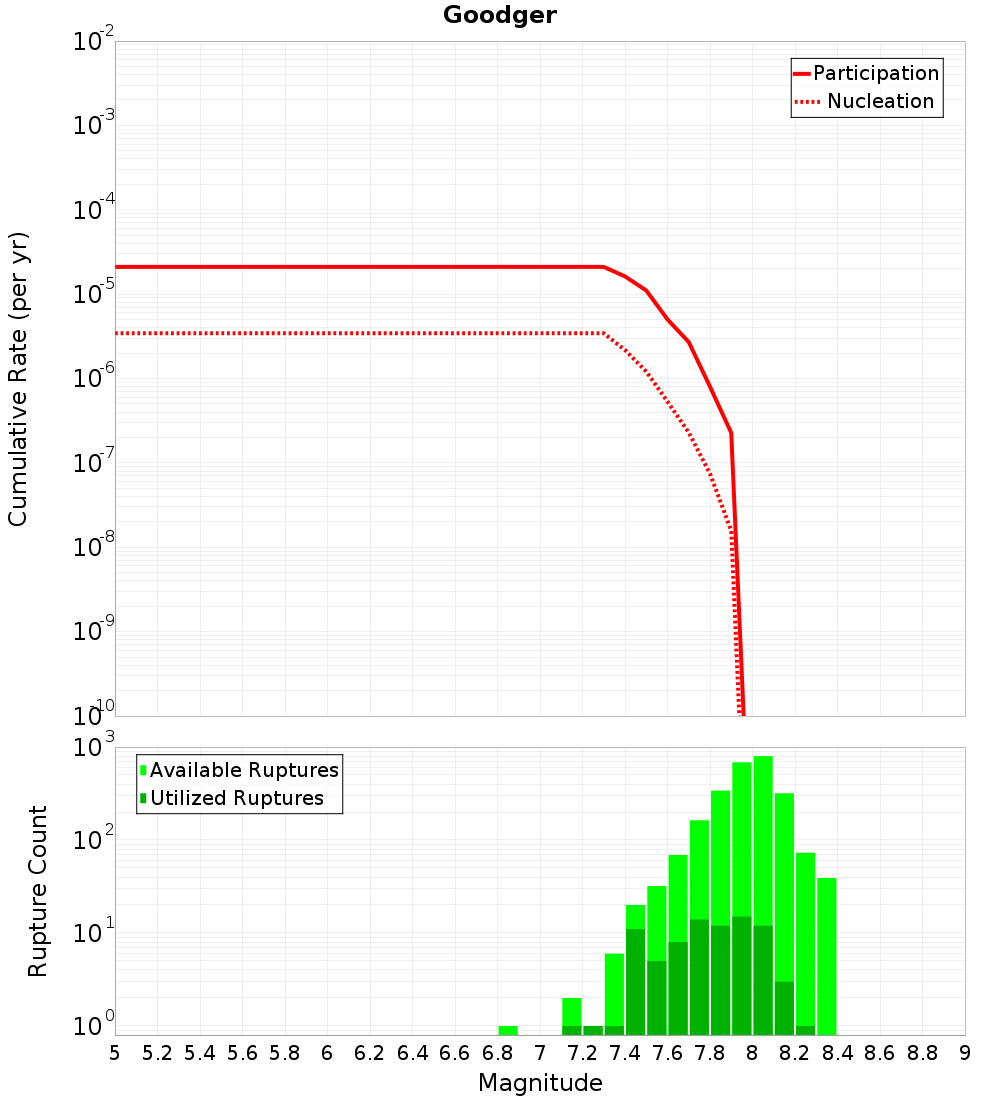

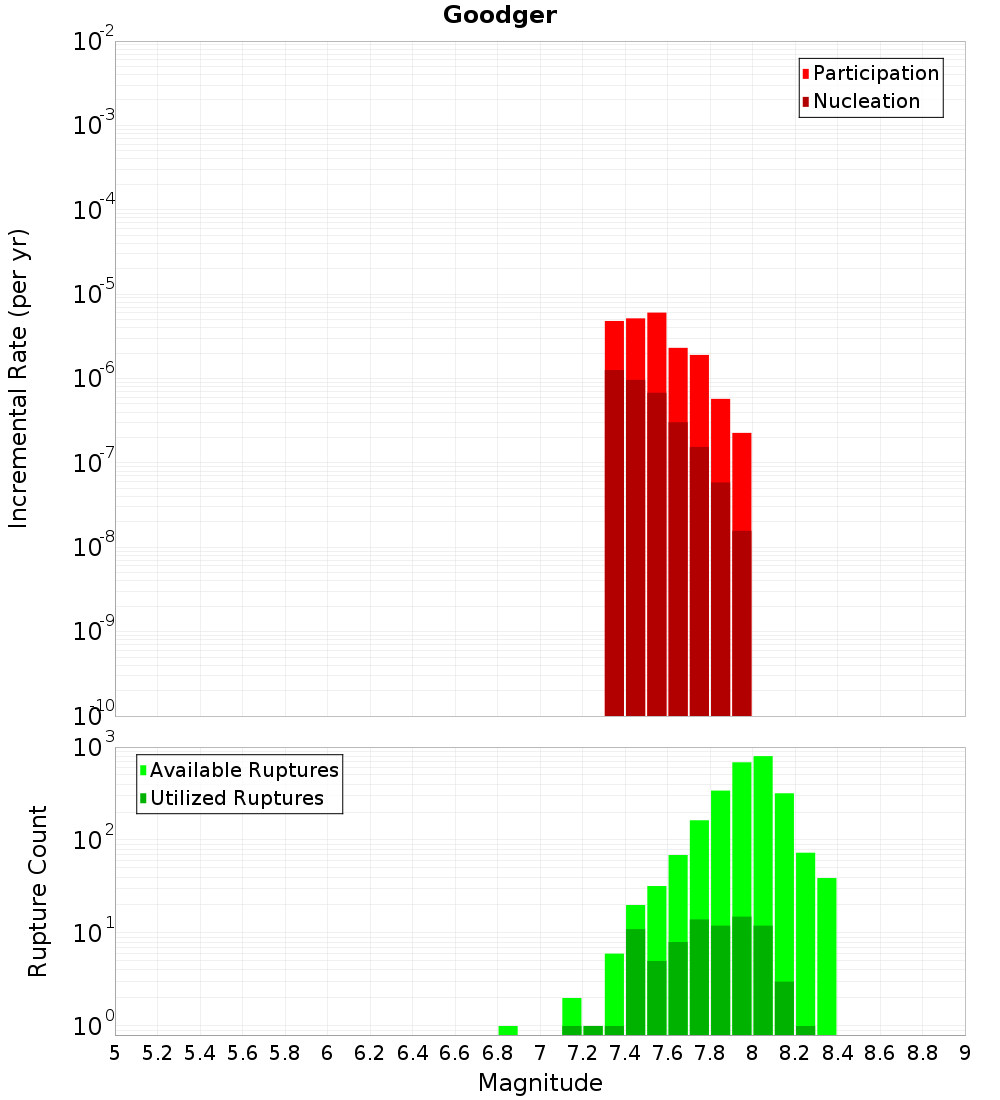

Magnitude-Frequency Distribution

Incremental	Cumulative

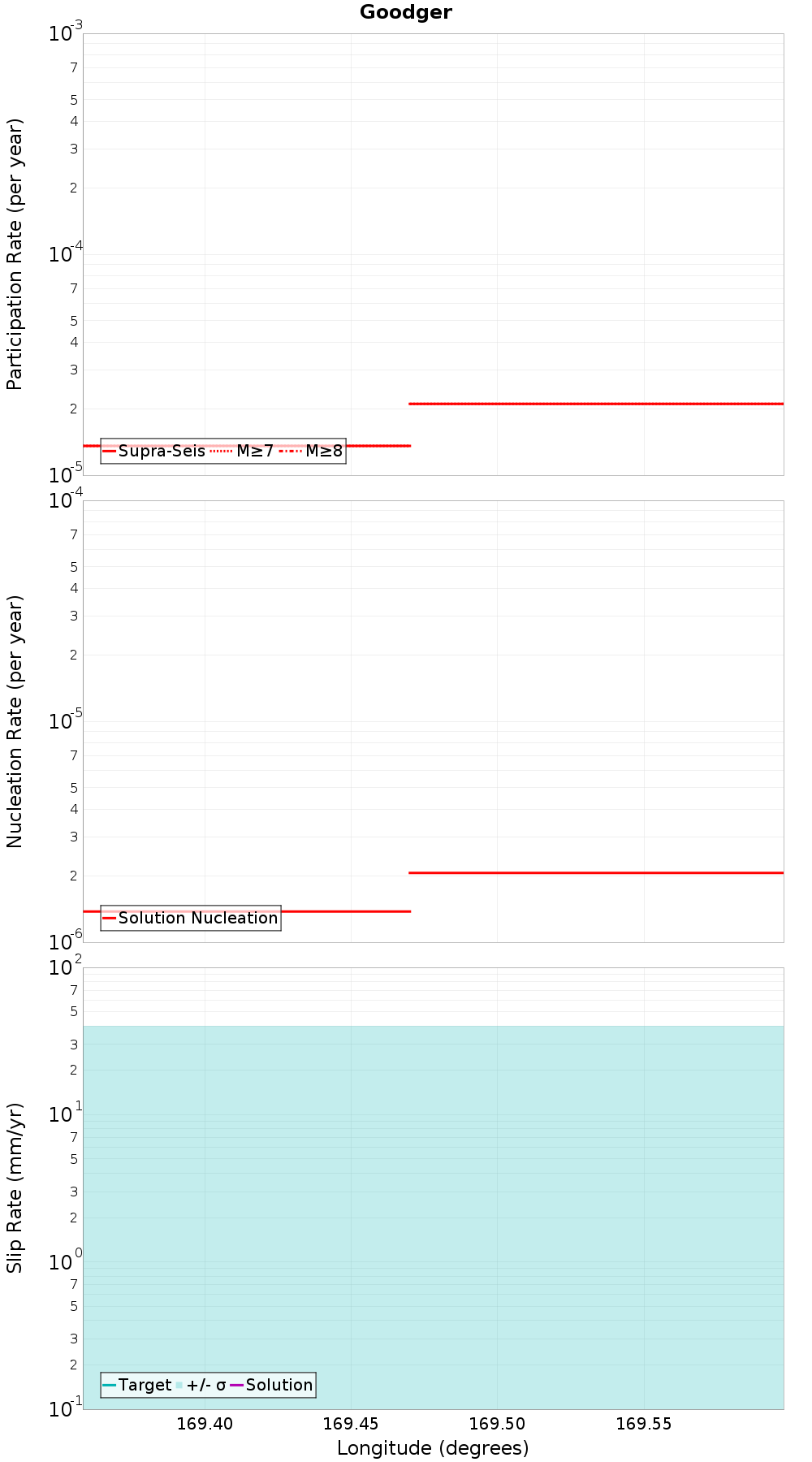

Along-Strike Values

Moment-Rates and b-Values

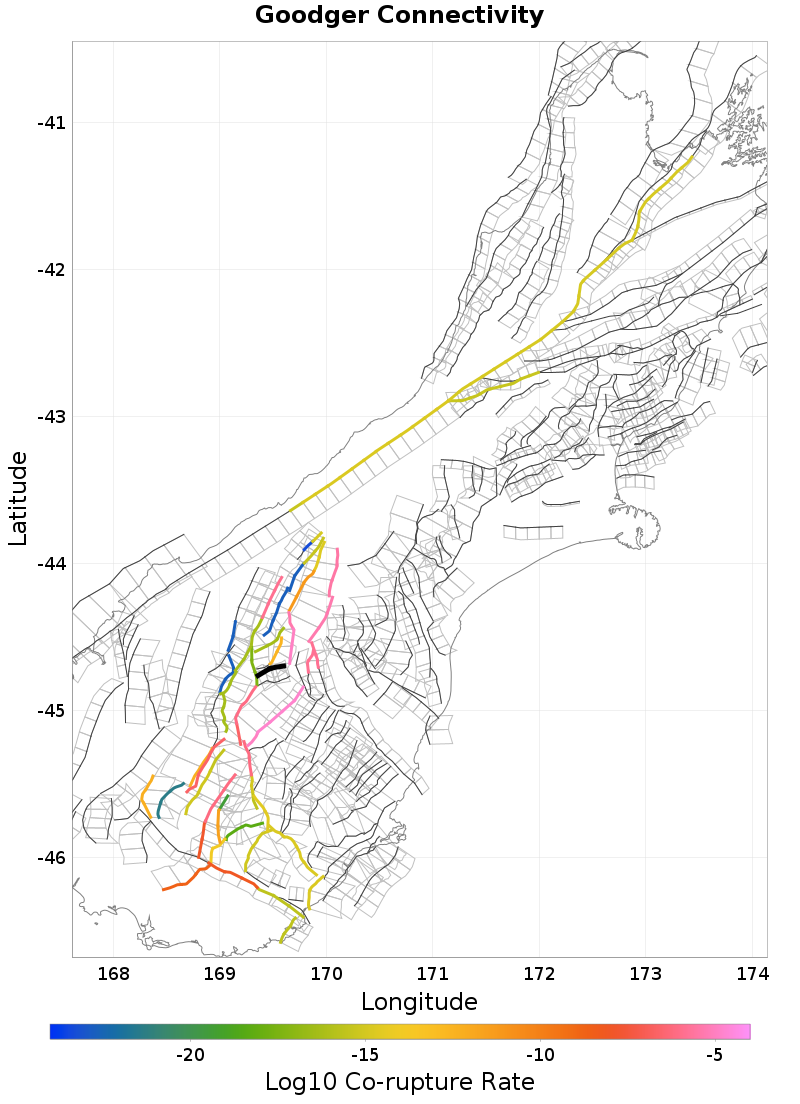

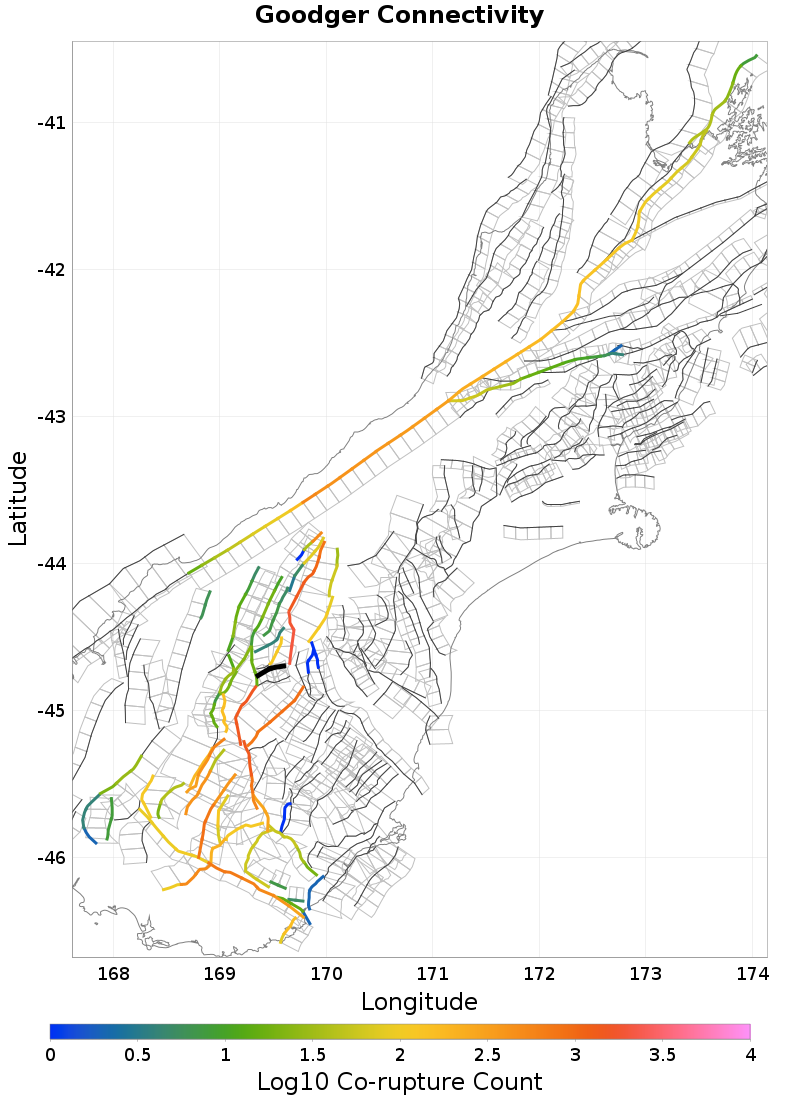

Connectivity

Nearby Sections

Fault Section
Dunstan, 0.2 km away
Cluden, 0.21 km away
Grandview, 0.22 km away
Lindis River, 2.42 km away
Dromedary, 4.03 km away
Raggedy - Blackstone, 4.77 km away
Pisa, 7.74 km away
Blue Lake, 9.08 km away
Paddys Ridge, 11.59 km away
Garibaldi, 14.35 km away

Dunstan, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	true
Directly Connected?	true
Co-rupture Count	912
Co-rupture Rate	1.652936E-5

Cluden, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grandview, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	3.693726E-18

Lindis River, 2.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	true
Directly Connected?	true
Co-rupture Count	119
Co-rupture Rate	2.9167714E-13

Dromedary, 4.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	true
Directly Connected?	true
Co-rupture Count	2,075
Co-rupture Rate	1.195886E-5

Raggedy - Blackstone, 4.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pisa, 7.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	true
Directly Connected?	true
Co-rupture Count	1,580
Co-rupture Rate	7.8648486E-7

Blue Lake, 9.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paddys Ridge, 11.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	4.5791127E-17

Garibaldi, 14.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
