Hutt Peel Details

PropertyValue
Rupture Count5,501
Ruptures Above Sect Min Mag5,497
Ruptures w/ Nonzero Rates919
Magnitude Range[6.96, 8.15]
Length Range[27, 538] km
Total Rate8.048434E-4 /yr
Multi-Fault Rate7.425378E-4 /yr (92.26%)
Directly-Connected Faults12
All Co-Rupturing Faults74

Table Of Contents

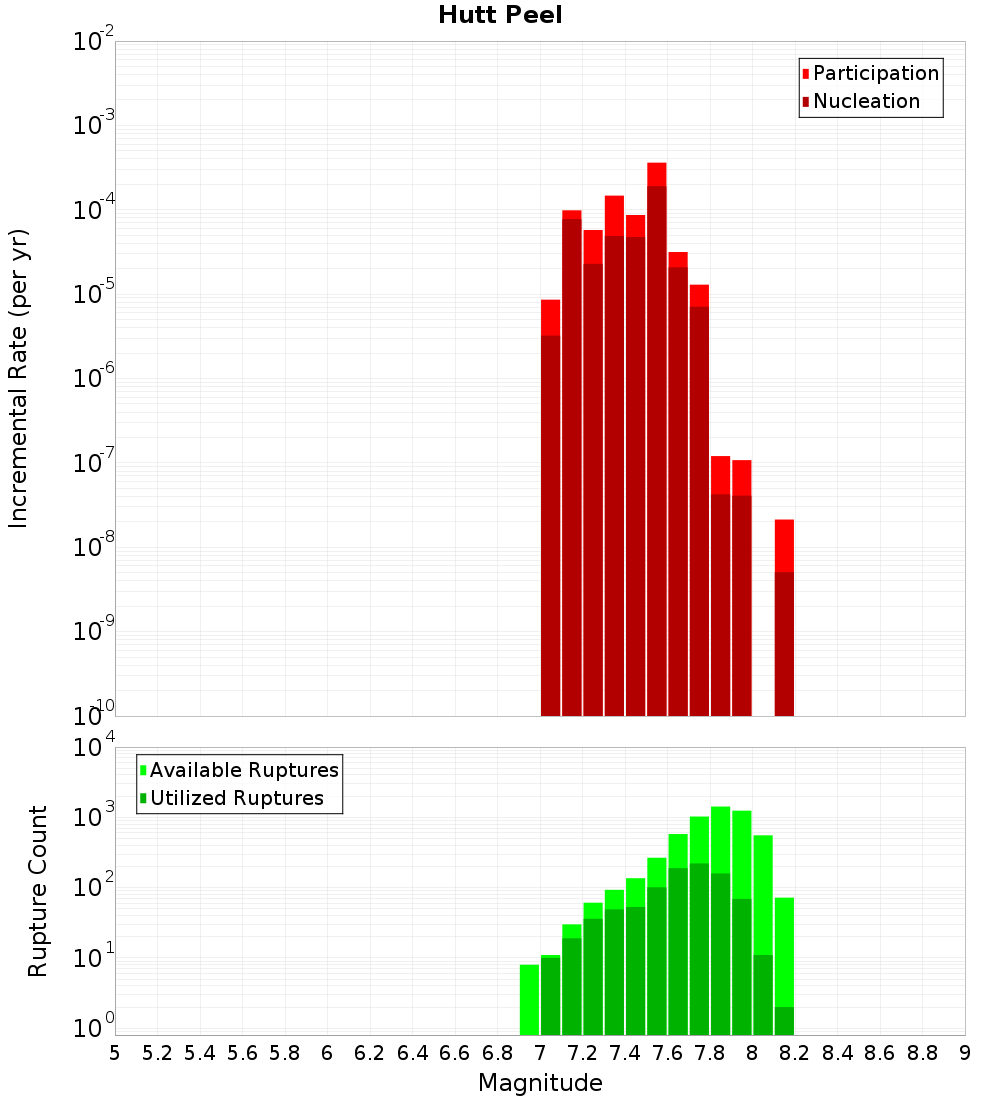

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

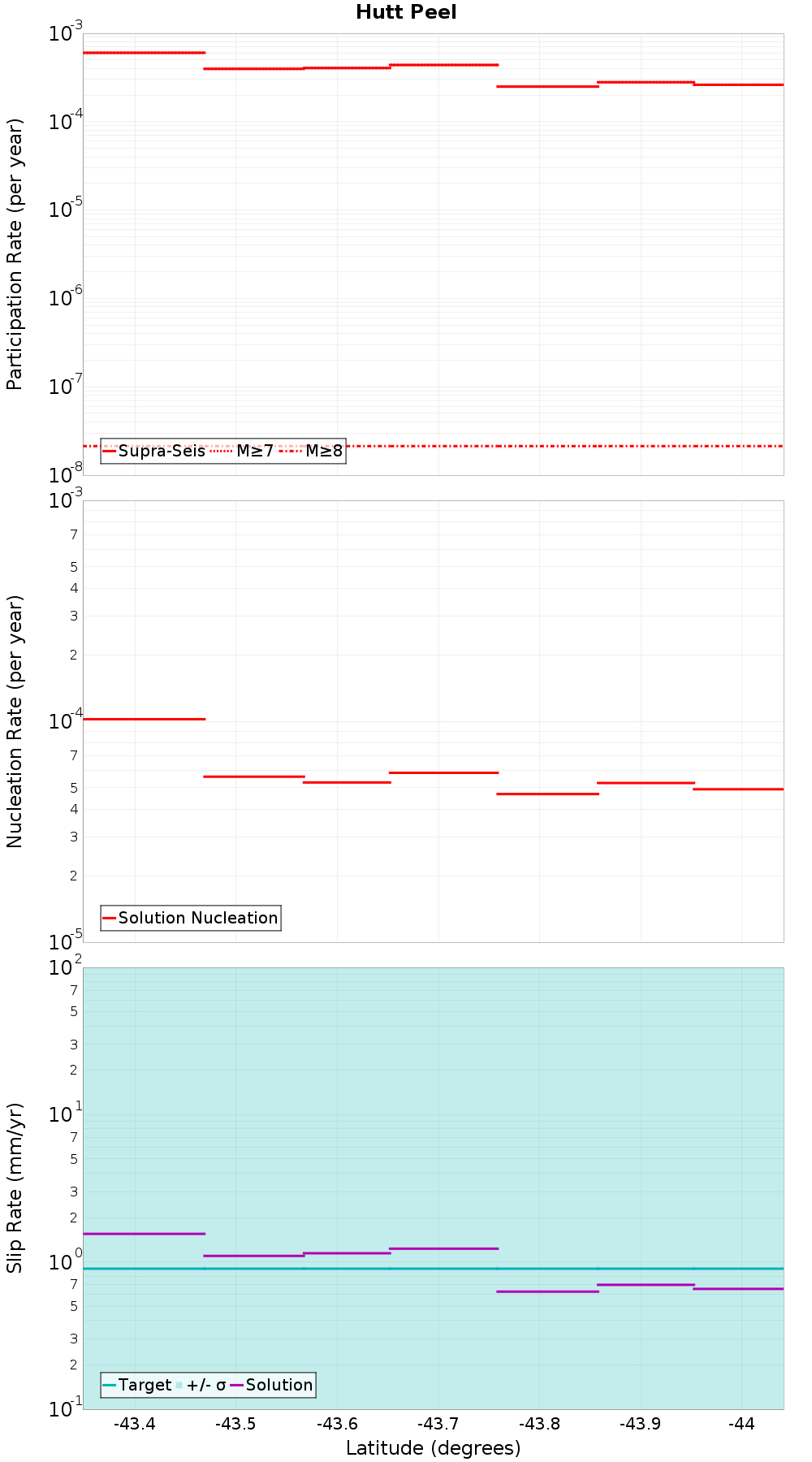

Along-Strike Values

(top)

Along-strike plot

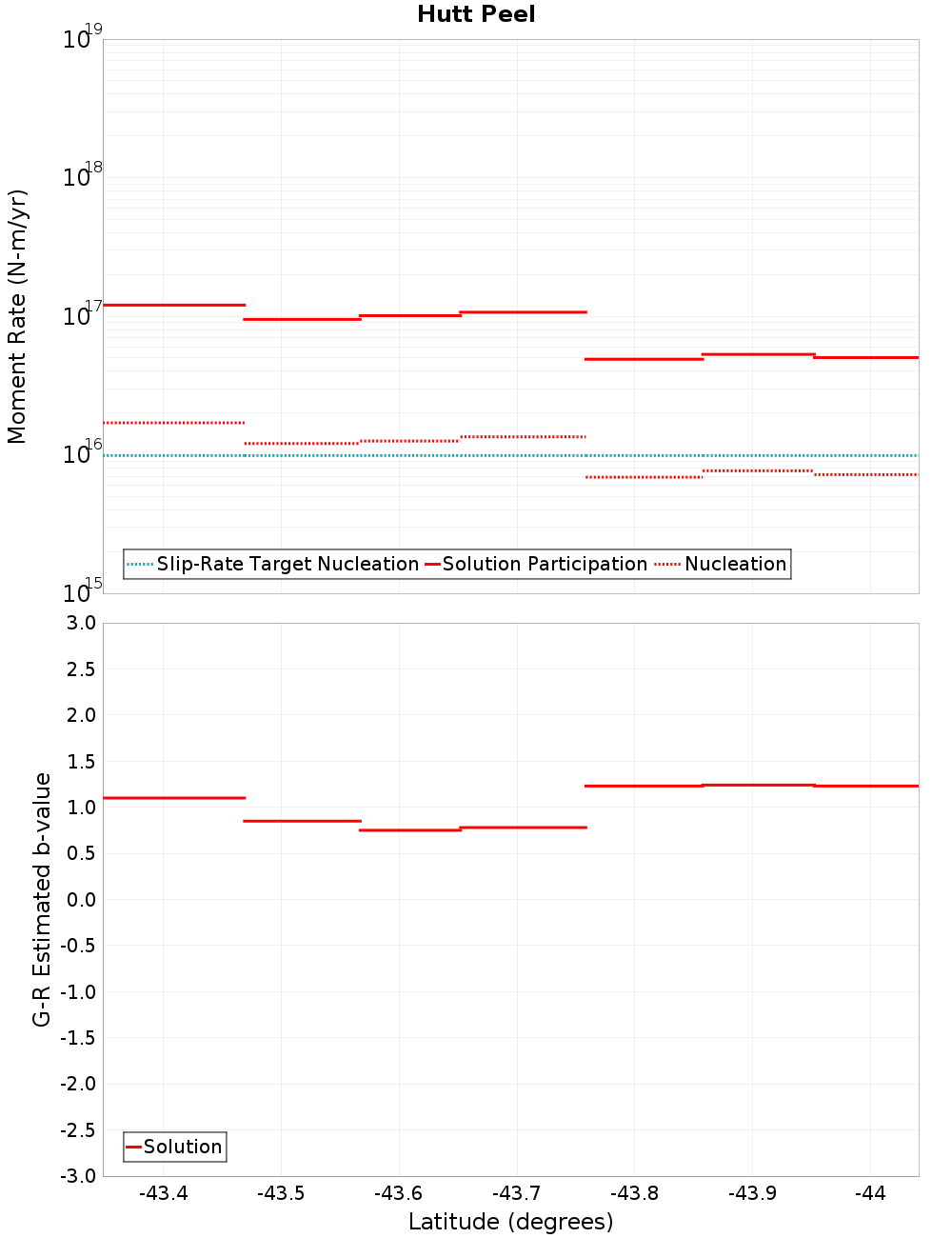

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
North Branch, 0.04 km awayBig Ben, 2.07 km away
Ben McLeod, 0.04 km awayRapuwai, 4.18 km away
Klondyke Moor, 0.09 km awayTorlesse, 6.36 km away
Edith, 0.18 km awayHigh Peak - Sheffield, 6.61 km away
Catherine, 0.25 km awayCheeseman, 7.5 km away
Double Hill, 0.26 km awayKowai - View Hill, 8.24 km away
Brothers, 0.26 km awayIrishman Creek, 9.61 km away
Redcliffe, 0.29 km awayOpawa, 9.67 km away
Sugarloaf, 0.39 km awayHororata, 10.65 km away
Porters Pass, 1.77 km awayLake Heron, 12.22 km away

North Branch, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count68
Co-rupture Rate6.199712E-5

Ben McLeod, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count1,767
Co-rupture Rate3.181207E-5

Klondyke Moor, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate3.794401E-5

Edith, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count76
Co-rupture Rate7.4301493E-6

Catherine, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count217
Co-rupture Rate1.6654954E-7

Double Hill, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count100
Co-rupture Rate1.2431905E-4

Brothers, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count1,646
Co-rupture Rate1.44640735E-5

Redcliffe, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count99
Co-rupture Rate5.527739E-5

Sugarloaf, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count447
Co-rupture Rate2.2602006E-5

Porters Pass, 1.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count3,530
Co-rupture Rate5.8888487E-4

Big Ben, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count1,034
Co-rupture Rate7.993208E-6

Rapuwai, 4.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count481
Co-rupture Rate2.1523612E-5

Torlesse, 6.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count417
Co-rupture Rate2.0547095E-4

High Peak - Sheffield, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count626
Co-rupture Rate9.300235E-5

Kowai - View Hill, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count940
Co-rupture Rate6.8364395E-14

Irishman Creek, 9.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count228
Co-rupture Rate2.7716158E-9

Opawa, 9.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count107
Co-rupture Rate4.2778478E-8

Hororata, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Heron, 12.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate4.6453435E-5
