Whareama Bank Details

PropertyValue
Rupture Count360
Ruptures Above Sect Min Mag340
Ruptures w/ Nonzero Rates124
Magnitude Range[6.60, 7.90]
Length Range[17, 335] km
Total Rate6.063208E-4 /yr
Multi-Fault Rate6.063195E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults24

Table Of Contents

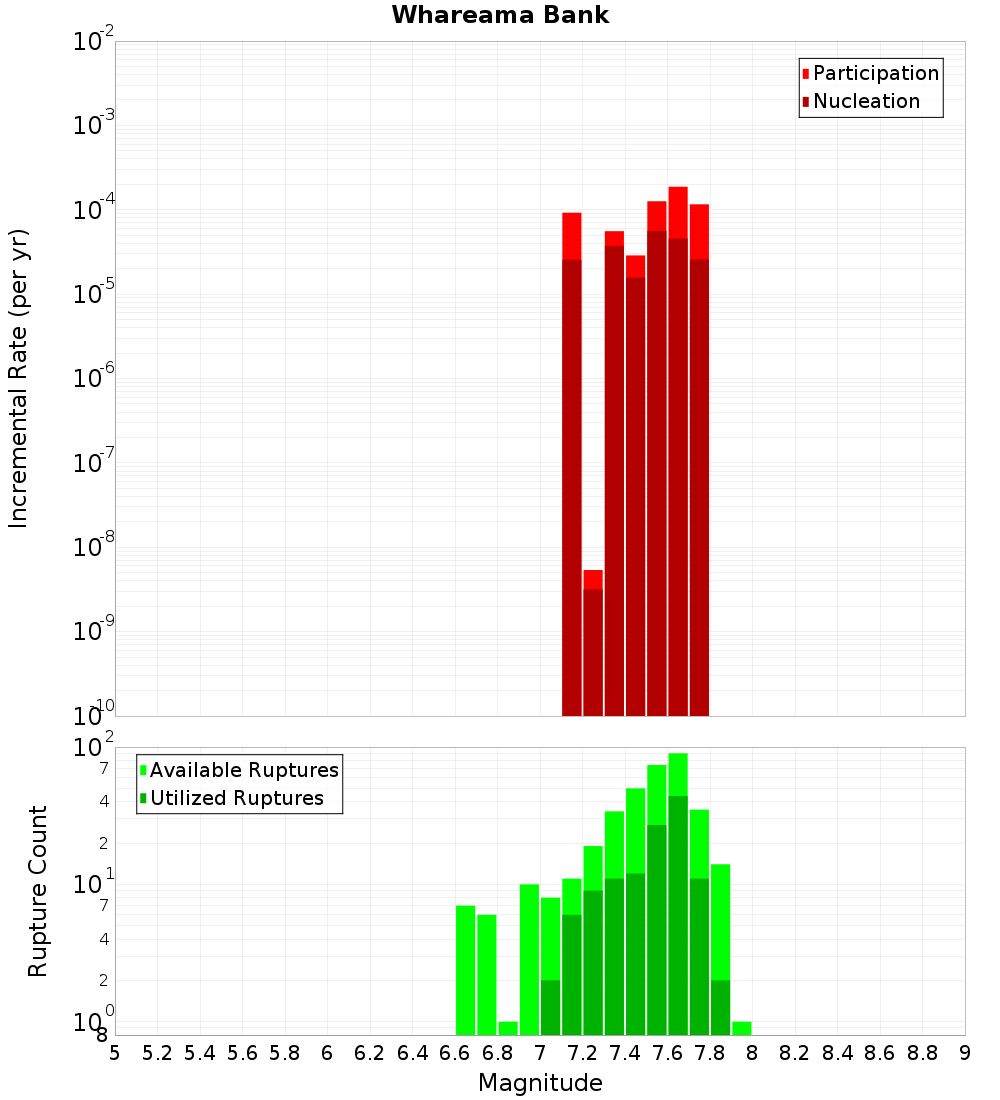

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Basin, 3.49 km away
Riversdale, 5.42 km away
Uruti North, 5.78 km away
Palliser - Kaiwhata, 6.44 km away
Riversdale North, 7.05 km away
Madden Banks, 7.87 km away
Honeycomb, 8.19 km away
Uruti Basin 2, 9.24 km away
Mataikona East, 10.47 km away
Uruti Point, 12.23 km away
Mataikona, 12.73 km away

Uruti Basin, 3.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate9.956186E-14

Riversdale, 5.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate2.4663872E-4

Uruti North, 5.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count145
Co-rupture Rate4.950004E-5

Palliser - Kaiwhata, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate1.9100243E-4

Riversdale North, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate9.227055E-5

Madden Banks, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate2.674102E-4

Honeycomb, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.5388354E-19

Uruti Basin 2, 9.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate1.3104509E-13

Mataikona East, 10.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.4403239E-9

Uruti Point, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mataikona, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDQuMDJQWExS
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate9.226911E-5
