Maimai: South Details
| Property | Value |
|---|---|
| Rupture Count | 2,867 |
| Ruptures Above Sect Min Mag | 2,863 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.59, 8.04] |
| Length Range | [15, 396] km |
| Total Rate | 2.3351549E-17 /yr |
| Multi-Fault Rate | 2.3351549E-17 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 19 |
Table Of Contents
Along-Strike Values
Moment-Rates and b-Values

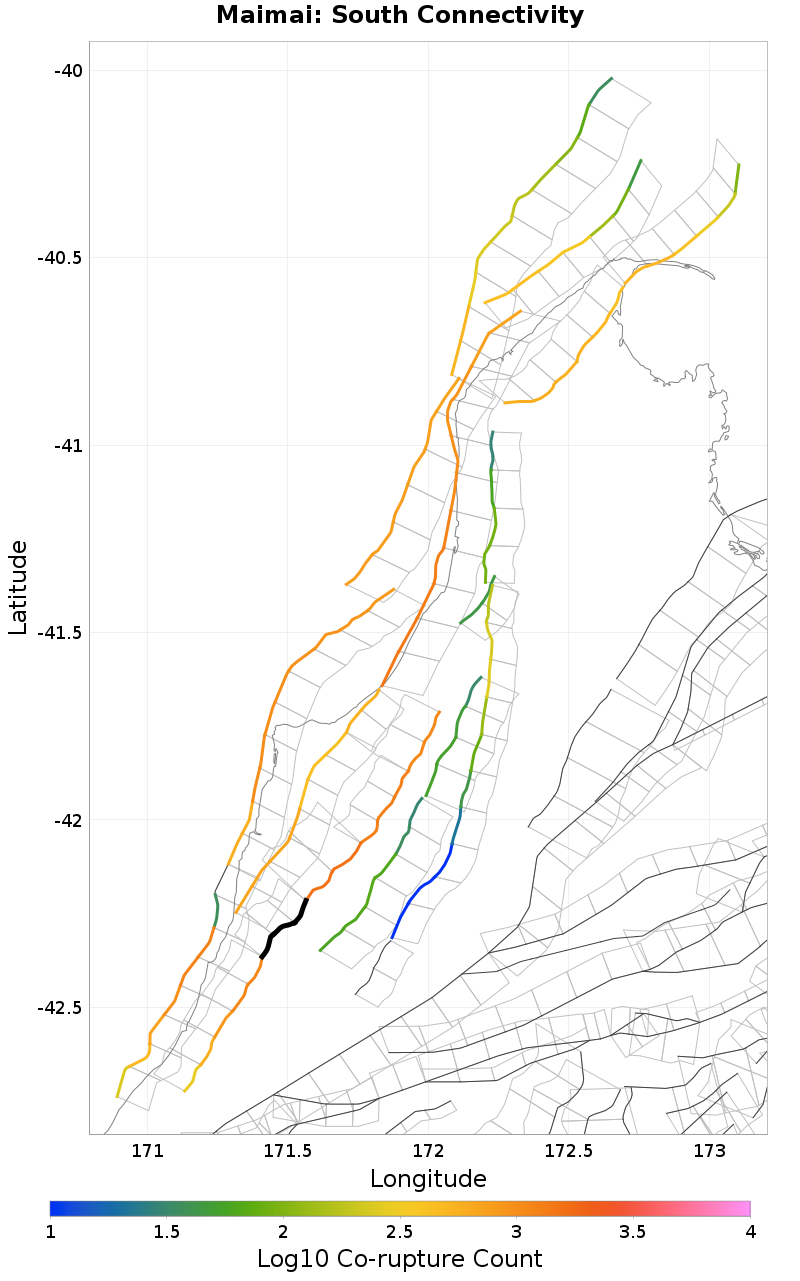

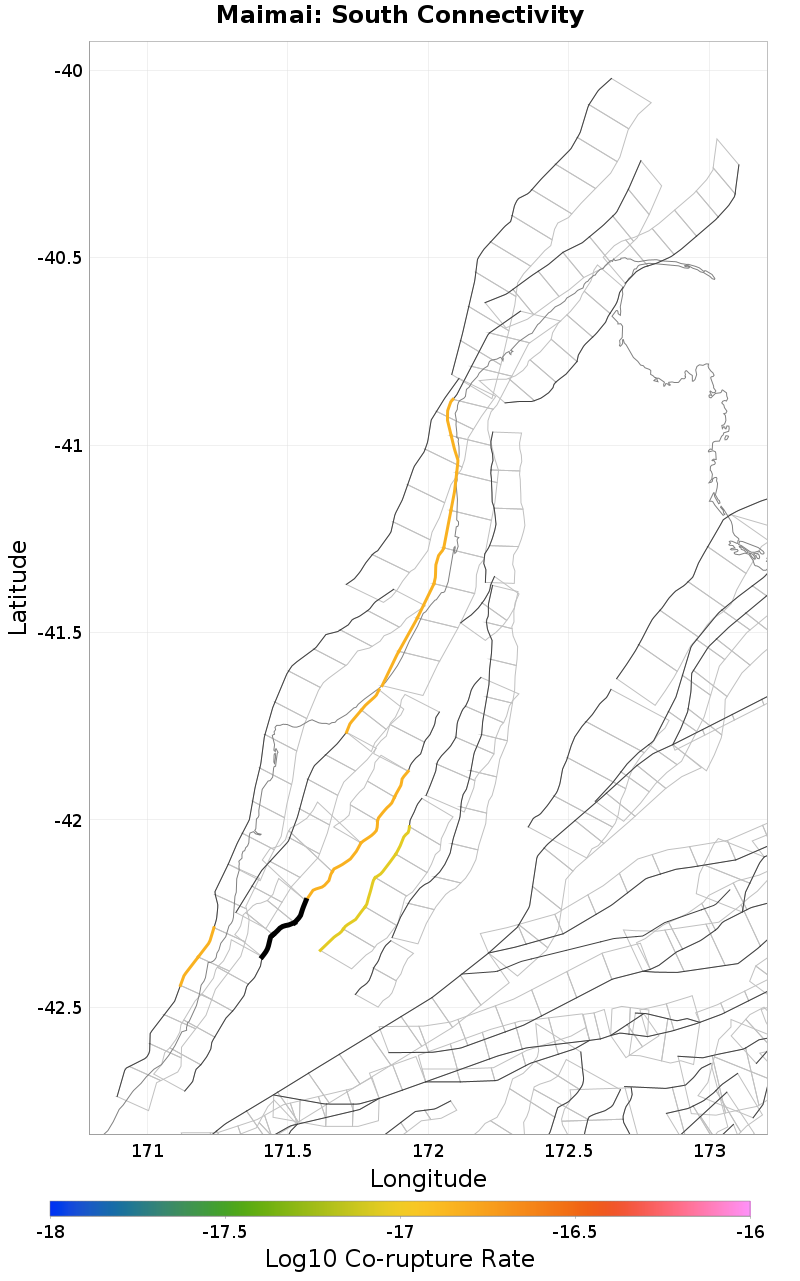

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: Brunner Anticline, 0 km away |
| Maimai, 0.09 km away |
| Paparoa West, 0.22 km away |
| Cape Foulwind 1, 0.4 km away |
| Cape Foulwind 2, 4.77 km away |
| Lyell South, 11.15 km away |
Maimai: Brunner Anticline, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDUuME5ncko4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,118 |
| Co-rupture Rate | 0.0 |
Maimai, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDUuME5ncko4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,552 |
| Co-rupture Rate | 1.448527E-17 |
Paparoa West, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDUuME5ncko4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 697 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 1, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDUuME5ncko4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,218 |
| Co-rupture Rate | 1.448527E-17 |
Cape Foulwind 2, 4.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDUuME5ncko4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,040 |
| Co-rupture Rate | 0.0 |
Lyell South, 11.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDUuME5ncko4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 71 |
| Co-rupture Rate | 8.86628E-18 |
