Hope: Hanmer NW Details

Property	Value
Rupture Count	5,509
Ruptures Above Sect Min Mag	5,506
Ruptures w/ Nonzero Rates	1,176
Magnitude Range	[6.53, 8.42]
Length Range	[12, 946] km
Total Rate	0.002994359 /yr
Multi-Fault Rate	0.002994359 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	197

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

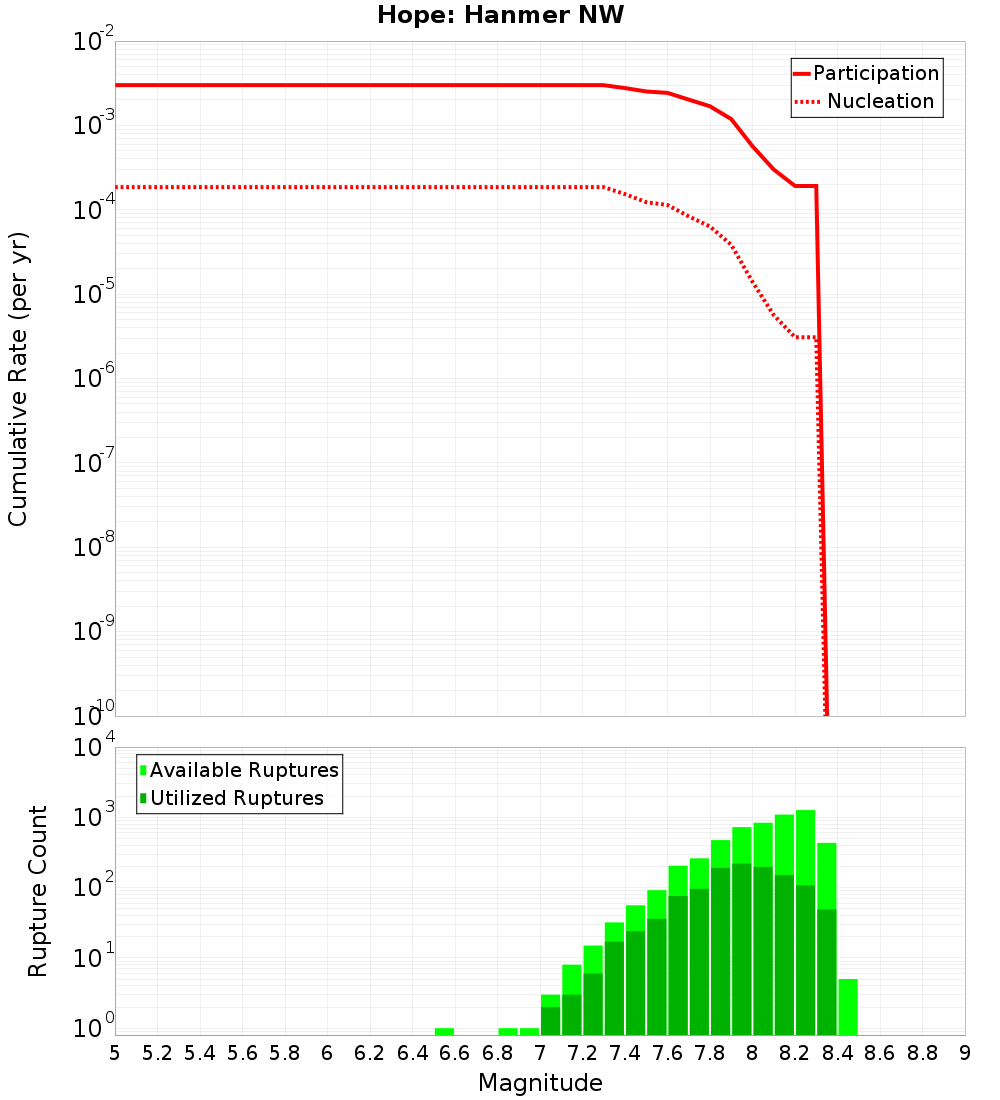

Magnitude-Frequency Distribution

Incremental	Cumulative

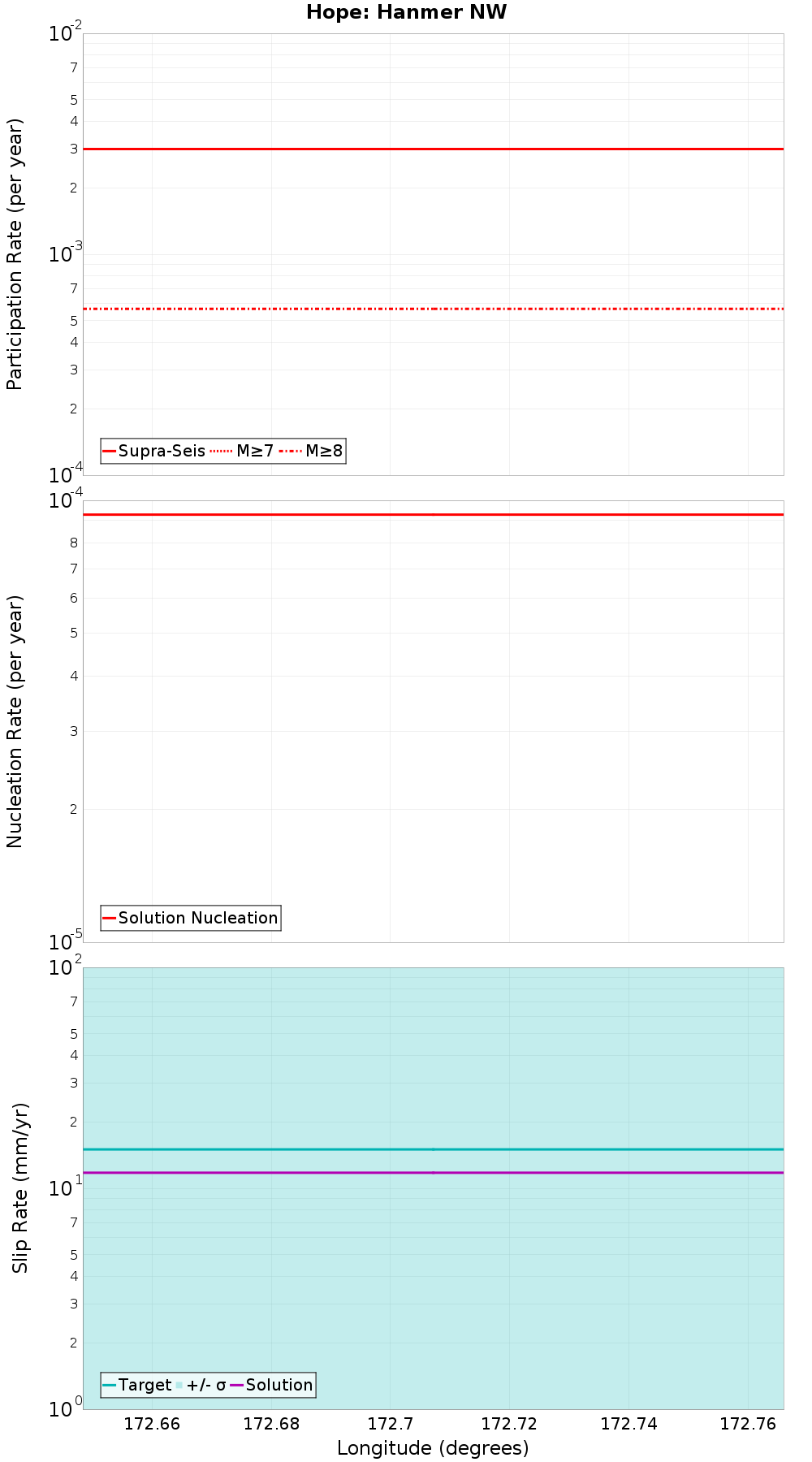

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hamner SW, 0 km away
Hope: Hamner SE, 0.15 km away
Hanmer, 0.2 km away
Hope: Hope River, 6.3 km away
Kakapo, 6.3 km away
Esk North, 9.97 km away
Hurunui Peak, 10.96 km away
Clarence: Southwest, 12.23 km away
Elliott, 12.52 km away
Balmoral, 12.75 km away
Hope: Conway, 12.84 km away
Clarence: Central, 13.28 km away
Mt Culverden, 14.84 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	4,428
Co-rupture Rate	9.499213E-4

Hope: Hamner SW, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	true
Co-rupture Count	4,629
Co-rupture Rate	9.663698E-4

Hope: Hamner SE, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,706
Co-rupture Rate	0.0026016564

Hanmer, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hope River, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	3,621
Co-rupture Rate	4.325534E-4

Kakapo, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	847
Co-rupture Rate	2.9260968E-4

Esk North, 9.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	6.4517955E-8

Hurunui Peak, 10.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	106
Co-rupture Rate	4.0488567E-6

Clarence: Southwest, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	1.6445538E-13

Elliott, 12.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	2.7222035E-5

Balmoral, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.0587912E-22

Hope: Conway, 12.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	3,633
Co-rupture Rate	0.0026016387

Clarence: Central, 13.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	true
Directly Connected?	false
Co-rupture Count	37
Co-rupture Rate	1.6445538E-13

Mt Culverden, 14.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMDcuMHZCYVU3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
